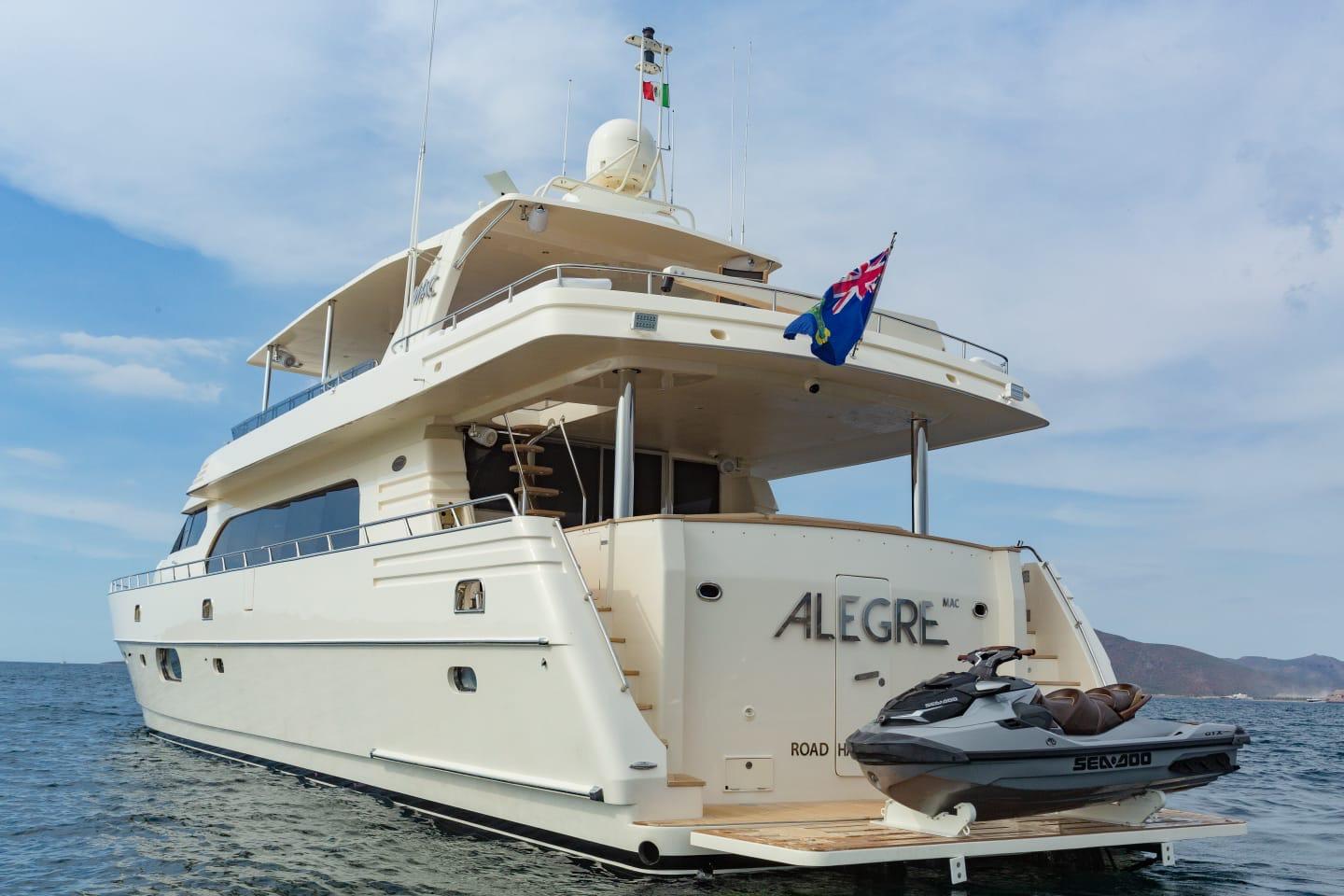

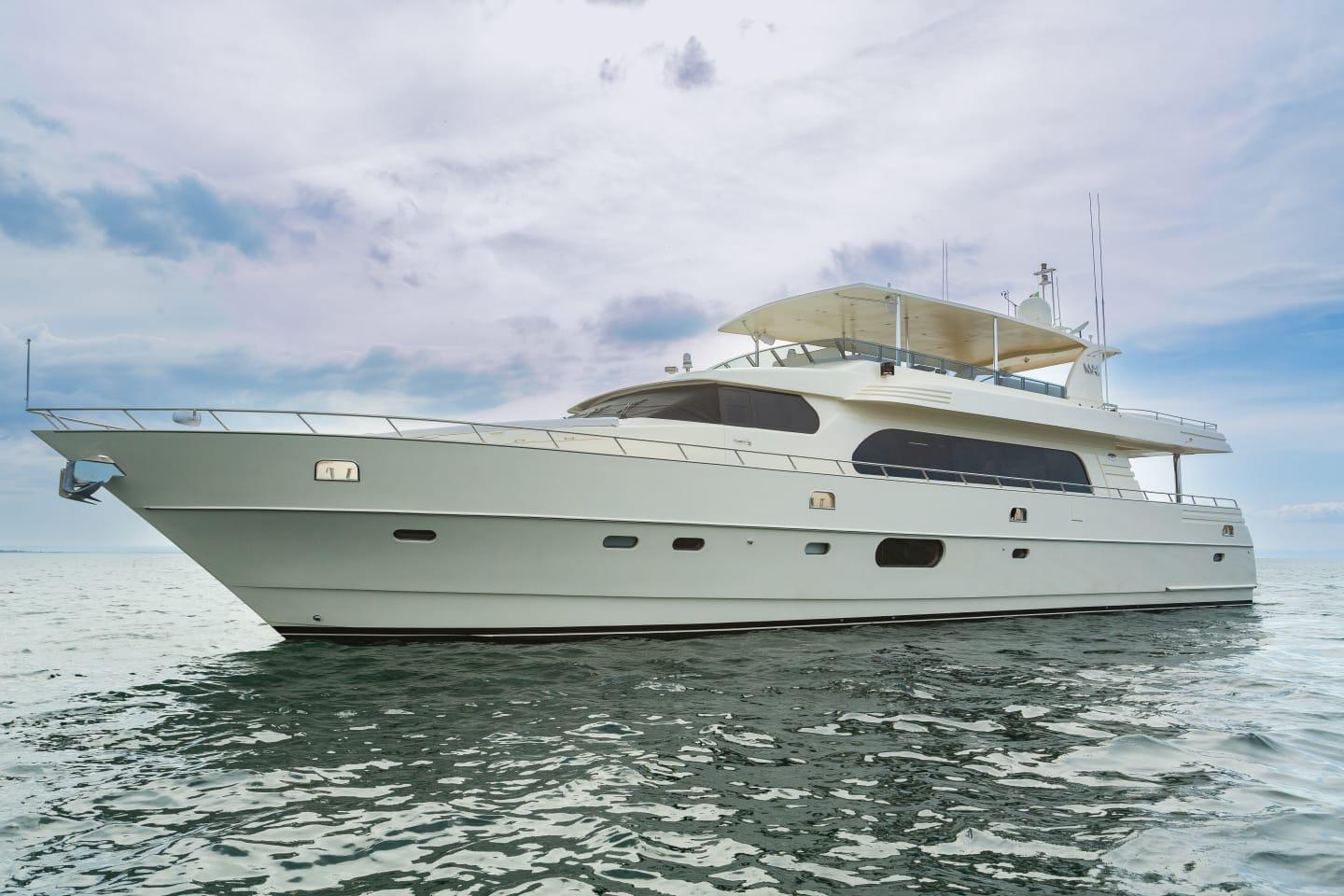

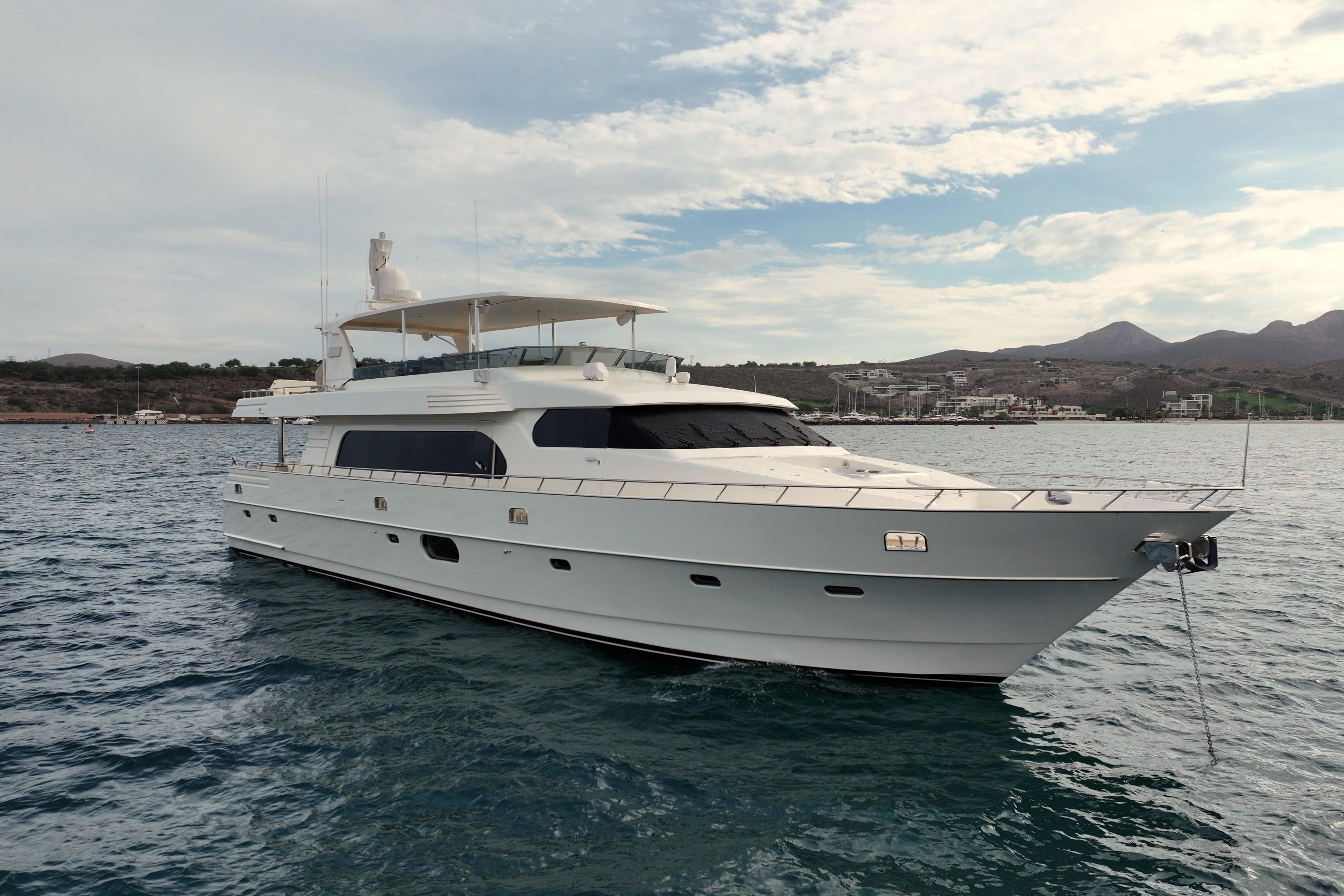

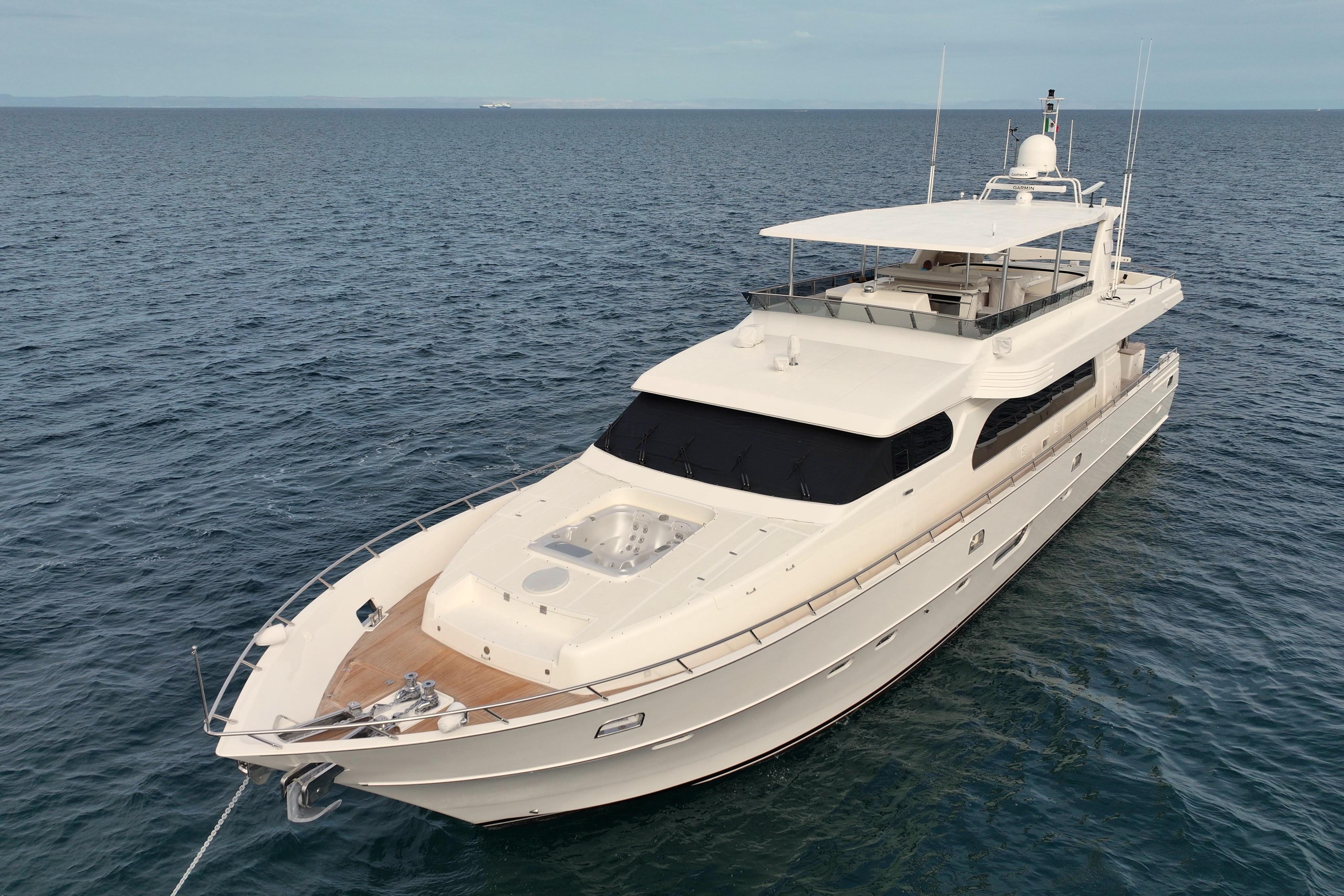

2004 Symbol 88 RPH Cockpit Motoryacht

JUGUETES AQUATICOS

1 MOTO ACUATICA MARCA SEEDOO

1 DINGUI MARCA NOVURANIA CON MOTOR 90 HP HORAS DEL MOTOR 584 HORAS

CAMAROTES Y TRIPULACION

4 camarotes y 4 baños en los twins qué son para invitados hay 2 camas en cada cuarto con su respectivo baño completo

Cuartos de tripulación son 2 cuartos   con  3 camas individuales en cada cuarto y 1 baño.


MAQUINAS

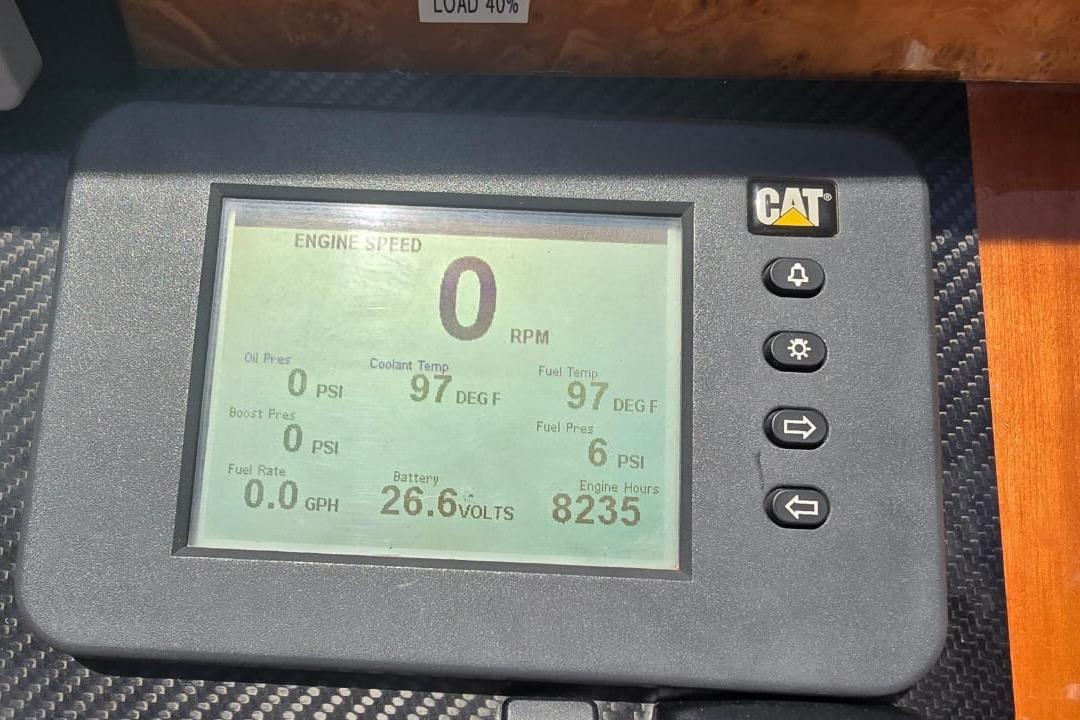

2 Maquinas caterpillar 3412

2 Generadores Northlight de 55kw c/u 9 unidades de aires acondicionados 1 caja de herramientas completa

1 esmeril en banco de trabajo

1 extintor para incendio

2 watermarket de 55 galones

EQUIPO DE NAVEGACIÓN

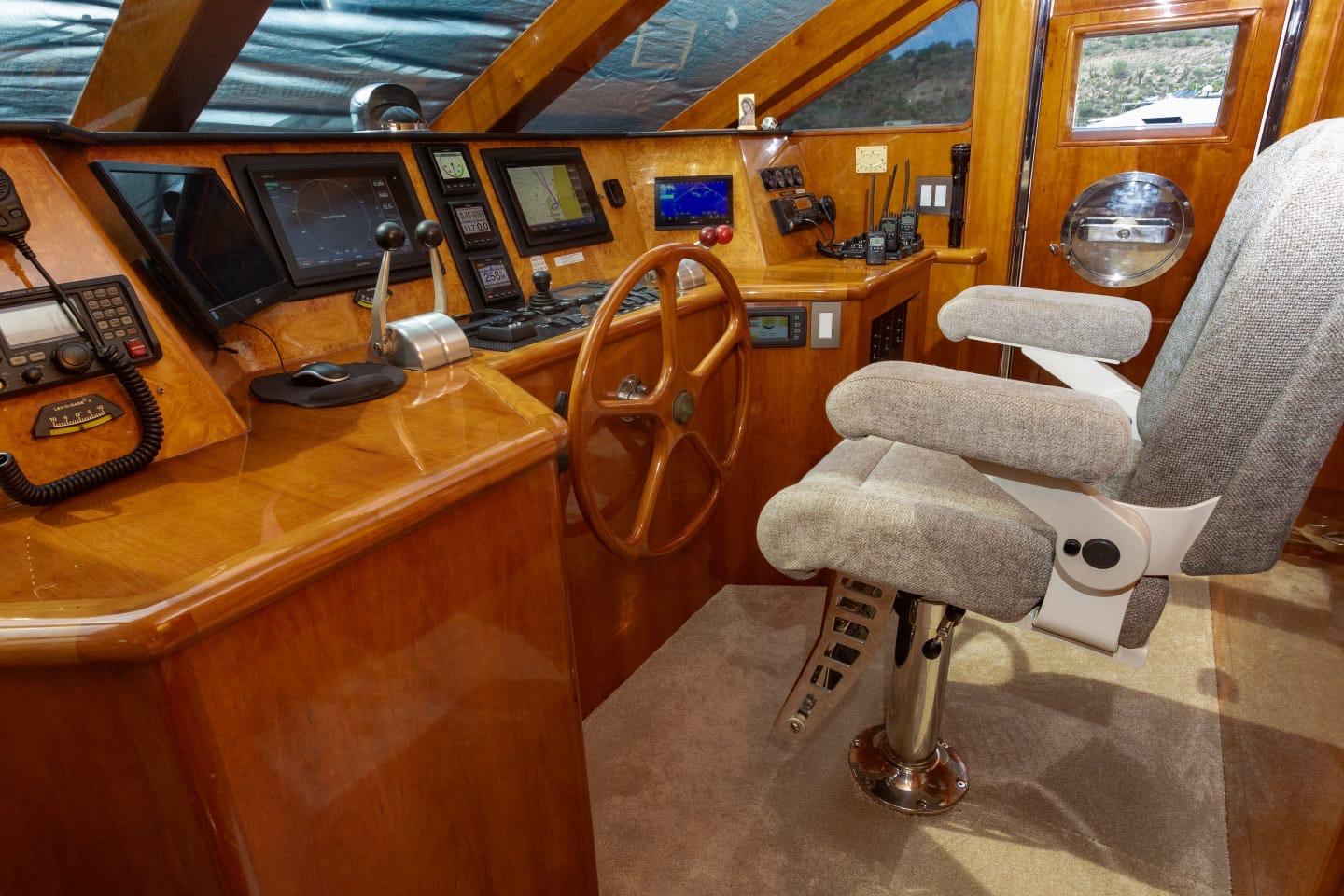

4 Pantallas para navegación

5 Pantallas multifunciones

2 Radares

1 Radio de banda lateral

4 Radios de comunicación fijos

6 Radios de comunicación portátiles 2 sondas

1 cámara nightvision flir

Lutron para iluminación en todo el barco

AUDIO Y VIDEO

Camarote VIP

TV (32")

Sistema de sonido Sonos (audio)

Control universal para uso de TV

2 bocinas

Equipo Sonos de audio

  controles inteligentes harmony

TWIN ESTRIBOR

TV 19"

Sistema Sonos (audio)

2 bocinas

Control universal para uso de TV

TWIN BABOR

TV 19"

Sistema Sonos (audio)

2 bocinas

AUDIO Y VIDEO MASTER

SMART TV 55"

SISTEMA 5.1 CINE EN CASA

4 BOCINAS Y 1 SUBWOOFER SONOS

Control universal para uso de TV

VIDEO SALA

SMART TV 50"

Sistema de audio 5.1 cine en casa

4 bocinas

AUDIO FLAYBRIBGE

6 BOCINAS JL AUDIO

2 SUBWOOFER

SISTEMA SONOS AUDIO

SITEMA DE AMPLIFICADORES QSC

AUDIO EN POPA

2 BOCINAS JL AUDIO

1 SUBWOOFER JL AUDIO

SISTEMA DE AMPLIFICADORES QSC

AUDIO PROA (JACUZZI)

2 BOCINAS JL AUDIO

1 SUBWOOFER JL AUDIO

SYSTEMA DE AMPLIFICADORES QSC

Equipment

1. Deck Hull & Structure

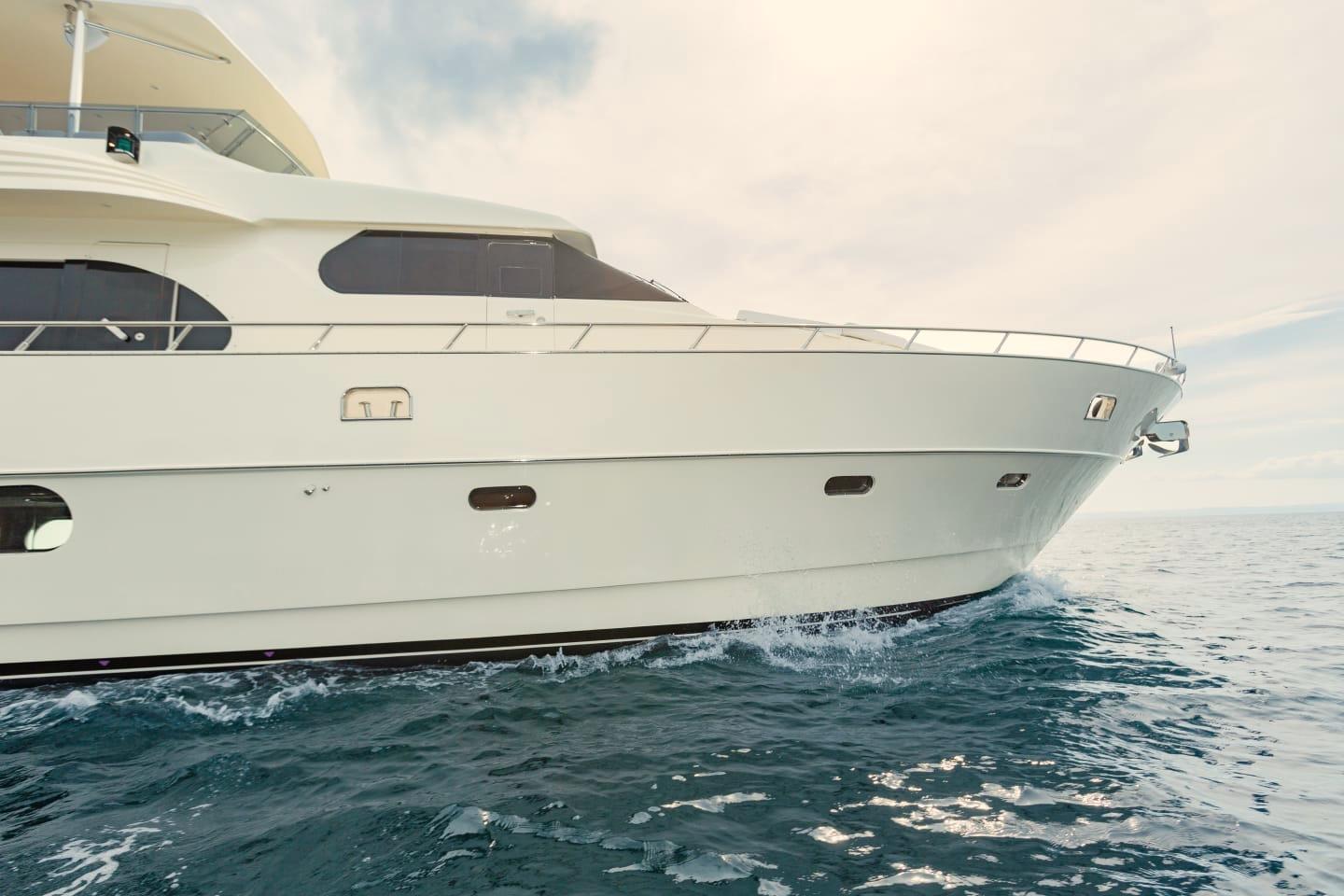

Hull lamination
• Below waterline … Solid fiberglass, vinylester resin for the first three (3) layers
• Above waterline … Clesed cell high destiny linear foam cored sándwich lamination
• Gelcoat .. “Cook” – 953 series, off-white

Ø Shaft strut … two (2) V-struts, 316-grade S/S (stainless steel)
Ø Bottom Paint (with barrier coat) features
• Bottom Paint … petit “Trinidad”
Ø Boot stripe … Awlgrip or equivalent
Ø House stripe (if used) – Awlgrip equivalent
Ø Rub rail – Heavy Duty rubber or PVC with Stainless Steel insert
Ø Web Frames & Stringers … Laminated polyethylene foam
Ø Water Tight Bulkheads
• Four (4) units to saparate five (5) compartments
• Closed cell high density PVC foam cored lamination

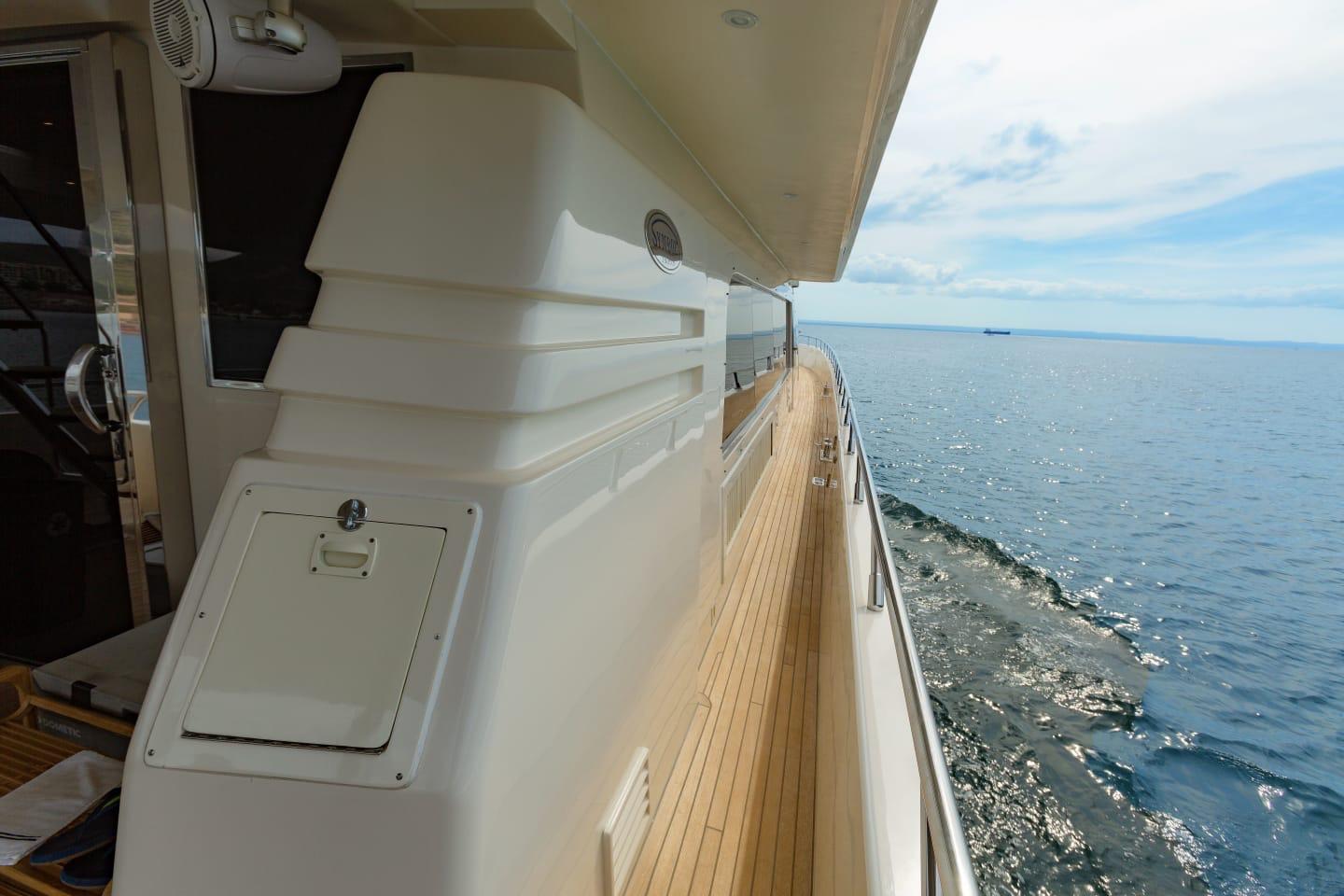

Ø Main Deck
• Closed cell high density PVC foam cored lamination
• Molded non-skid
• Scuppers and drains for aceptable wáter run-off
Ø Main Deck Stanchion Rail
• Main deck … S/S 316, 1 – ½ “diameter hand rail w/ 1 ¼” stanchion round tuve, 332 high
• Flybridge
1. Side … 316-grade S/S, 1 ¼” diameter, round tuve
2. Rear … 316-grade S/S foldable post with S/S lifline
Ø Flybridge Venturi Frame … 1 ¼” diameter, 316-grade S/S
Ø Radar Arch … Molded fiberglass construction w/stainless Steel mast light

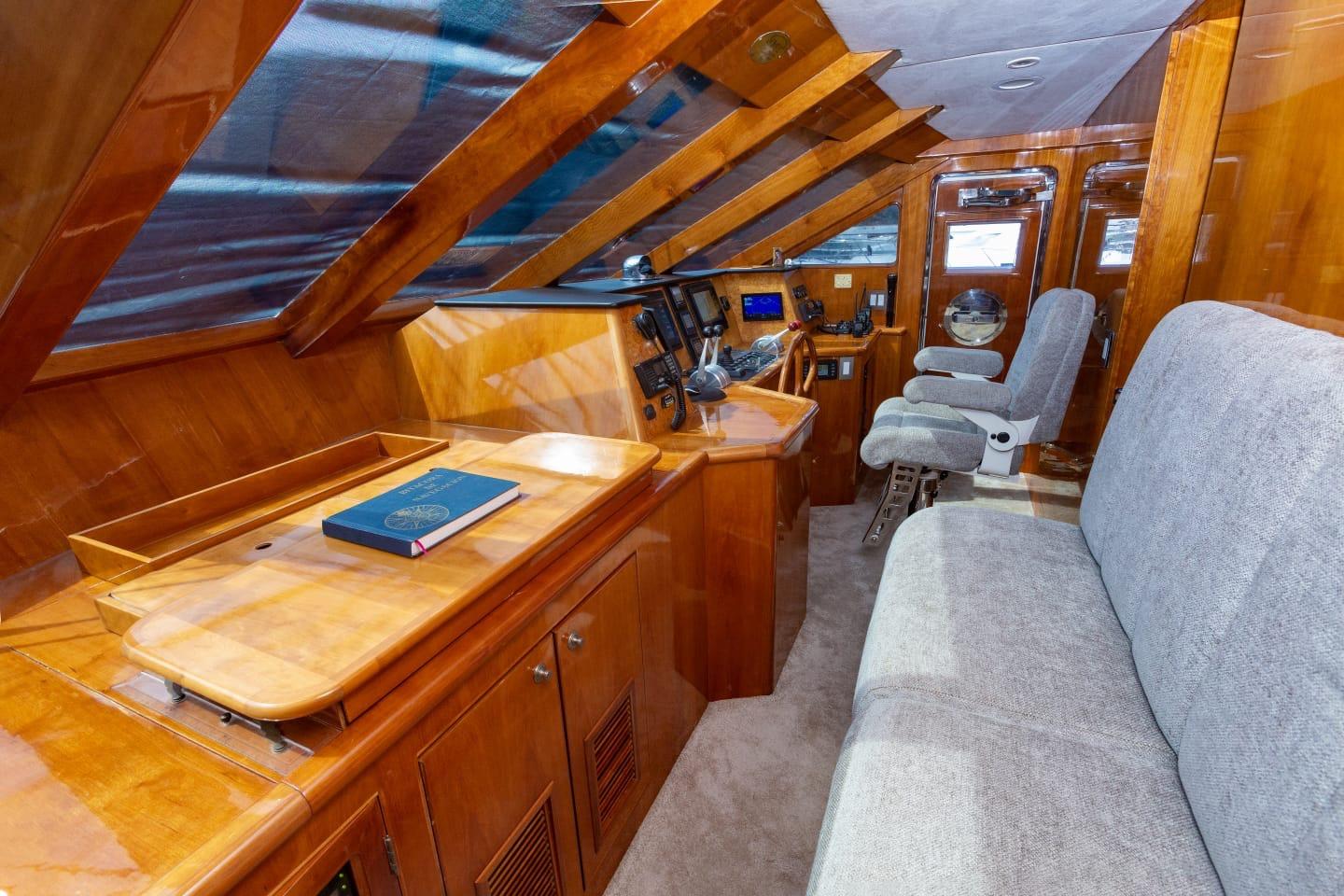

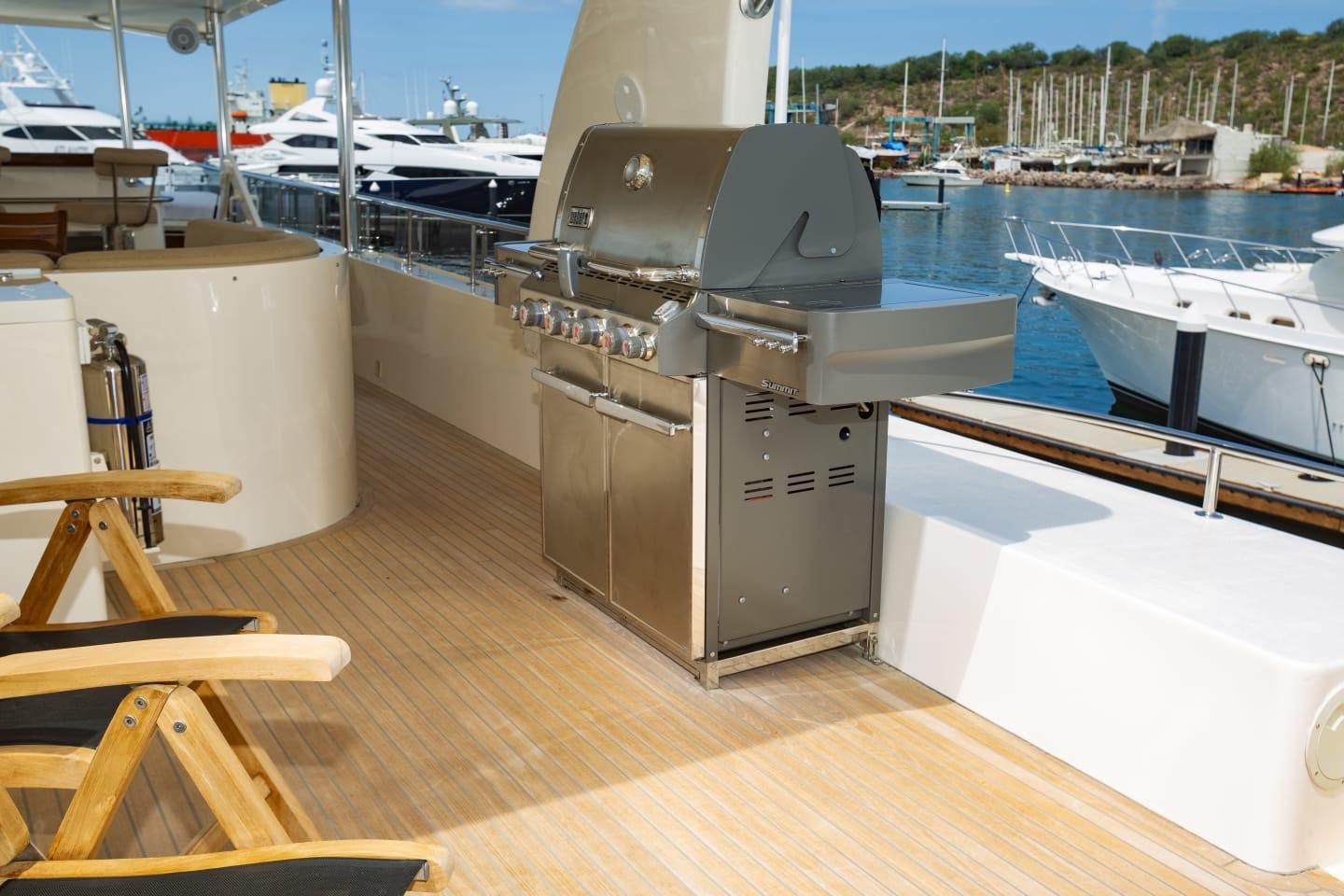

Ø Flybridge
• Molded non-skid deck

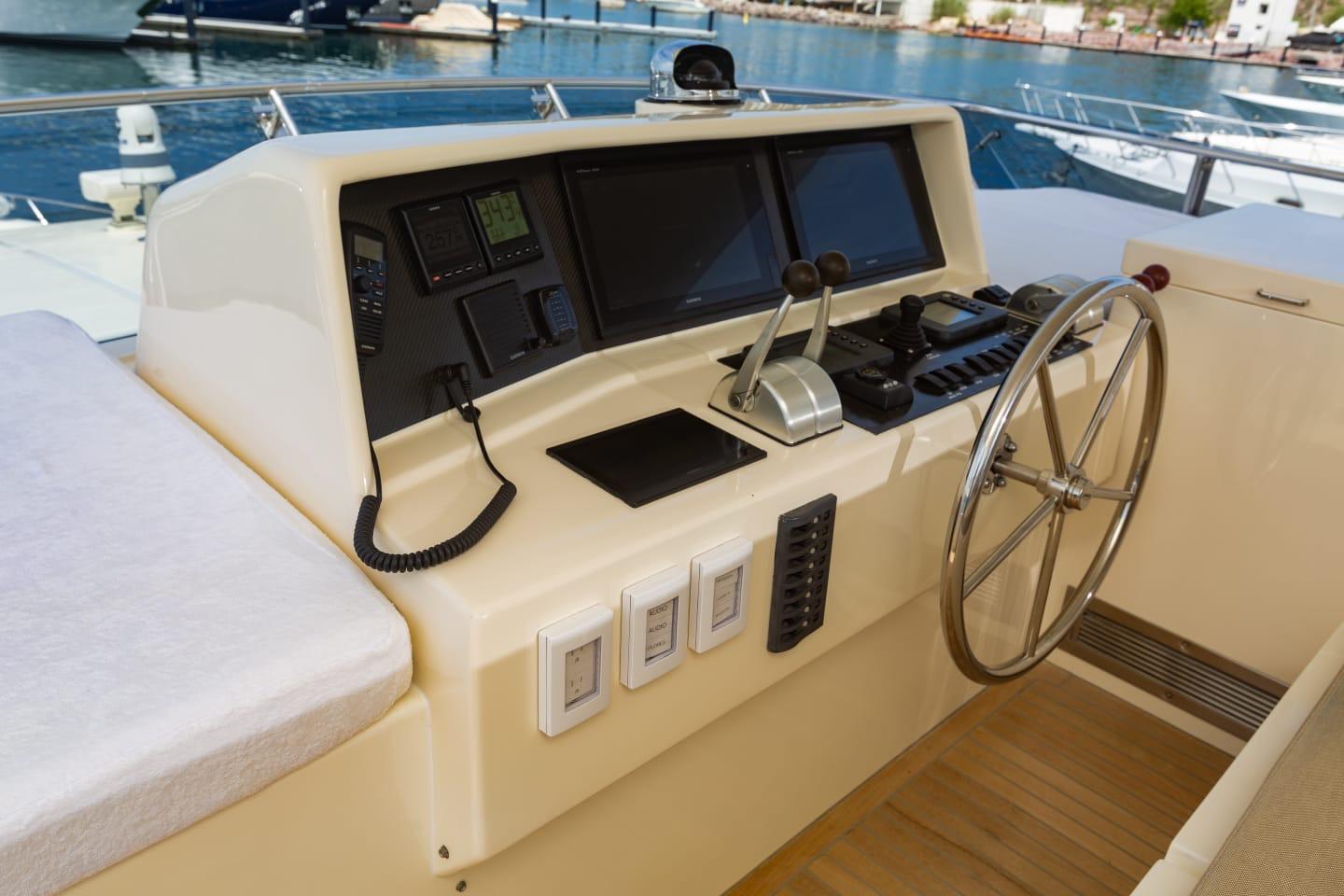

• Instrument Panel … Molded-in fiberglass
• Helm Seat – Fixed FRP bench type w/reversible back rest

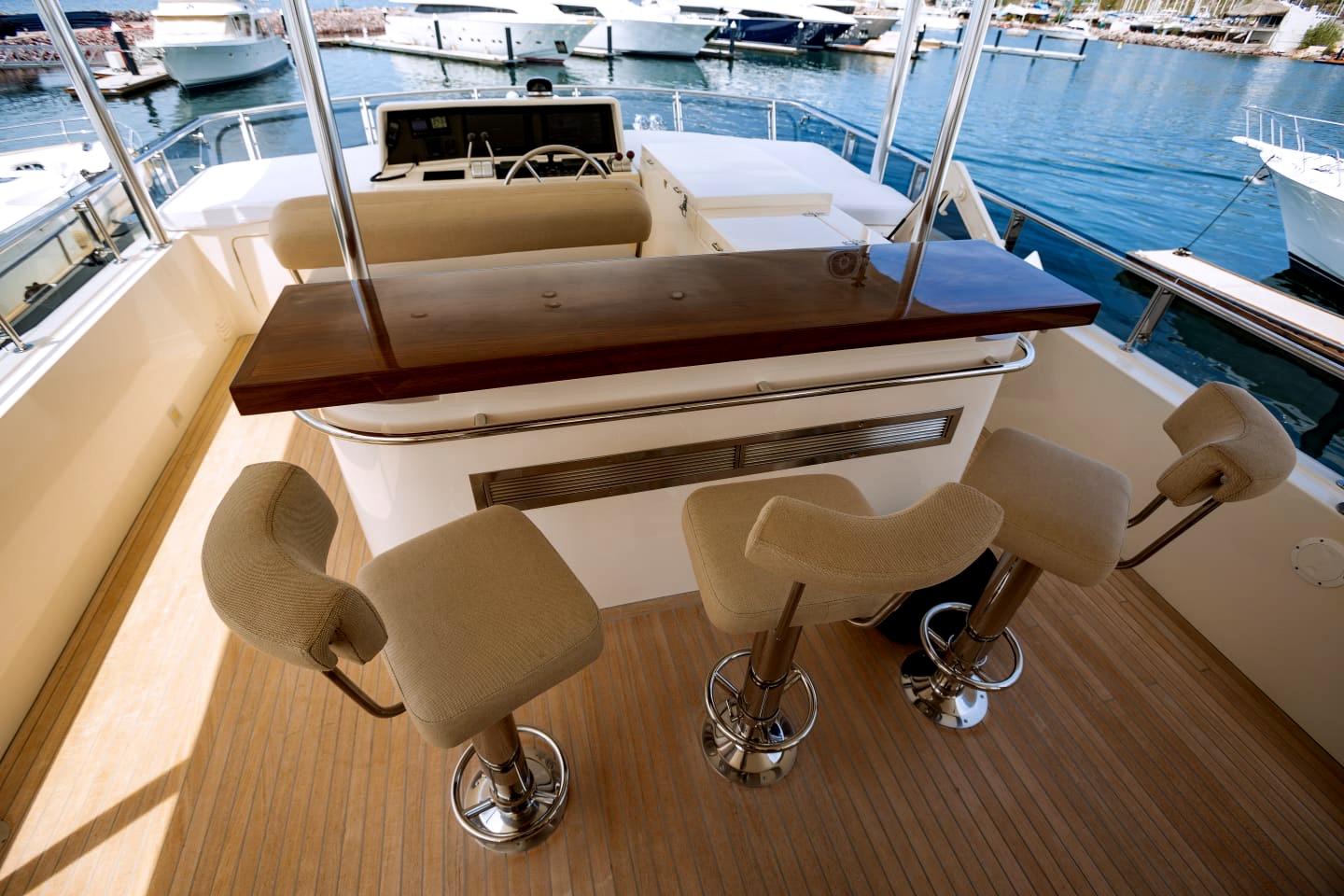

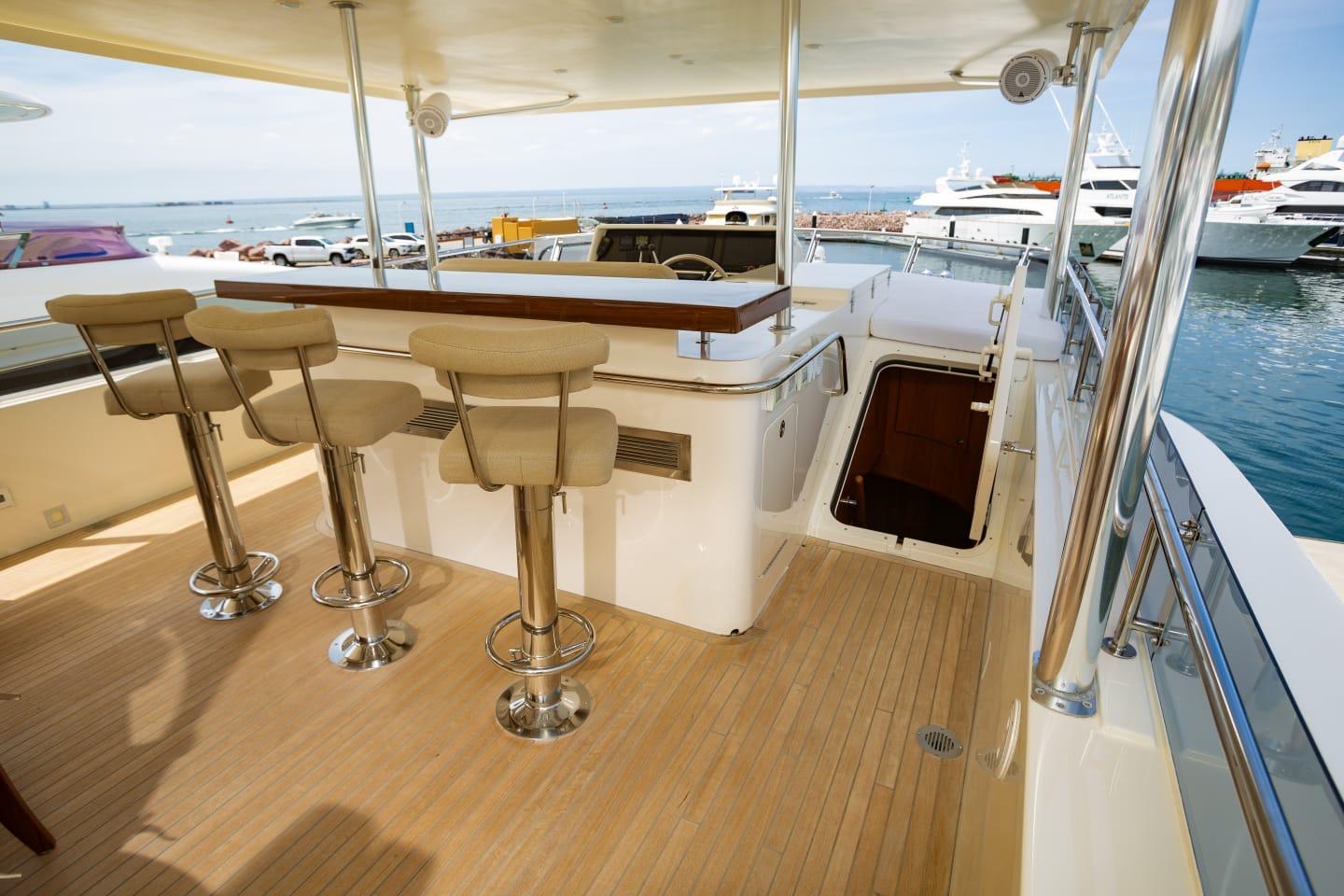

• Island bar with, sink, fresh wáter and refrigerator w/icemaker. (3) stools.

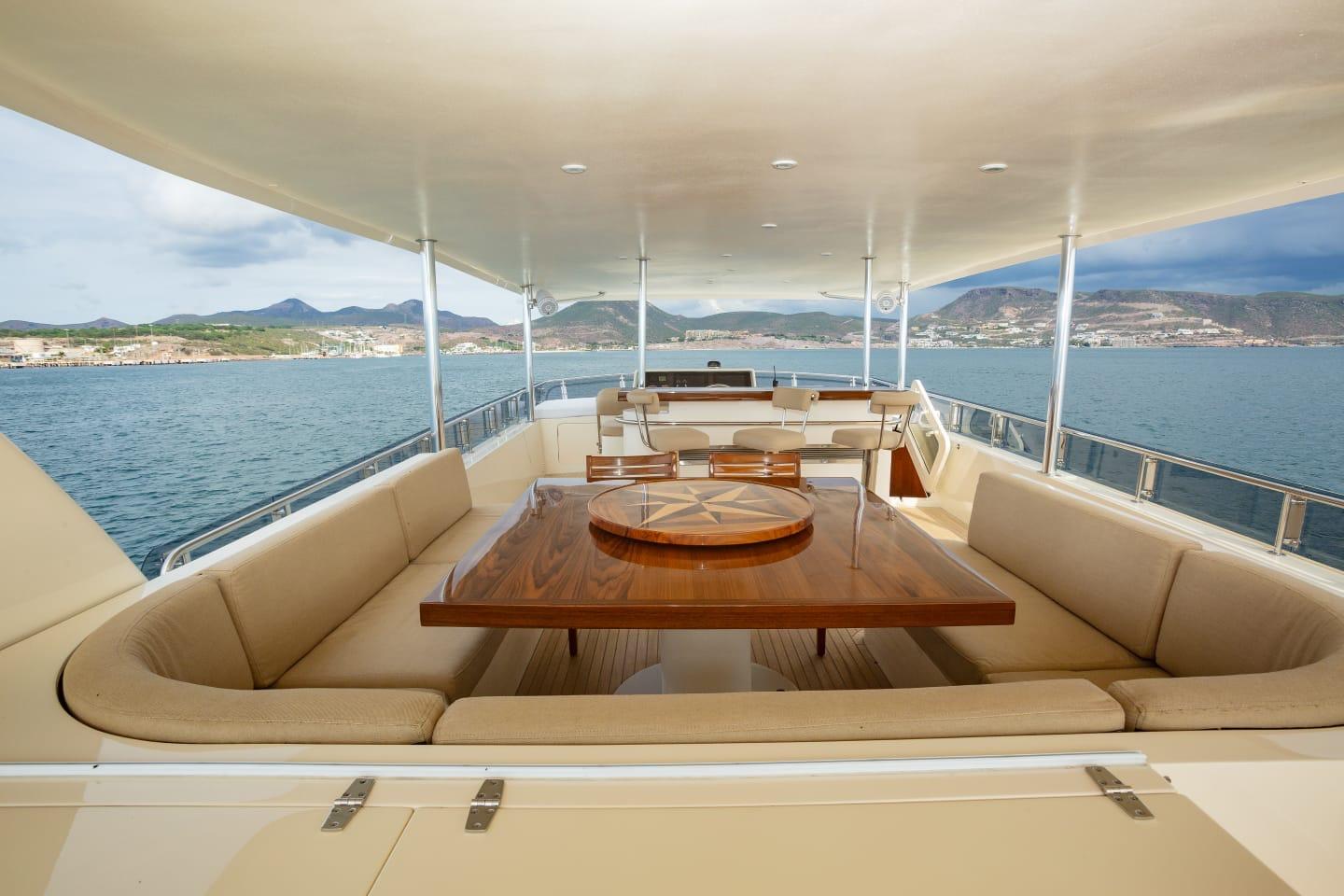

• Custom raised FRP settee with cushions and hi-lo table with teak flooring.
• Sunpad área with removable foam cushions covered in sunbrella or equal
• Molded “hard top” with recessed lighting. Dimensions will be forward of the radar arch forward to windscreen.
• Shower with drain grate
• Extended railing around stern end with safety lines.

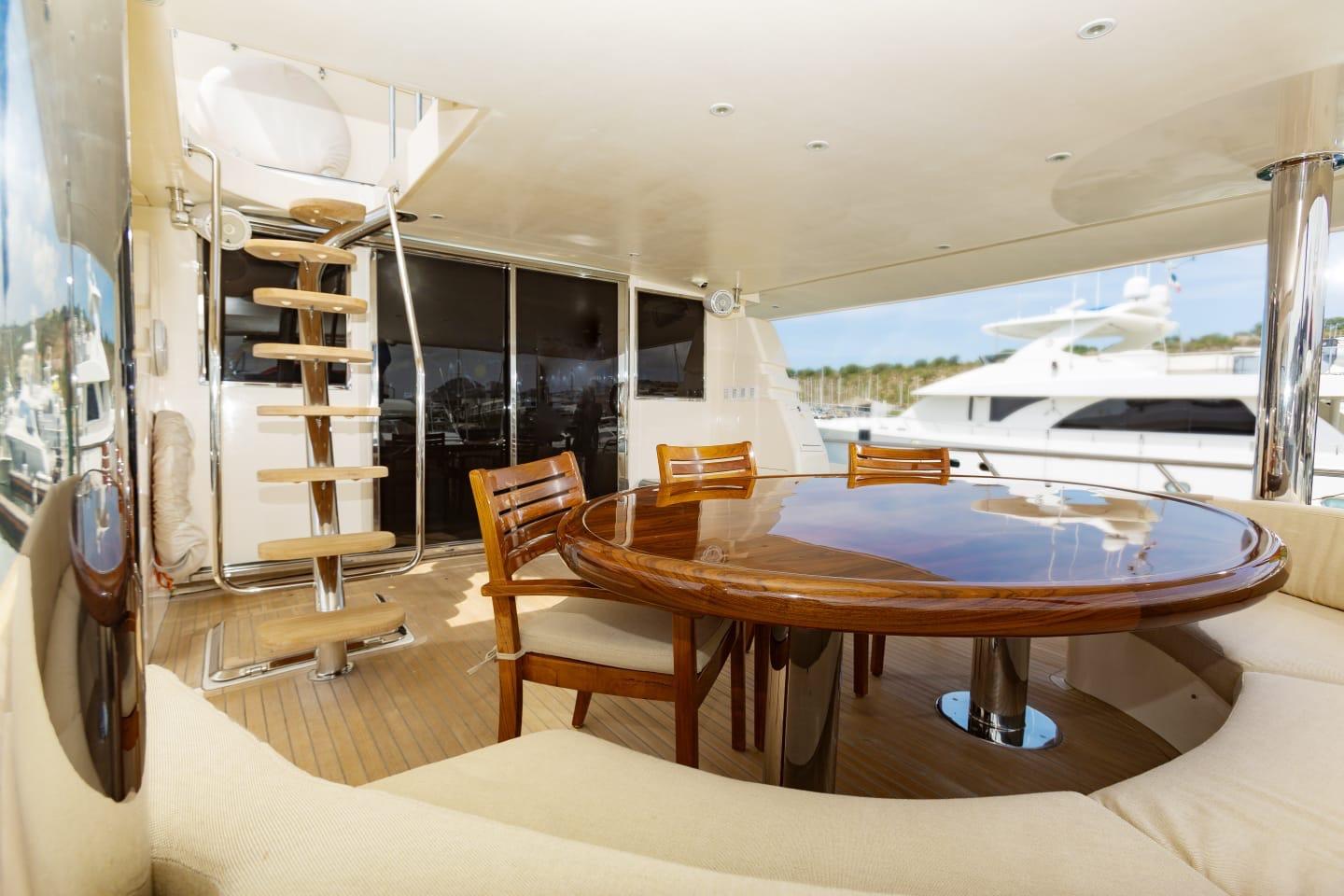

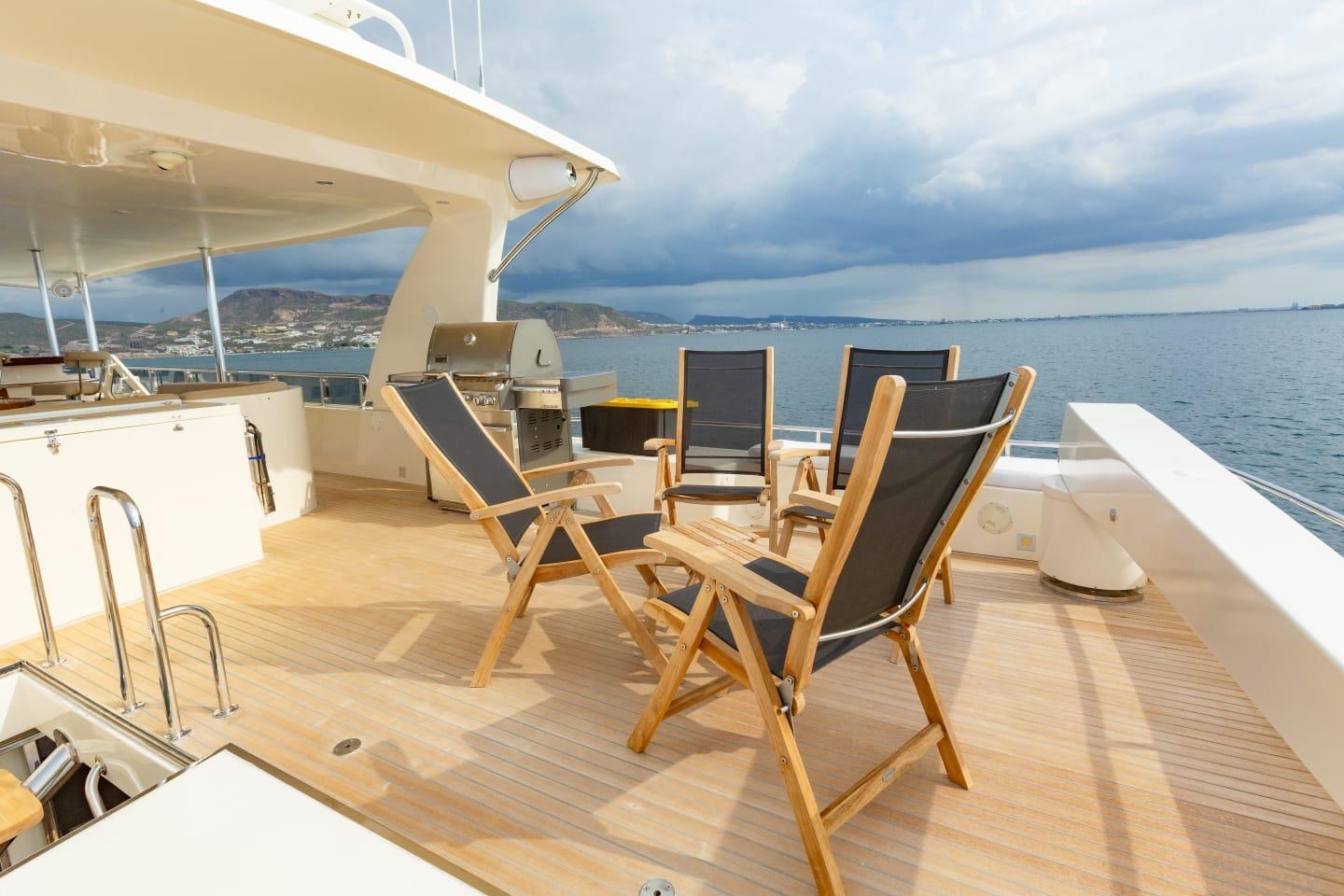

Ø Aft deck
• Teak plank flooring

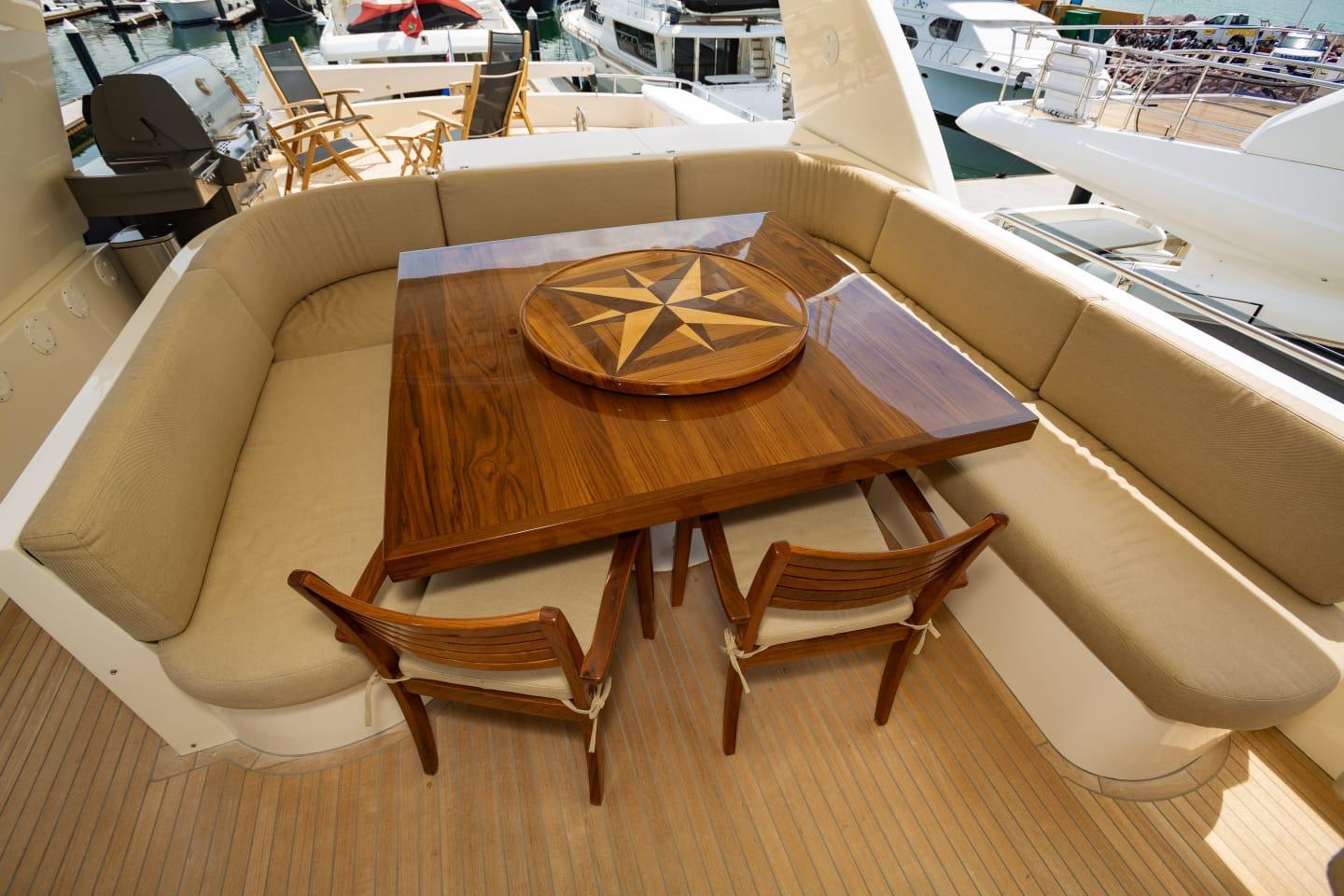

• Wood table and FRP settee with cushions for 12 person per approved drawings
• Teak cap railing for aft deck área
Ø Fore deck

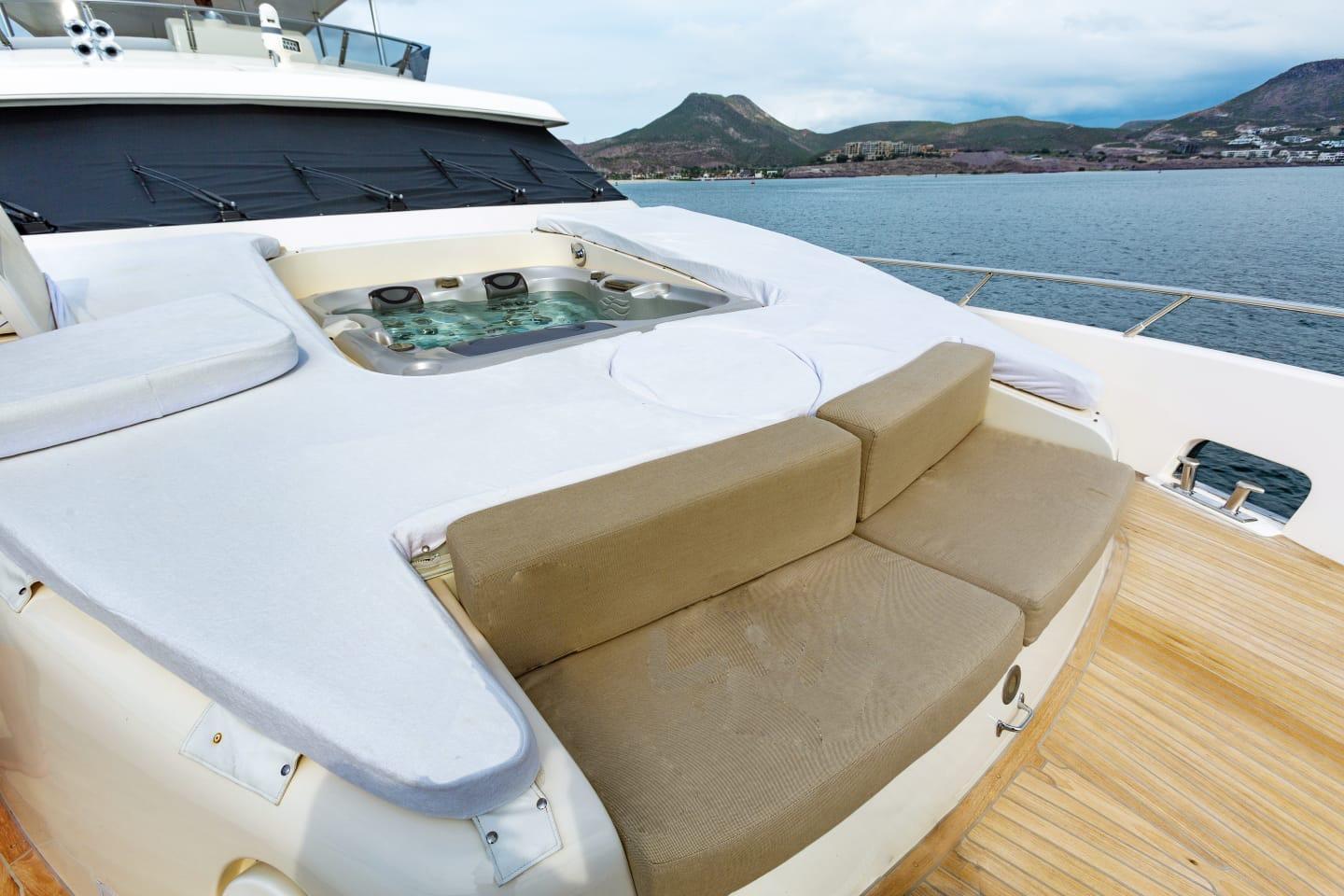

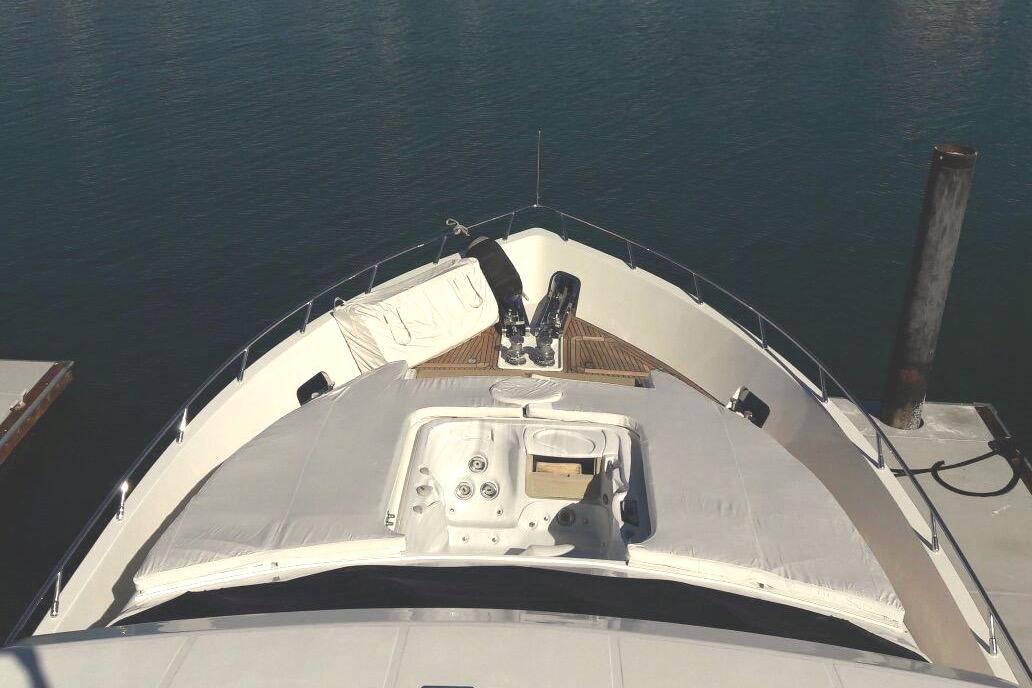

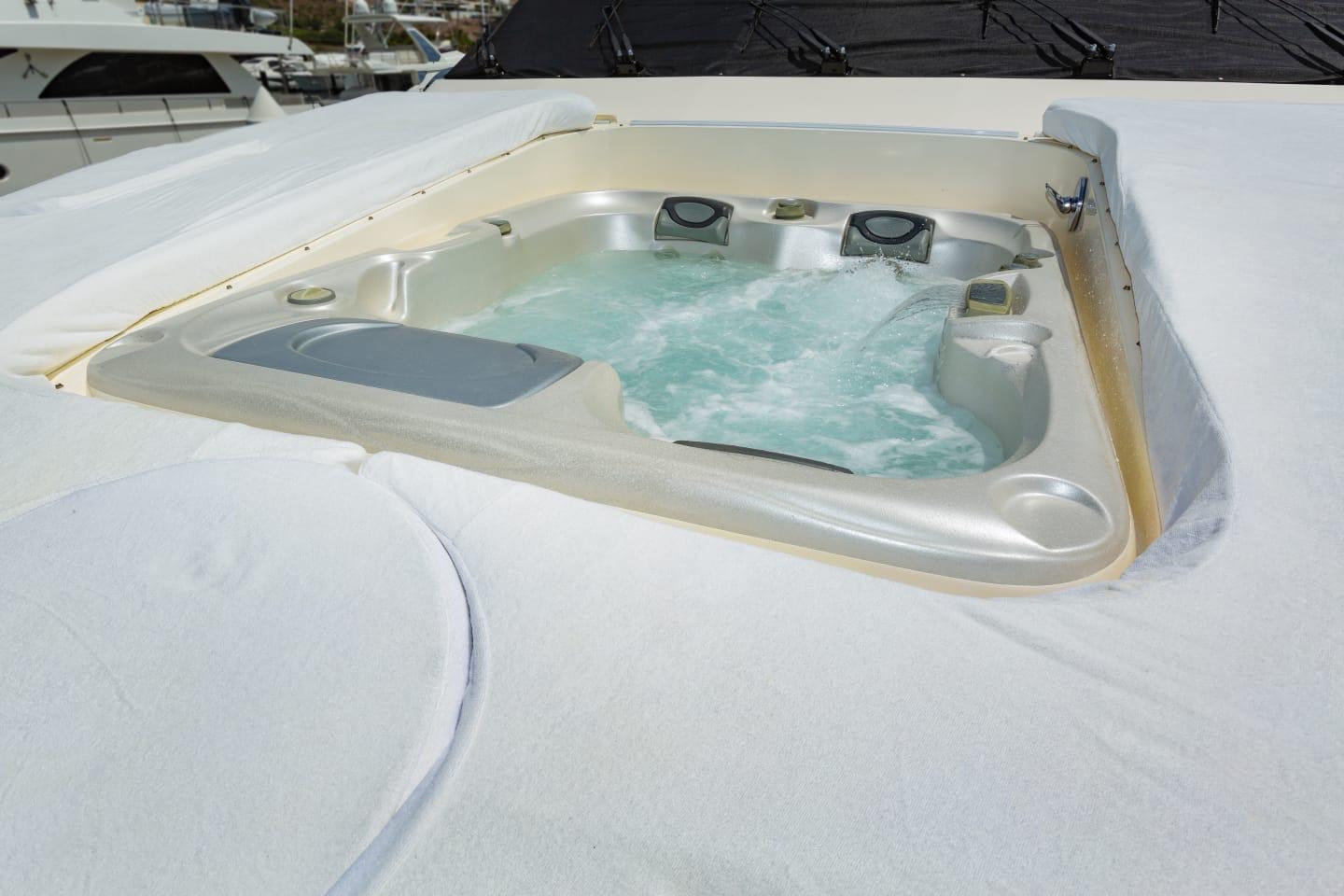

• Built in jacuzzi with removable sun cushions covered with sunbrella or equivalent and cover
• Built in seating with cover
• FRP doublé anchor pulpit with rode, roller, 100’ of chain and 100´of rope
Ø Cockpit – Eurotransom style
• Teak covered F.R.P. steps leading to the aft deck on port and stbd sides with transom gates
• TNT (or equivalent) boat lift with removable chocks for wáter toys. Swim ladder
• Cabinet for shower/shore, wáter/shore, power/TV cable connectors
• Transom shower
Ø Window / Door System
• Forward windshield & salón sides … Frameless fixed Windows
• Salon aft deck door … 316-grade S/S – Opposing opening
• Salon stbd door (1) … Pantograph door
• Salon aft Windows … framed stainless Steel
• Pilothouse side doors (1) … Pantograph doors (port & starboard)
• Flybridge door … PCMI, U.S.- made aluminum hinged door
• Tempered glass for all Windows

1. Mechanical Systems
   Caterpillar 3412E (1400 HP) engines
   Ø Shafts
   • Two (2) ANSI 630 (or equivalent) shafts
   • Shaft log … FRP shaft log + PYI dripless stuffing box
   • Cooled rubber bearing for shaft support
   Ø Propellers (2) magnesium bronze 3-bladed
   Ø Engine room vent blower/system
   • Two (2) Delta T system 806 XL (or equivalent) for hot air extraction
   Ø Engine throttle & shift control
   • Dual station, Hynautic
   Ø Engine cooling system per engine
   • Sea wáter intake through hull
   • Sea wáter strainer (DIA. 2 ½”)
   Ø Automatic oil change system-for both engines and generators
   Ø Fuel tankage – 2500 gallons as practical.
   • Fuel lines – all color coded copper tubing
   • Grocco fuel transfer pump
   Ø Fuel Filters … Racor 1000 Series (2 per engine),
   • Gensets -(1) Racor 500 each
   Ø Exhaust System (2) Two semi-wetted exhaust system above waterline (DIA. 8”) Unicraft (U.S.-made) F.R.P. tube and muffler
   Ø Steering Wheels –
   • Flybridge 316-grade S/S, DIA. 26”
   • Lower helm Teak, DIA. 26”
   Ø Rudder Blade (2) Two 304-grade S/S, aero foil section, Aquamet 22 (or equivalent)
   Ø Power Steering System
   Ø Rudder Stock Stuffing Box Tide ”3000RPP” dripless stuffing box
   Ø Emergency Tiller 304-grade 5/8 in lazarette
   Ø Wesmat Hydraulics System
   Ø Wesmar Stabilizers - 9 sq ft /RS900
   Ø Wesmar Hydraulic Bow Thruster - V2-12H / 40 HP
   Ø Watermaker - 1320 GPD - Village Marine
   Ø Hydraulic System - Wesmar HPT—100
   Ø Passarelle - fixed and storable type to attach on main aft deck level aft with gate designed into railing
   Ø Davit - UMT 1500 lb on flybridge with removable deck chock fittings.
   Ø 133,000 BTU Marine Air Conditioning with digital controls.
   • Back up air-conditioning pump

III. Electrical System

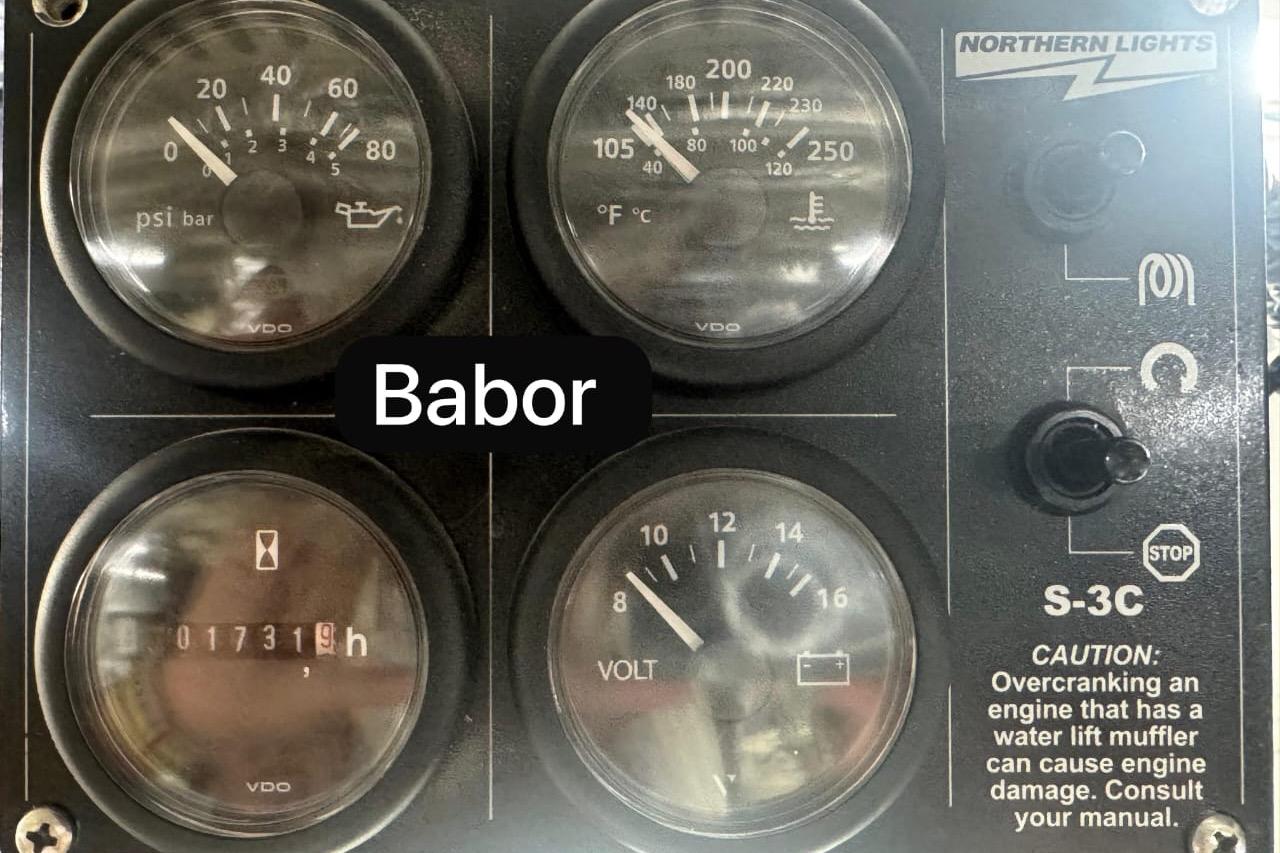

• (2) Northern Lights 55 Kw Gensets w/sound shields
Ø Shore Power Receptacle (2-50 AMP VAC outlets)
• Marinco 6371 EL — 125V AC, 50A or Marinco 6373 EL - 125/250VAC, 50A
Ø Service (House) Batteries (all batteries neatly stored in fiberglass boxes)
• Marine Group 31 (8x), 300 AH @ 24V
Ø Engines Start Batteries
• Marine 8D (2x), 200 AH @ 24V
Ø Instrument 8: Electronics Batteries
• Marine Group 31 (2x), 200 AH @ 12V
• Battery charger
Ø Generator Battery
• Marine Group 31 (2x), 100 AH @ 12V
Ø Battery Charger Professional ”Promatic 35 ~ 3” or equivalent
Ø Wiring System
• Color-coded wiring system (identifiable in neatly run bundles and approved conduits). Per A.B.Y.C. guidelines
• Main feed line fuse/breaker per A.B.Y.C. guidelines
• Separated VAC 8: VDC conduits
• Tin~coated copper multi-strand wiring throughout
• TV Cable and CATS type Network preawiring provided throughout
1. Shore Telephone/T V Connector Marinco PH-6592-TV
Ø Main Switch Panel
• 24 VDC distribution panel with ammeter and voltmeter
• 120/240 VAC distribution panel with ammeter and voltmeter
• Selective switch/breaker for genset/shore power selection
• Industry standard thermal breakers — properly labeled with spare circuits.
Ø AC Outlets
• I Interior 110 VAC duplex outlets throughout
• G.F.I. outlets... galley, flying bridge, engine room (3: heads
• Exterior outlet G.F.I. + Hubbell CWP26CR (S/S cover)
Ø Lighting Interior Lutron 110 Volts and Ext. 24 V. Lumitec Bicolor
• Spreader lights Three (3) Par 45900-0001
• Exterior Flood lights Two (2) Par 45900-0001
• Exterior courtesy lighting
• Interior courtesy and accent lighting
• Engine room
1. Four (4) 120V fluorescent lights
2. vapor-proof 24 VDC lighting
Ø Bonding System
• Cathodic Zinc(s) Two (2) B-5
• lsolator Newmar "Zinc Save II” Brass shaft grounding brushes

1. Command & Surveillance
   Ø Rudder Angle Indicator
   Ø VDC gauges for ancillary monitors
   Ø Tank Level Gauge
   • Fuel/water WEMA P7W
   • Holding tank SeaLand Tankwatch IV
   • Bilge water Rule #37 (4)
   • Bilge alarm Groco AS-100
   Ø Bilge Alarm Panel Flybridge helm & pilothouse
   Ø Compass — Danforth 580 (1) each for flybridge and lower helm
   Ø Windshield washer and wipers
   Ø Air Horn
   Ø Navigation Lights Aqua Signal 55 series (P., 5., Stern, Mast, Anchor)
   Ø Searchlight with dual controls
   Ø Engine Room Fire Alarm System — ”Fire Boy” alarm panel
   Ø Engine Room Fire Extinguisher Fire Boy CG2-1000
   • Portable dry chemical fire extinguishers throughout vessel
   • Smoke detectors throughout vessel

1. Auxiliary Systems
   Ø Ventilation System
   • Galley fan blower Par 35440-0010 ( ” diameter)
   • Shower compartment vent blower Par 36740—0010 (3" diameter)
   • Forward bilge blower Par 36740—0010 ( ” diameter
   Ø Fresh water
   • Tankage 350 U.S. gallons in 4 tanks, “Ronco”, polyethylene
   • Fresh water pump Grocco PRS
   • Back up Groco fresh water pump
   • Accumulator Grocco PST—2
   • Fresh water system lines
   1. Cold ”Whale” 22 mm, blue - WS7222
   2. Hot ”Whale” 22 mm, red — WS722
   • Water Heater (2) Torrid MV—30 (30 gallons, U.S.-made)
   Ø Windlass Hydraulic
   • Control Dual station w/foot switches on foredeck
   Ø Anchor Ace - 316L-grade S/S, 90#
   • Fiberglass pulpit for two anchors
   Ø Cleats Six (6) units at the bow area and amidships
   • Hawse w/cleat Two (2) units at the cockpit
   • Adequate lines and fenders
   Ø Central vacuum system
   Ø Toilet System
   • Electric heads - Par/Jabsco ”Quiet Flush” Designer Series
   • Y—selector “Bosworth — 95"
   • Holding tank One (1) polyethylene tank (50 gallons), SeaLand
   • Odor vent filter SeaLand 310002
   • Macerator pump One (1) SeaLand T24
   • SeaLand OdorSafe® sanitation hose / PVC tube between macerator pump and discharge seacock
   Ø Bilge Pump System
   • Engine room &; lazarette Rule — 16A, 3700 GPH
   • Elsewhere Rule - 12A, 2000 GPH
   • Manual One (1) Bosworth M-5-V in engine room
   • Sump pump One (1) Rule - 12A, 2000 GPH

1. Accommodations 3: Furnishings
   Ø Stairways

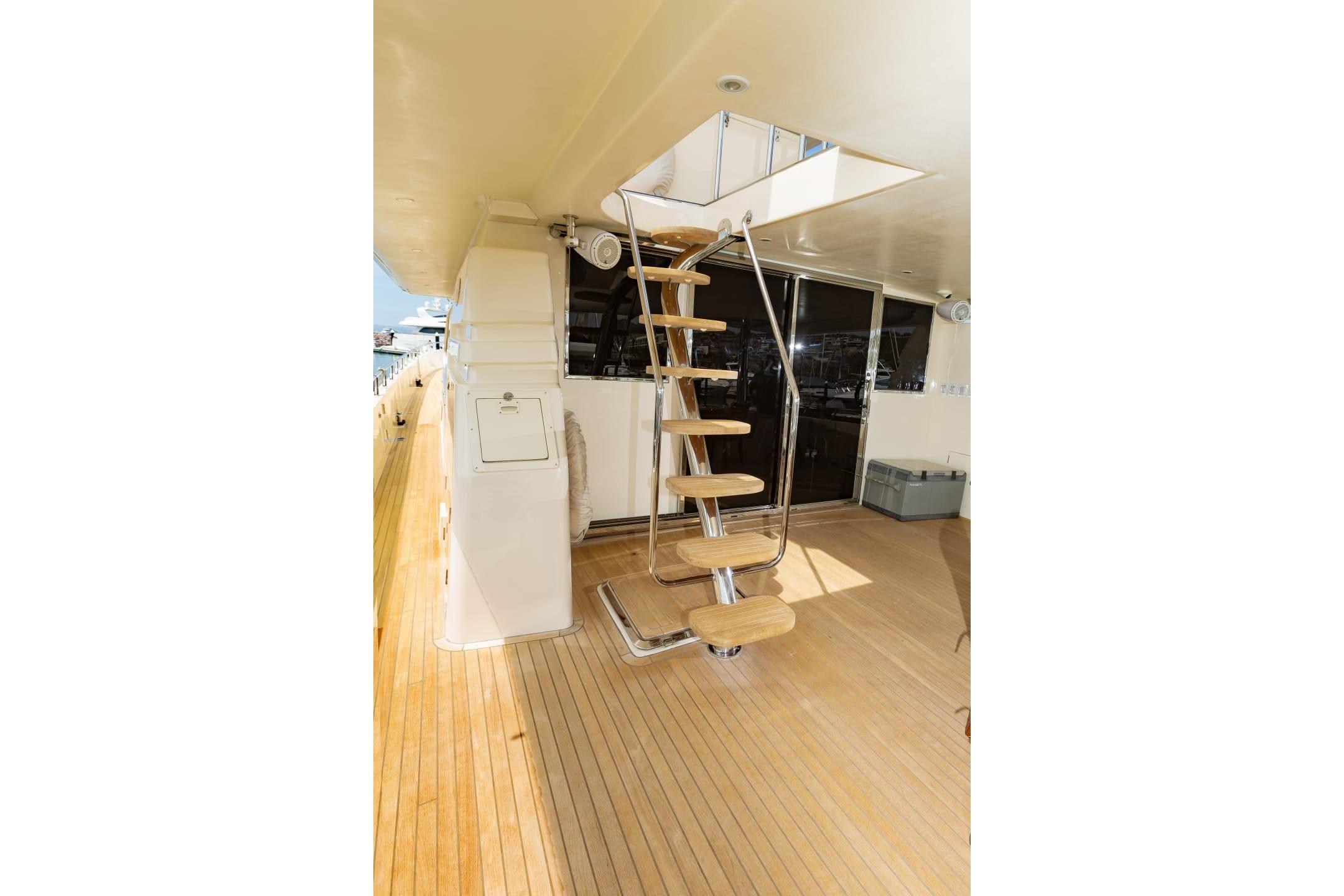

   • Aft deck to flybridge 316-grade 5/5 with ERJ’. Step
   • Pilothouse up to flybridge Wood and stainless steel per drawing details
   • Pilothouse down to lower level Carpet or teak/holly with wood handrail and accent rope lighting
   Ø Forward Cabin Escape Hatch Bomar 2085ª
   Ø Portholee (8) Eight opening type 8” x 22", oblong shape, 316—grade SIS
   Ø Interior Wood Paneling - High gloss teak

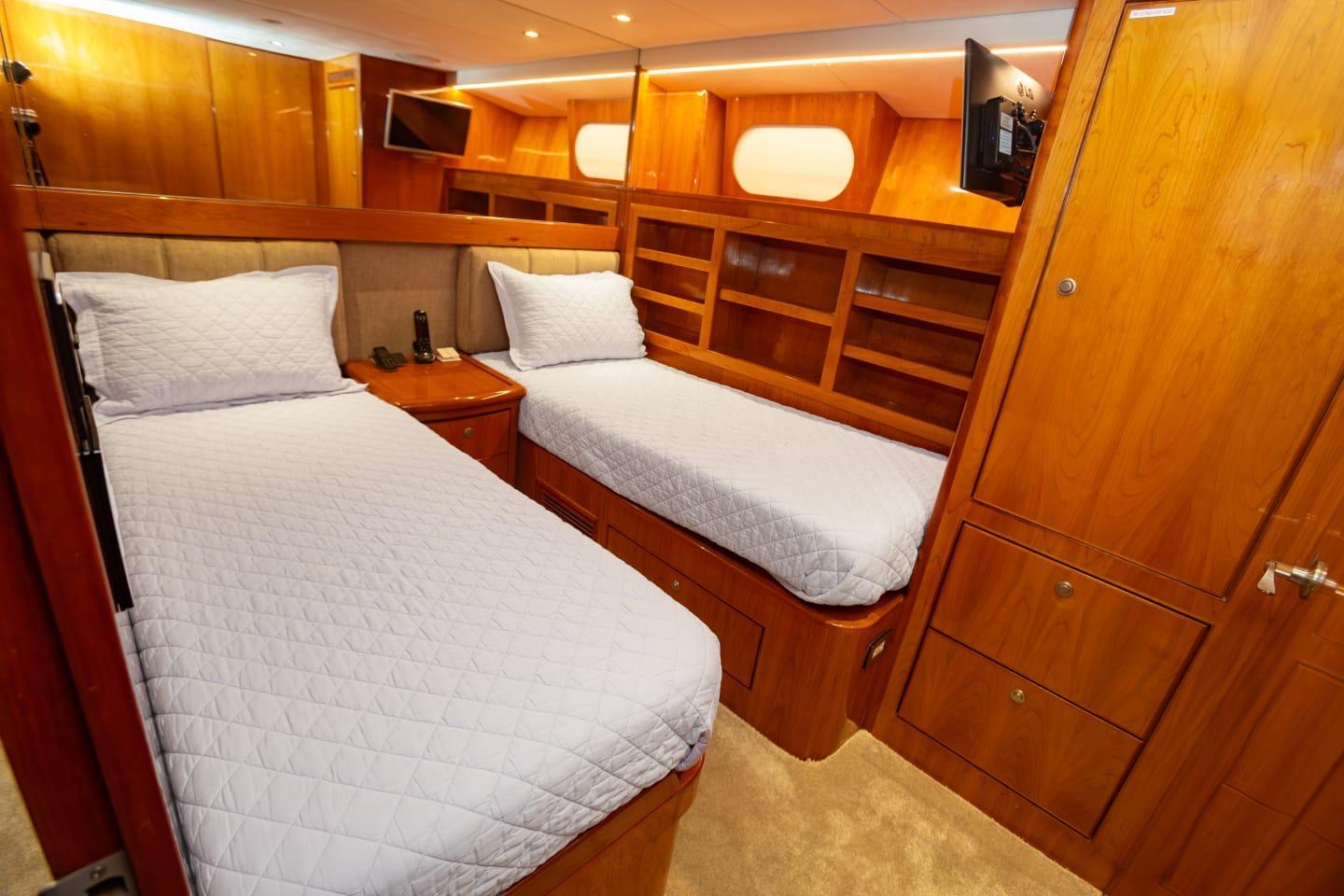

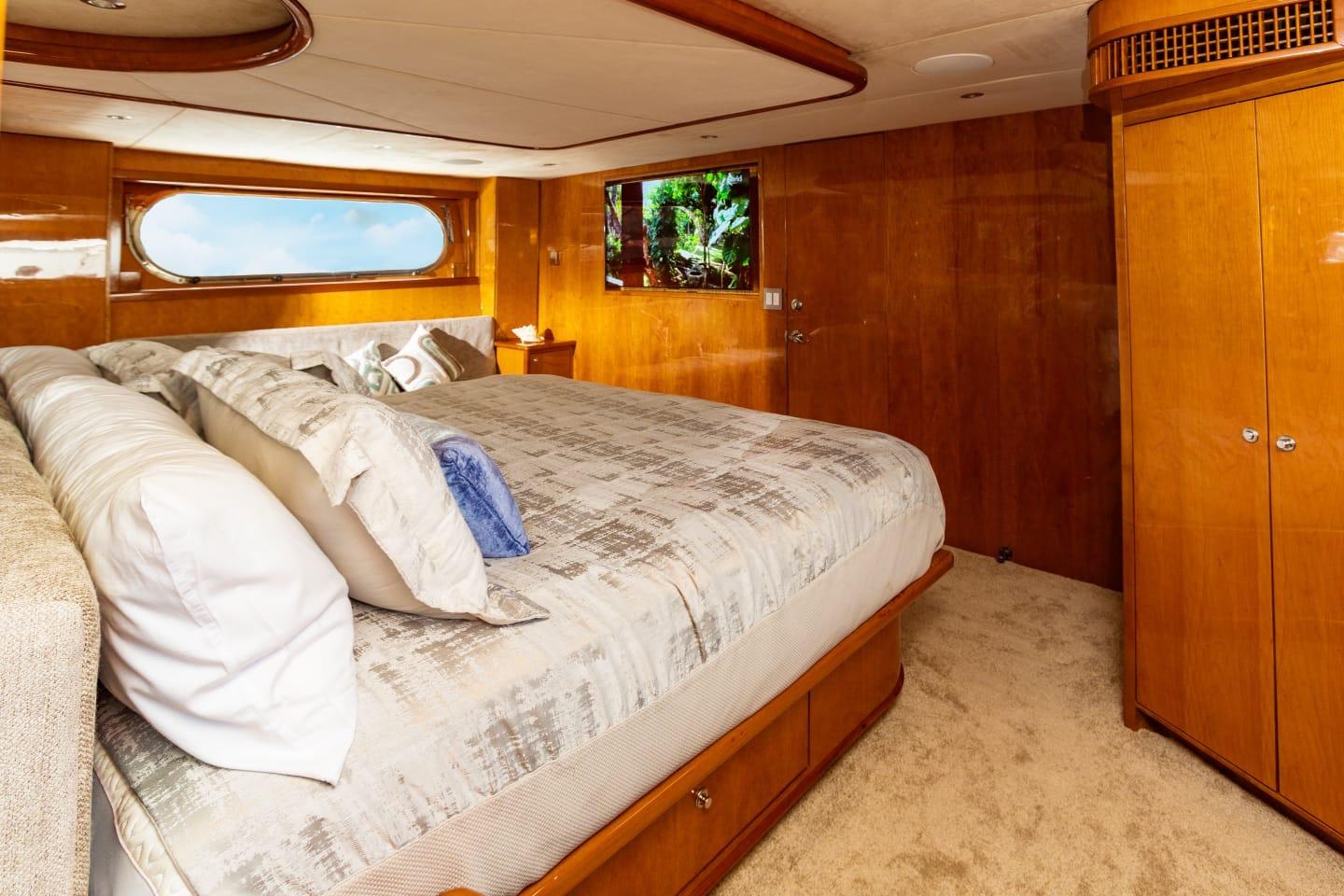

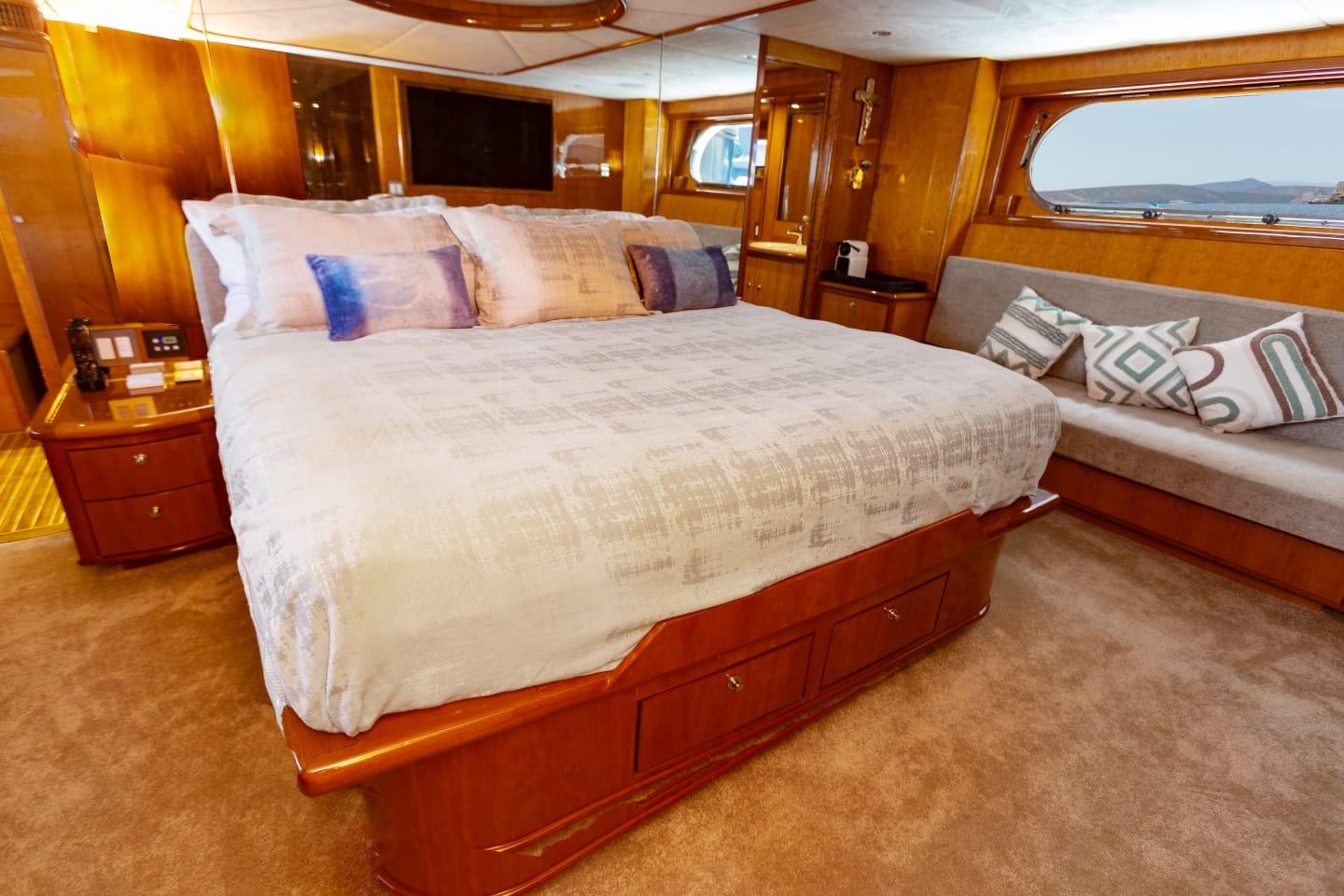

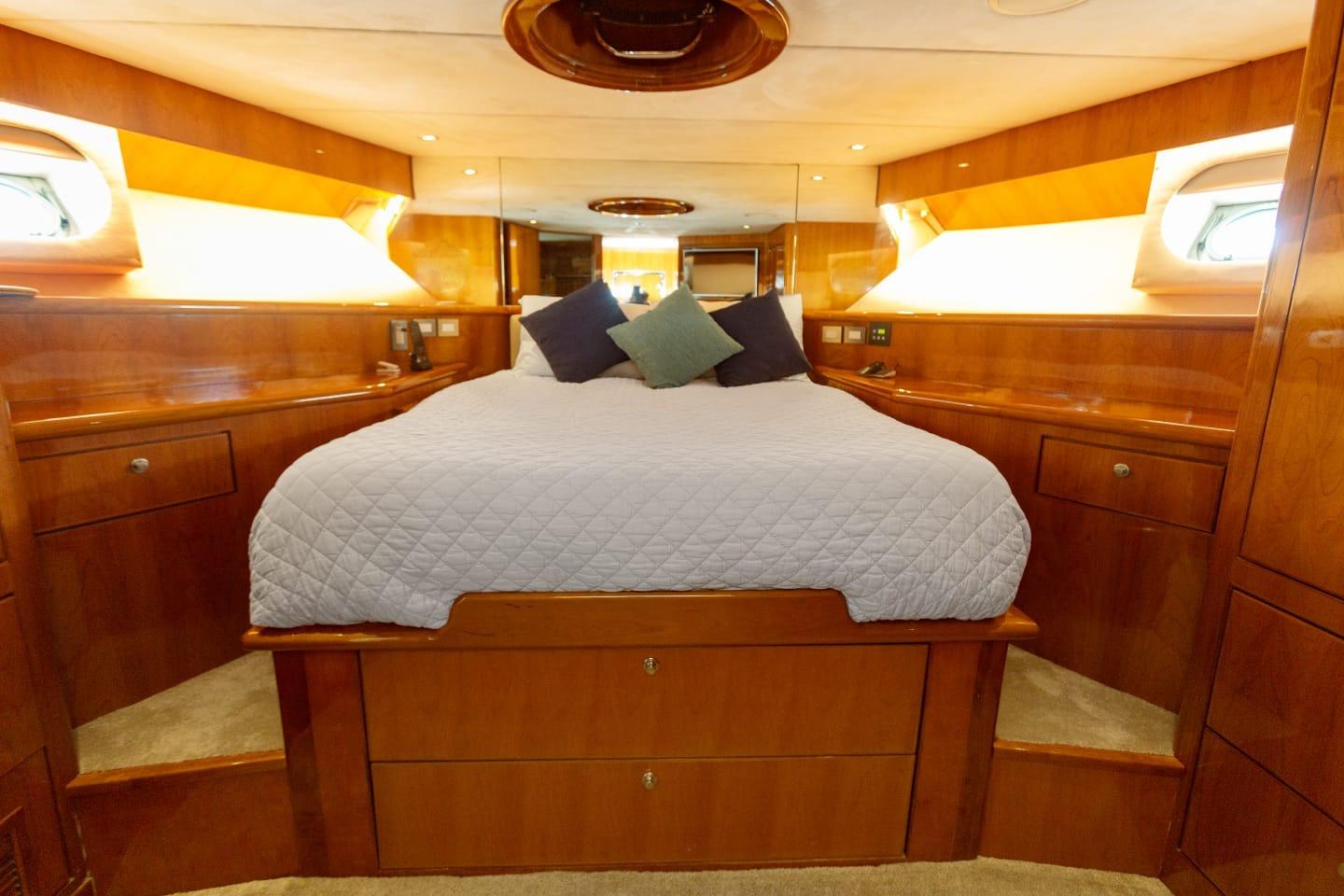

   Ø Cabins (4 - to accommodate guests and owner) comprised of:
   Full Beam Master with centerline queen berth, (2) Guest rooms each with
   Sictwin beds and single gulhnan berths, and a forward Vll’ Stateroom with a
   centerline queen berth. Each room furnished with the following:
   • Counter top material Teak (Burl wood optional)
   • Flooring carpet
   • lnneESpring mattresses
   • Mirrors (as needed)
   • Cabinets 8: drawers (details as agreed upon)
   • Hanging lockers Cedar interior with courtesy light
   • Vinyl Ceiling panels (removable for access, type ”Andri”)
   • Storage under the mattresses
   • Night tables
   • Two (2) Reading lights
   • Vanity with dressing mirror
   • Wall cow-ring material - per décor allowance
   • Built-in safes (4 small)
   Ø Heads - Each of the four guesflowner staterooms shall be ensuite. The day head on the main deck level will also have a shower.
   • Electric heads - Pat/Jabsco "Quiet Hush” Designer Series
   • Bulkhead finished in selected wood veneer
   • Counter top material – Granite
   • Ceiling material Minor Plexiglas
   • Fixtures - Grohe or equal (see décor allowance)
   • Stall types showars with teak gratin-g
   • Flooring ~ Teak/Holly
   • Mirror
   Ø Crew quarters to be located aft of engine room and accessed via aft deck
   and swim platform. TWO rooms - one to accommodate two persons in a
   double berth and the other upper/lower bunks. Share separate bath
   with stall shower.

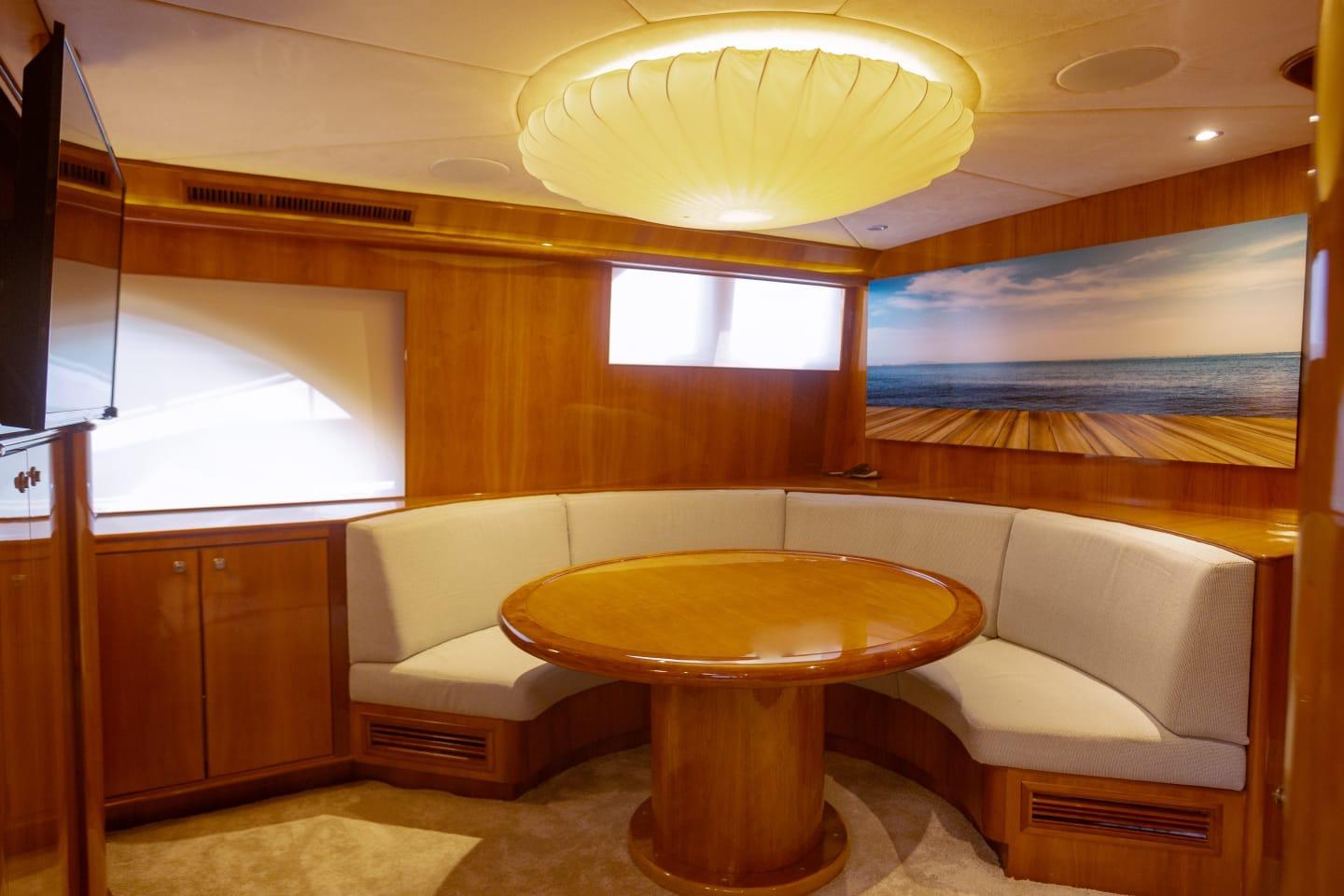

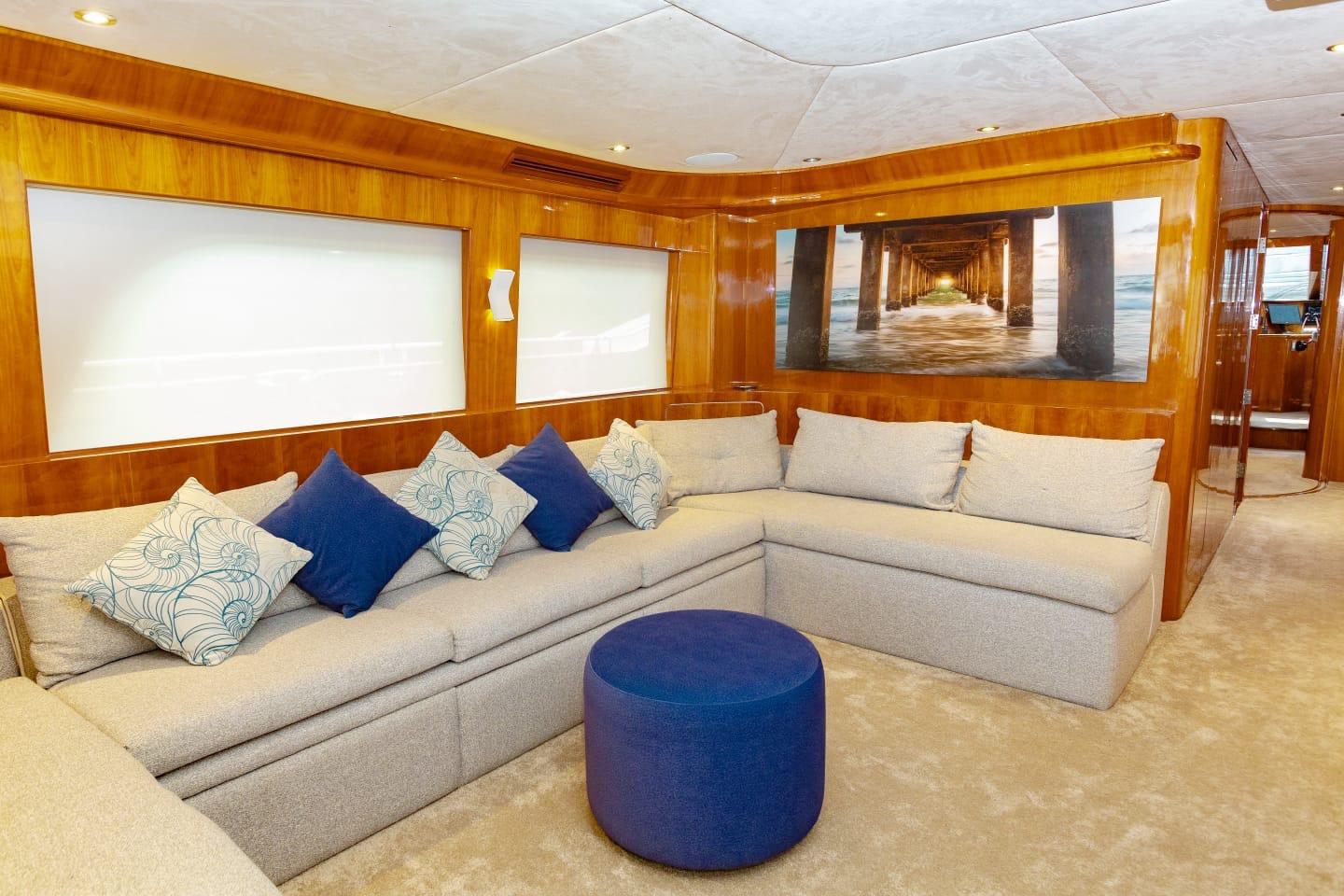

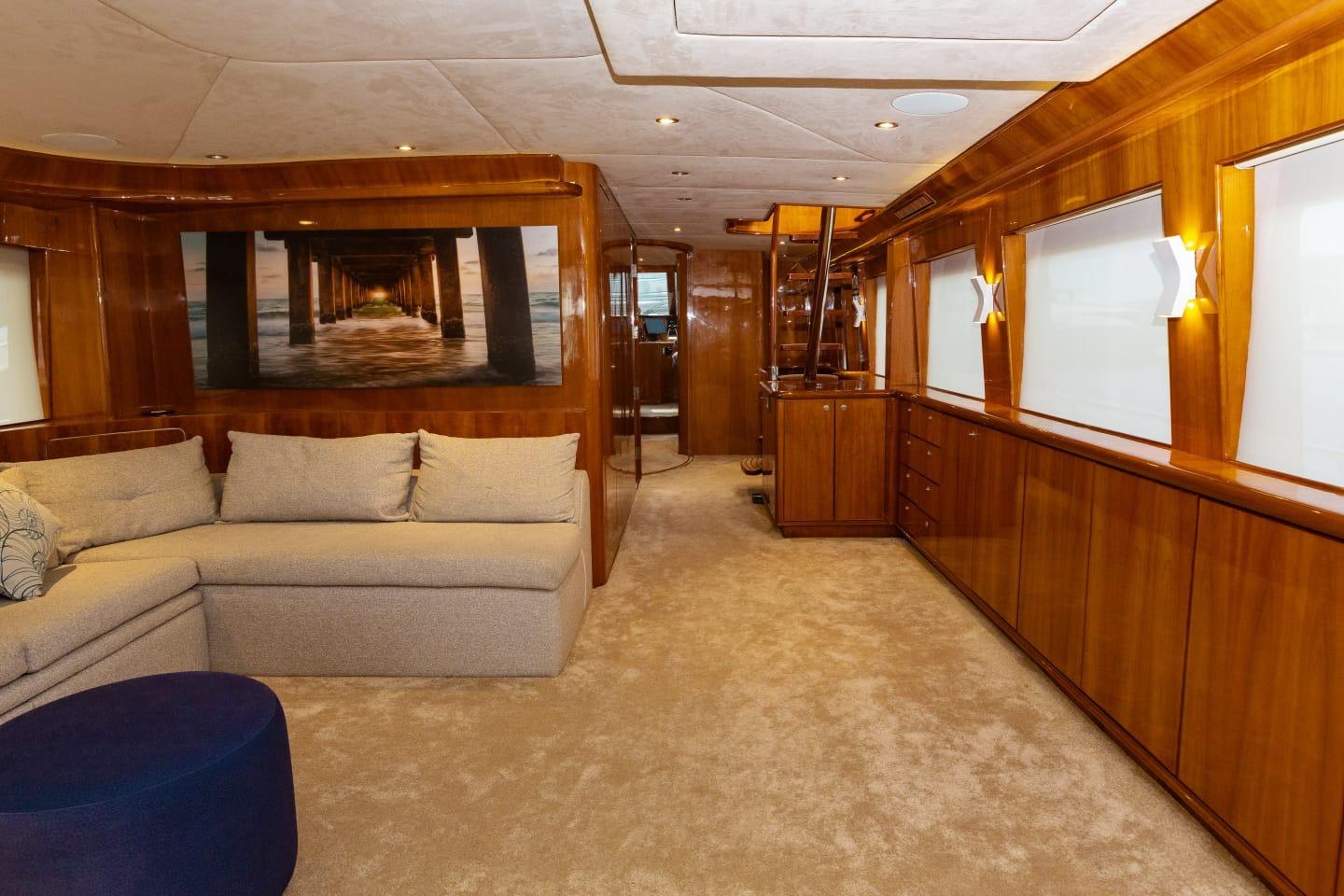

   Ø Salon
   • Upholstery and window treatments per décor allowance
   • Flooring — carpet
   • Furniture and cabinetry provided per drawing details
   • Vinyl padded ceiling Soffit (is pattern design
   • Counter top material .L. High gloss teak
   • Staircase to Flybridge per drawing details
   • China and crystal inserts provided in cabinetry
   Ø Lower Helm Station
   • Pilot chair Pompanette ”Prestige”
   • Settee per drawings details
   • Dash board ”Matte" finished black formica
   • Counter top High gloss Teak/Holly
   • Floor Teak/Holly or wood parquet
   • Equipped with complete controls and gauges
   • Electronics installed per Electronics allowance

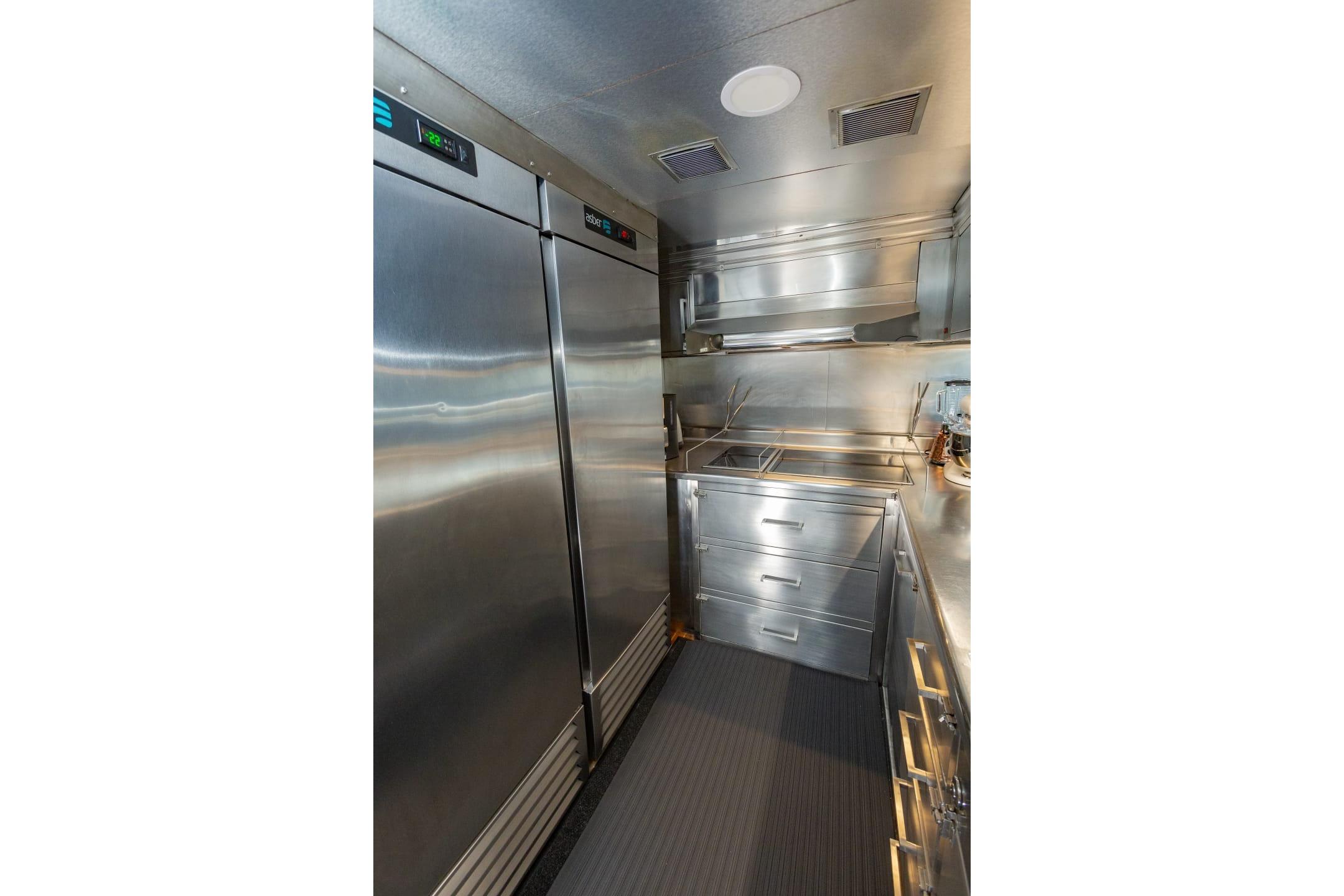

   Ø Galley
   • All refurbished with full steinless steel.
