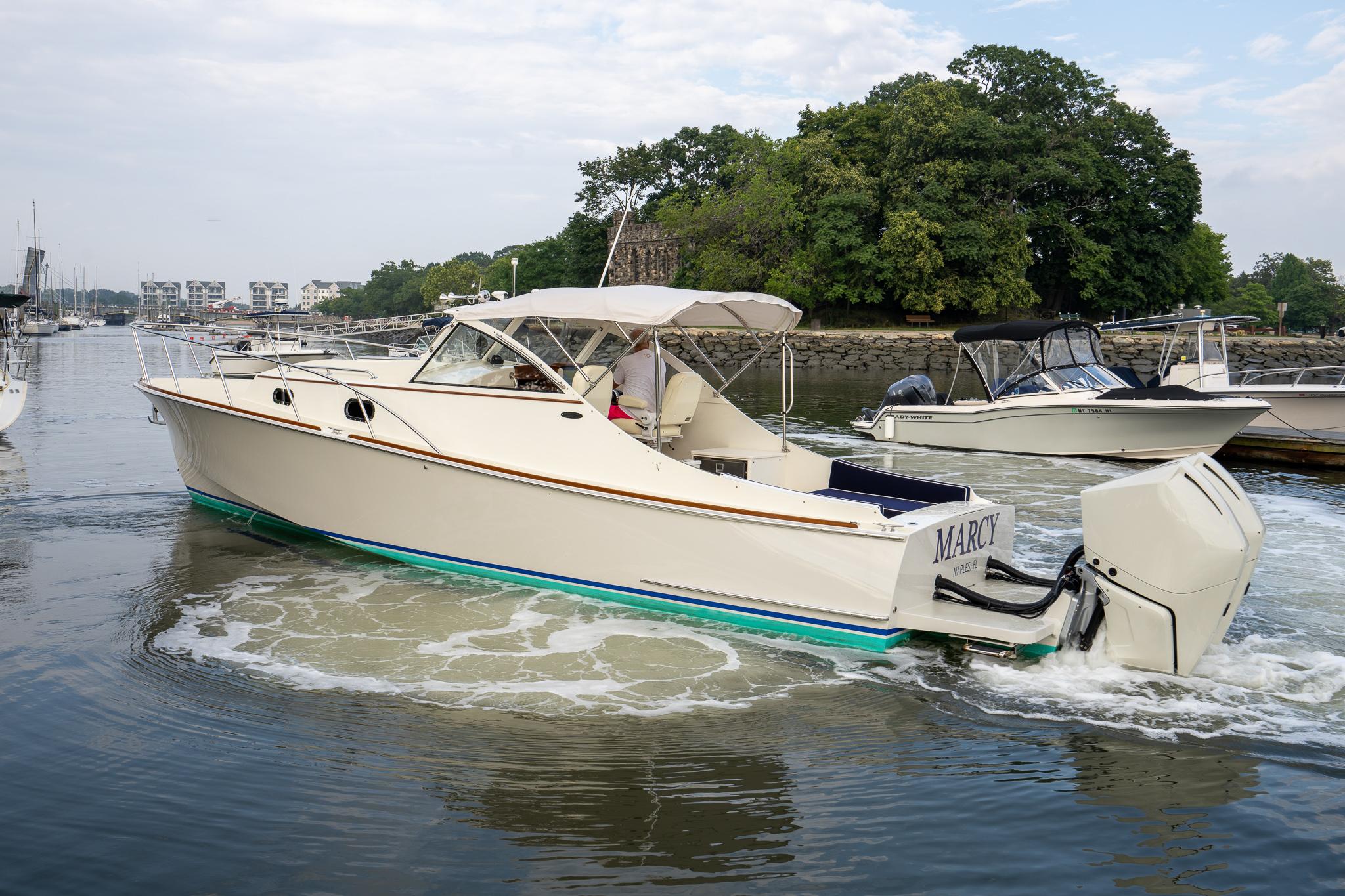

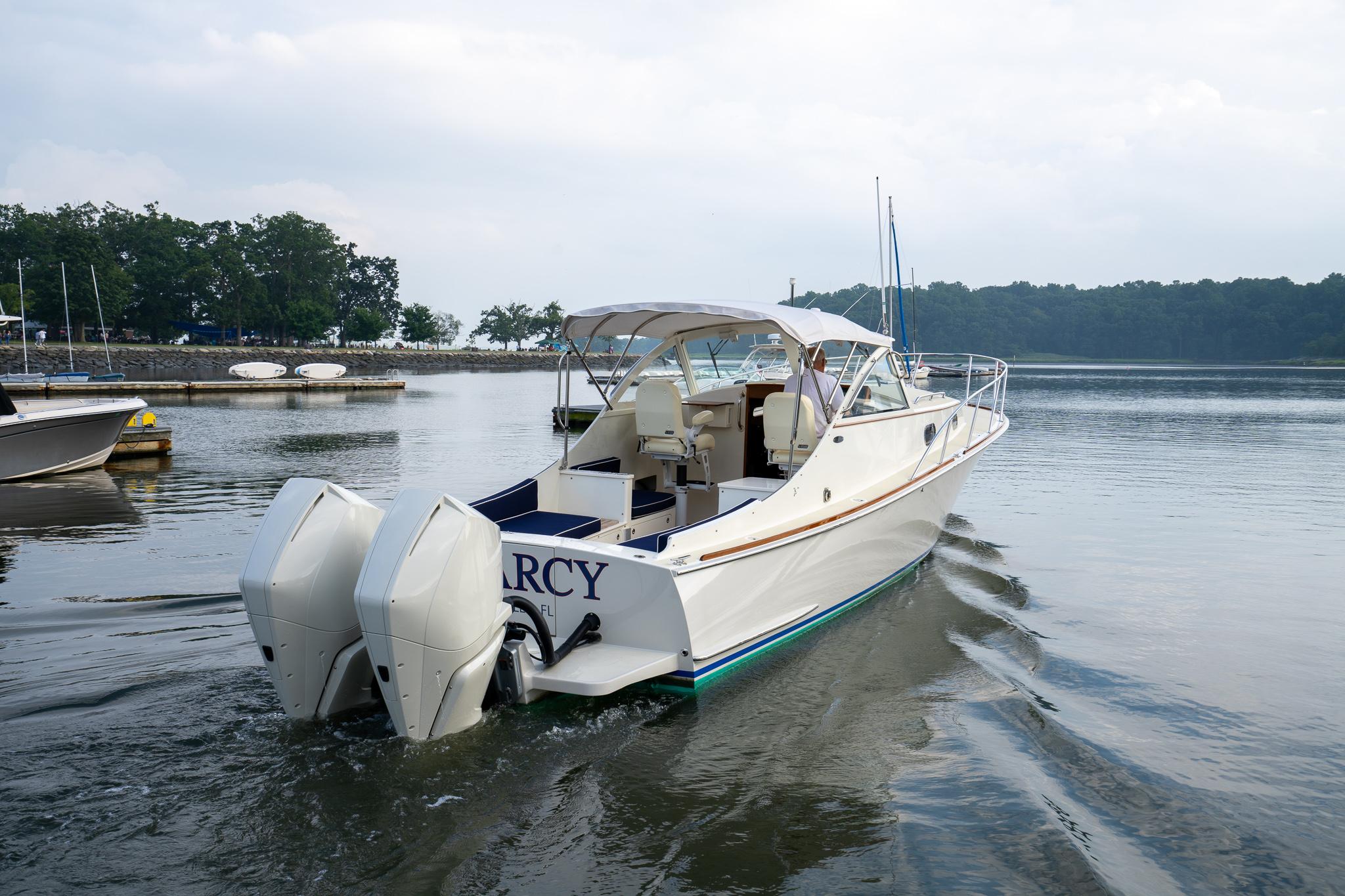

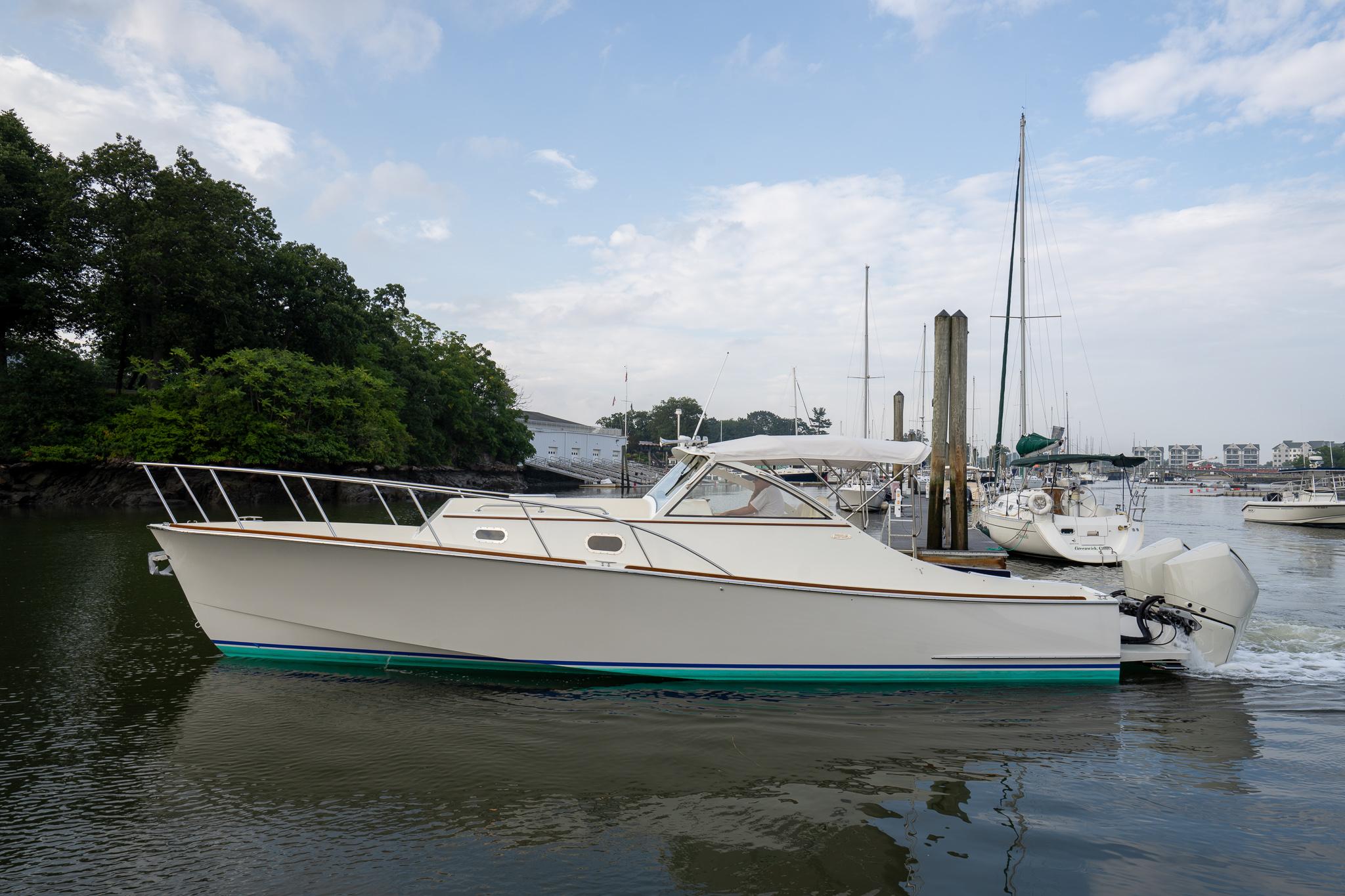

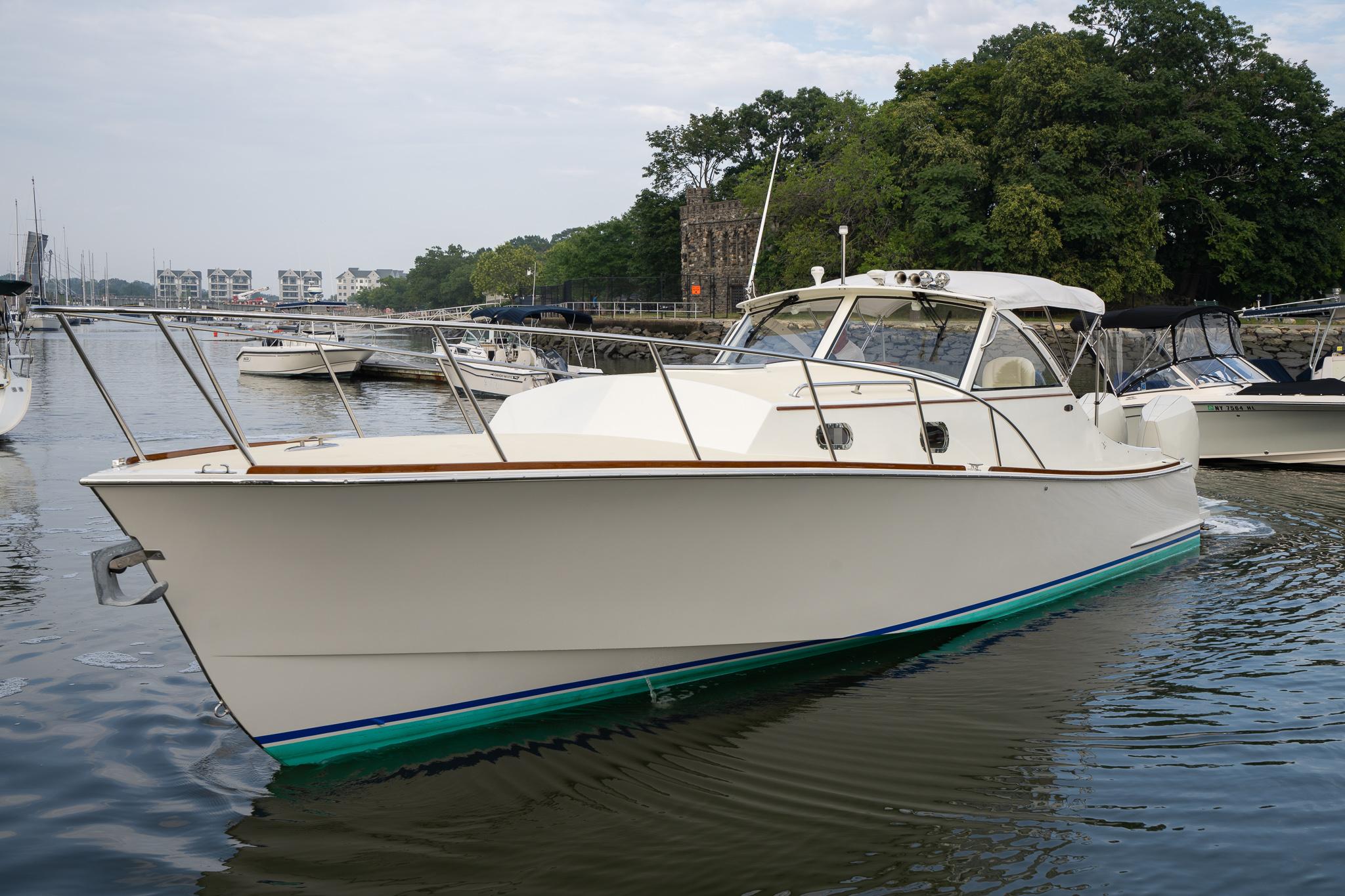

2021 Brooklin Boat Yard 32 Express
$585,000
- 1 Staterooms
- 1 Heads
- 2 Engines

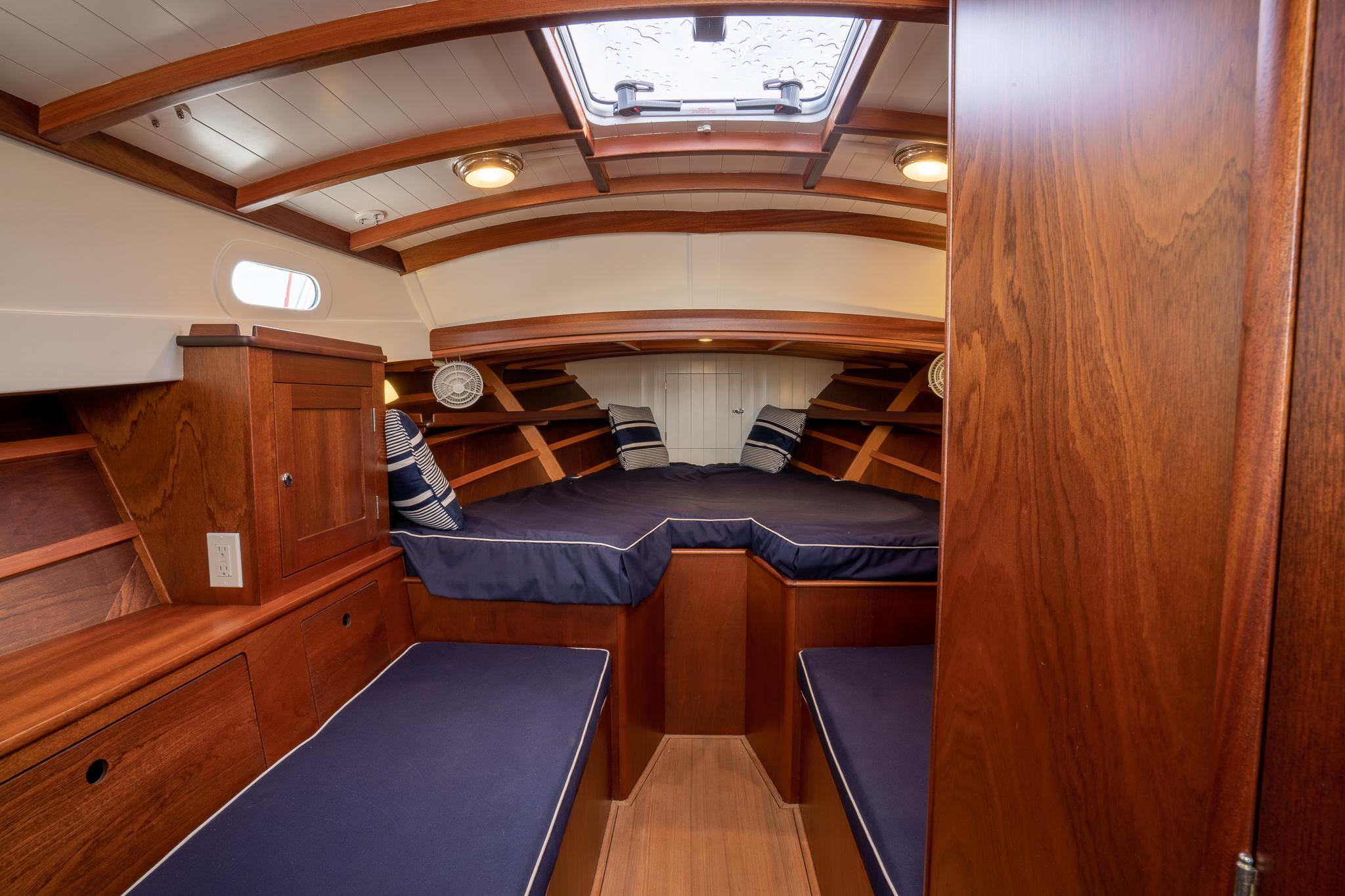

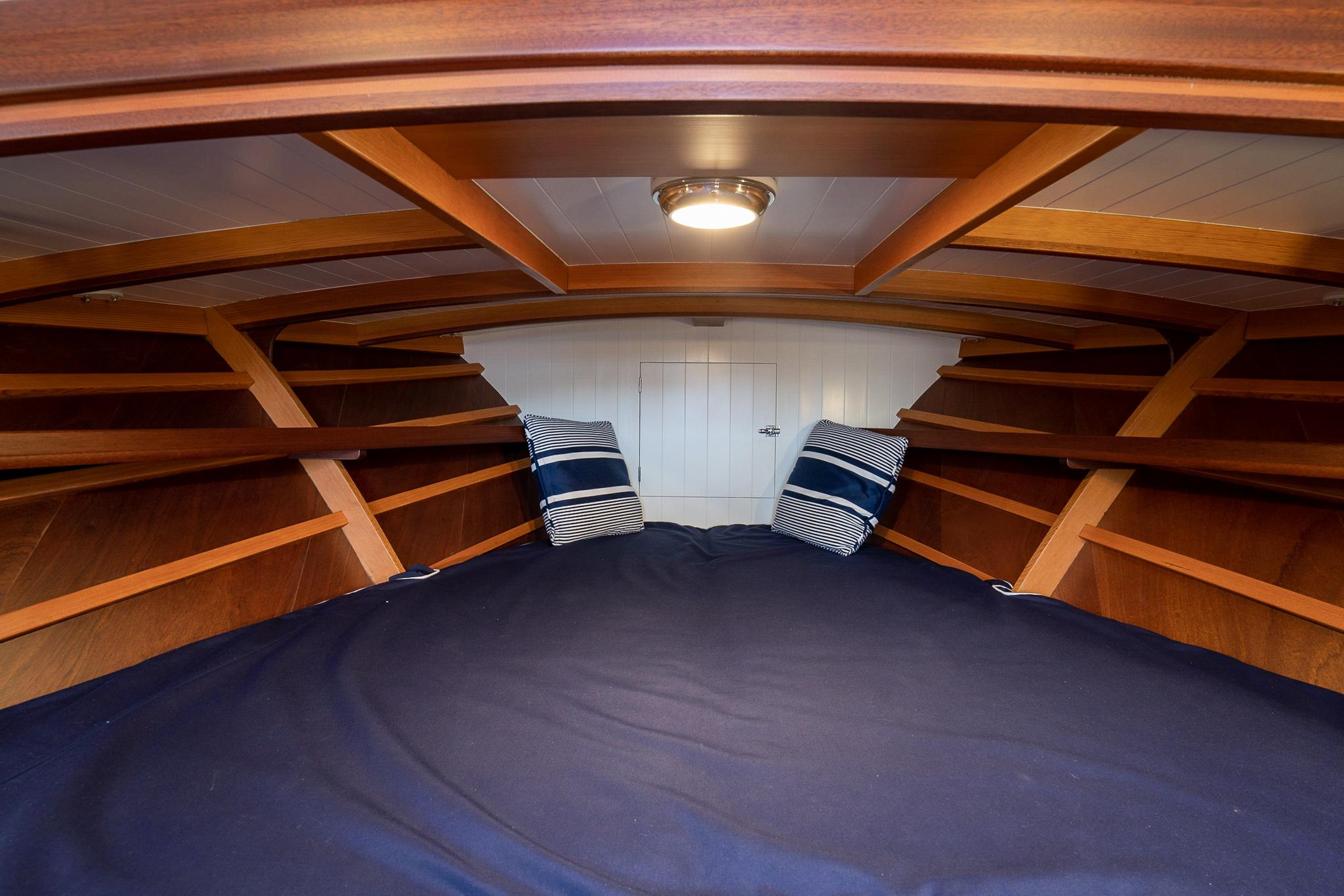

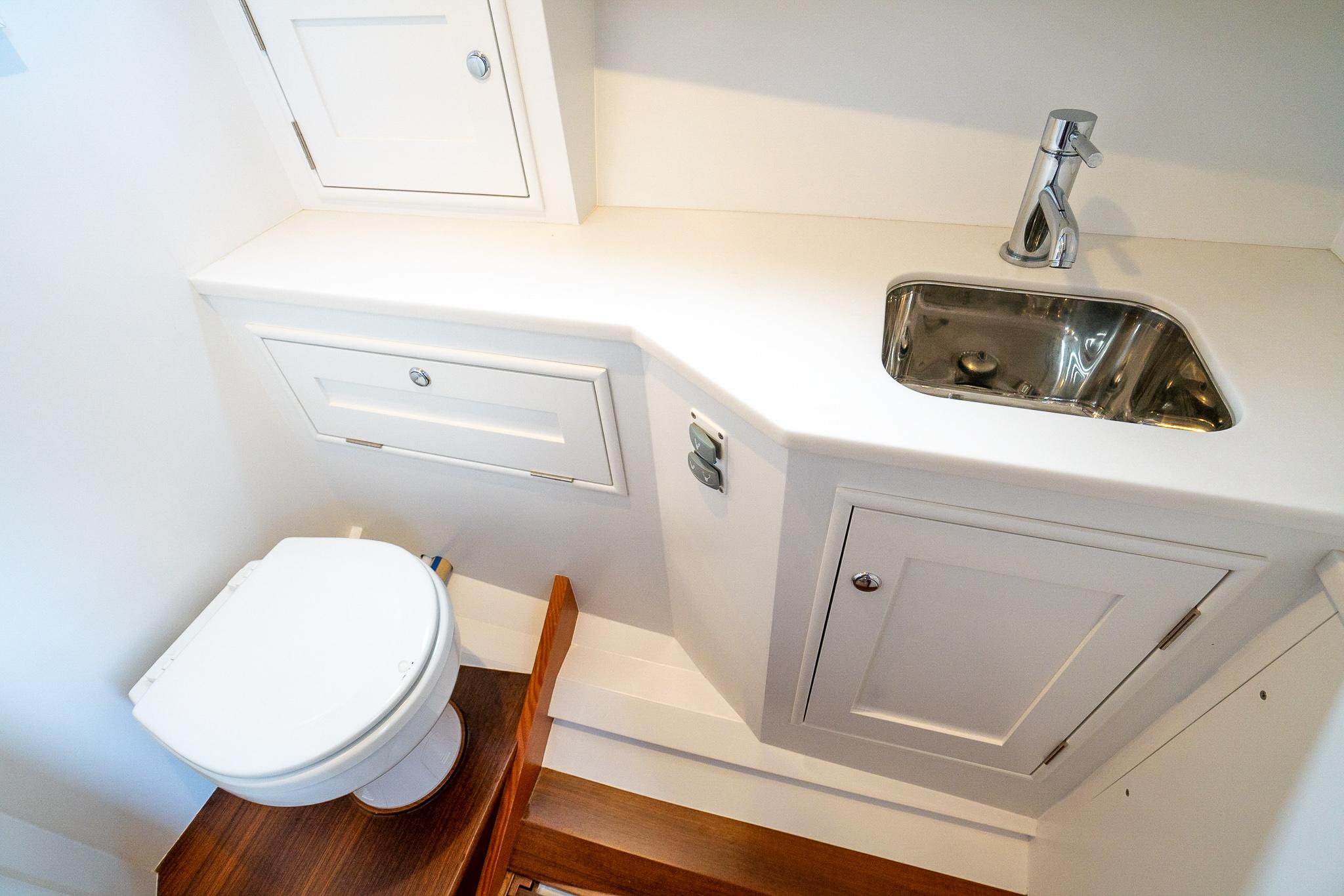

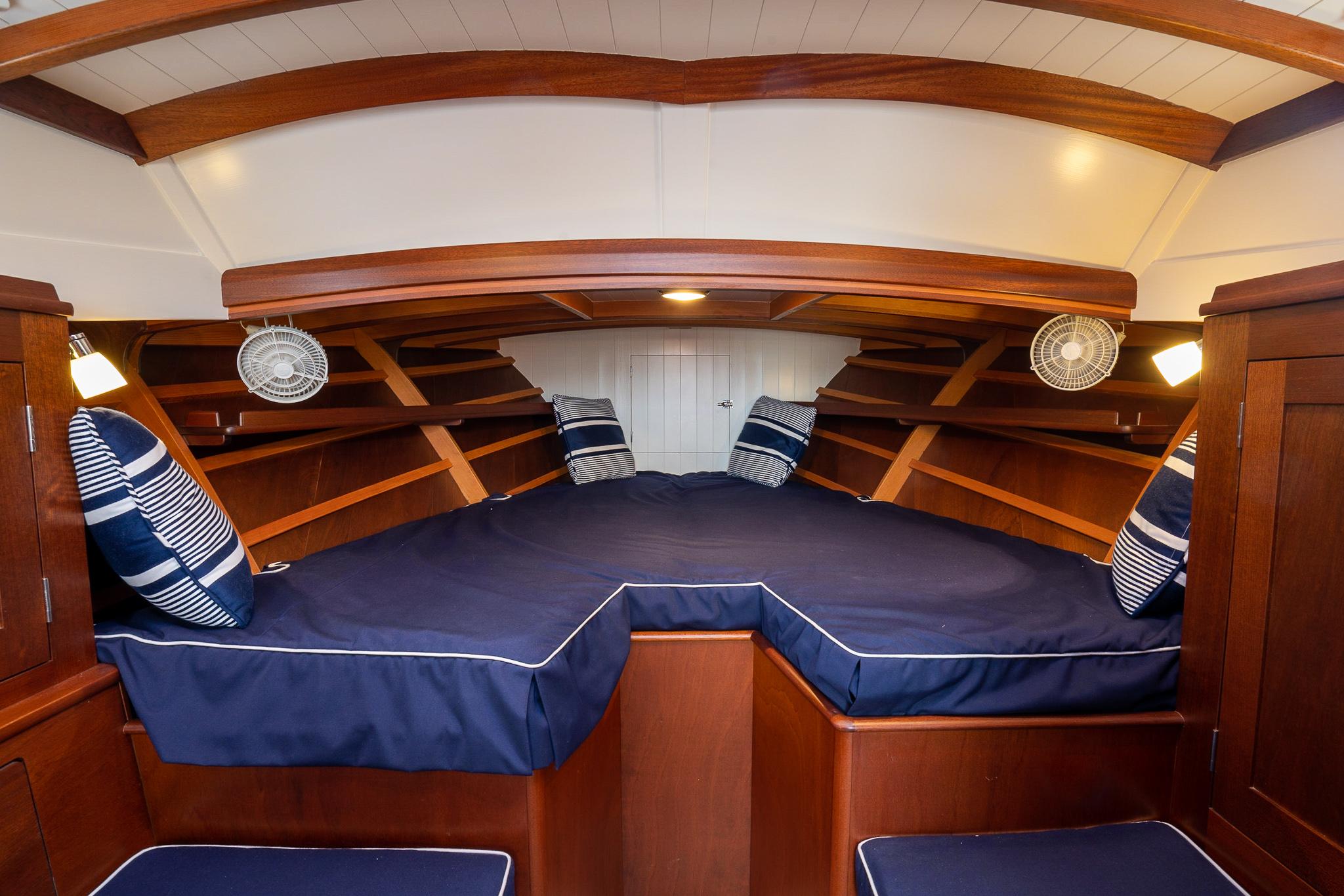

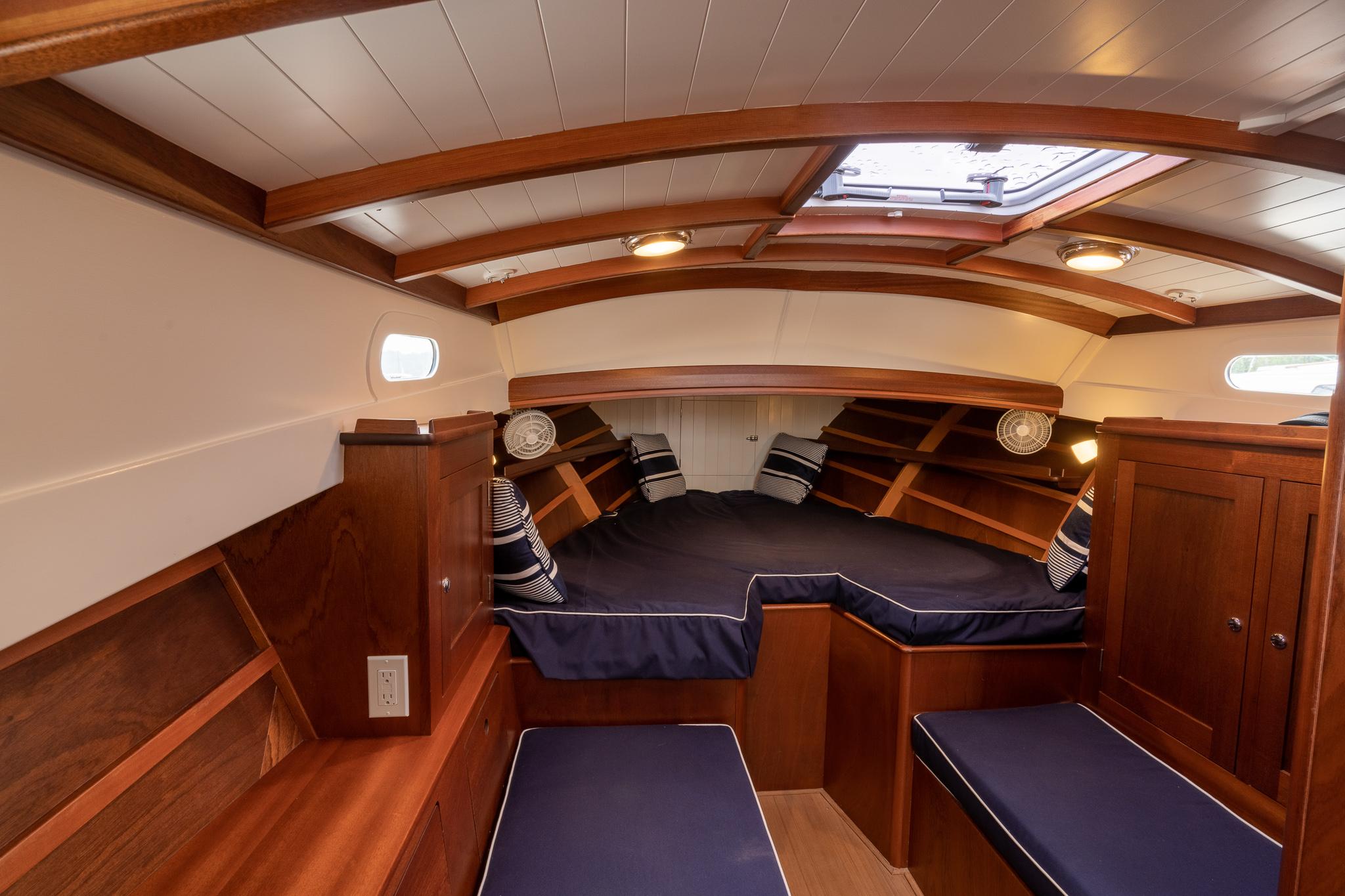

If you enjoy extreme craftsmanship and a yacht that is not just another boat, this may be the one, Brooklin Boatyard in Maine builds some of the finest boats in the world, hand crafted, functional works of art! This custom 32 is fast and has exceptional performance, enclosed head, V Berth area, air conditioning are just some of the appointments. More photos on the way as this is a new listing, but do not hesitate to give us a call to see the boat in person!
Construction Details
Hull
Topsides are 12mm Sapele plywood, with 12mm sheets aft and diagonally laminated 6mm sheets forward.
The bottom is a layer of 6mm Sapele inside and outside with a 9mm western red cedar core, finishing at 7⁄8”.
The hull is sheathed in 10oz. fiberglass cloth.
Internal Structures
All internal framing is Douglas fir. The keel is sided 5-1⁄4” with a layer of 9mm Sapele plywood on top.
Chines are shaped from 2” x 1-1/4” and the sheer clamp is shaped from 2-1⁄2” x 1-1⁄4”.
Topside stringers are 7⁄8” x 1-1⁄4” spaced 7-1⁄2” and notched into 1” x 2-3⁄4” sawn frames.
Bottom stringers are 2-3⁄8” x 1-1⁄4” spaced roughly 10” notched into 1” x 3-1/2” sawn frames.
Frame spacing is 36” forward of the cabin bulkhead and 28” aft.

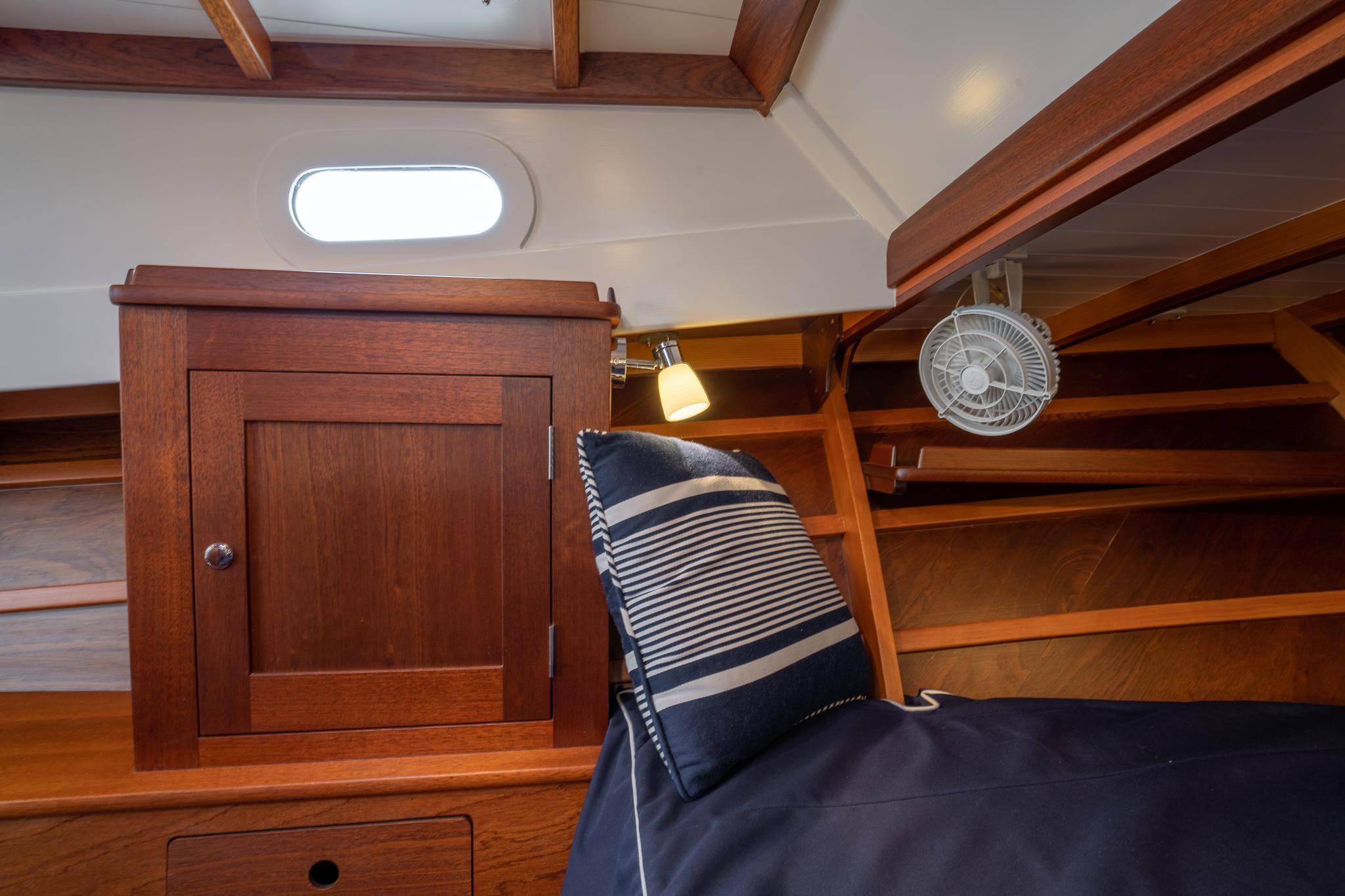

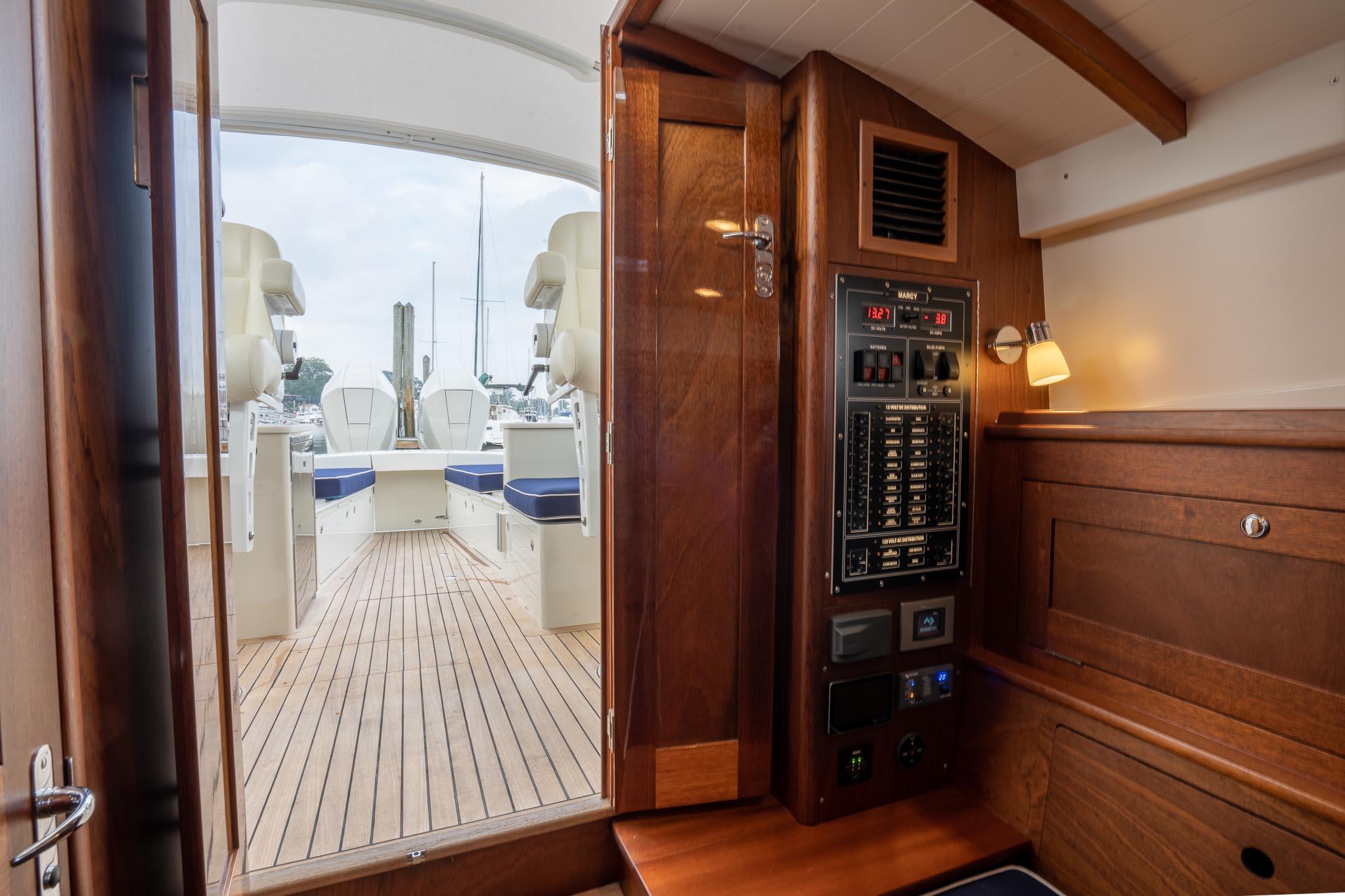

Cabinetry is 9mm Sapele plywood and Sipo trim.

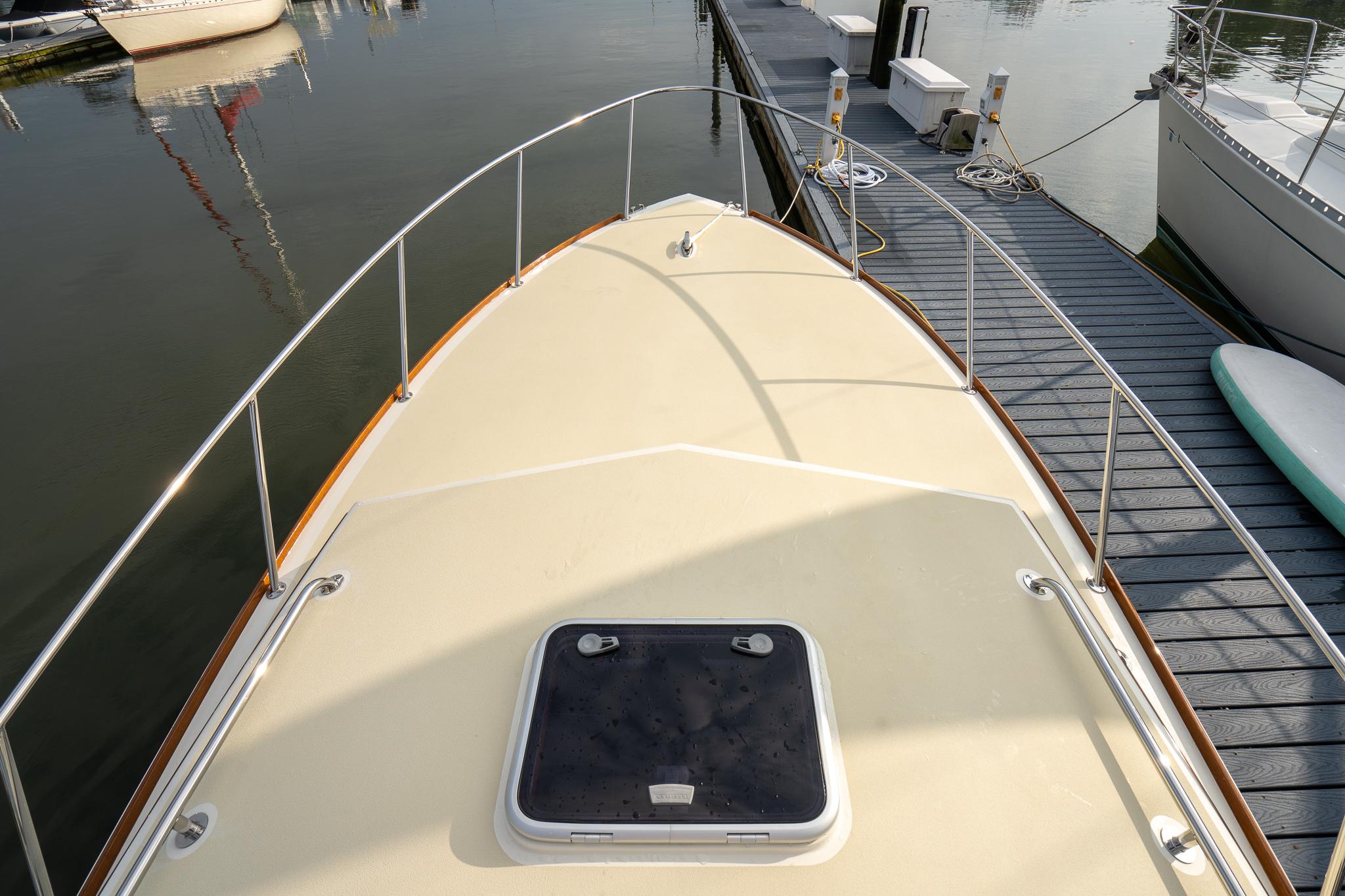

Deck

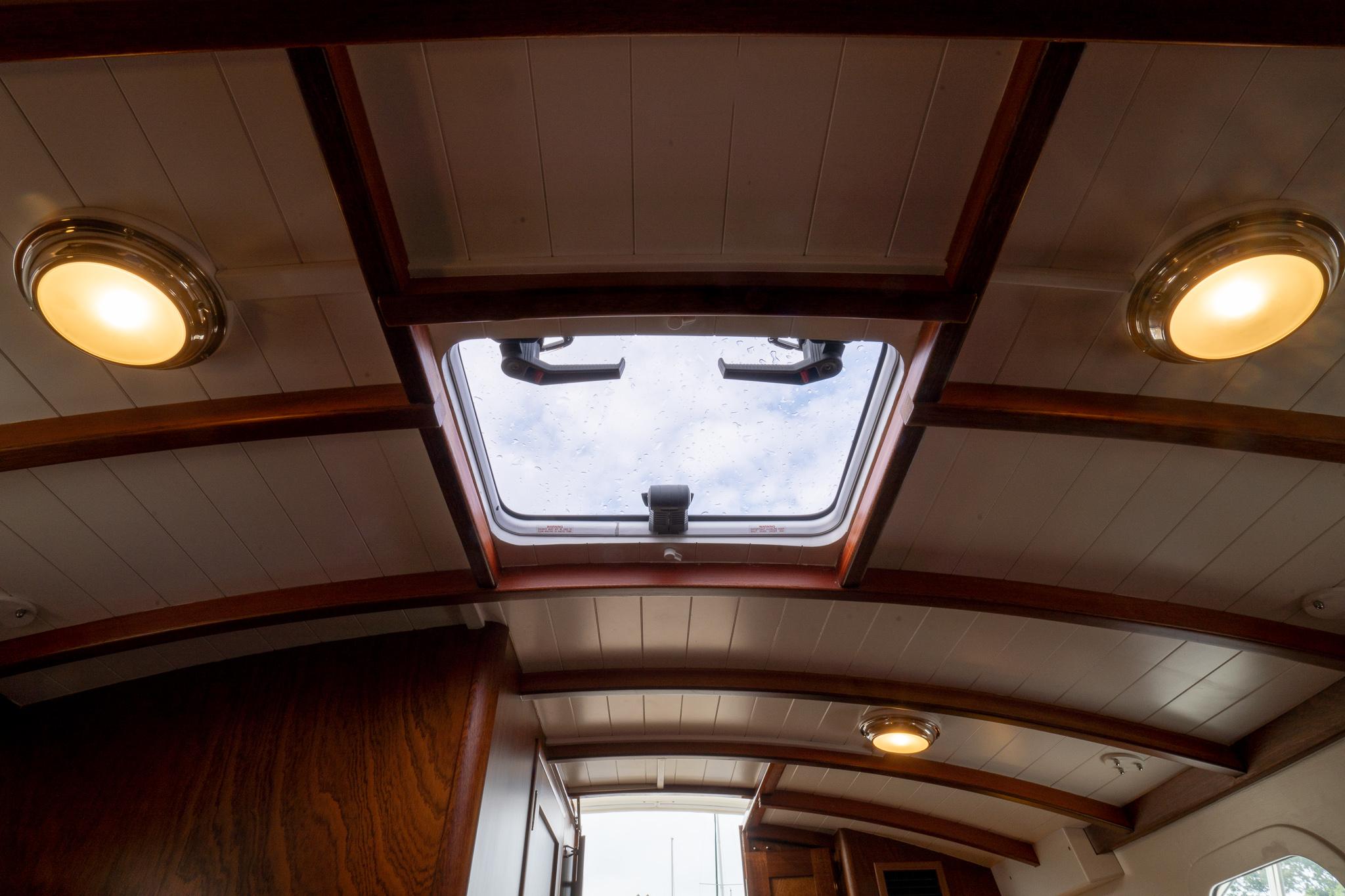

The deck is 12mm Okoume plywood on 1-1⁄4” wide x 1-3⁄4” deep laminated beams spaced 18” on center.

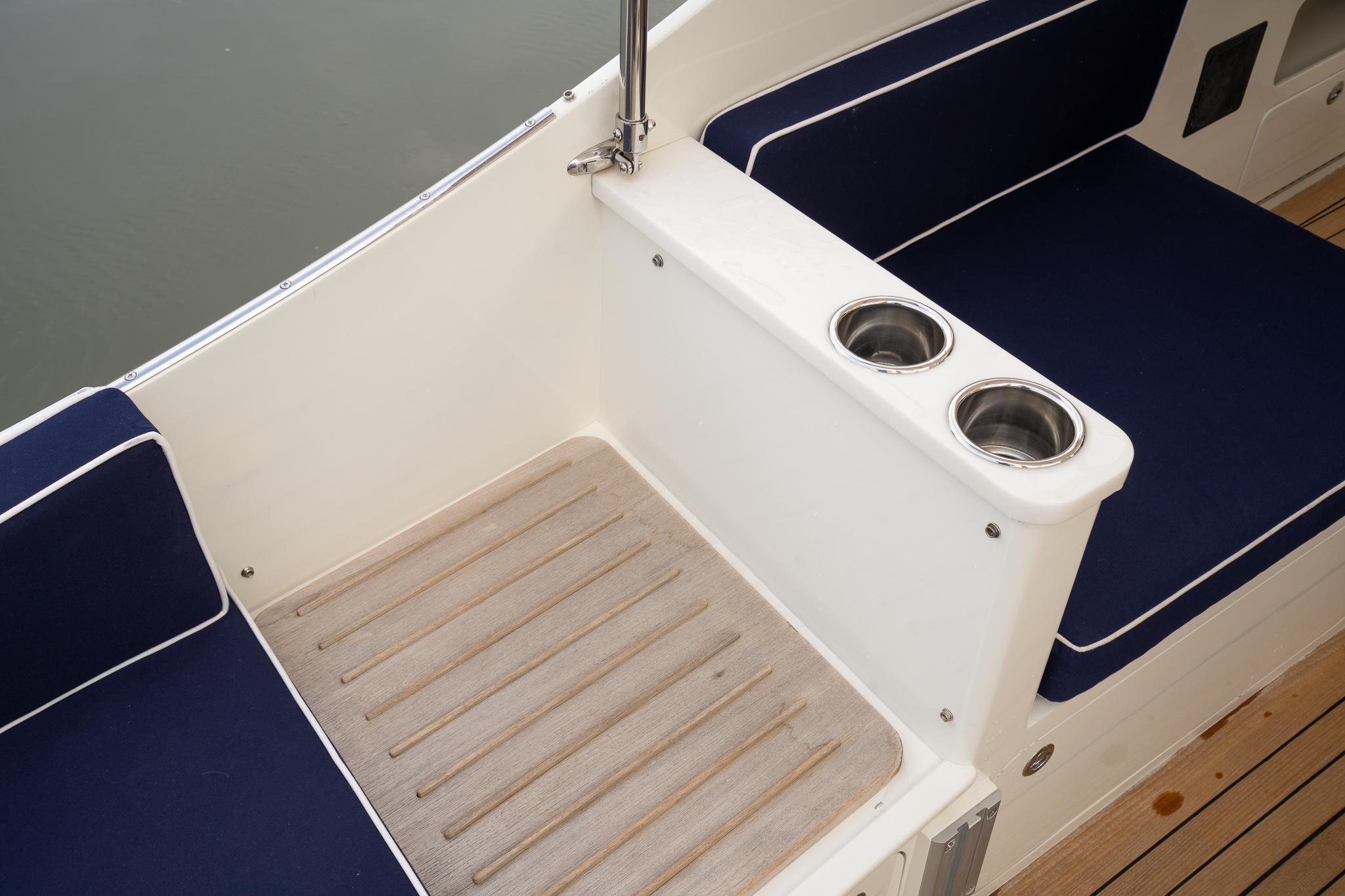

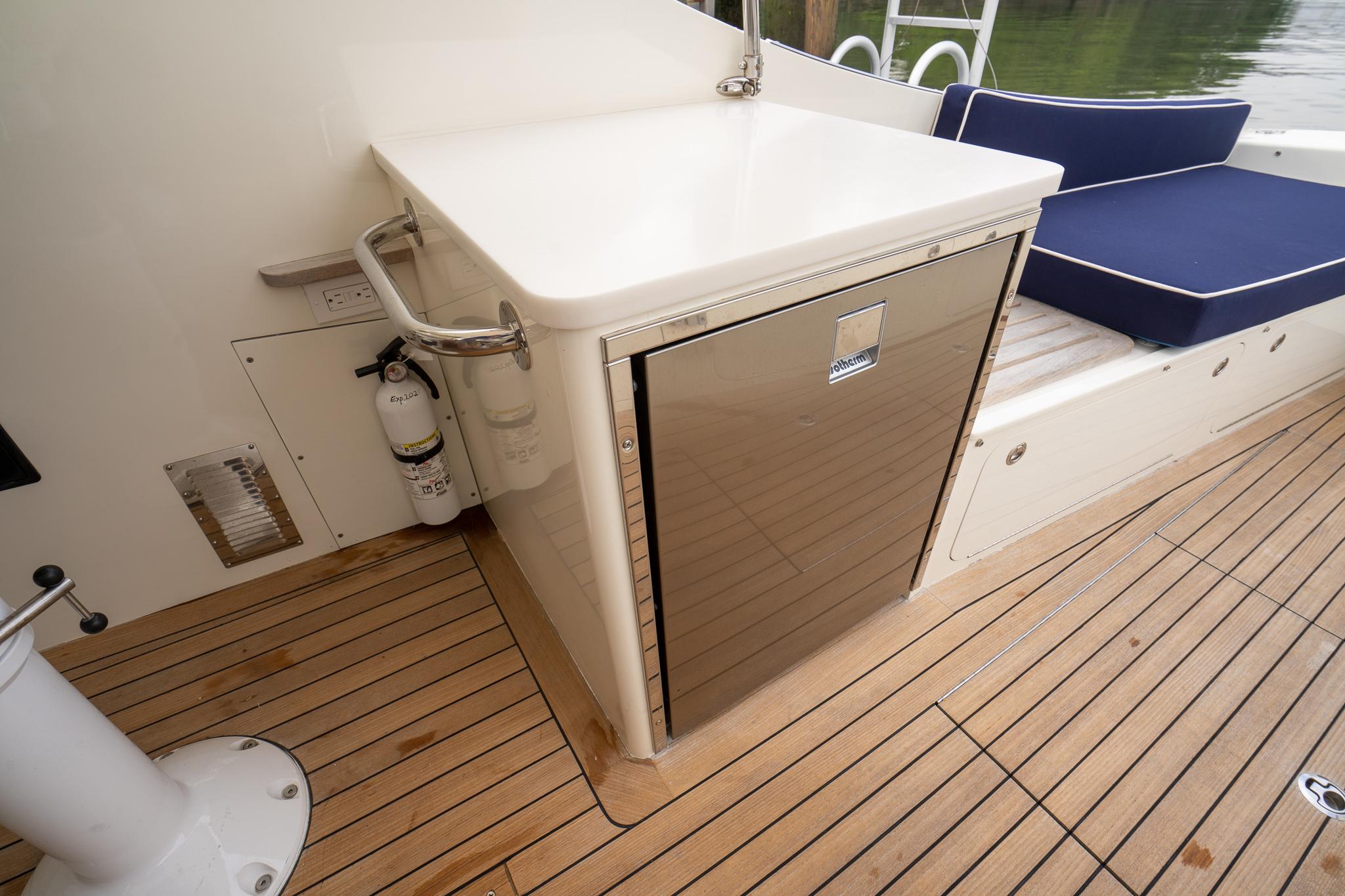

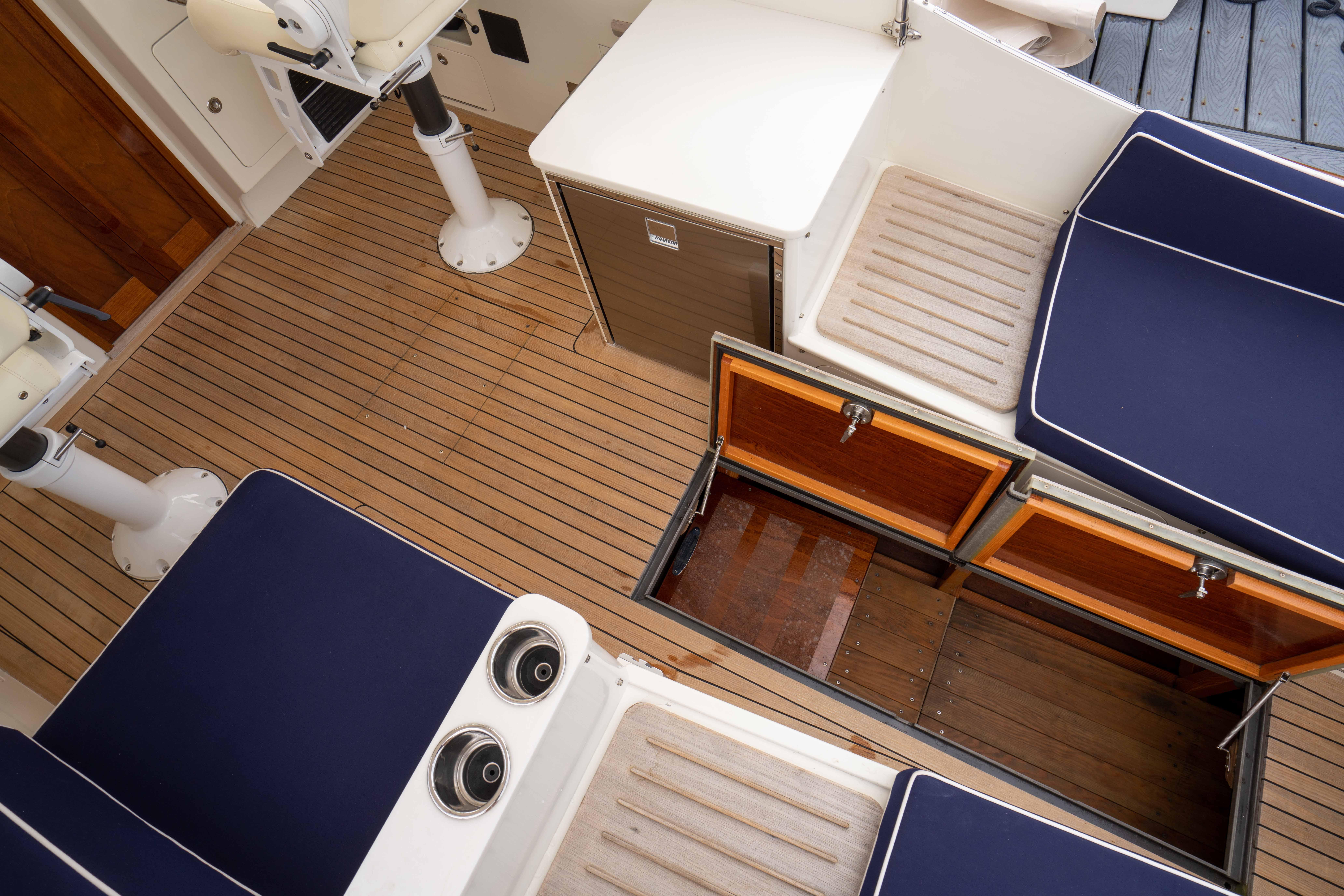

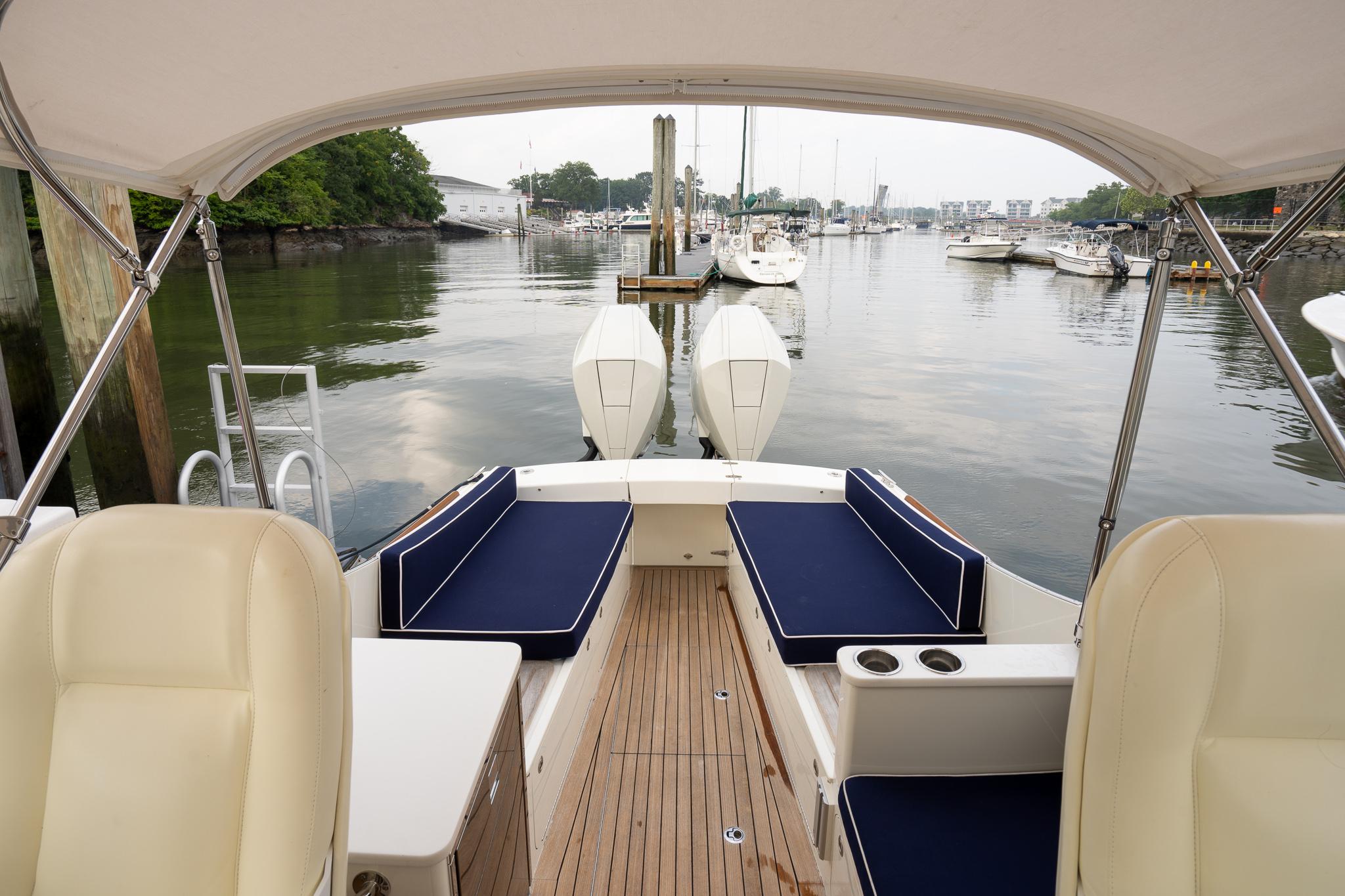

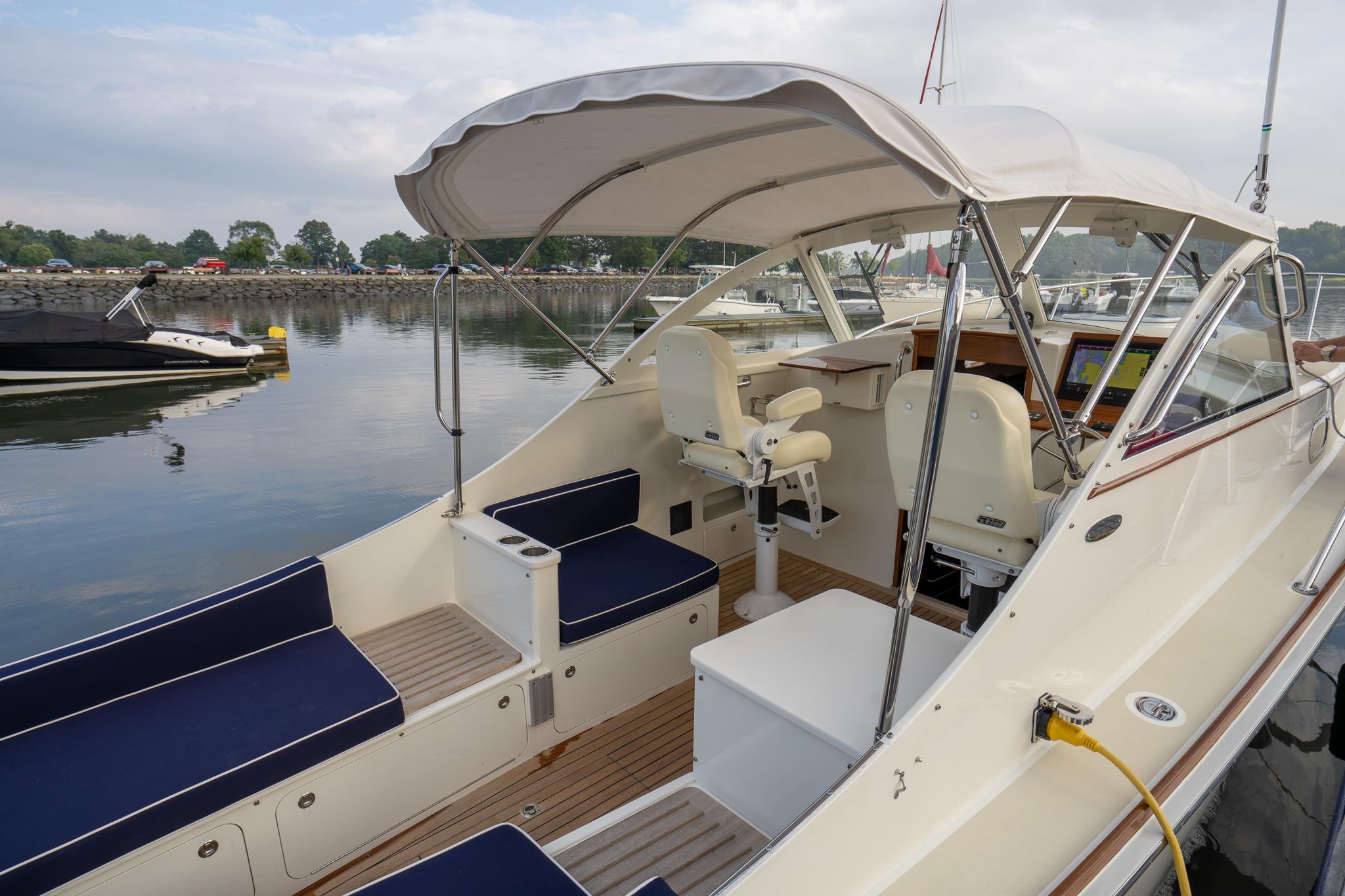

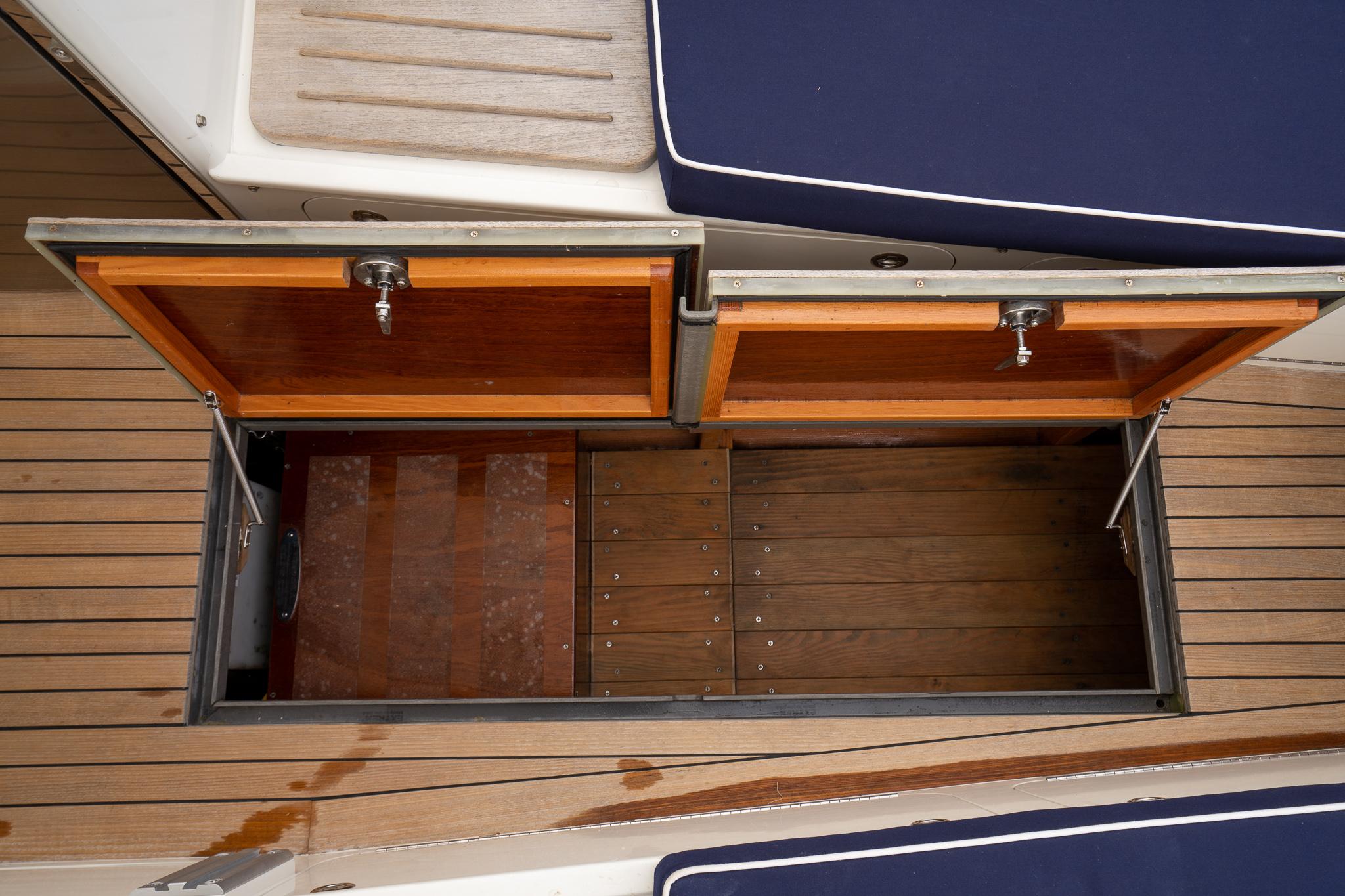

The cockpit sole is 9mm Okoume plywood with 9mm teak glued to it outside the lockers.
Teak seams are caulked with “Teak Decking System” silicone.
Cockpit sole framing is 1-1⁄4”x 2-3⁄8” Douglas fir.
House
The house sides are 12mm Okoume ply and the coamings are 2 layers of 12mm Okoume plywood.
The house top is 2 layers of 6mm Okoume plywood.
Window backing plates are 1⁄4” G-10 sheet.
Transom
The transom is laminated from three sheets of 6mm Sapele.
There is a 9mm doubler covering most of that making the transom 27mm.
Transom is reinforced with a 2-1⁄2” x 6” Douglas fir beam under the cockpit sole and Sapele plywood knees

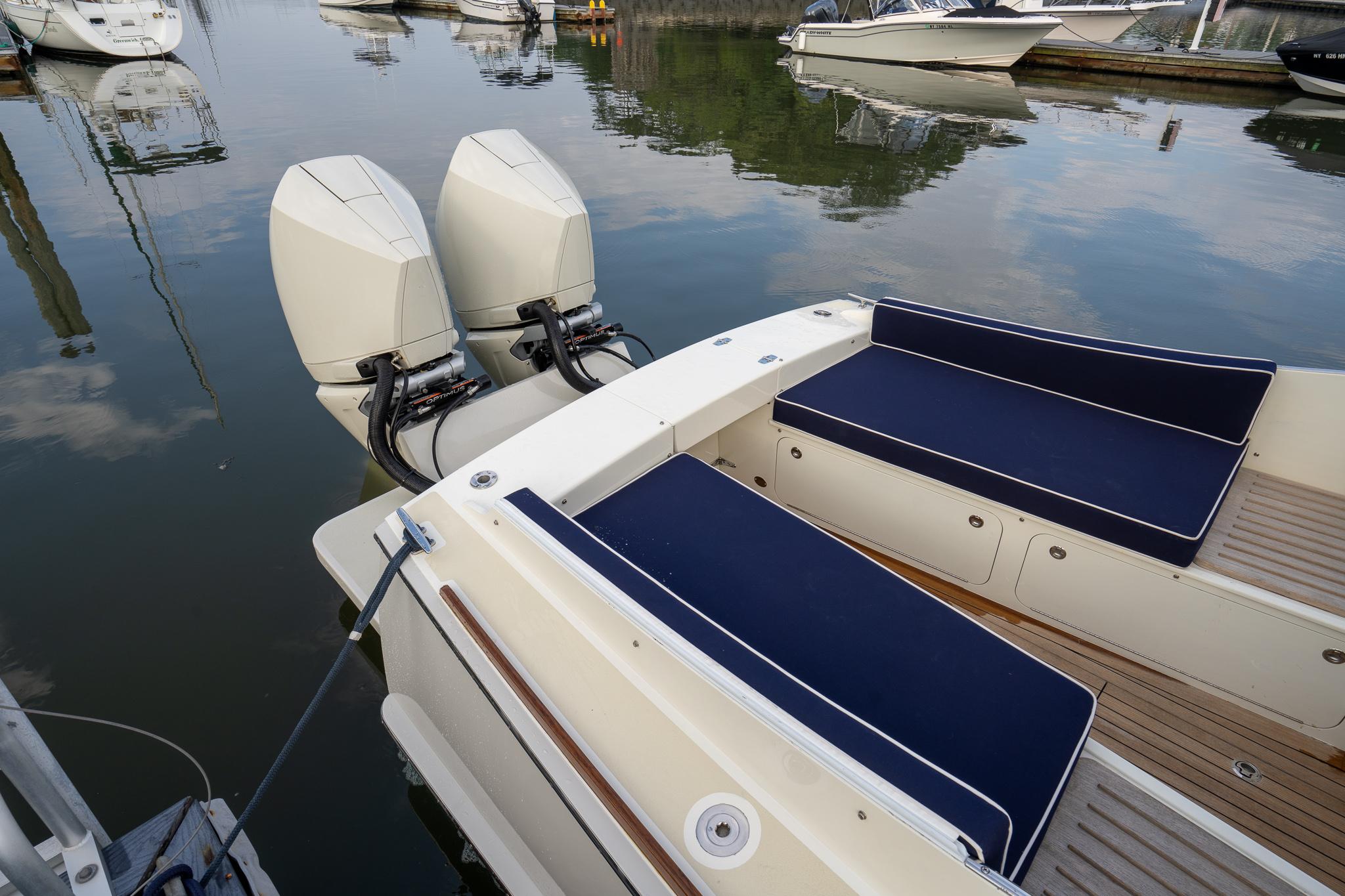

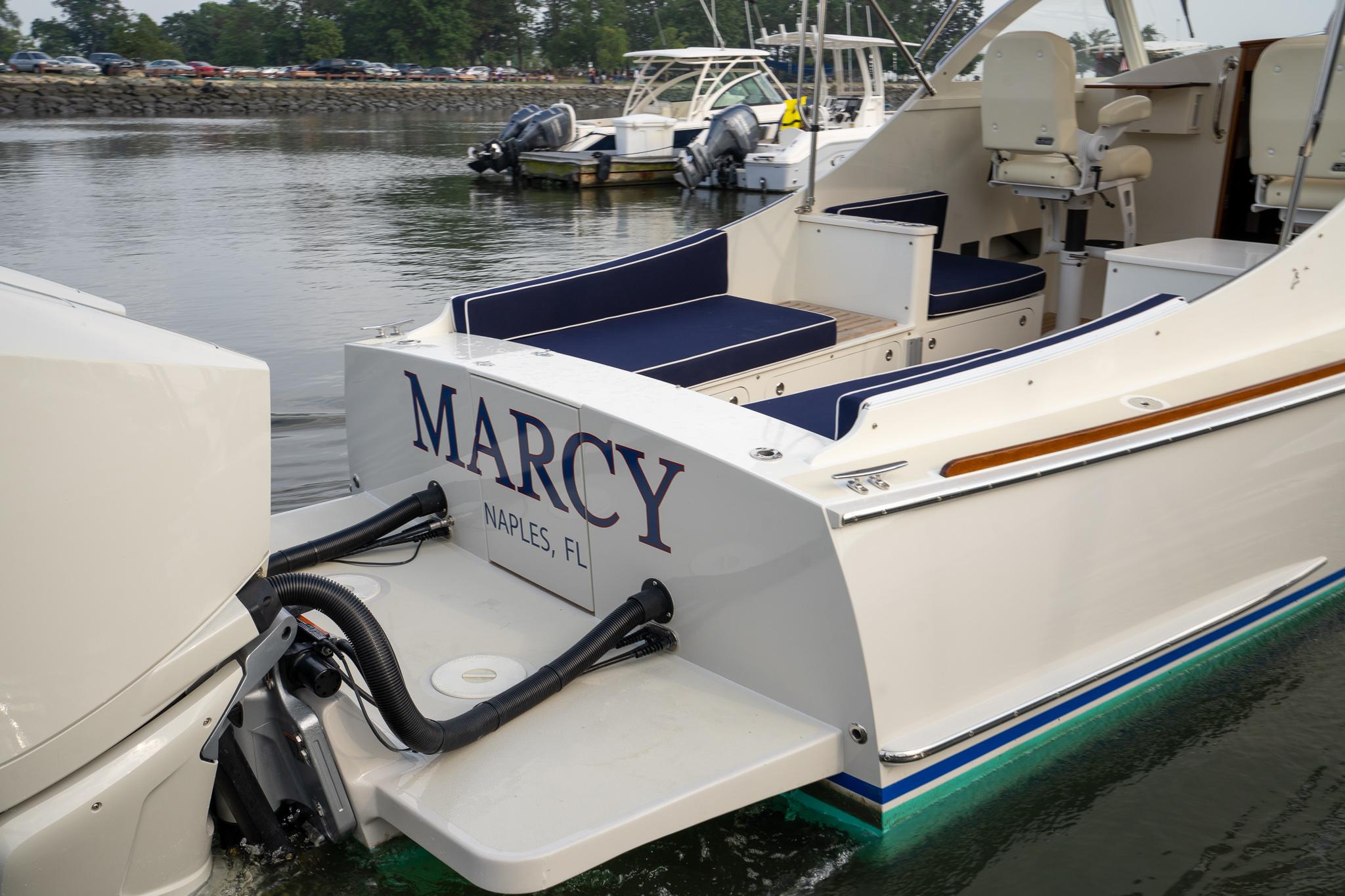

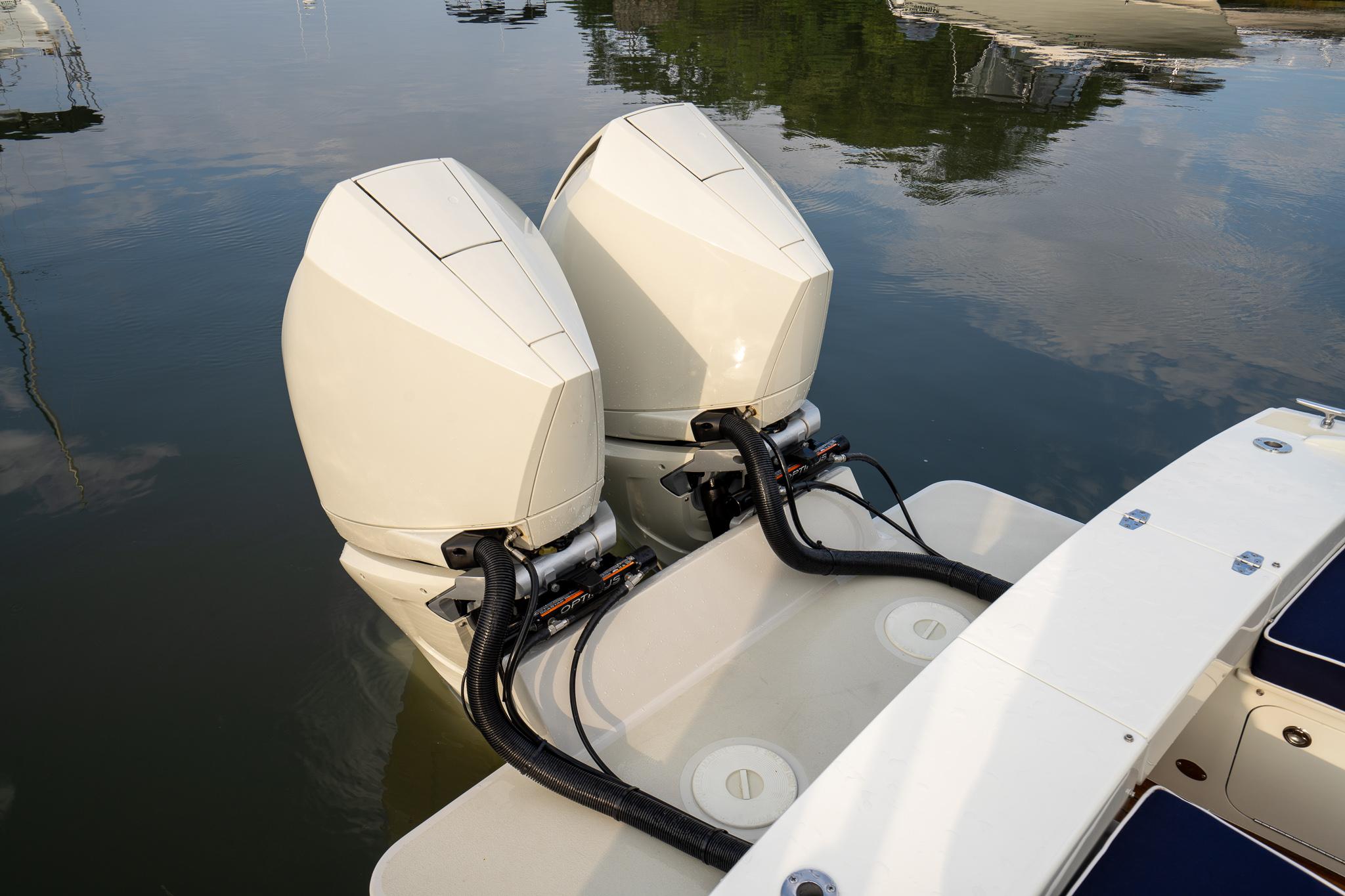

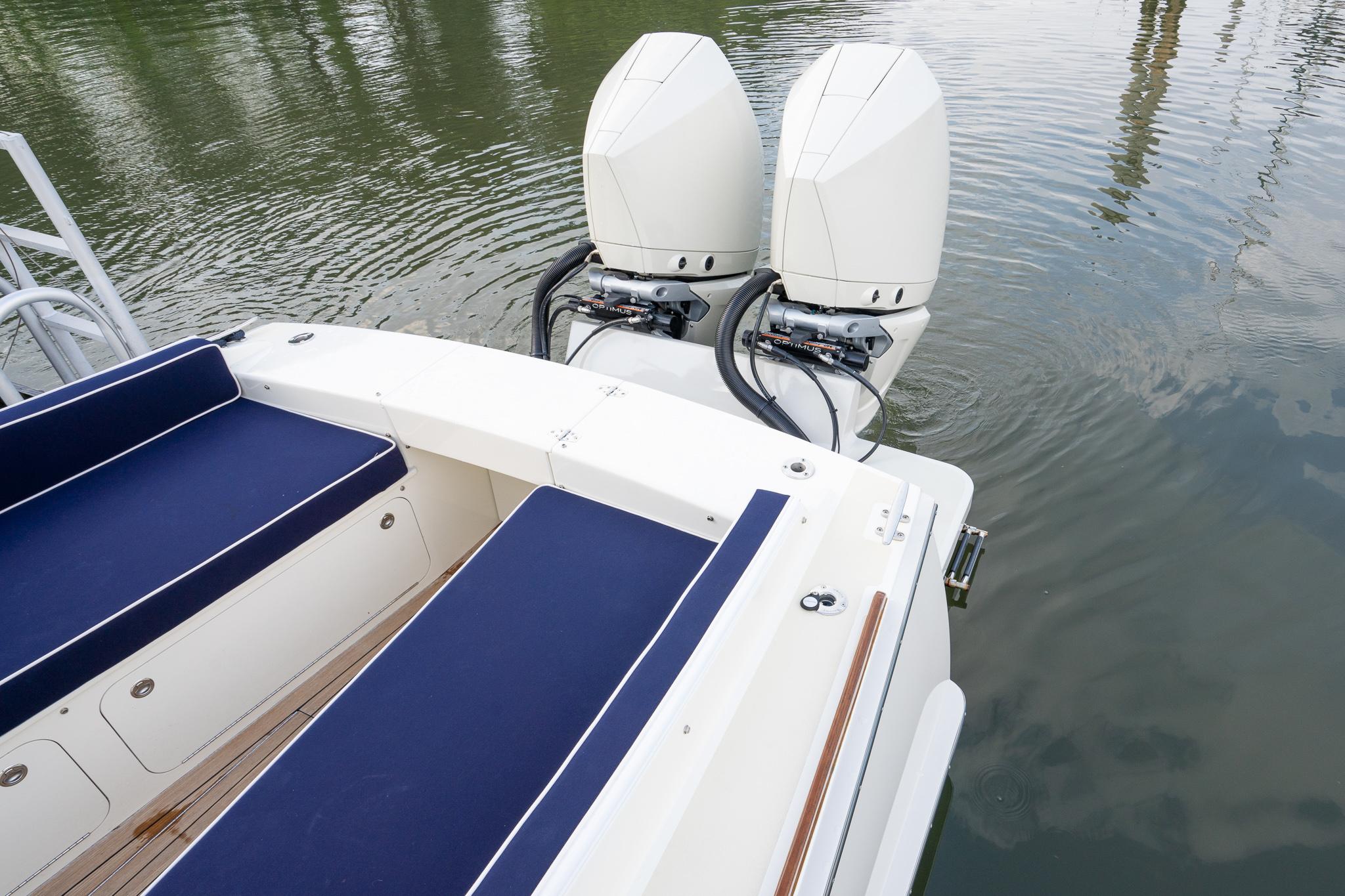

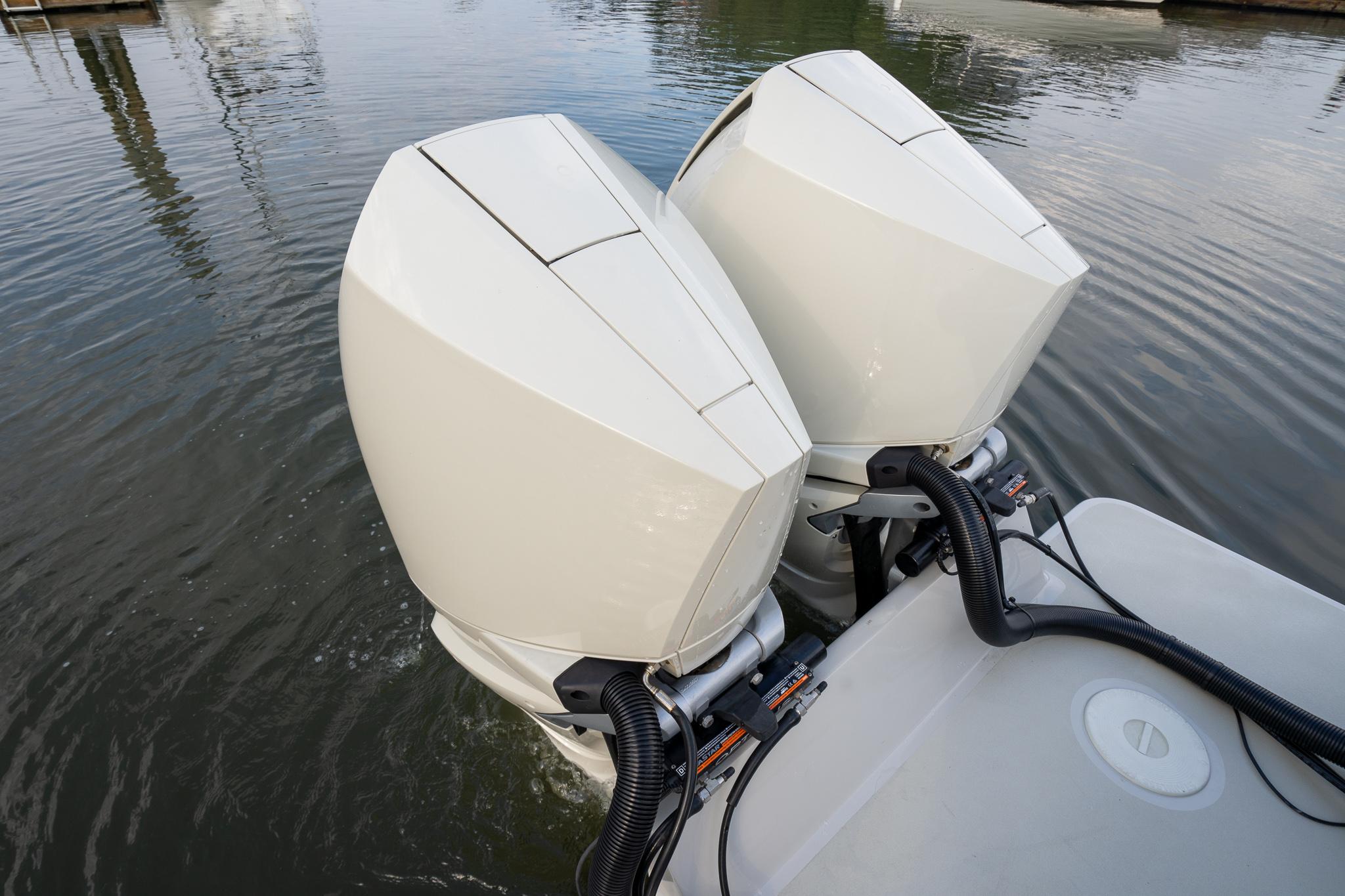

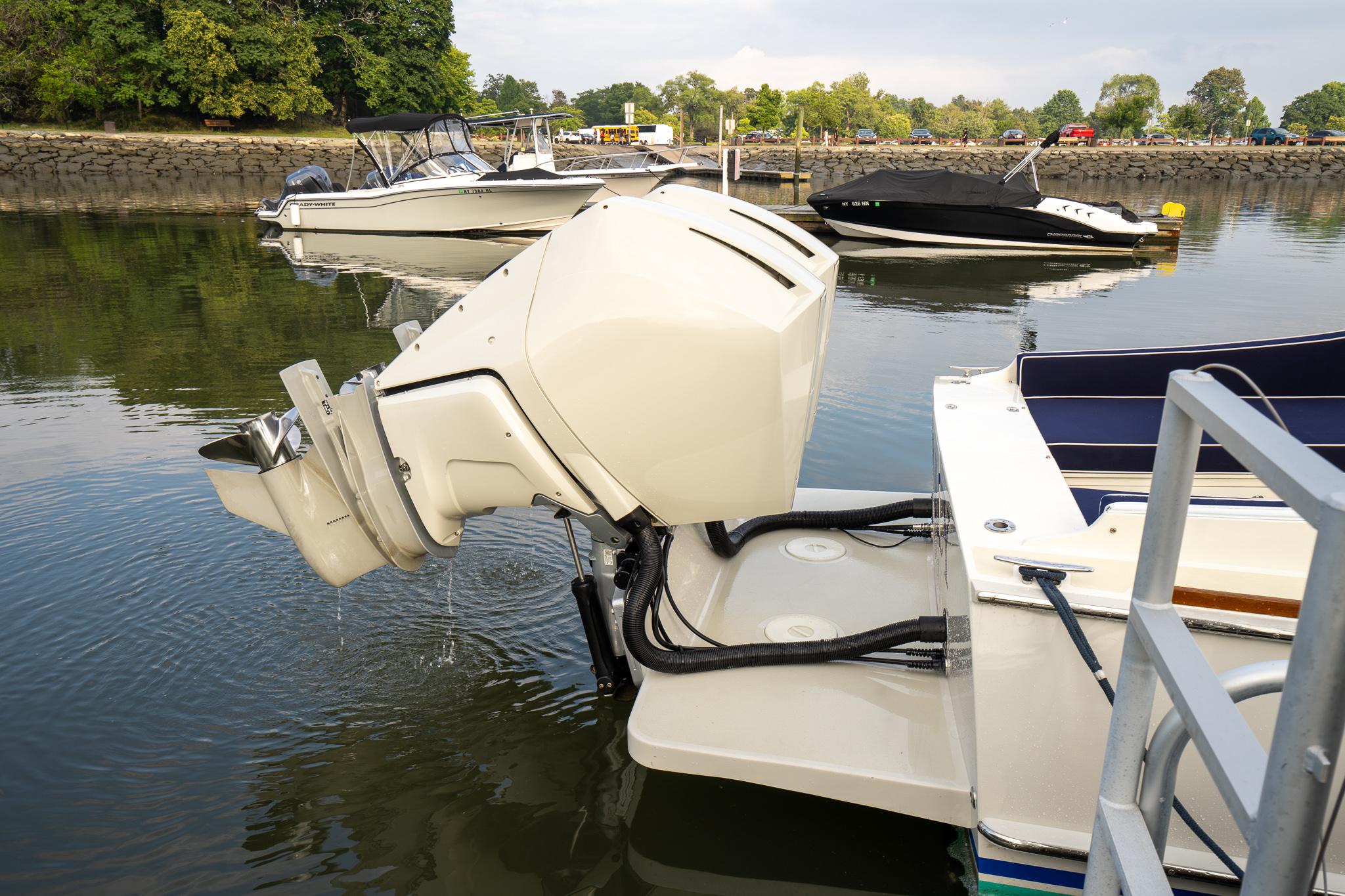

Stainless Marine outboard motor bracket / boarding platform
