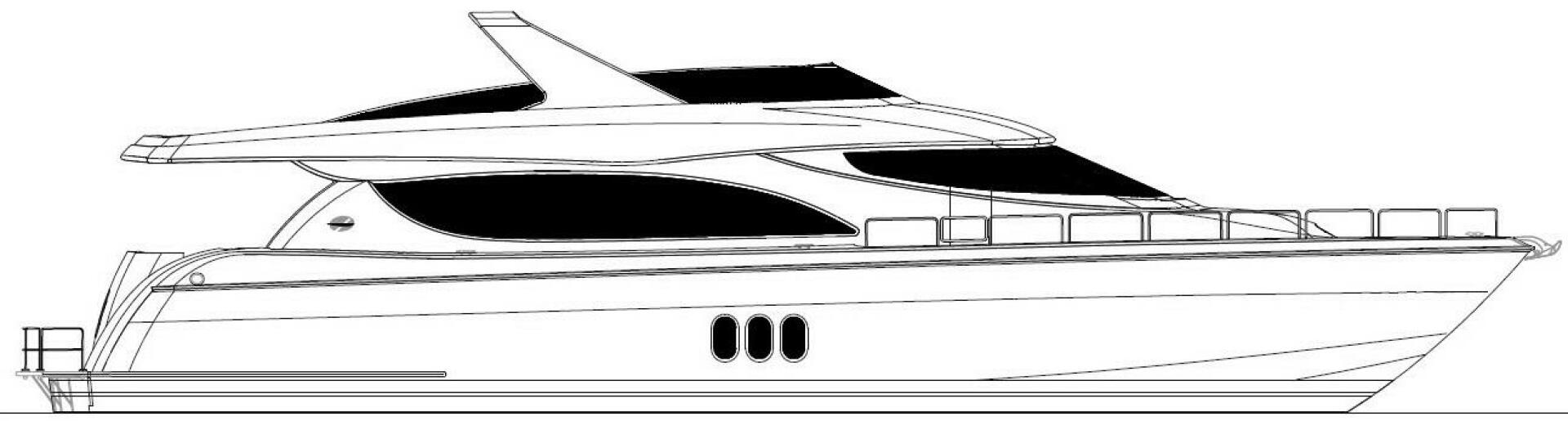

2006 Hatteras HATTERAS 80

MAIN CHARACTERISTICS

Name: MONTE CRISTO

Type: Motor Yacht

Builder: Hatteras

Year: 2006

Refit Year: 2016

LOA (M/FT): 24.38M 80’’00”

Beam Overall (M/FT): 6.48M 21’’03”

Draft (Full Load) (M/FT): 1.73M 5’’08”

Gross Tonnage: 127 Gt

Displacement (Fully Loaded): 92 Tons

Hull Material: Fiberglass

Decks: 2

Flag: USA

Main Engines: (2x) Caterpillar C-32A 1800 HP ACERT

Speeds: 21 Kn Max

16 Kn Cruising

12 Kn Economical

Range: 480 Nm

Guest Accommodation: 8

Crew Accommodation: 3/4

Minimum Safe Manning: 15

KEY FEATURES

• Preferred 4-Stateroom Layout

• 2016 Refit

• Custom Flybridge

• High-Gloss Cherry Interior

• Performance & Comfort

• Meticulously Maintained

CLASSIFICATION

Flag: USA

Port of Registry: Jupiter, Florida

US Tax Status: US Duty Paid

Hull Number: HATGS619C606

MMSI Number: 366382000

Official Registration: 1185165

Home Port: Jupiter, Florida

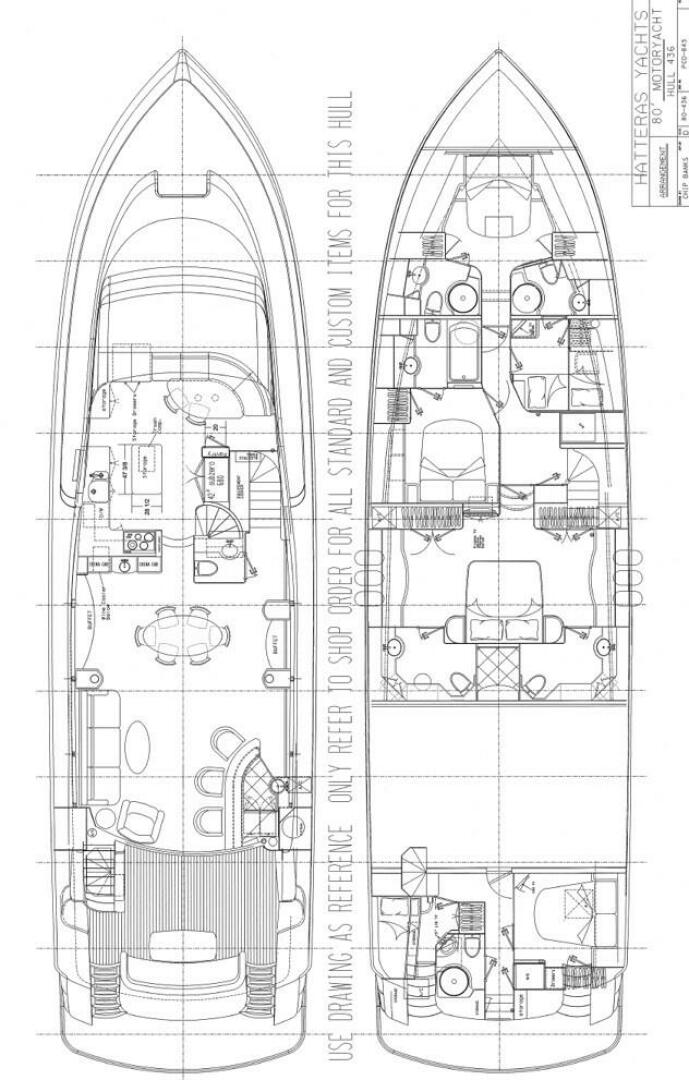

ACCOMMODATIONS (REFIT ’16)

MAIN SALON & DINING AREA

The yacht’s interior showcases cherry wood joinery with high-gloss veneers, complemented by custom carpeting and soundproofing throughout. The salon is fitted with a custom L-shaped upholstered sofa with storage, a Lucite and glass cocktail table, and a leather recliner chair with ottoman. Additional highlights include a custom round corner table with changeable colors and decorative lamp, and a custom marble-topped bar with an upholstered base, sink, and mirrored corner glass cabinet, along with an undercounter Marvel bar fridge and ice maker and a dedicated wine and bottle storage cabinet. Seating is enhanced by two upholstered bar stools with stainless steel bases, while the recessed ceiling and overhead coffers in cherry wood feature a Whisper wall headliner and LED lighting throughout the salon.

The interior also offers a decorative valance with recessed silhouettes and an entertainment center featuring a Samsung 55” TV on lift, Blu-ray/DVD/CD player, and RF iPad remote. Entertainment is supported by an upgraded stereo and subwoofer system, paired with a custom extendable glass dining table surrounded by eight leather chairs. Dining spaces are illuminated by crystal light fixtures set in a custom overhead soffit, with built-in buffet cabinets finished with marble surfaces, port and starboard. Storage and display are provided by a Shoji-screen cabinet, backlit and designed for China and flatware.

The yacht benefits from all-new LED lighting throughout, a custom printer cabinet with sliding shelving, and a central vacuum system. Climate control is supported by an A/C air handler replaced in the salon, while a U-Line wine cooler is conveniently located in the forward cabinet.

The Day Head, fully refitted, features a granite-topped radius vanity with a cherry wood storage cabinet below, a glass vessel sink with custom fixtures, and custom wall coverings. The space is enhanced with a mirrored overhead, porcelain flooring, and a mirrored bulkhead with twin decorative sconces, along with a Headhunter freshwater toilet.

MASTER STATEROOM

The Master Stateroom features a king-sized berth with storage below and a new upholstered leather base, complemented by a custom upholstered headboard and bulkhead. Overhead, a lacquered soffit with LED accent lighting adds ambiance, while decorative swing-arm reading lamps, port and starboard, provide convenience. Additional storage includes custom lacquered nightstands with drawers and porcelain tops, as well as matching dressers, port and starboard, finished with porcelain tops. The stateroom’s atmosphere is enhanced with Whisper wall bulkheads and headliner, new carpeting and soundproofing, and His & Her cedar-lined closets with auto-lighting. Entertainment is provided by a Samsung 43” TV mounted on the bulkhead with Blu-ray/CD and RF iPad remote, supported by a Sirius radio system and upgraded stereo with subwoofer.

Natural light enters through six large oval portlights, which are dressed with Hunter Douglas blackout Roman shades. Additional features include a built-in safe and new dual air handlers with updated ducting and insulation.

The His & Her Master Bath offers custom lacquered vanities with Mystic White marble surfaces and a bespoke tile backsplash, alongside a built-in makeup vanity with drawer and stool. Both spaces feature ceramic sinks with polished stainless hardware and are finished with mirrored forward bulkheads, medicine cabinets, and overhead storage. The centerpiece is a centerline marble shower with frameless glass enclosure and marble bench, complemented by custom porcelain flooring and polished stainless fixtures throughout. The space is further enriched with custom wallcoverings and upgraded Toto heads, port and starboard.

VIP QUEEN STATEROOM, FORWARD

The VIP Stateroom features a queen-size tapered berth with storage below, complemented by a new upholstered headboard and bed base. The space is finished with new carpeting, Whisper wall bulkheads, and a headliner, creating a refined and comfortable atmosphere. A mirrored forward bulkhead, built-in shelving, and upper hull side storage cabinets to port and starboard provide both style and functionality. For convenience, cedar-lined closets with arched doors and automatic lighting are located to port and starboard, while a screened overhead hatch with privacy cover brings natural light and ventilation. Entertainment is provided by a Samsung 32” TV with Blu-ray/CD, RF iPad remote, and Sirius radio.

The private en suite bath offers a marble vanity top, glass-enclosed shower, mirrored medicine cabinets, and overhead storage, along with an upgraded Toto head, custom wallcoverings, and tile flooring. Comfort is further enhanced with a new air handler, ducting, and insulation.

QUEEN GUEST STATEROOM, PORT

The Queen Guest Stateroom, Port features a walk-around queen berth with storage below, framed by a custom upholstered headboard, bulkhead, and bed base. The room is finished with Whisper wall bulkheads, headliner, and new carpeting with soundproofing, creating a refined and quiet retreat. Storage includes built-in nightstands to port and starboard, mirrored panels on the aft bulkhead, and a dresser with drawers. Entertainment is provided by a Samsung 32” TV with Blu-ray/CD and RF iPad remote, complemented by Sirius radio. Natural light enters through a portlight opening, with silhouette blinds offering privacy and ambiance.

Comfort is enhanced by a new air handler with updated ducting and insulation. The stateroom also features a cedar-lined closet with arched door, auto-lighting, and a full floor-to-ceiling mirror, adding both convenience and elegance. The private bath includes a marble vanity top, custom wallcoverings, an overhead mirror, and a custom semi-frameless tub/shower enclosure, completed with custom tile flooring.

TWIN GUEST STATEROOM, STARBOARD

The Twin Guest Stateroom, Starboard offers upper and lower twin berths with storage beneath the lower bunk, paired with an upholstered bed base for comfort and style. The space is finished with Whisper wall bulkheads and headliner, along with new carpeting and soundproofing. Storage is provided by built-in cabinets with drawers and a cedar-lined hanging locker with auto-light, while a full-length mirror adds both functionality and elegance. Entertainment is provided by a Samsung 25” TV mounted on the bulkhead with Blu-ray/CD and RF iPad remote. Comfort is further enhanced by a new air handler with updated ducting and insulation.

The private bath includes a sliding door entry, marble vanity top, sink, mirrored medicine cabinets and overhead storage, with custom wallcoverings and stone flooring completing the space.

In the Lower Companionway, a Bosch full-size washer and dryer concealed behind double doors ensures onboard convenience. The area is finished with Whisper wall bulkheads, new carpeting and soundproofing, and includes a custom morning kitchen with marble surfaces, mirrored walls, and an undercounter Perlick refrigerator. Additional custom storage cabinetry along the stairwell provides thoughtful utility.

CREW QUARTERS, AFT BELOW

The Crew Quarters, Aft Below, are designed for comfort and functionality. The captain’s cabin features a large double berth with storage below, accompanied by a nightstand with drawer, cedar-lined built-in storage cabinet, and hanging locker. Entertainment is provided by a Samsung 23” TV mounted on the bulkhead with RF iPad remote. Additional crew accommodation includes a cabin with upper and lower berths and an upper Pullman berth, complemented by custom pull-out drawers for added storage.

A Samsung 18” TV and hanging locker serve the crew area, while the shared crew head offers a vanity, storage, medicine cabinets, and a shower. Practical features include a custom storage cabinet with a large countertop, a built-in safe, and Amtico flooring throughout the crew area with matching Amtico wood-finish stairs. Comfort is further enhanced by crew cabin air handlers with new ducting and insulation.

CAPACITIES

Gross Tonnage: 127 Gt

Net Tonnage: 37 Gt

Displacement Tons: 95 US Short Ton

Fuel Capacity: 10,819 Litres 2,858 Gallons

Fresh Water Capacity: 1,234 Litres 326 Gallons

Holding Tank: 1,469 Litres 388 Gallons

Speed Consumption p/h RPM

Maximum: 21 Kn 180 2,100

Cruising: 16 Kn 90 1,850

Economical: 12 Kn 58 1,420

MAIN MACHINERY

Main Engines: (2x) Caterpillar C-32A 1800 HP ACERT (3000 Hr. Service 11/19)

Engine Hours: Port: 4760 Hrs.

Starboard: 4757 Hrs.

Engine Mounts: Sundown (’18)

GENERATORS & ELECTRICITY

Generators: (2x) Twin Onan 27.5 KW Generators w/ Sound Shields (Overhauled ’18)

Generator Hours: Port: 8129 Hrs.

Starboard: 8234 Hrs.

Shore Power: (2x) 100 Amp & 50 Amp

Cablemaster: Glendenning w/ Wireless Remote

Battery Paralleling System Automatic w/ Switch Control

Battery Chargers: 240v Battery Charger

AUXILIARY MACHINERY & ENGINE ROOM

Bow Thruster: ABT Trac

Stabilizers: ABT Trac Zero Speed (’18)

Under Water Lights: (4x) (16’)

Nibral 7-Bladed Props: (2x) (’18)

Prop Shaft: Alloy 22

Manganese Bronze: Dripless Shaft & Rudder Sets (See engine log) Replaced ‘22

Trim Tabs: Stainless Steel

Fuel & Oil System Electric Fuel Transfer System w/ Filtration

Fuel Transfer Pump: (2x) New w/ Selector Switch (18’)

Priming Fuel Pumps: Electric

Oil Change System: For Engines & Generators

Fresh Water System

Fresh Water Makers: (1x) Sea Recovery 1400 GPD (Reconditioned ’19)

(1x) Aquamiser 1200 GPD (’18)

Fresh Water Tanks: (1x) 325 Gal

Holding Tank: Sewage Pump + Deck Pump Out Cap

AC & Ventilation System (2x) New Frequency Drive (18’)

Air Conditioning: (2x) Domestic 72000 BTU Cruisair Chillers (New 2025)

Air Handling Units: New Air Handlers Throughout (’16)

Air Induction Fans: Variable Speed

Engine Room AC: New Domestic 24000 BTU Air Handler

Engine Room Blower: New Century II, Starboard side (’18) / Portside Rebuilt (’18)

External Touch-Pad Control Units: (2x) Engine Room & Bridge, Blower/Ventilation Speed (18’)

Overhead Storage Cabinet: Port & Starboard

Work Bench: Includes Tool Chest

FLYBRIDGE EQUIPMENT

Air Conditioning: Flybridge

Air Handler: Self-Contained Flybridge Replaced (17’)

Helm Chairs: (3x) Pompanette w/ Covers (16’)

Lounge Seating: L-Shaped w/ Hinged Storage Below, Port & Starboard

Lounge Chairs & Swing Chair: (2x) (17’)

Deck Chairs: (4x) (16’)

Bar Stools: (3x) Stainless Pedestal

Cushions & Cover’s: All Replaced (16’)

Tables: Custom Teak High Gloss Table w/ Leaf & Stainless Pedestals, Seats (10x) & Converts to Cocktail Tables Without Lead (16’)

Bar: With Sink, Fridge, Storage & Manitowoc Icemaker (16’)

Locker: Custom Chart Locker w/ Chart Table Red & LED Lights w/ Storage (16’)

Grill: (1x) Fire Magic

TV: SkyVue 42’ TV On Custom S/S Bracket (16’)

Teak: Flexiteek Synthetic Teak Sole on Forward Bridge Deck (16’)

Flybridge Structure: Reinforced (16’)

Control Station: Single Lever Electric Clutches & Throttles

Pipe Welders: Custom Hardtop w/ Custom Light Soffit

EZ2CY: 4-Sided Enclosure (16’)

Hatch & Stairwell: Down to Aft Deck

Hydraulic Telescoping Davit: Marquipt 1500 lb w/ Handheld Remote Control (Rebuilt w/ New Actuator, Hoses, Cable w/ Hook) (17’)

Fittings: Removable Chocks & Reinforced Tender & Jet ski Deck Fittings, Bolted to Deck 2/ Backing Plates (16’)

Paint: Complete Paint Touch-up & New Non-skid (19’)

Jacuzzi: Circular Tub w/ Custom 2-Step Ladder & Handrails (16’)

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

Monitors: New Computer Monitoring System w/ Aydin ’15 Touch Screen (’19)

X-Band Radar: Furuno X-Band Black Box Radar w/ Open Array

Multifunctional Workstation: Furuno Nav Net 3D Multi-Function Display

Chart Plotter: Northstar 972 GPS Plotter w/ (‘8) Display

Auto Pilot: Simrad w/ New Display (’19)

Remote Yacht Controller: 4 Function Dual Band (’18)

Depth Sounder: Furuno Depthsounder, High Frequency for Furuno Navnet 3D

Bow Thruster Control: (1x)

ABT: Trac Zero Motion Stabilizer Control (’18)

GPS: Garmin GPS 8617 Chart Plotter w/ (’15) Sunlight Display

Navigation Power Amp: Ritchie Amp Plus Flush Mount Compass (’17)

Weather Fax: New Sirius GXM53 Weather Receiver for Garmin (’19)

Ships Computer: Bentley Software to Monitor Ships Data (’19)

Computer Screen: Aydin (’15) High Resolution Touchscreen (’19)

Router: New Wave MBR 500 (’19)

COMMUNICATION SYSTEMS

SAT com: SAT Phone

VSAT: VSAT Internet

KVH: HD7 Dome w/ 16 Channel Multi-Switch for Direct TV

Tri-Americas: LNB Unit for N. America/Caribbean Direct TV & SAT Phone (’18)

Security Cameras: Salon, Aft, and Engine Room

VHF Digital Radios: Icom 602 VHF Radio

Marine ICM 506 VHF Radio (’19)

(2x) Icom VHF / Hailers

BOW & FORE DECK EQUIPMENT

Anchor Chains: New 300’ Anchor Chain (’17)

Anchor Windlass System: Maxwell

Plow Anchor: 110 lb.

Anchor Light: LED (’17)

Anchor Locker Storage: Newly Painted and Added Storage Shelf (’19)

Rope Locker Storage: Port & Starboard

Freshwater Washdown: (x1)

Forward Bow Tide Ride: (x1) Storage Locker

Bimini Top: Custom w/ Stainless on Fore Deck (’17)

Chaise Lounge: Custom (’16) w/ Adjustable Backrest (’17)

Removable Deck Hatch: Storage in Bow & VIP for Dry Good Storage

Safety Stainless Bard: On Fore Deck (’16)

AFT DECK EQUIPMENT

Bench Settee: Built-In w/ Storage Below

Cushions: Custom Sunbrella Cushions & Canvas Covers for Settee (16’)

Bar: Custom Bar W/ High Gloss Teak Surface, Sink, Storage & U-Line Fridge/Icemaker Combo (16’)

Teak Table: AJ Originals High Gloss Teak Table W/Compass Rose Inlay & Dual S/S Pedestals (16’)

Teak Accent Rail: High Gloss Around Aft Seating

Steps: New Teak Steps on stairwell to bridge W/ LED Strip Lights (16’)

Stairs: Tide Ride Boarding Stairs (16’)

Dual Lighted Stairwells w/ Teak Treads, Port & Stbd, To Swim Platform (16’)

Barrel Chairs: (4x) Valdenassi Aluminum

TV: SkyVue 42" TV On Custom Bracket (16’)

Wing Station: To Stbd W/ Drop Down Controls

Double Sliding Door to Salon: Polished Stainless Stee

Access Bustle Door: W/ Stairs to Crew Quarters Below

Support Pillars: (2x) Large S/S Port & Stbd, For Reinforced Flybridge Deck (16’)

Sunshades: Aft Deck & Sides (16’)

Side Gates: For Easy Boarding, Port & Starboard

Audio: Audio System Control & JL M3 Waterproof Speakers (16’)

Swim Platform: New Swim Platform & Dual Steps from Aft Deck w/ Teak Treads (19’)

Shower: Hot/Cold Shower w/ Quick Disconnect

Saltwater/Freshwater Wash: (1x)

Rails: Removable Stainless Steel Hoop Rails (16’)

Teak Steps: LED Lighting to Aft Deck (’16)

Pop-Up Cleats: (2x)

Door: Pacific Coast Weather Tight Door to Crew Quarters & Engine Room

Life Rafts: (2x) Viking 6 Man Life Rafts w/ Custom Made Cradles for Both (New 2025)

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Countertops: Mystic White Granite with Mosaic Backsplash

Center Island: Custom Waterfall Granite Top

Sink: Double Stainless-Steel Sink with Garbage Disposal

Refrigeration/Freezer: Sub-Zero Side-by-side Stainless

Dishwasher: (2x) Fisher Paykel Dishwasher Drawers

Microwave: Viking Microwave/Convection Oven

Oven: Viking 4-Burner Ceramic Cooktop and Oven

Privacy Doors: Galley & Salon

Windows: Tinted Frameless V-Kool w/ Duette Blinds

Pantry: Storage & Stew Pantry

Dinette: Bench Leather Seating w/ Stainless Footrest

Table: Custom Stone Table-top w/ Teak Base

Seating: Leather Bar Stools w/ Brushed Aluminium Base

Flooring: Amtico

Doors: Pantograph Side Entry

CREW GALLEY EQUIPMENT

Refrigeration/Freezer: Sub-Zero Refrigerator w/ Accucold Freezer Top Unit (’16)

Main Laundry Equipment: Bosch Full Size Washer & Dryer (’18)

TENDERS & TOYS

Tenders: Novurania Tender 1/ Yamaha 60HP O/B (16’)

CAPITAL IMPROVEMENTS

2019

• New Teak Swim Platform & Steps

• Caterpillar Main Engines 3000 Hour Service

• Sea Recovery Watermaker Re-conditioned

• New Ship's Computer w/ Bentley Software to Monitor Ships Data

• Aydin 15" High Resolution Touchscreen Ship's Computer Screen

• New Wave MBR 500 Router

• New Sirius GXM53 Weather Receiver for Garmin

• New Autopilot Display

• Paint Touch-up on Bridge & New Non-skid on Deck

• Rebuilt After Coolers & Heat Exchangers

2016-2018

• New/Upgraded Electronics on Bridge

• Zero Speed Stabilizers Installed

• Generators Overhauled

• New Aquamiser 1200 GPD Water

• New Nibral Props

• (2x) Sets Bosch Washer/Dryers

• Custom Flybridge Extension; Hot Tub, Wave runner & Tender Can Be Stored

• Interior Refit w/ New Marble, Whisper Walls, Carpeting, Furnishings, Etc.

• LED Lighting Throughout

• Custom Corner Wine Glass Cabinet w/ Mirror

• New Audio/Visual Equipment Throughout

• Custom Storage/Pantry Cabinet Added

• New Carpet & Sound Down Installation Throughout

• Salon Wet Bar w/ New Icemaker & Refrigerator

• Aft Deck Refrigerator/Icemaker Combo

• Custom "Morning Kitchen" In Guest Area

• Teak Stairs From Aft Deck to Bridge

• Full Flybridge Enclosure w/ EZ2C Curtains

• Flybridge Fully Air Conditioned

• Custom Chart Locker/Storage

• Additional Third Stidd Chair Installed on Bridge

• Custom Flybridge Teak Table w/ Leaf, For Up To (10), Converts to Cocktail Tables

• Crew Area w/ New Storage Cabinets, Countertop & Flooring

• New Custom Enlarged Table in Galley

• New Icemaker on Flybridge

• Galley Appliances Replaced

• 2025 New Chillers + EP150 Electrosea System

2023-2026

• Replace misc. air handler motors - 2025

• Replace both AC water pumps - 2024

• Replace both AC chiller units in ER - 2025

• Install Electrosea marine growth prevention unit - 2025

• Haul out, sand a paint bottom with Sea hawk Biocop 2 coats - April 2025

• Remove props and balance, prop speed - April 2025

• Replace Tide seals and add 2 spare/shaft - April 2025

• Replace two of 3 water heaters in 2023 and replace Aqua Box - 2024

• Remove engine heat exchangers and aftercoolers and 1000 hr services - 12/2023

• Replace main batteries - 3/2024

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
