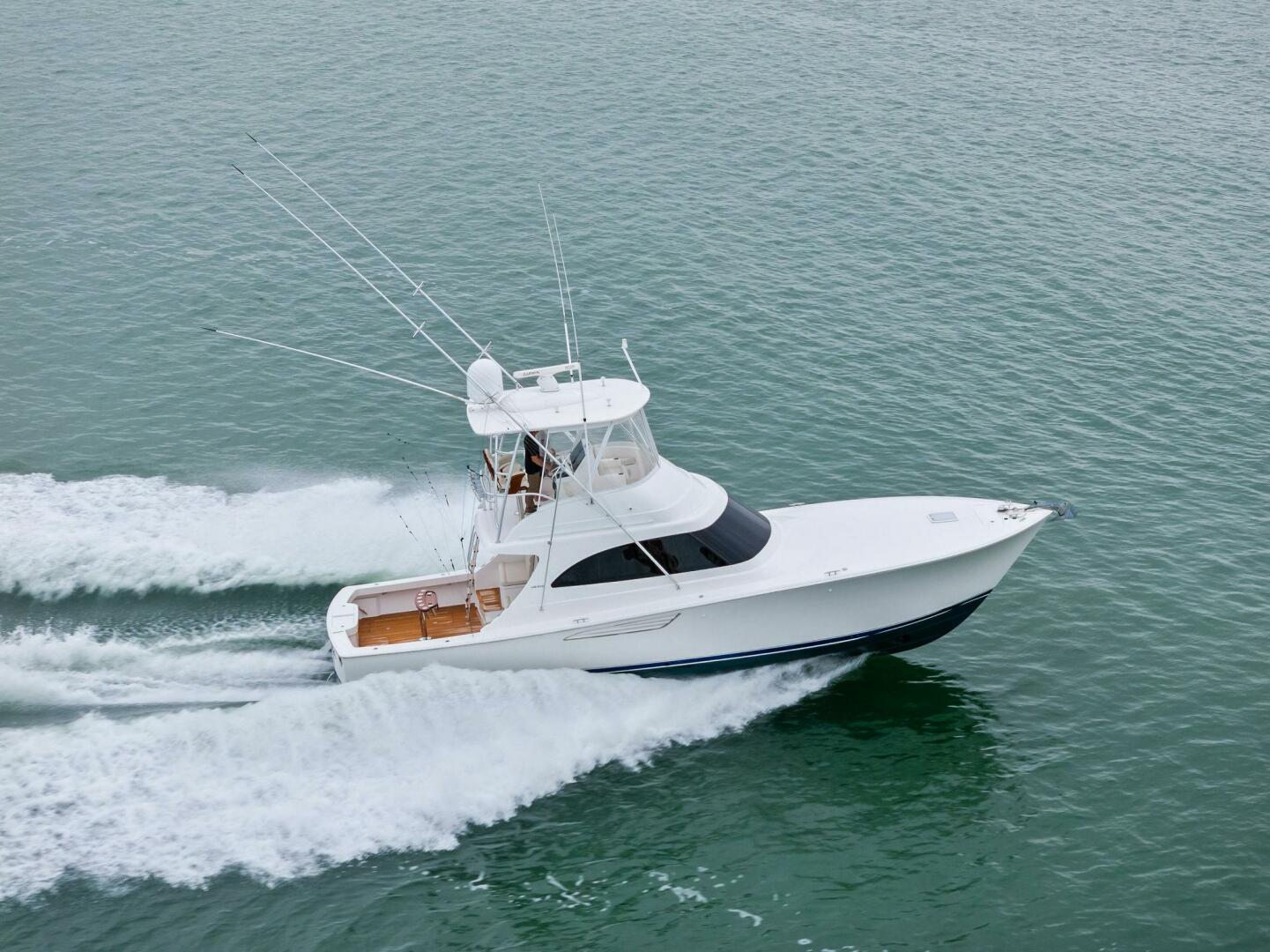

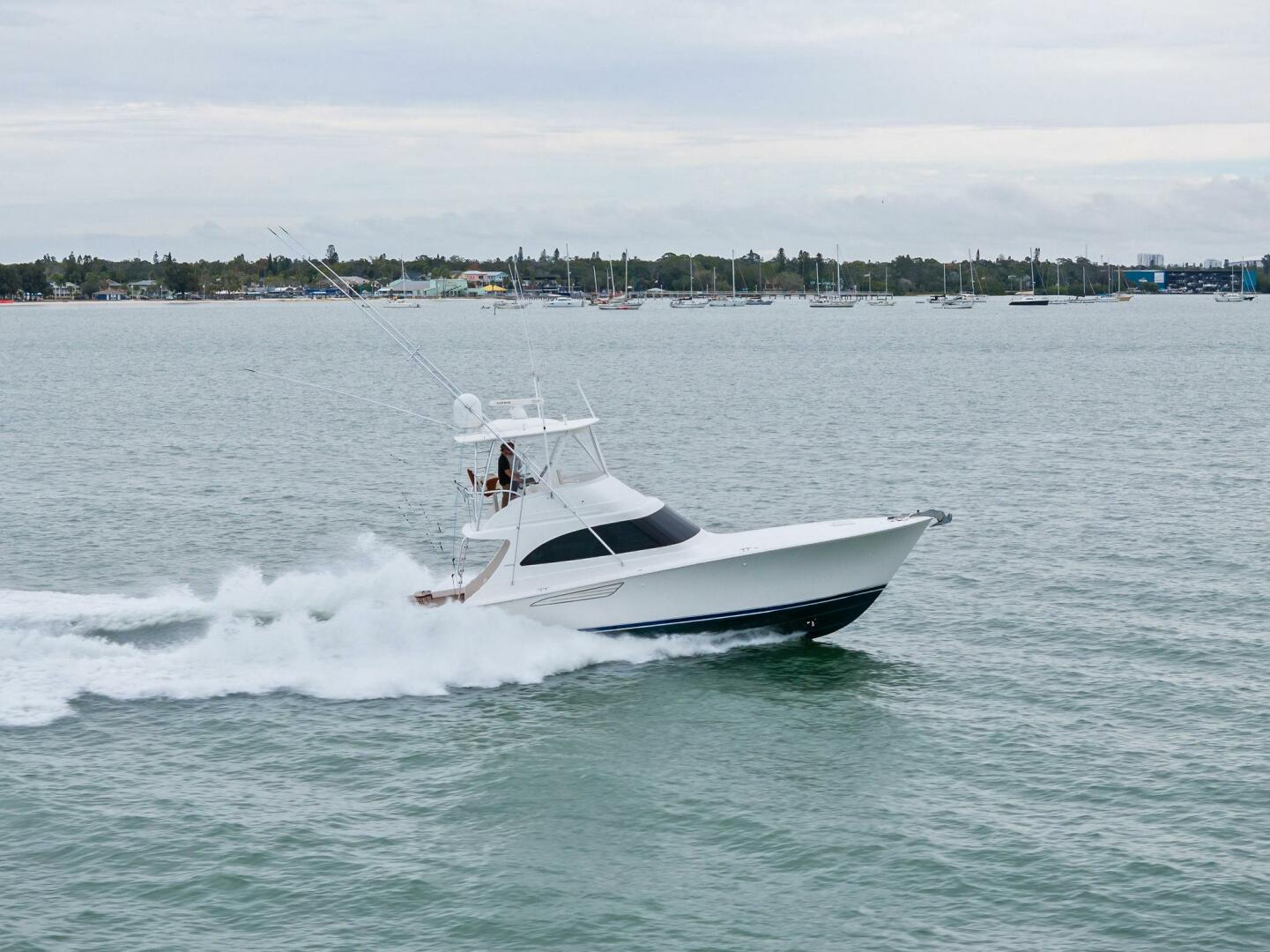

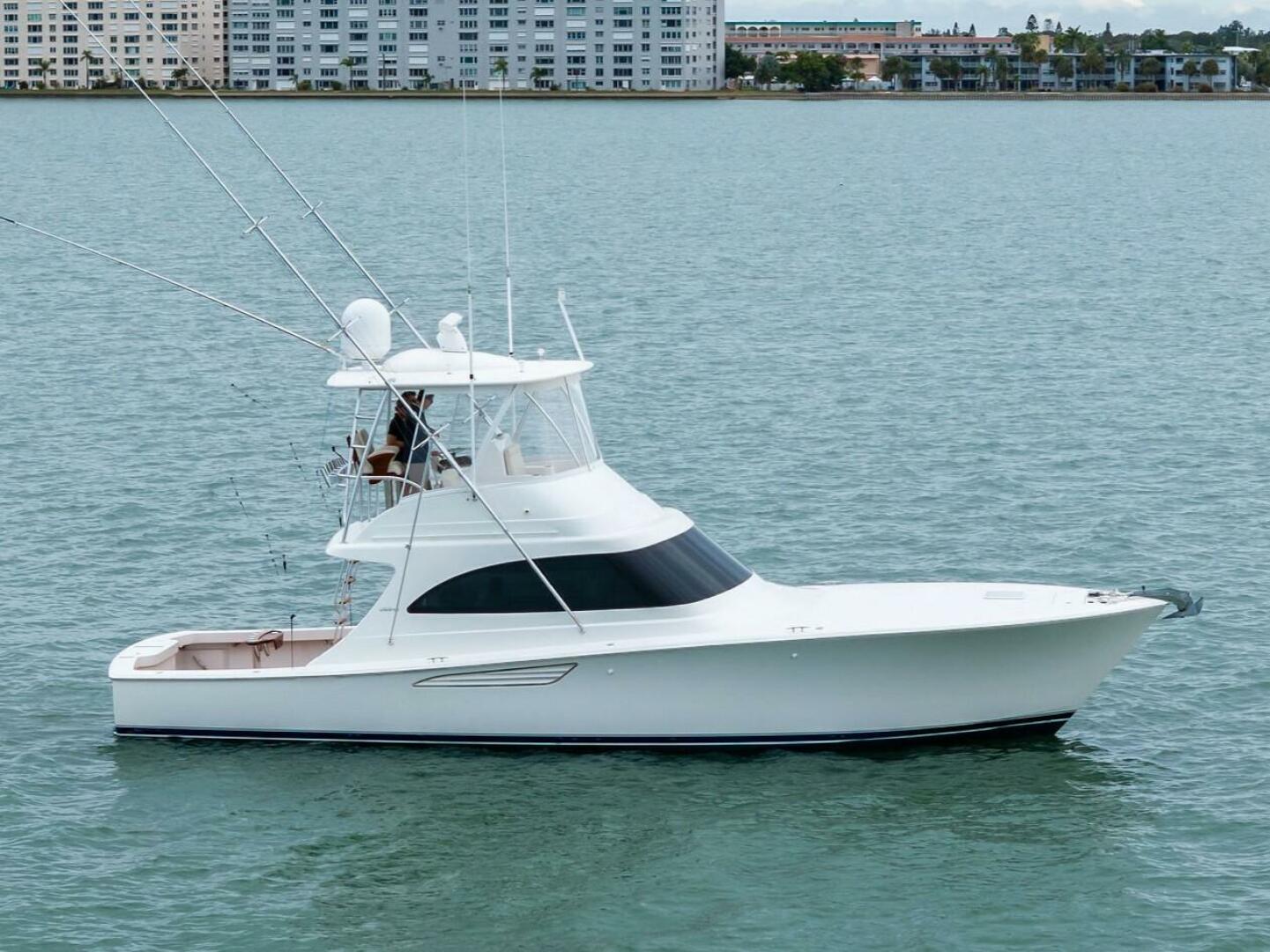

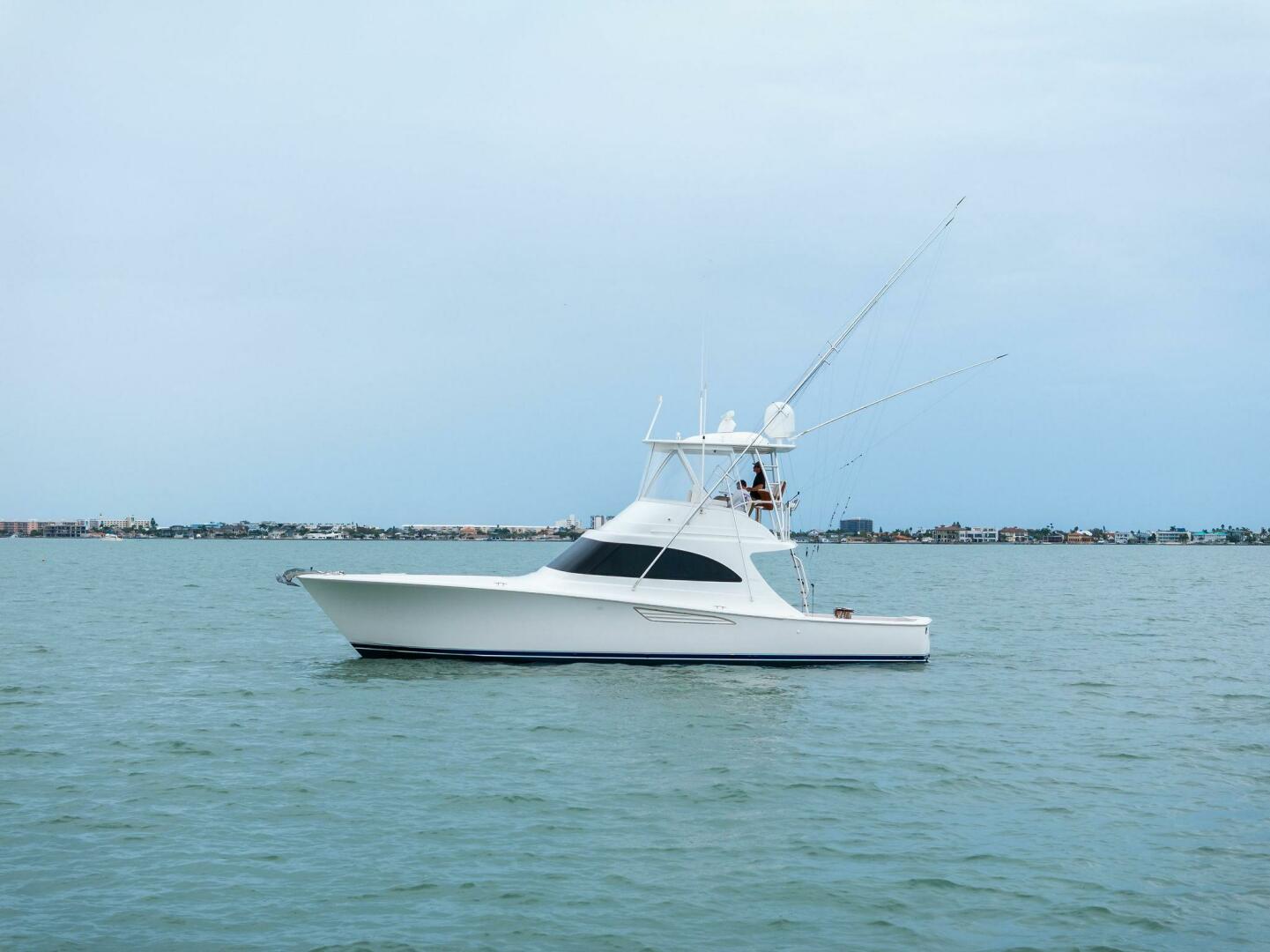

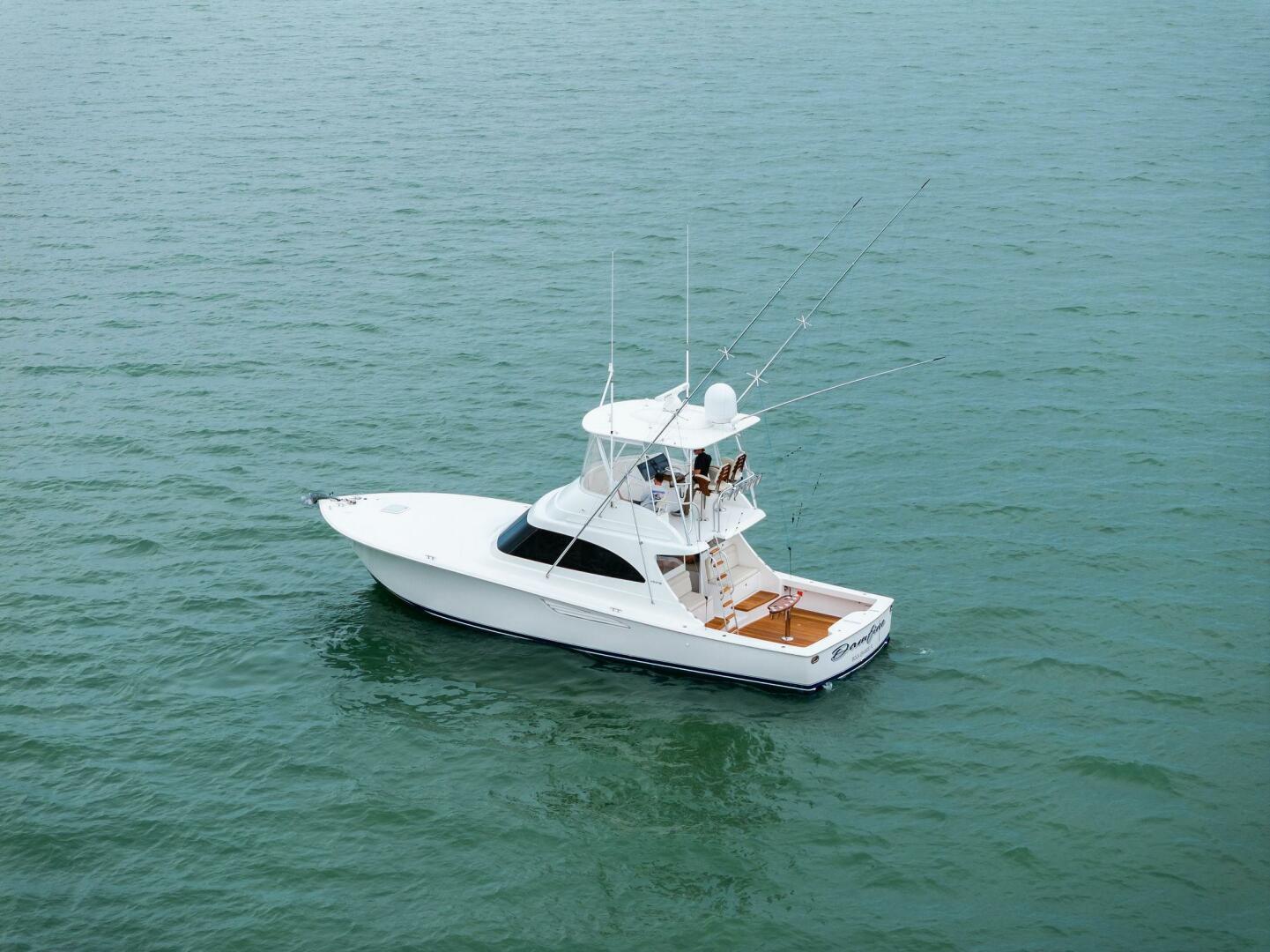

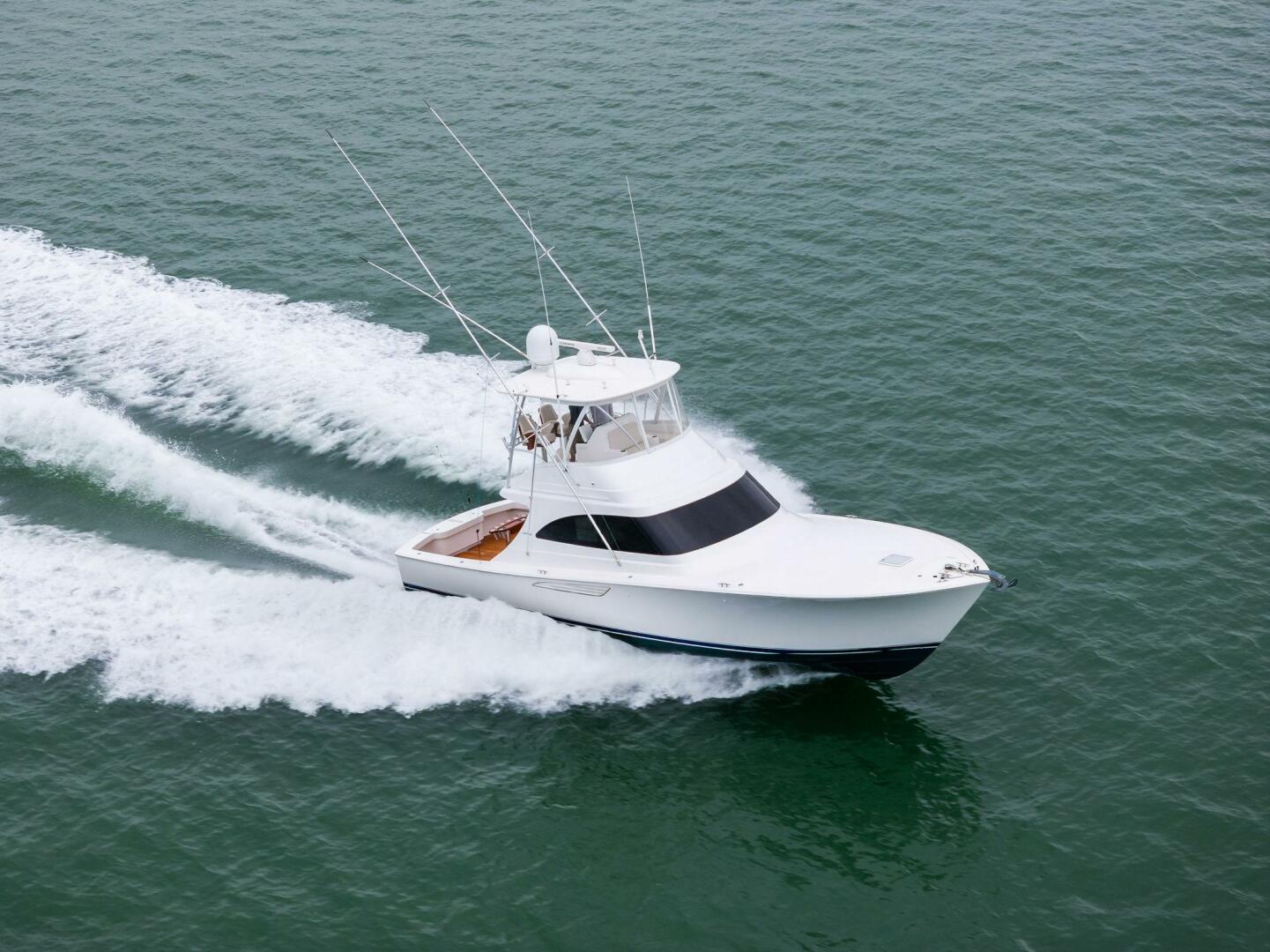

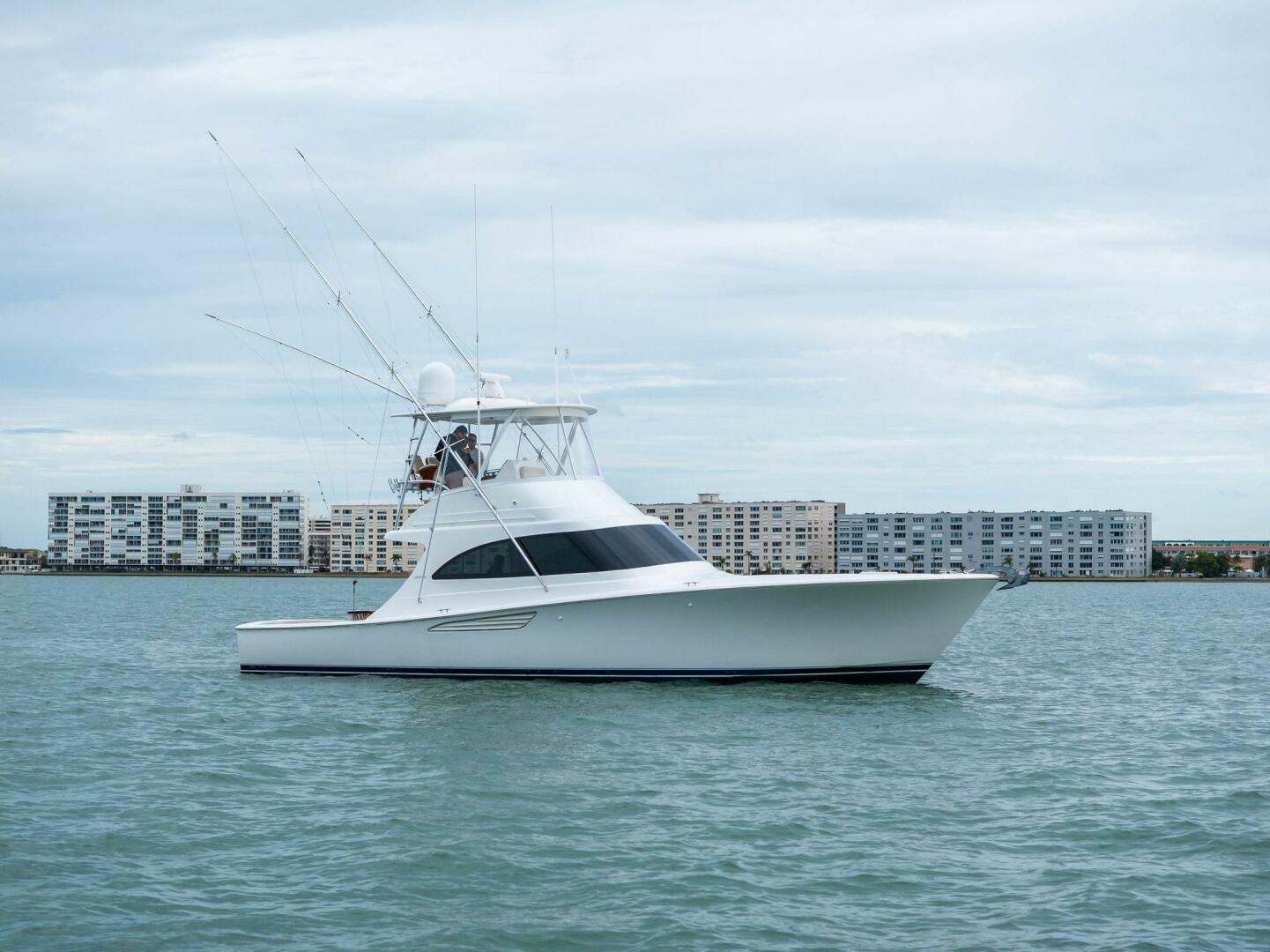

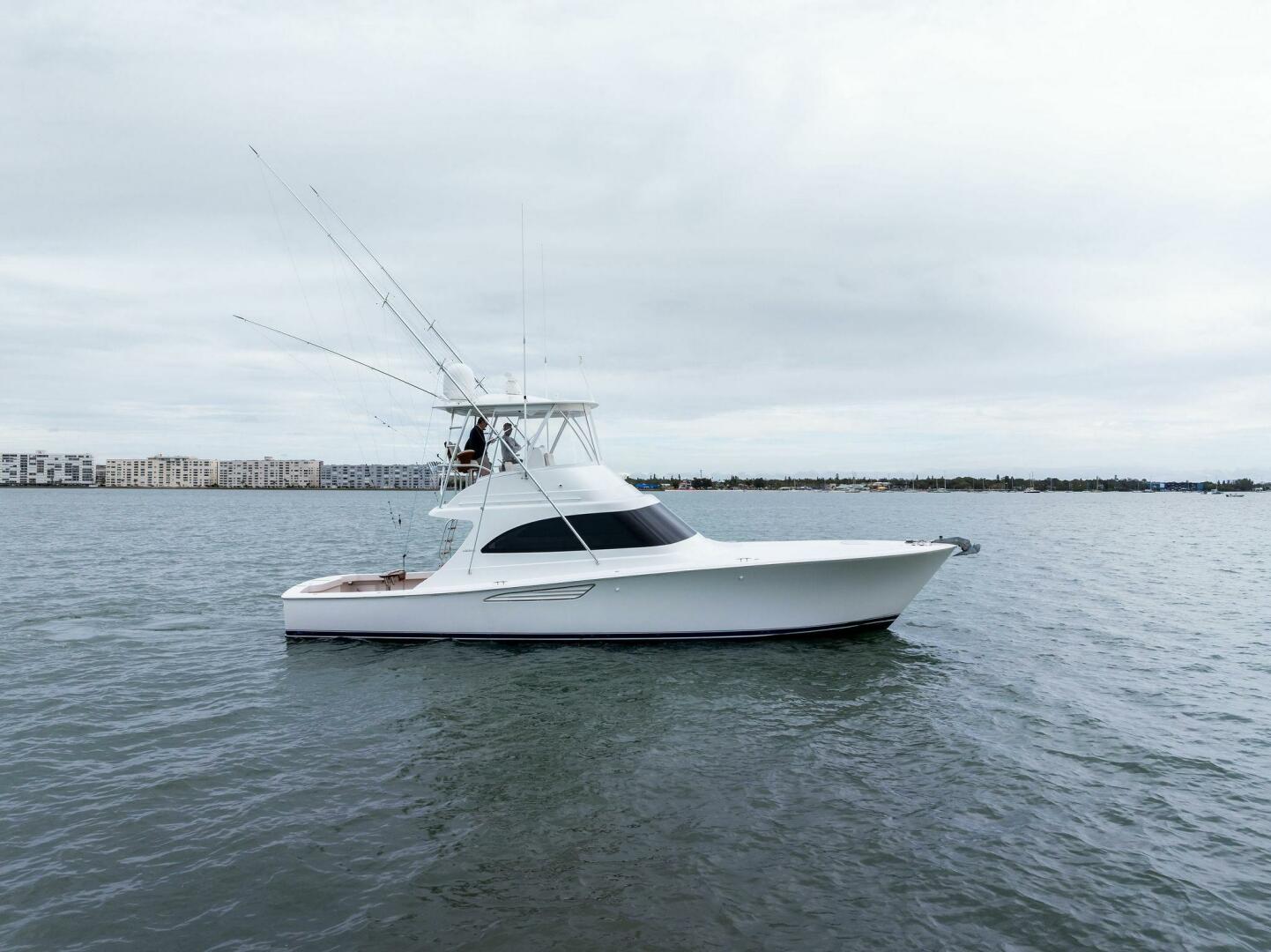

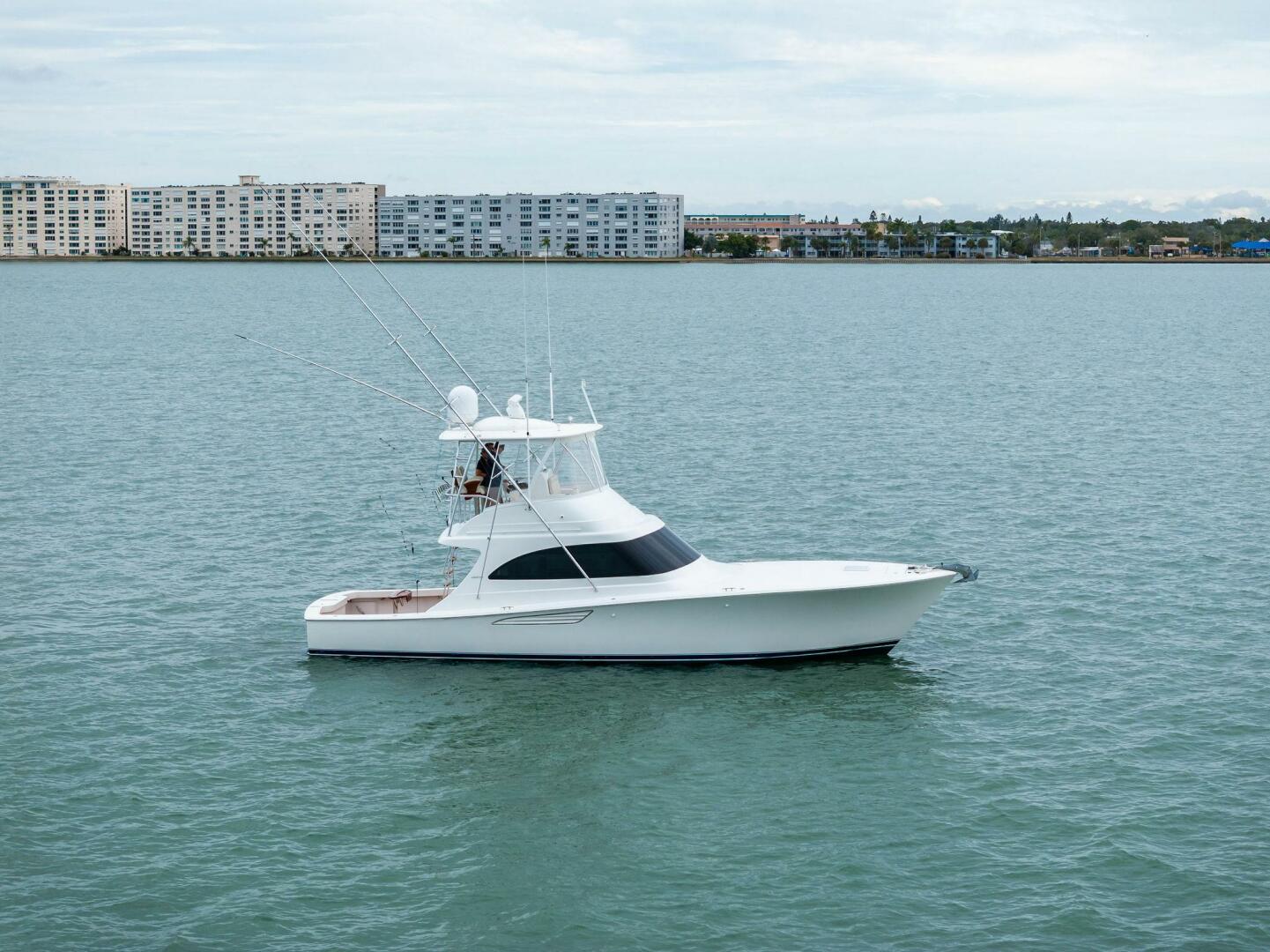

2021 Viking 46 Billfish

• Engine Start / Stop
• Trumpet Style Air Horns
• Radar Pod (with Optional Hardtop)
• Compass, Flush Mounted at Helm, Lighted

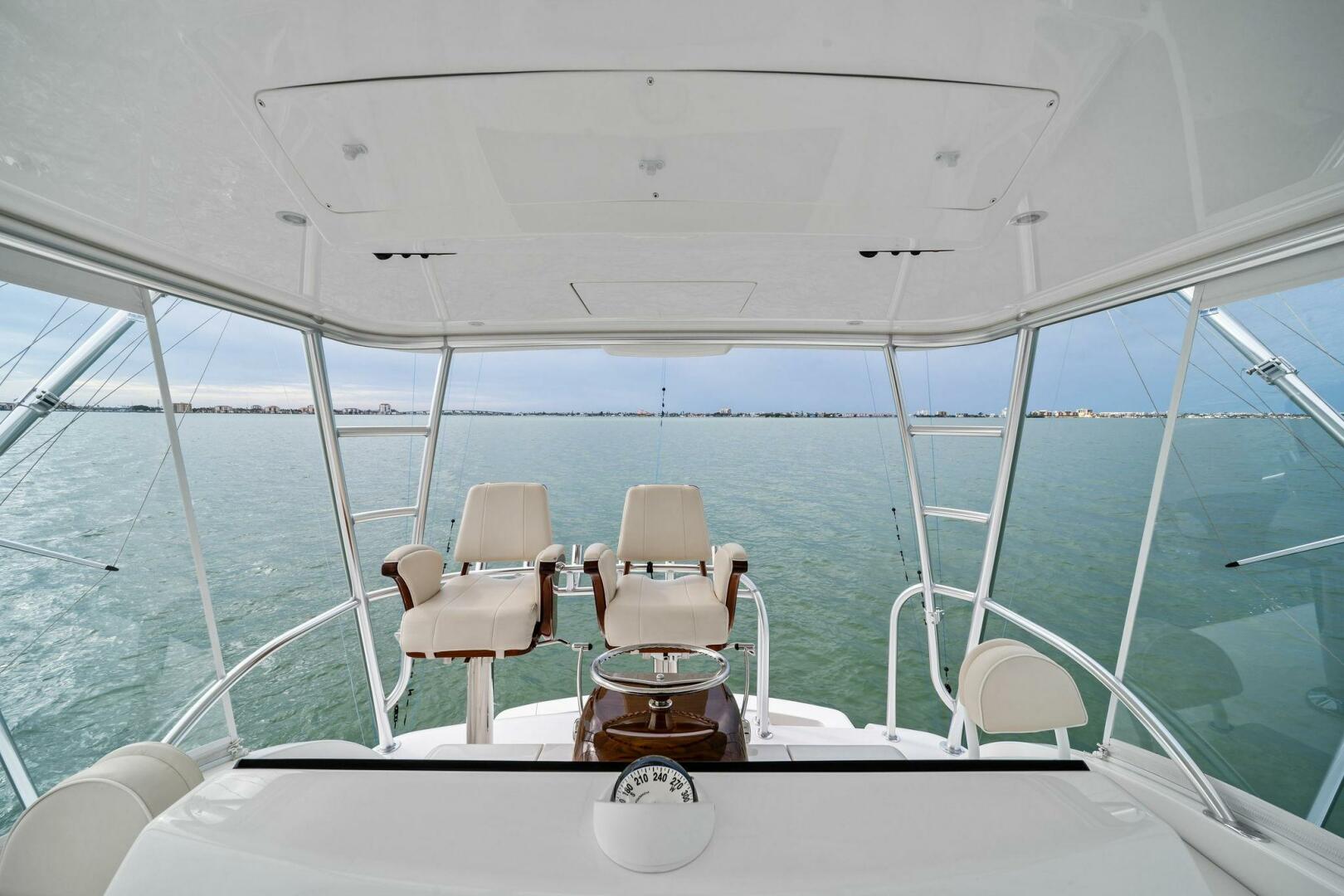

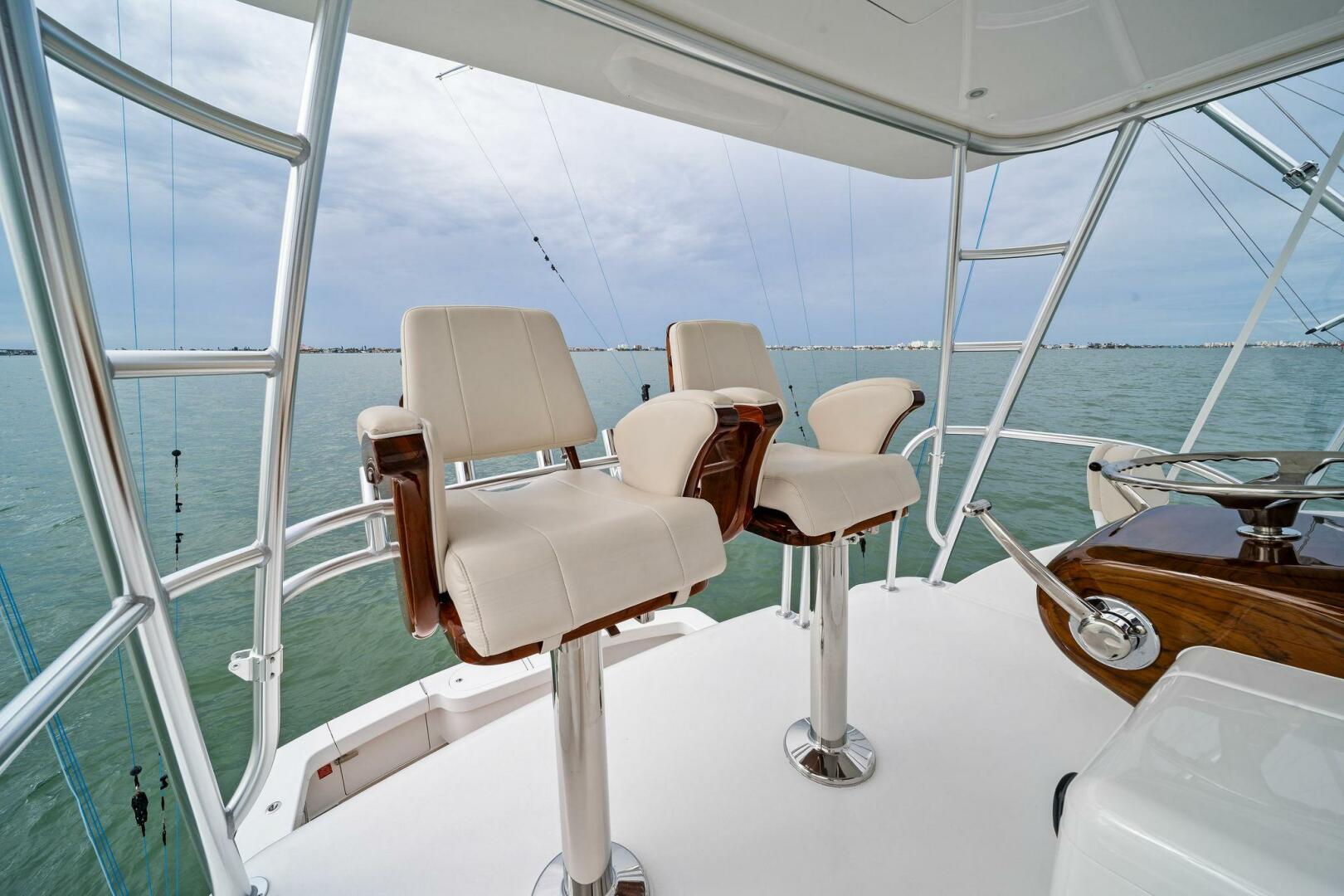

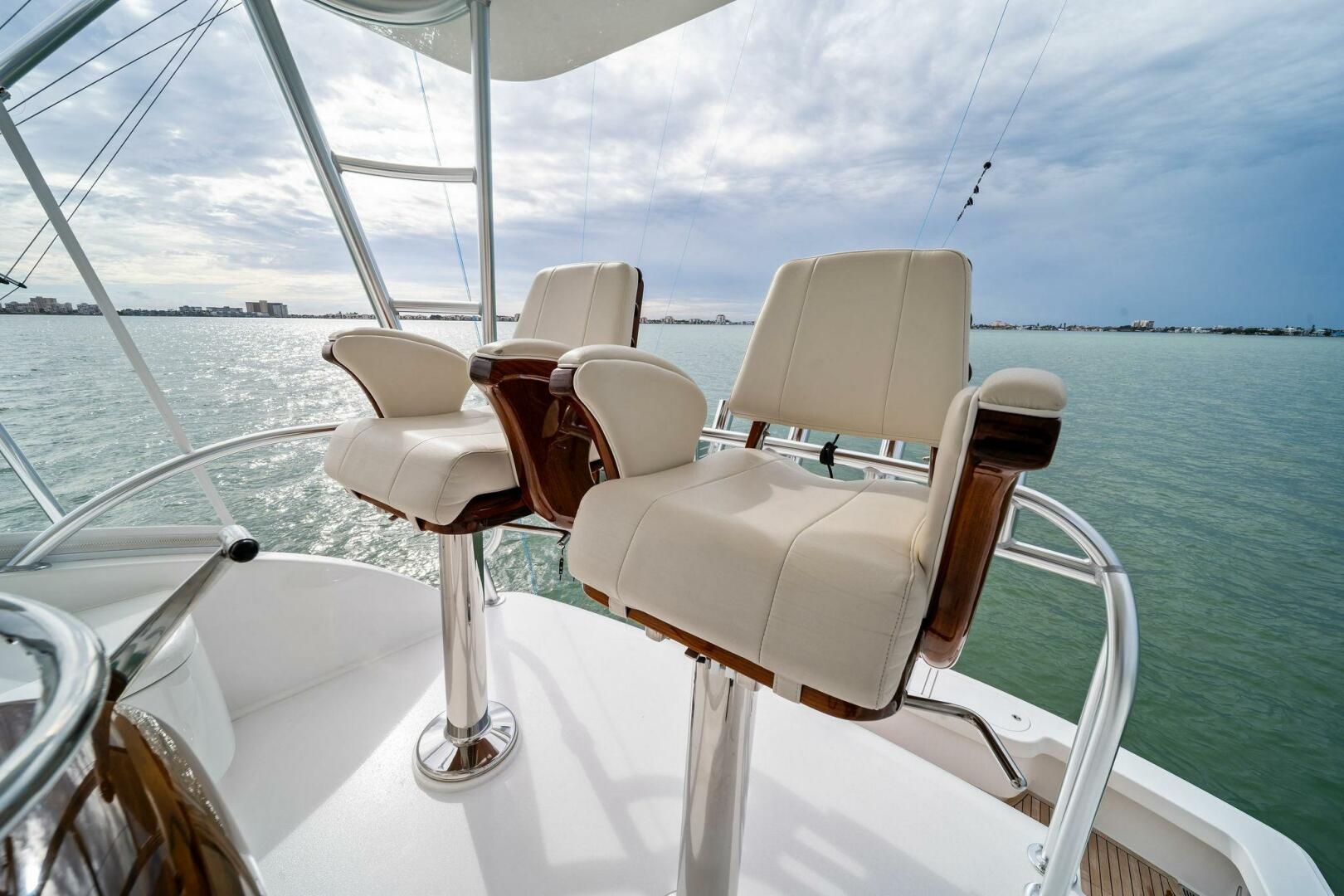

• Helm Chair, Release Teak Ladder Back (1)
• LED Spreader Lights (with Optional Hardtop)
• Instrumentation Based on Standard Engine Package
• (2) Tricolor Overhead Lights at Helm (with Optional Hardtop)

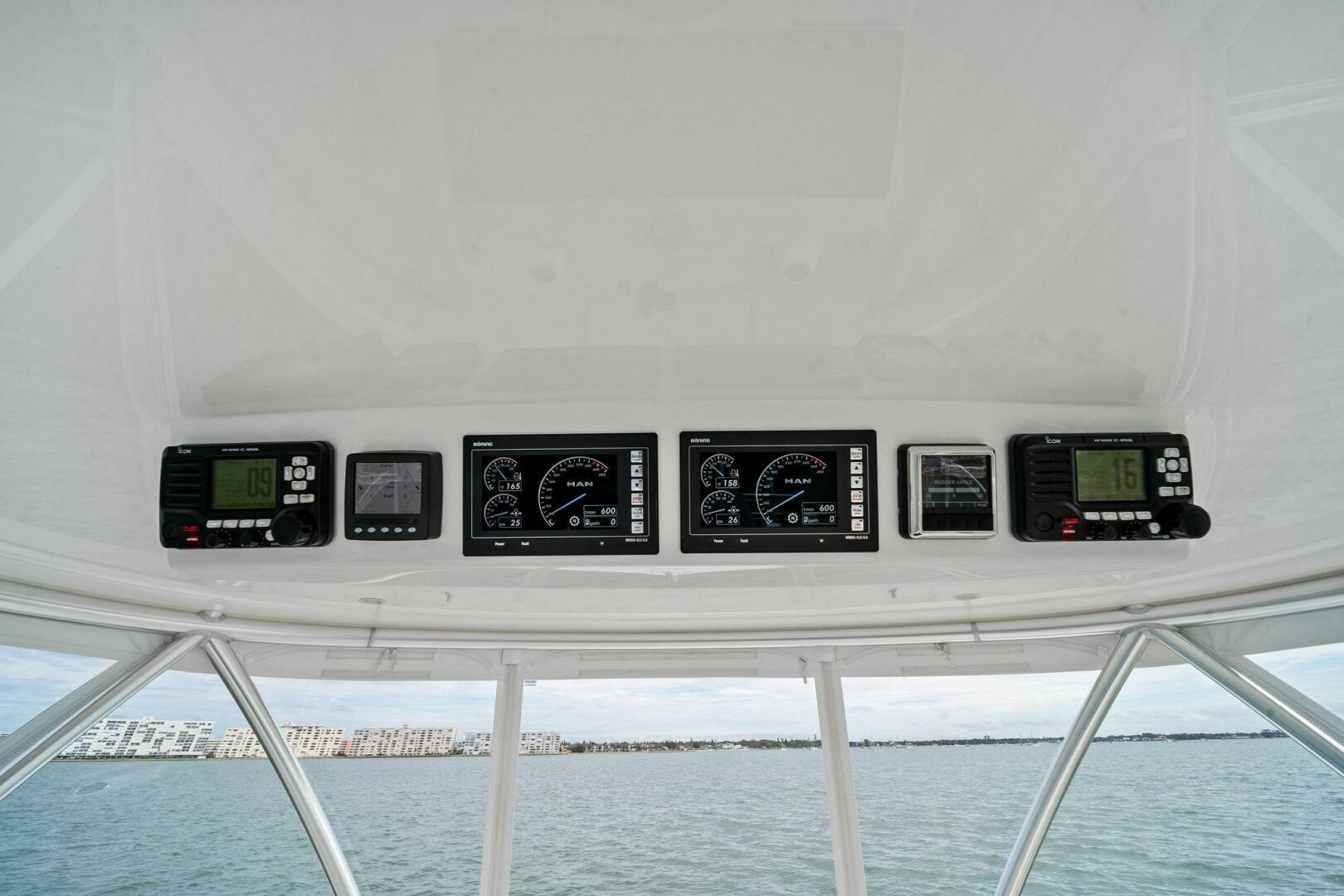

• Furuno RD-33 Depth / Temperature Gauge and Icom VHF Radio
• Trim Tab Controls with LED Position Indicator at Helm; (2) Radio Boxes
• Fire System Control with Automatic and Manual Discharge and Override System Located at Console

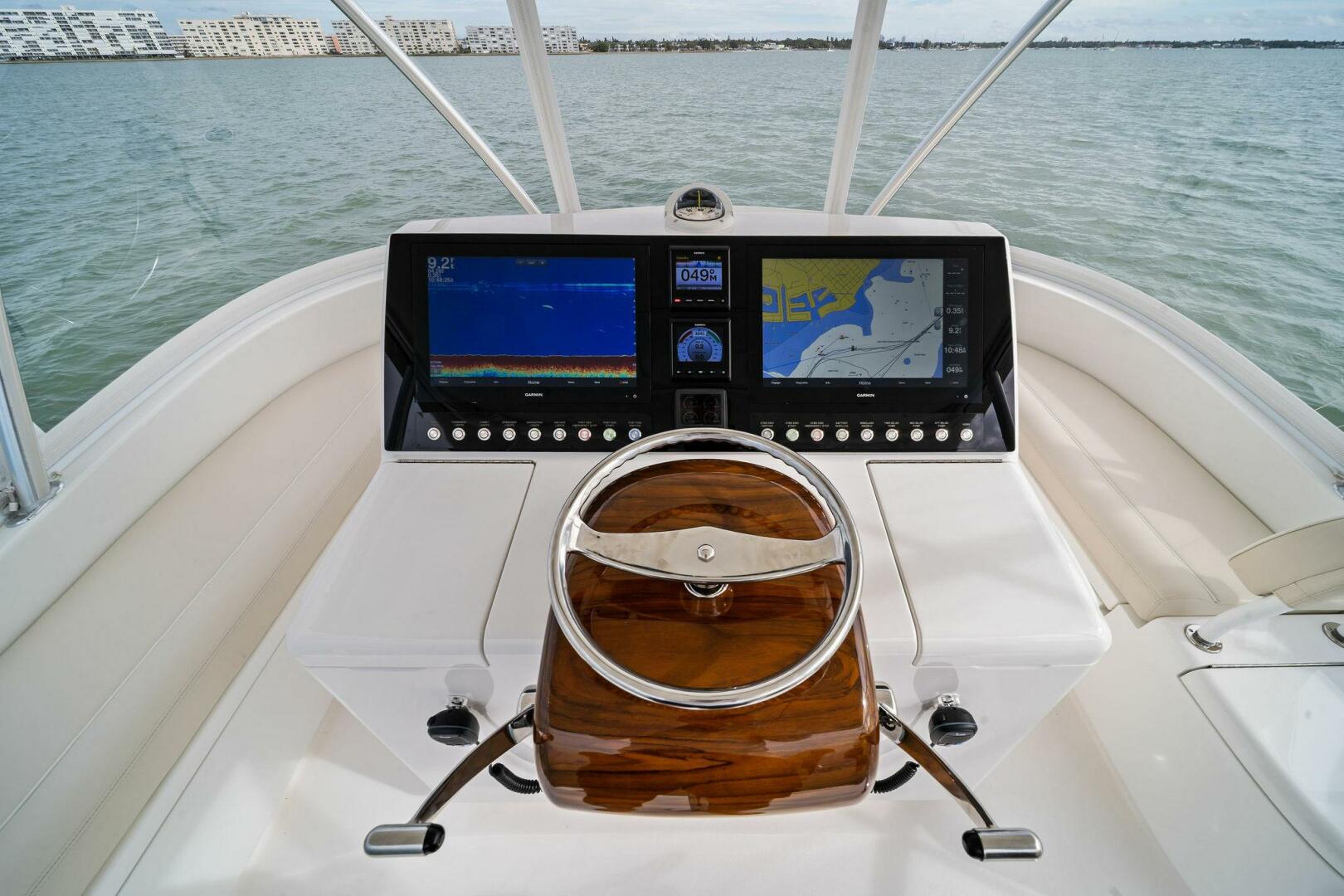

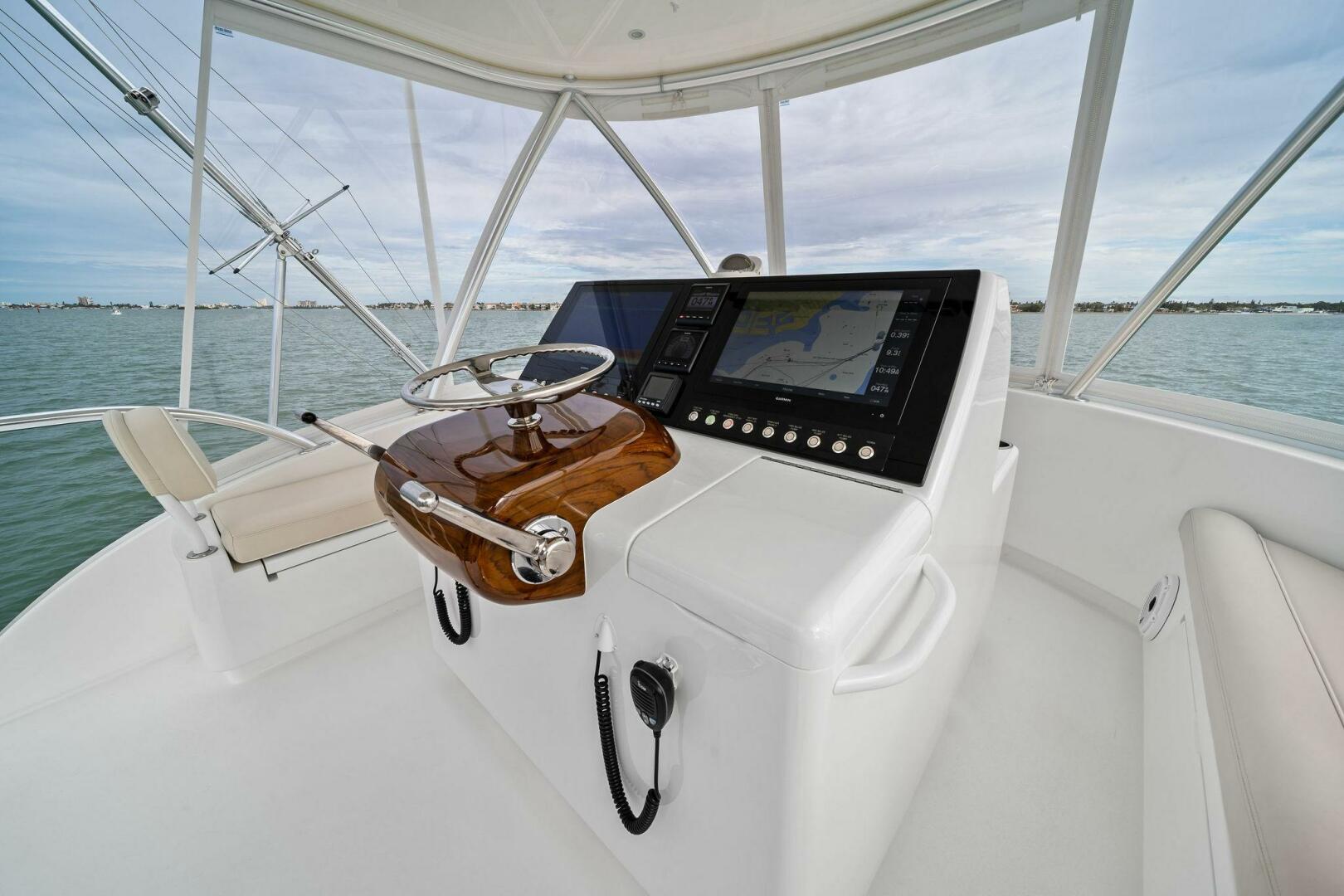

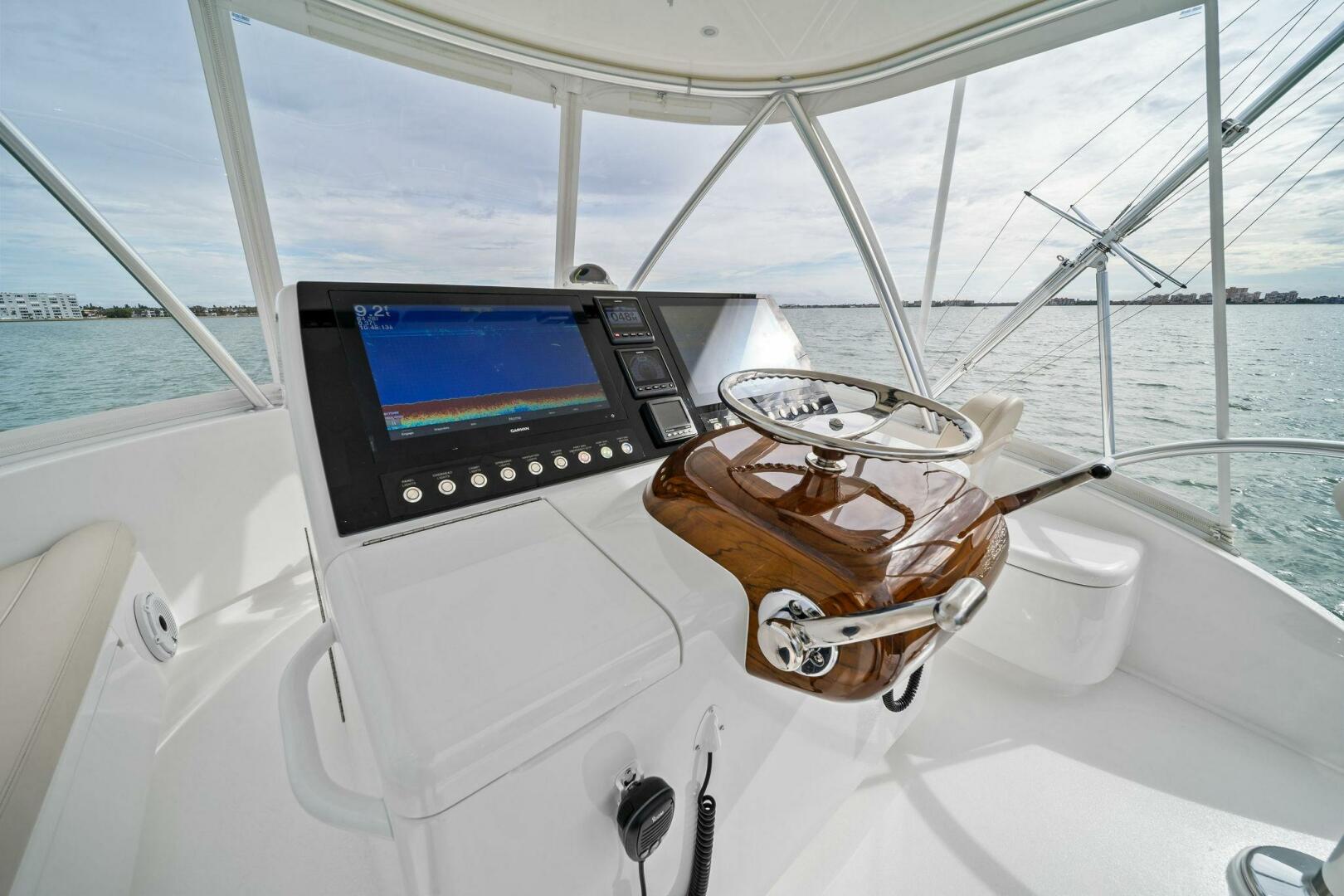

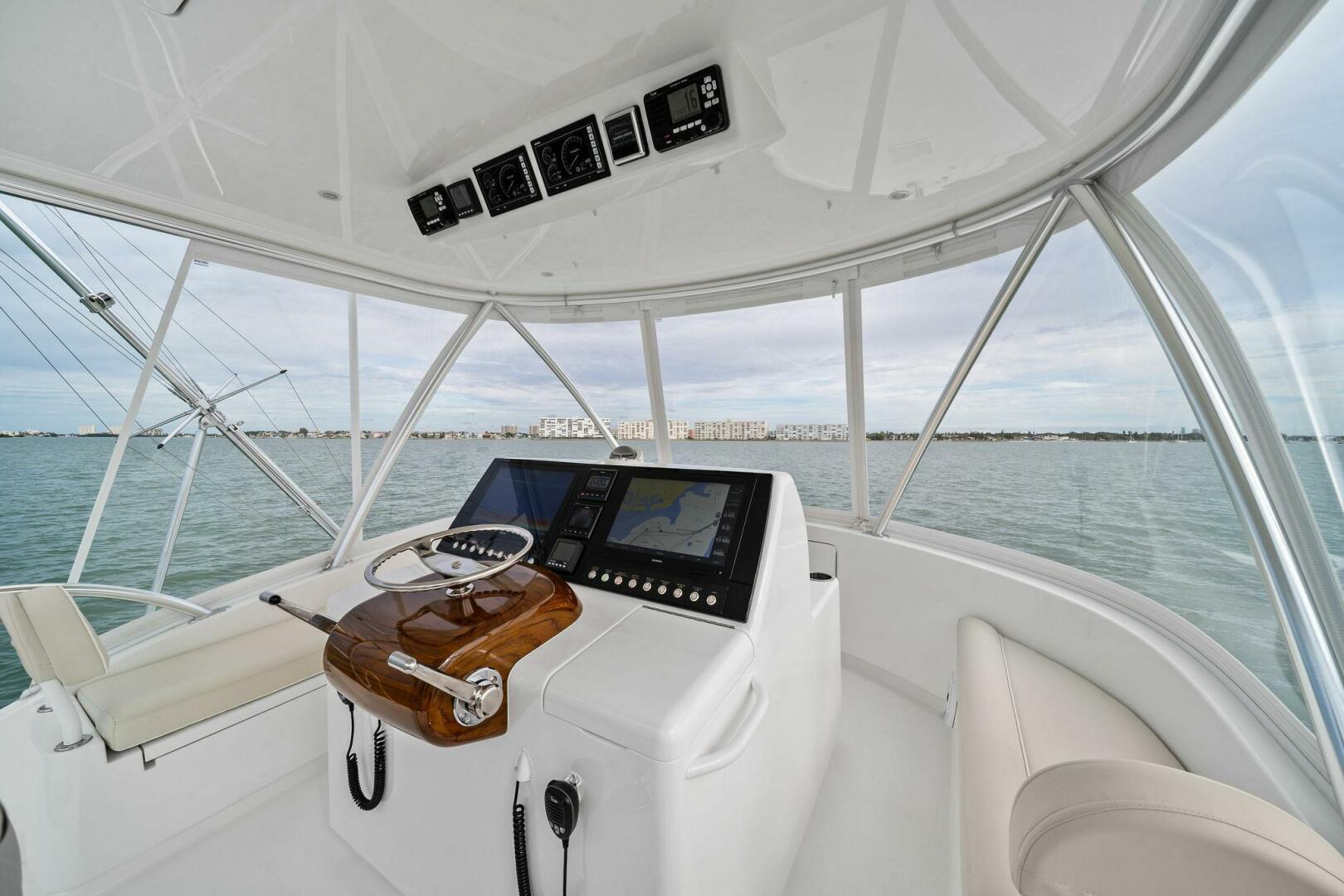

• Fiberglass Helm Pod with Stainless Steel Steering Wheel and Palm Beach Style Controls and Station Active Keypad

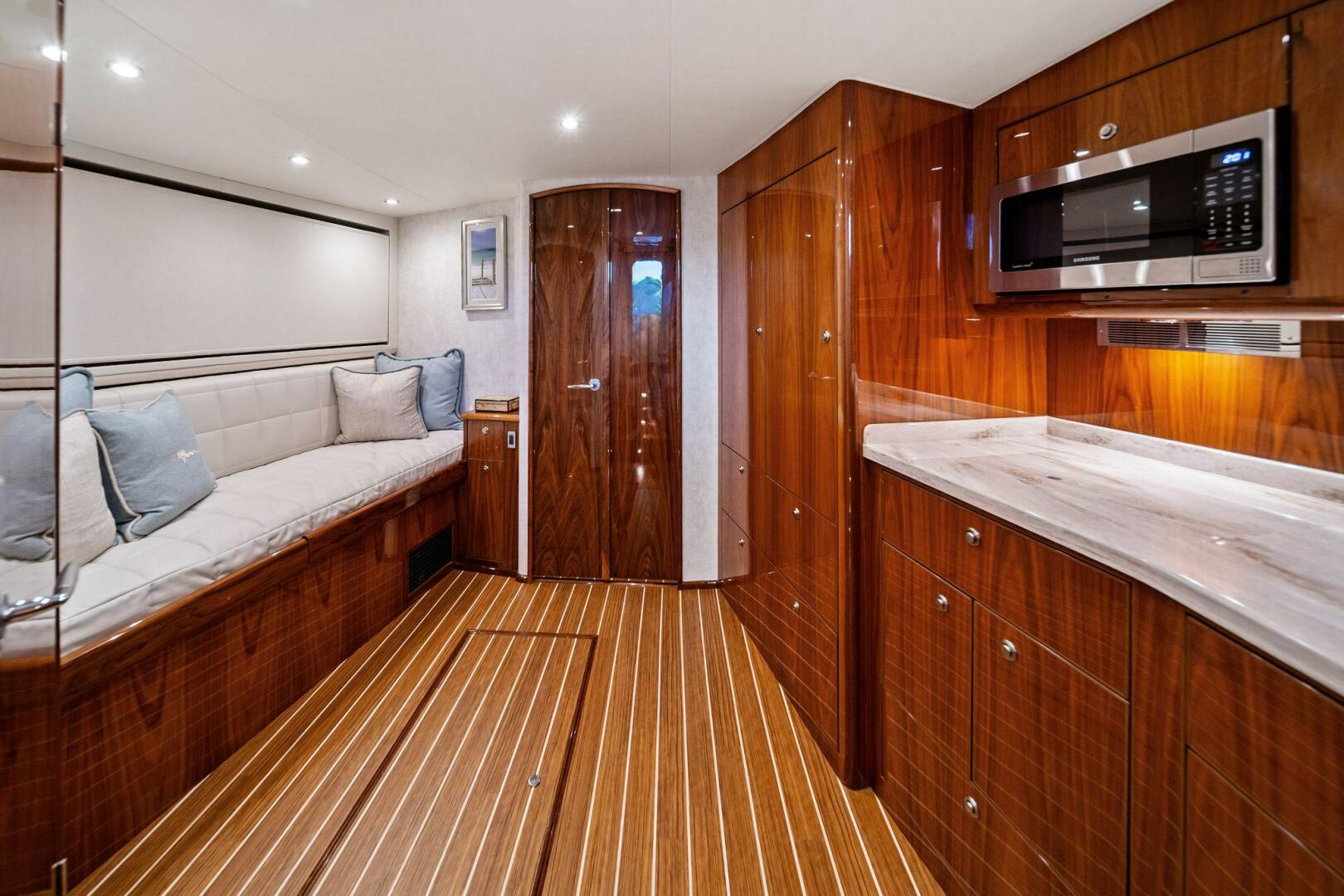

• Exhaust Fan

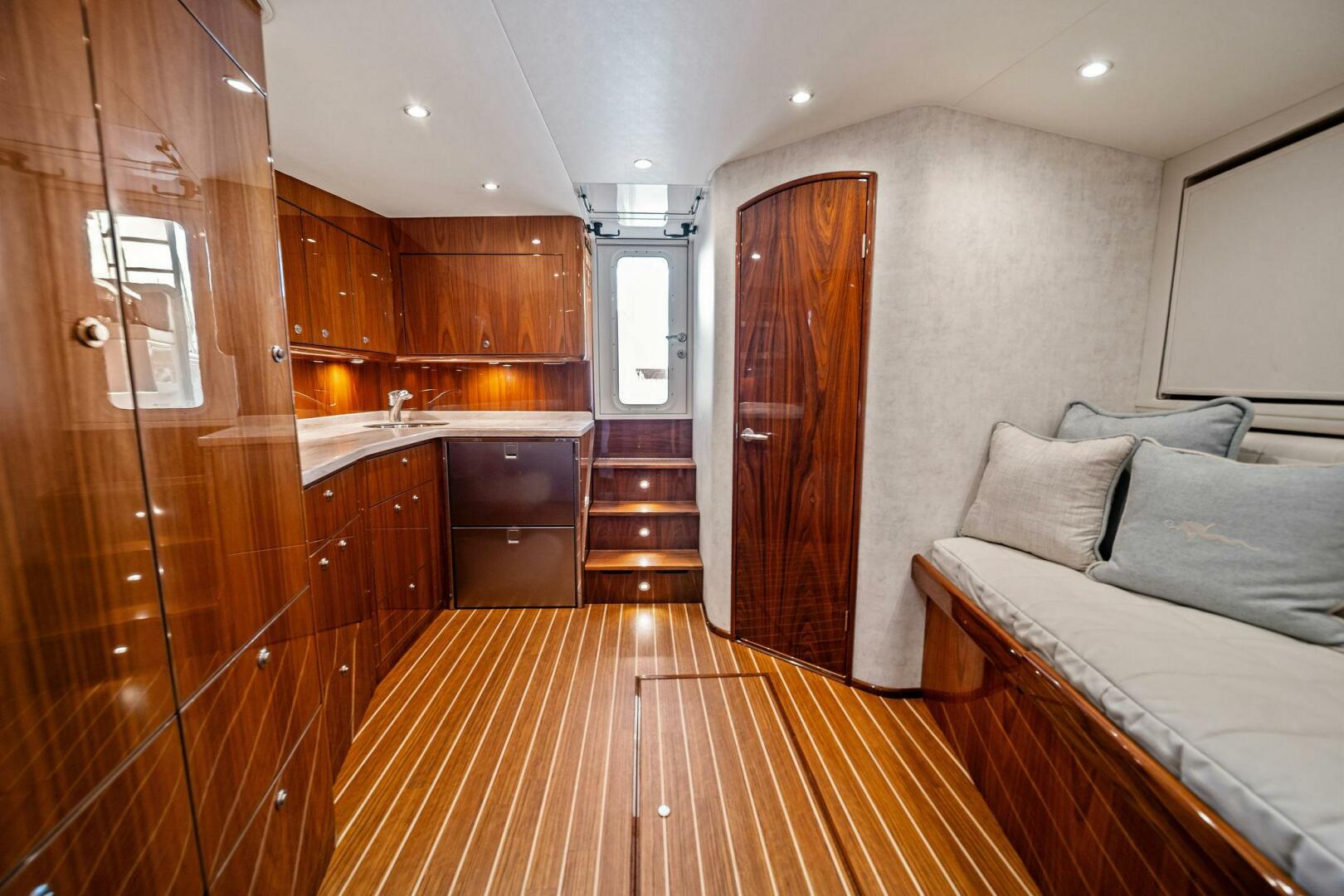

• Amtico Vinyl Flooring
• Water Tank Level Gauge
• Lights, Overhead LED Lighting
• Electric, Two-Burner Recessed Stove
• Headliner, Majilite, 1/8" Foam and Tricot Backing
• Aluminum Cabin Door, Access to Command Deck
• Main Electrical Service Panel, AC / DC, Backlit for Easy Viewing

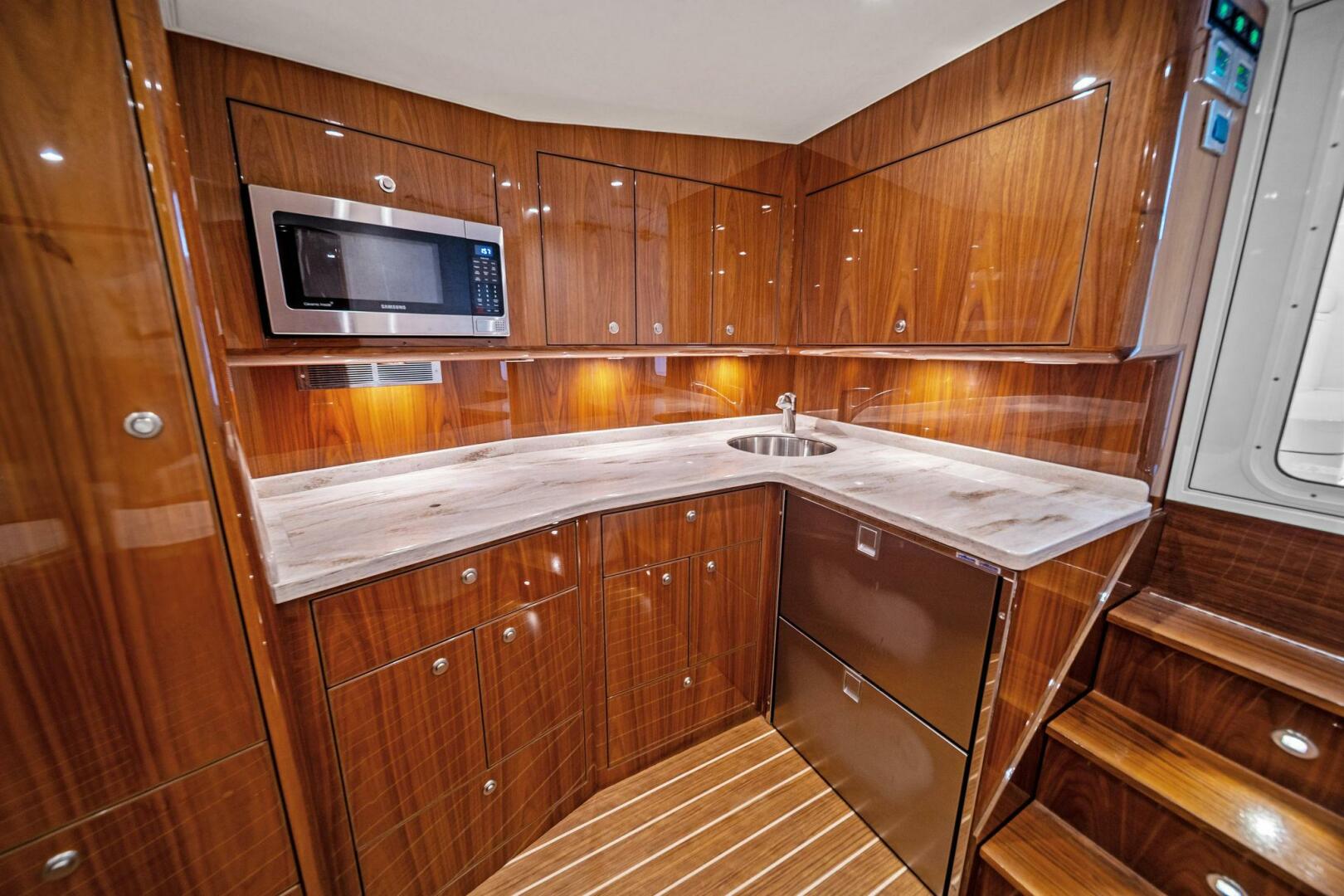

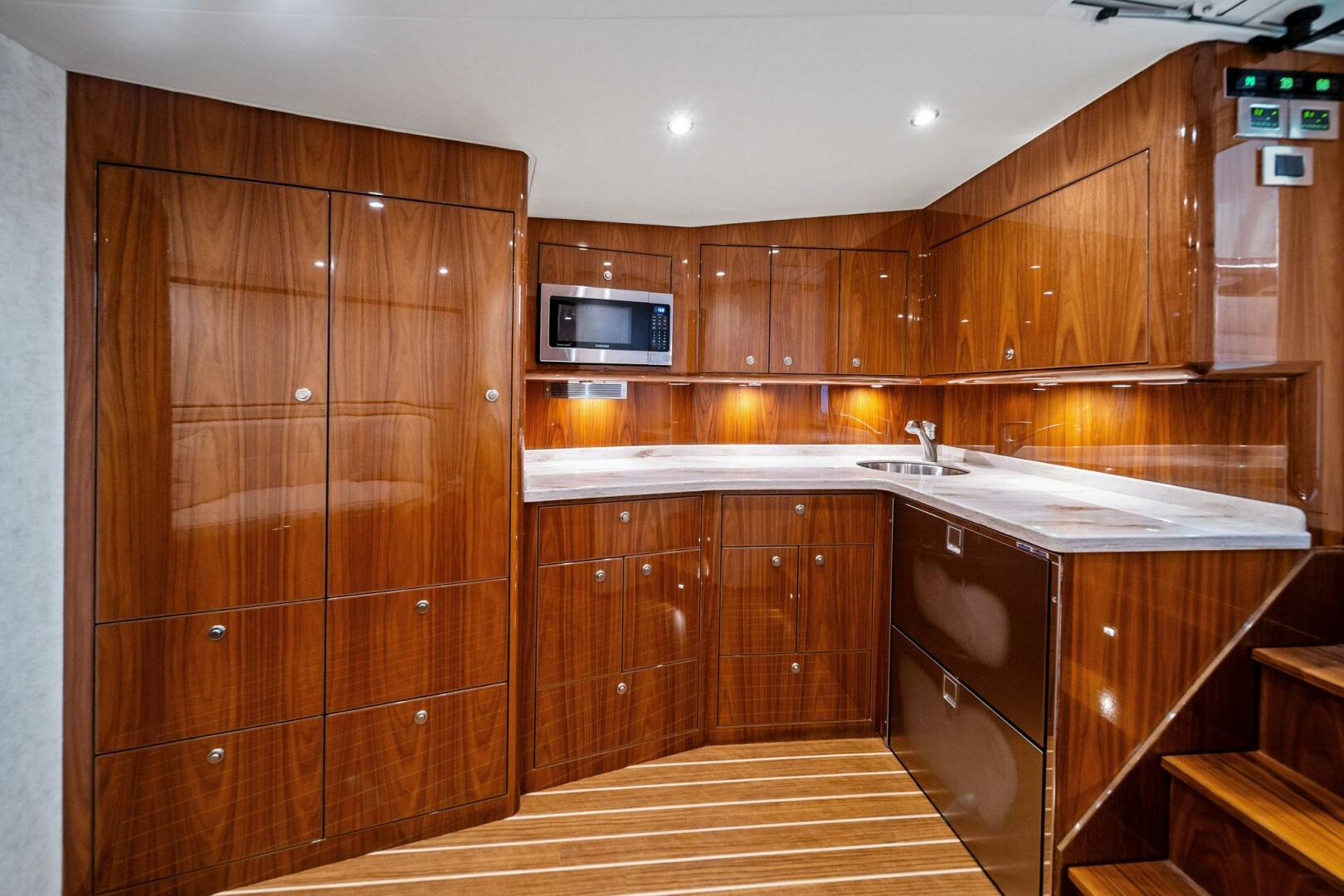

• Microwave Oven / Convection Oven Located in Upper Galley Cabinet

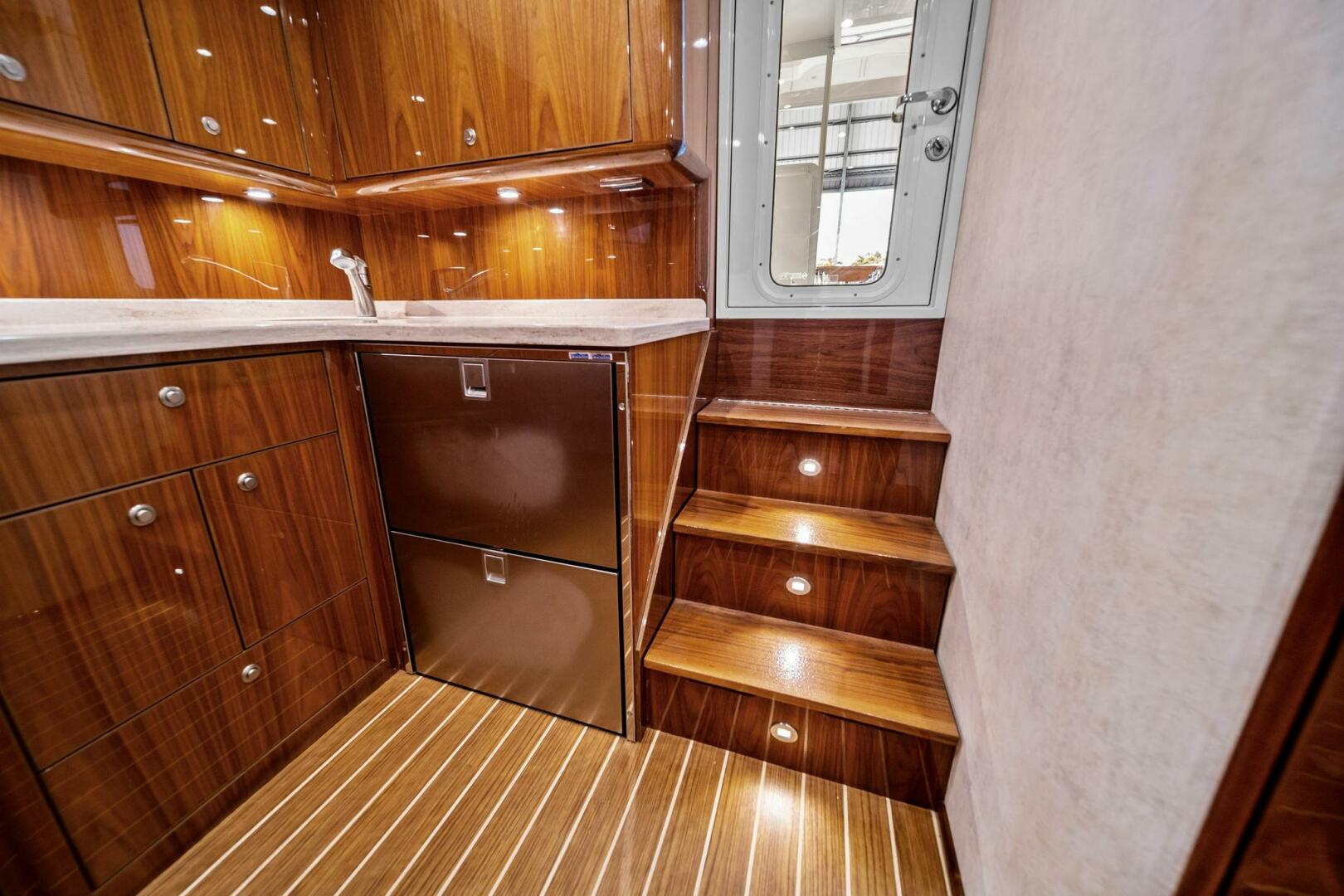

• Storage Cabinets and Drawers in Lower Galley, Finished Maple Interior
• Refrigerator / Freezer, Under Counter Drawer Style with Built-In Ice Maker
• Storage Cabinets in Upper Galley, with Varnished Doors, Finished Maple Interior
• Countertop, Polished Sandalwood-Color Corian, Stainless Sink, with Brushed Nickel Faucet

Plotter:

• Garmin GPSMAP8617 17" MFD
• Garmin 2524 xHD2 25kW with 4' Array
• Shakespeare 4365 GPS Antenna Mount
• Extender SNAPAV HDMI-CAT5 / 6 HDBA Set

Plotter 2:

• Garmin GPSMAP8617 17" MFD
• Shakespeare 4365 GPS Antenna Mount

Navigation Peripherals:

• (3) Garmin 40' Network Cables
• Garmin USB Card Reader
• Garmin GXM54 Weather Antenna
• Garmin GMS10 Network Expander
• Shakespeare 4365 GPS Antenna Mount

Network:

• NMEA 2000 Network Components

Sounder:

• Airmar B175L-20 CHIRP XDCR 20 Tilt Garmin P/N 010-11938-22
• Garmin GSD25 Premium Sonar Module Dual Channel 1kW CHIRP
• Airmar B175HW-20 CHIRP XDCR 20 Tilt Garmin P/N 010-12181-22
• Garmin 8PIN Transducer to 12PIN Sounder Adapter Cable with XID, 010-12122-10

Auto Pilot:

• Auto Pilot Installation Kit
• Garmin Interconnect Cable Steer-By-Wire
• Garmin Reactor 40 STD Corepack Steer-By-Wire (010-00705-85)

VHF Radio:

• (2) 3/4" Antenna Standoff Pipes
• Icom M506-31 with NMEA 2000 - Rear
• (2) AME Tower / Hardtop Rupp Mount Pak
• (2) Shakespeare 5018 17.5' VHF Antennas
• (2) Icom MB75 VHF Flush Mount F / 502, 602, 802
• (2) Icom VHF Command Mic Extension Cables Icom #OPC-999

AIS:

• Vesper Marine SP160 AIS / VHF / FM Splitter
• Garmin TA TM 38 GPS / GLONASS Antenna 010-12017-00
• Vesper Marine XB8000 Class B AIS NMEA 200 / USB / WiFi

Stereo System:

• JL Audio 12v M600 / 6 Amplifier
• Shakespeare SRA-50 Sirius Antenna
• Shakespeare 4365 GPS Antenna Mount
• (2) Fusion HL-02 Hi / Low Line Converters
• Fusion MS-ACSXV - Only Sirius / XM Tuner
• JL M6 Marine 7.7" White Coax Speaker, 93728 - Classic / Single - Flybridge Aft
• Fusion MS-BB300R Marine Black Box with MS-NRX300 AM / FM / Bluetooth - Mount Remote on Command Deck

Helm:

• Carling USB Outlet
• Marinco 12v Receptacle MAR-12VRC

Command Deck:

• Fusion MS-NRX300 Wired Remote
• (4) JL MX 6.5" Classic White - 2.74" Depth, 91731 / Single Speaker - Overhead Speakers Fore and Aft

Net:

• (2) Under Water Lights Limited QT100W White 12/24v DC 10,000 Lumens

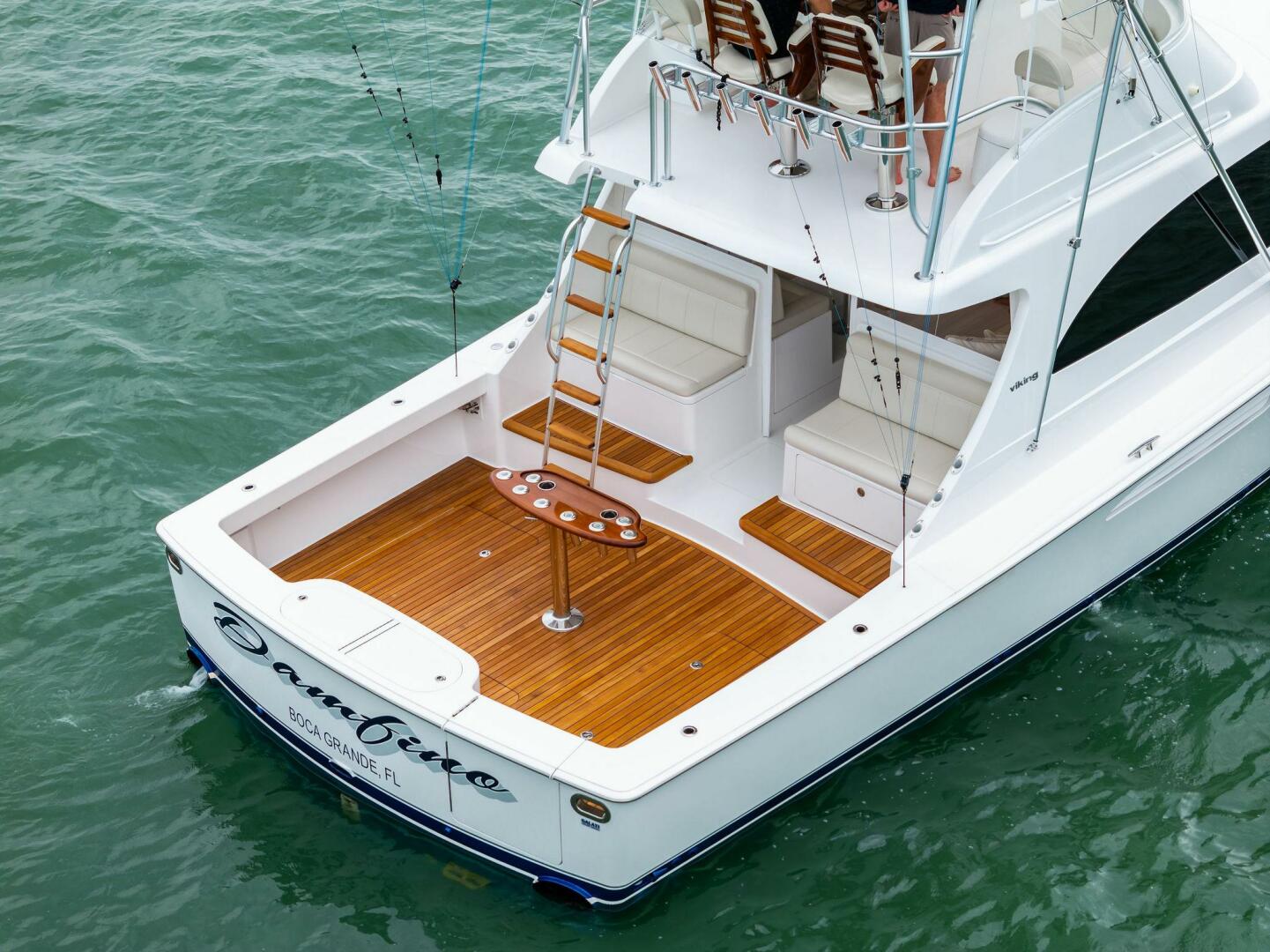

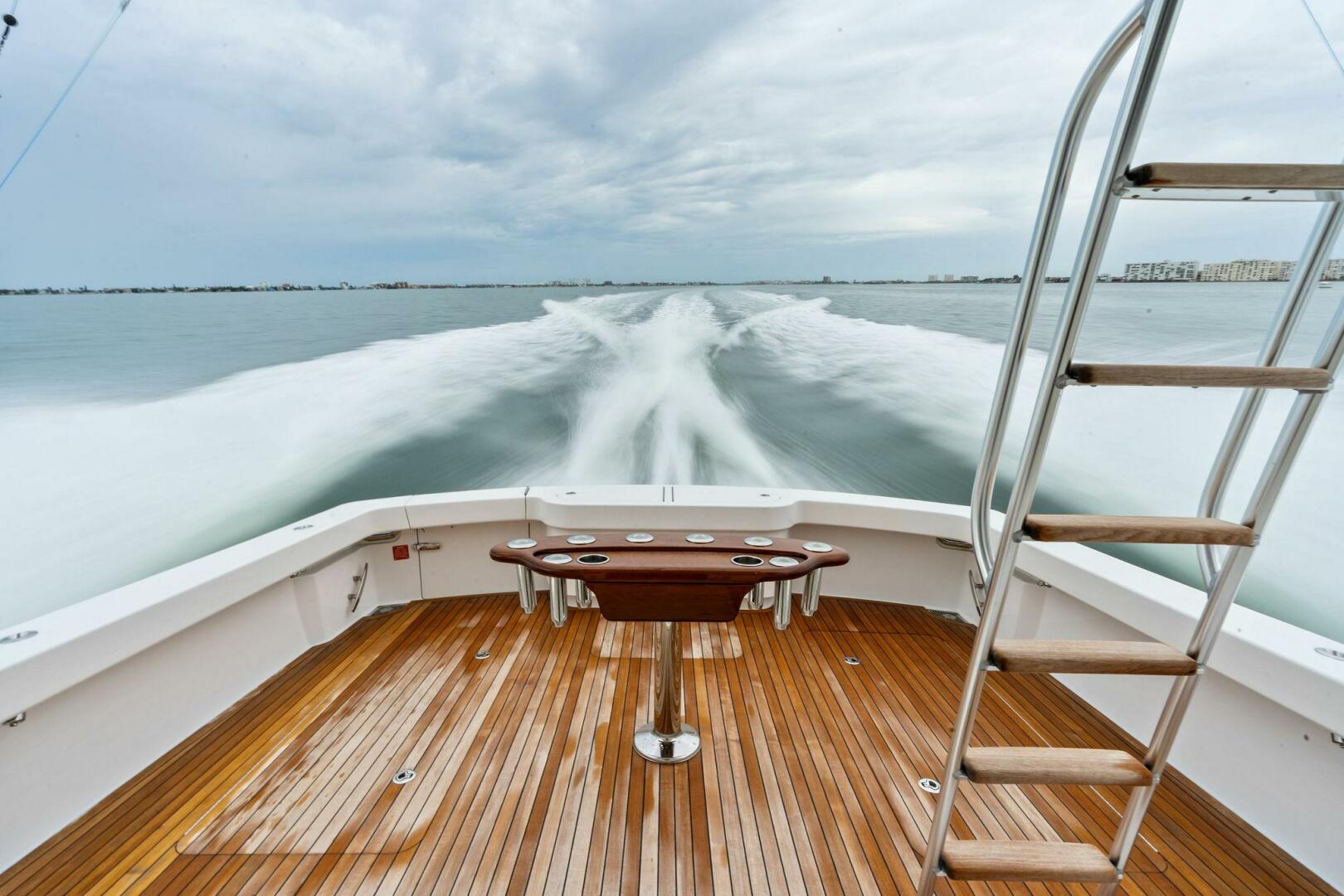

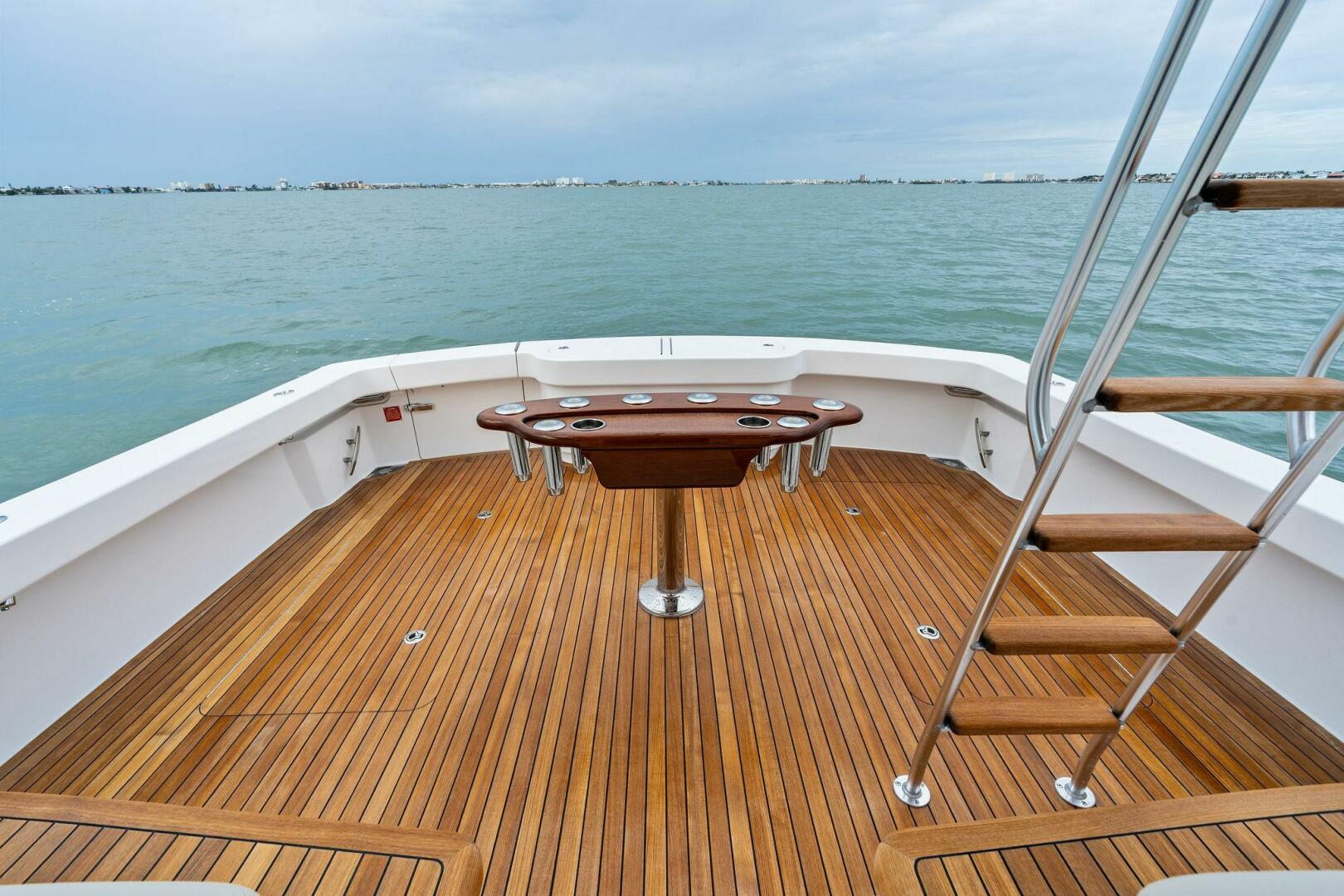

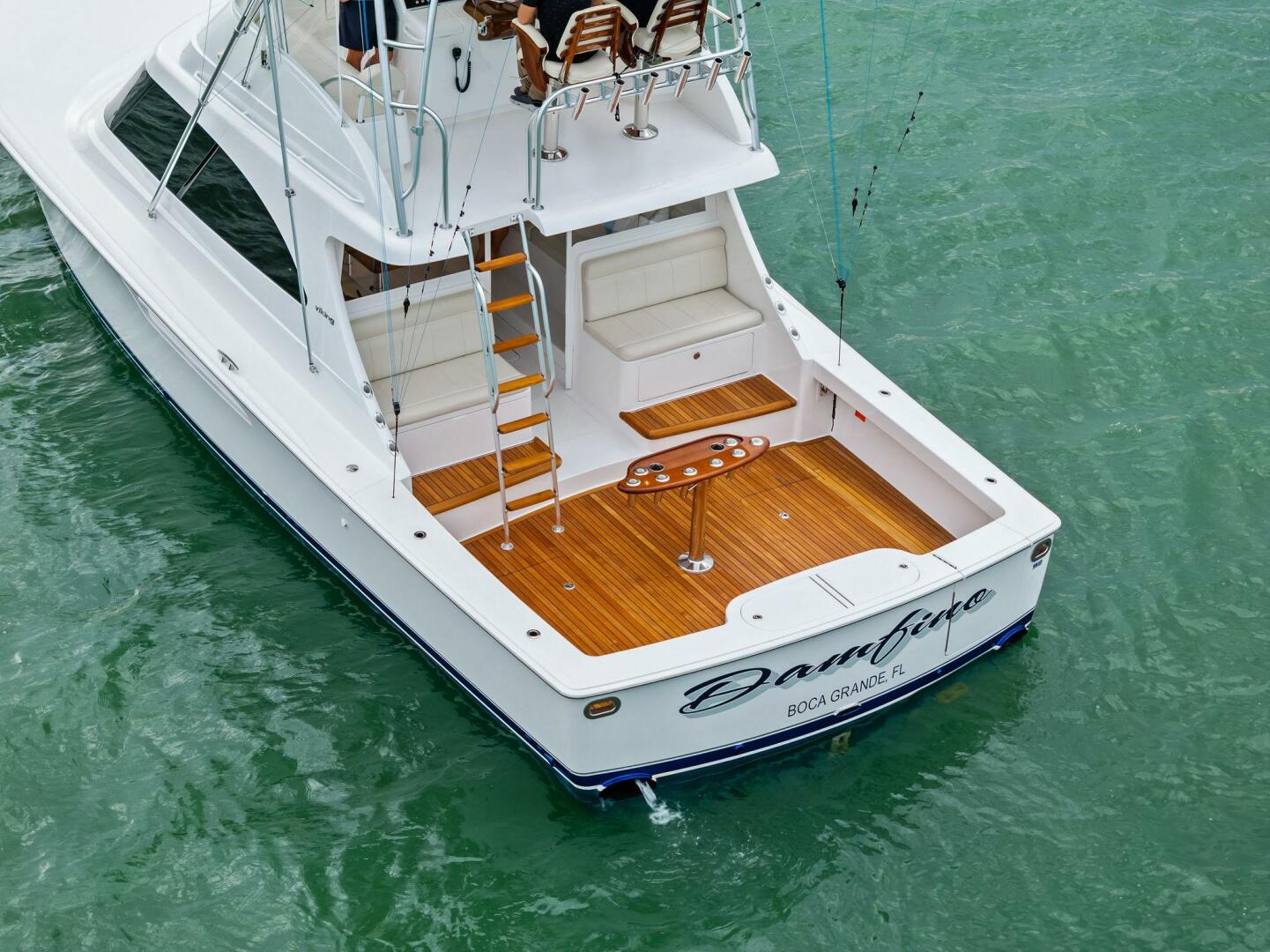

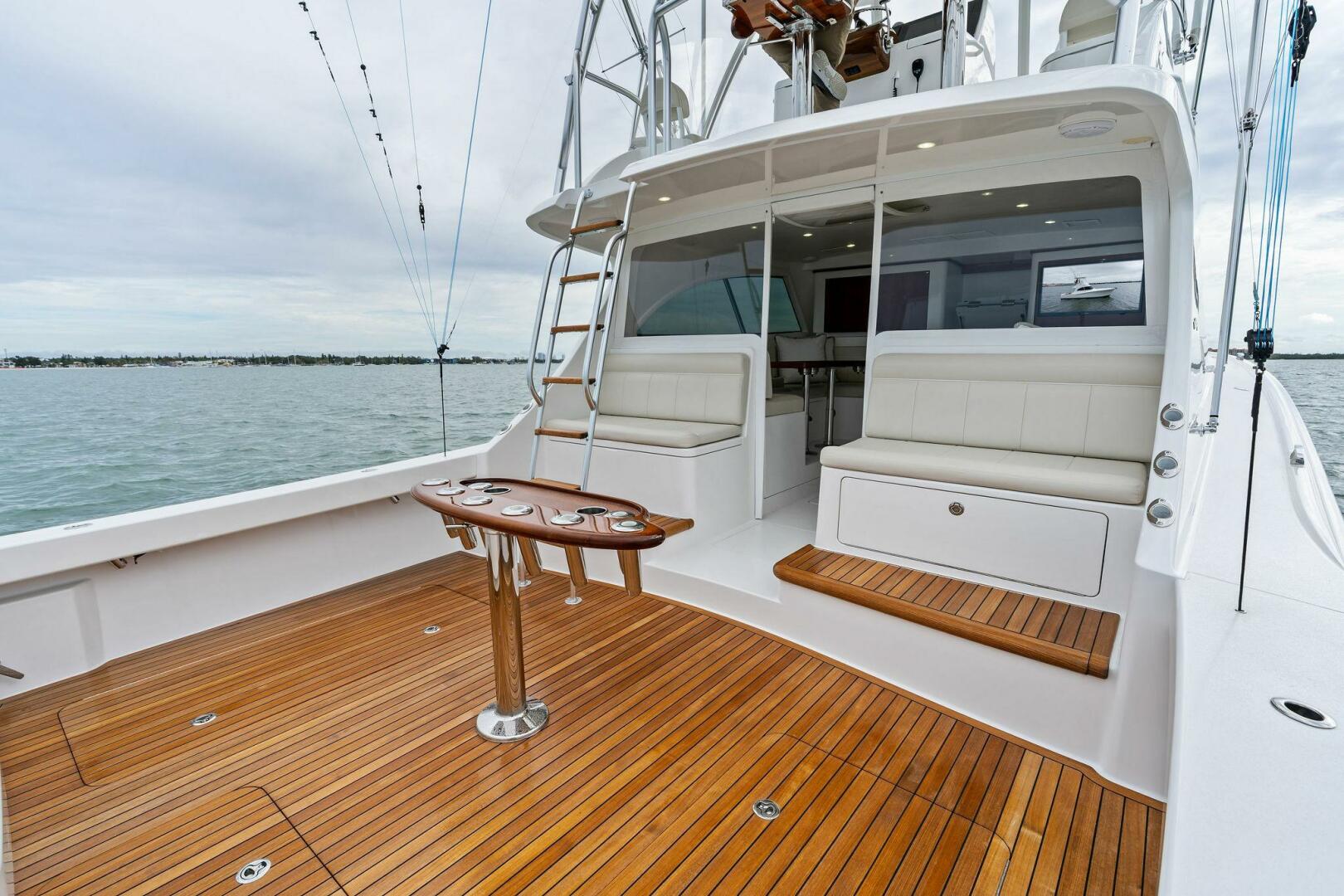

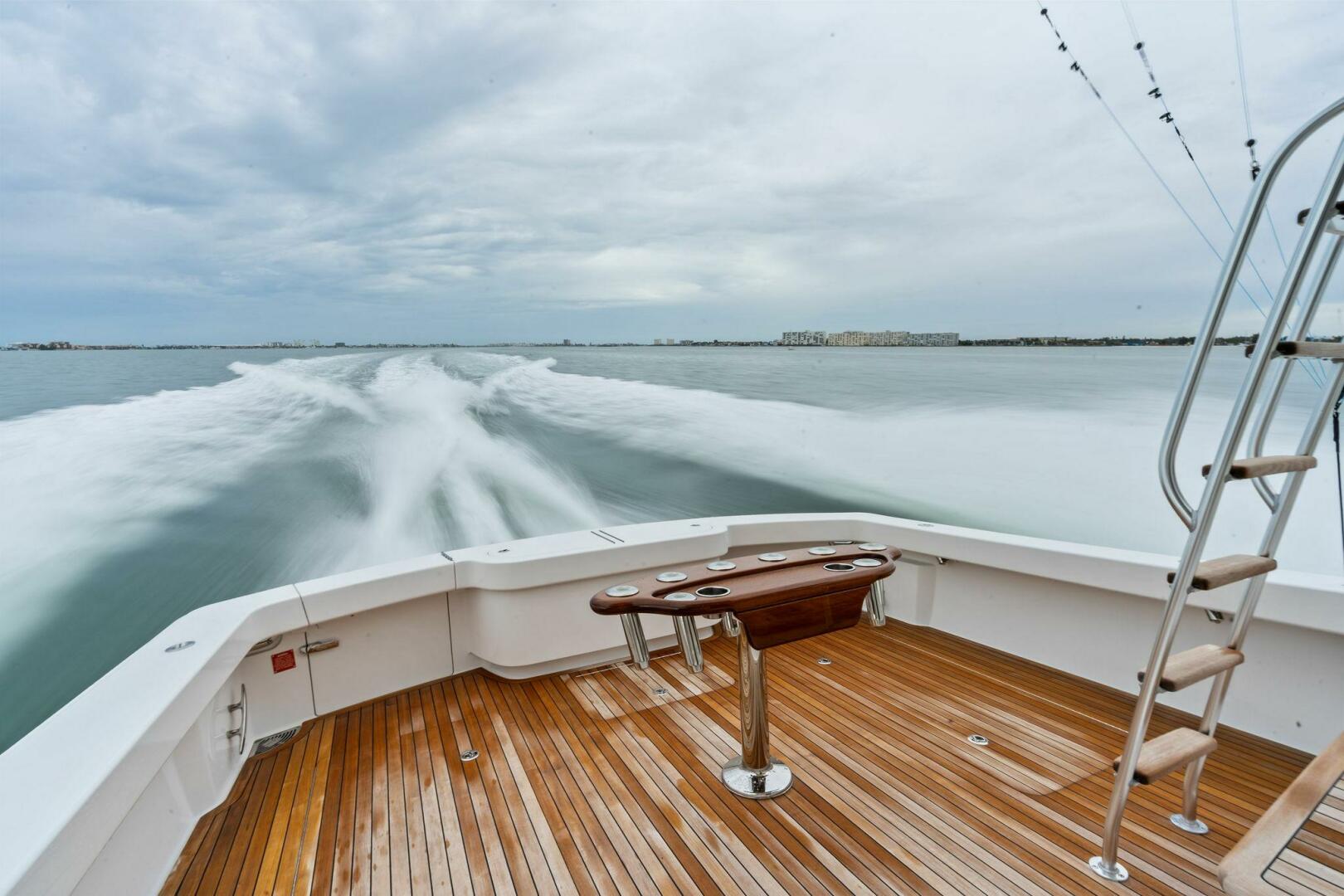

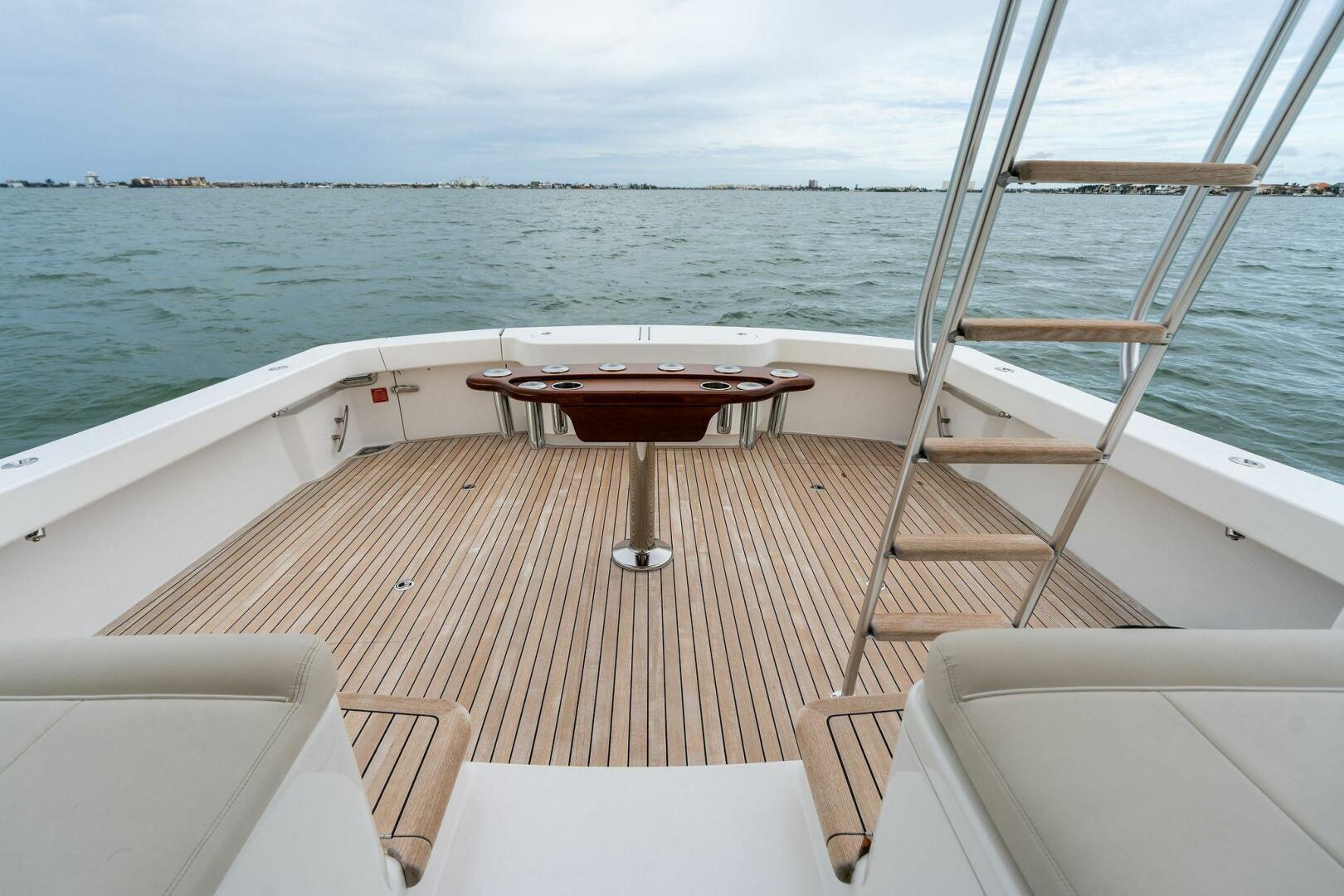

• Nonskid Deck
• Cockpit Bait Freezer with Upper Tray
• Transom Swim Step at Transom Door
• Live Well in Molded Transom Fish Box
• Gaskets for All Lids, Doors and Hatches
• Stainless Steel Cleats and Hawse Pipes
• Insulated Storage in Port Mezzanine Step
• Lazarette Hatch for Inspection of Aft Bilge
• Walk-Through Transom Door with Lift Gate

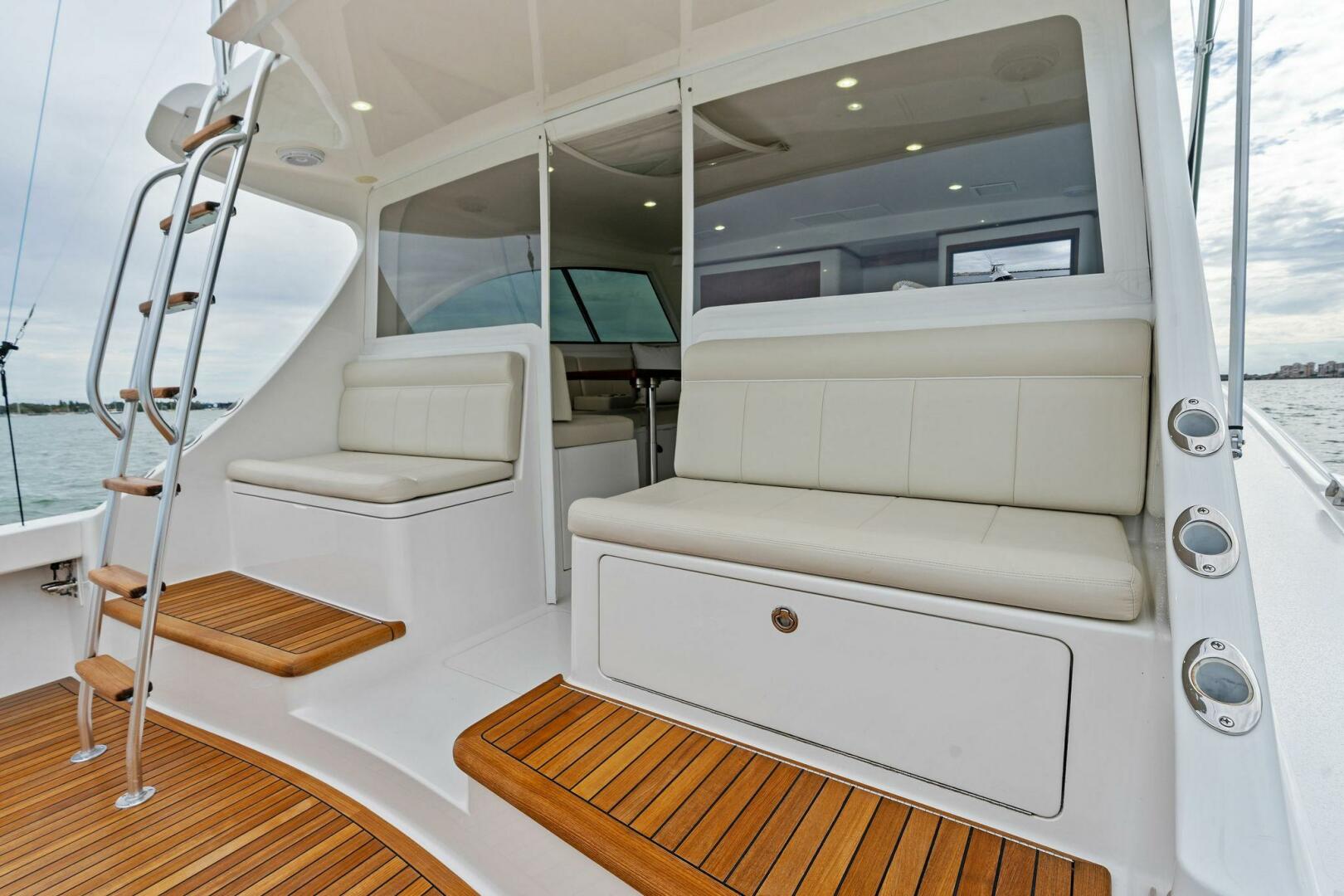

• Seat Cushions on Freezer and Tackle Locker
• (4) Rod Holders, Stainless Steel, Flush-Mounted
• Self Bailing Cockpit with Large Cockpit Scuppers
• Refrigerated Storage in Starboard Mezzanine Step
• Stainless Steel Gas Pistons on Deck Hatches and Lids
• Straps with Padding to Keep Transom Door and Gate Open
• Tricolor LED Lighting Under Coaming and Flybridge Overhang

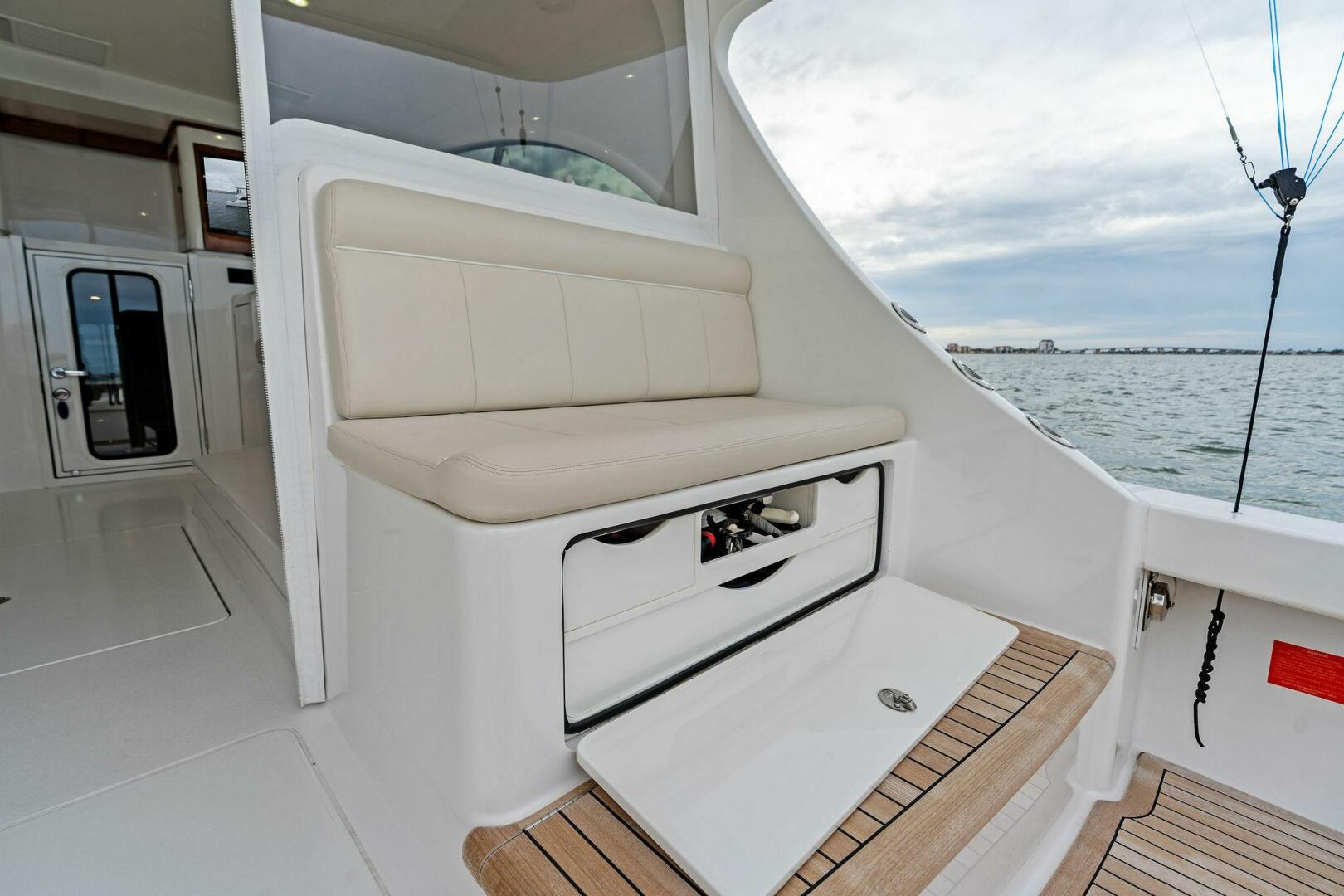

• Boarding Box, Fiberglass with Nonskid, Lift Up Top and Storage
• Laminated Mounting Plate in Deck for Future Fighting Chair or Table
• Fresh Water Wash Down with Hose Bib Located Under Forward Gunwale
• Stereo Speakers Powered by Interior Stereo, Same Zone as Command Deck
• Dockside Water Connection with Pressure Reducing Valve under Forward Gunwale
• Dockside Electric Connection - 50 amp. / 220v Electric, Located under Forward Gunwale
• Sea Water Wash Down with Pump in Engine Room and Supply Under Forward Gunwale
• Fish Boxes, Insulated, Port and Starboard, with Hatches and Drains Plumbed to Pump-Outs

• (2) Y-Valve Emergency Bilge Pumps
• Water Heater, Quick Recovery, Electric
• Hour Meters on Main Engines and Generator
• Trim Tabs, Electric, with LED Indicators at Both Helms
• External Sea Strainers, Wedge Type, for Main Engines
• Generator Muffler, Lift Muffler with Gas / Water Separator
• Steering System, Seastar Optimus Electronic Steering System
• Fuel and Oil Lines, Flexible, Steel Reinforced USCG Approved
• Main Engine Mufflers, Double Lift Fiberglass with Surge Protection
• Deck Pump Out Fitting and Direct Overboard Pump Out for Holding Tank
• Rudders, Bronze, with Composite Rudder Bearing and Dripless Thru-Hull
• Fresh Water Supply in Engine Room for General Maintenance and Cleaning
• Five Port Oil Exchange System, Main Engines, Transmissions and Generator

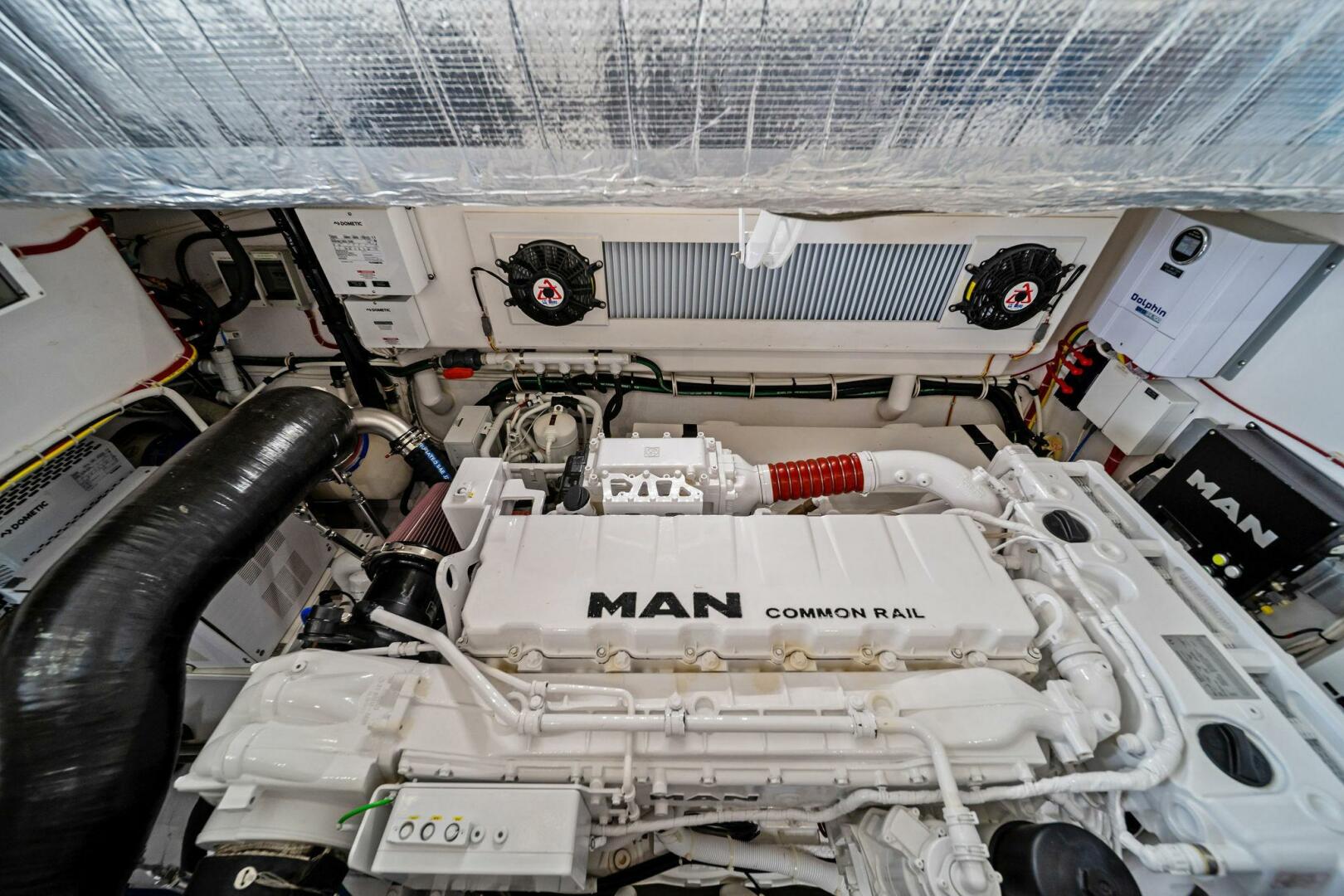

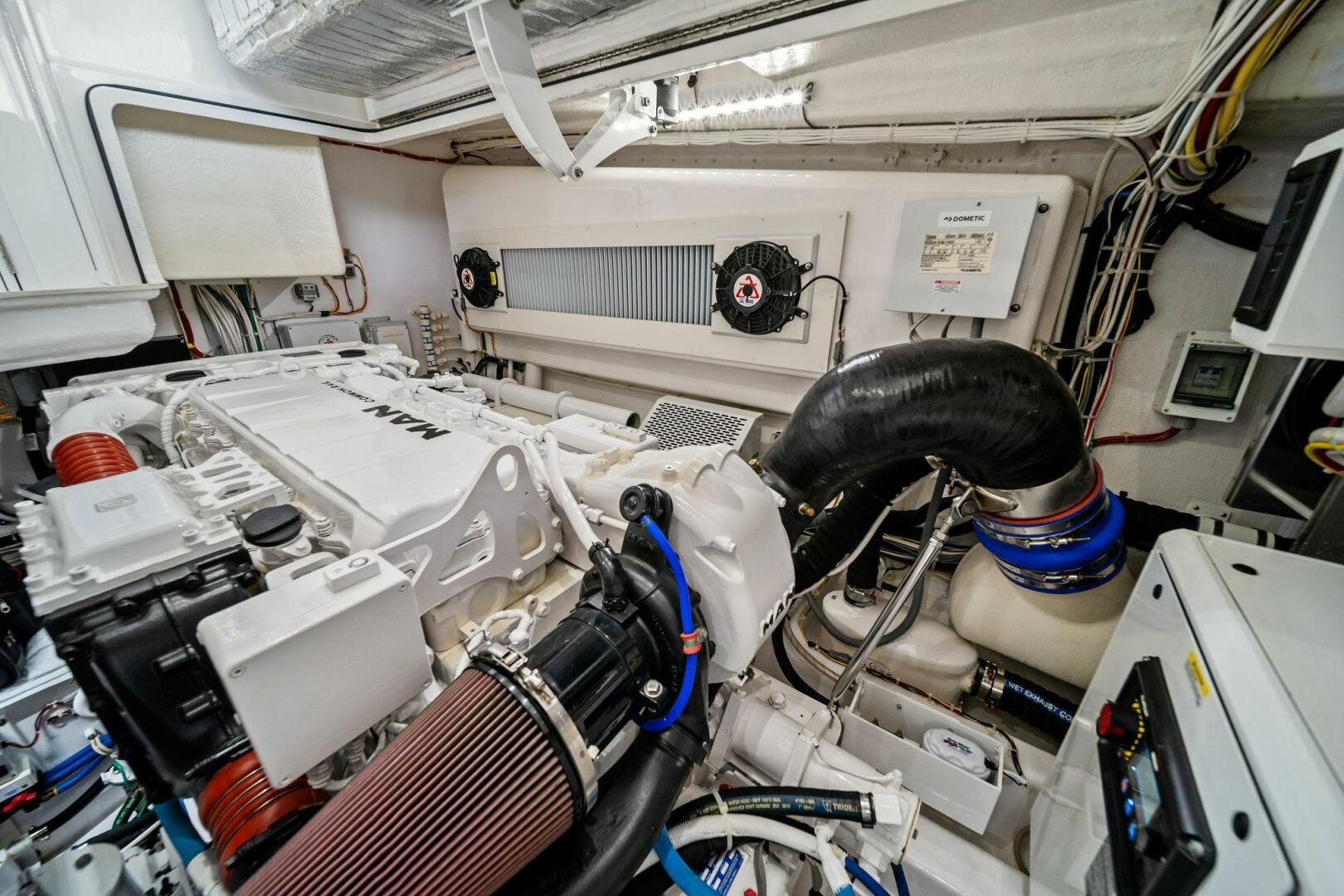

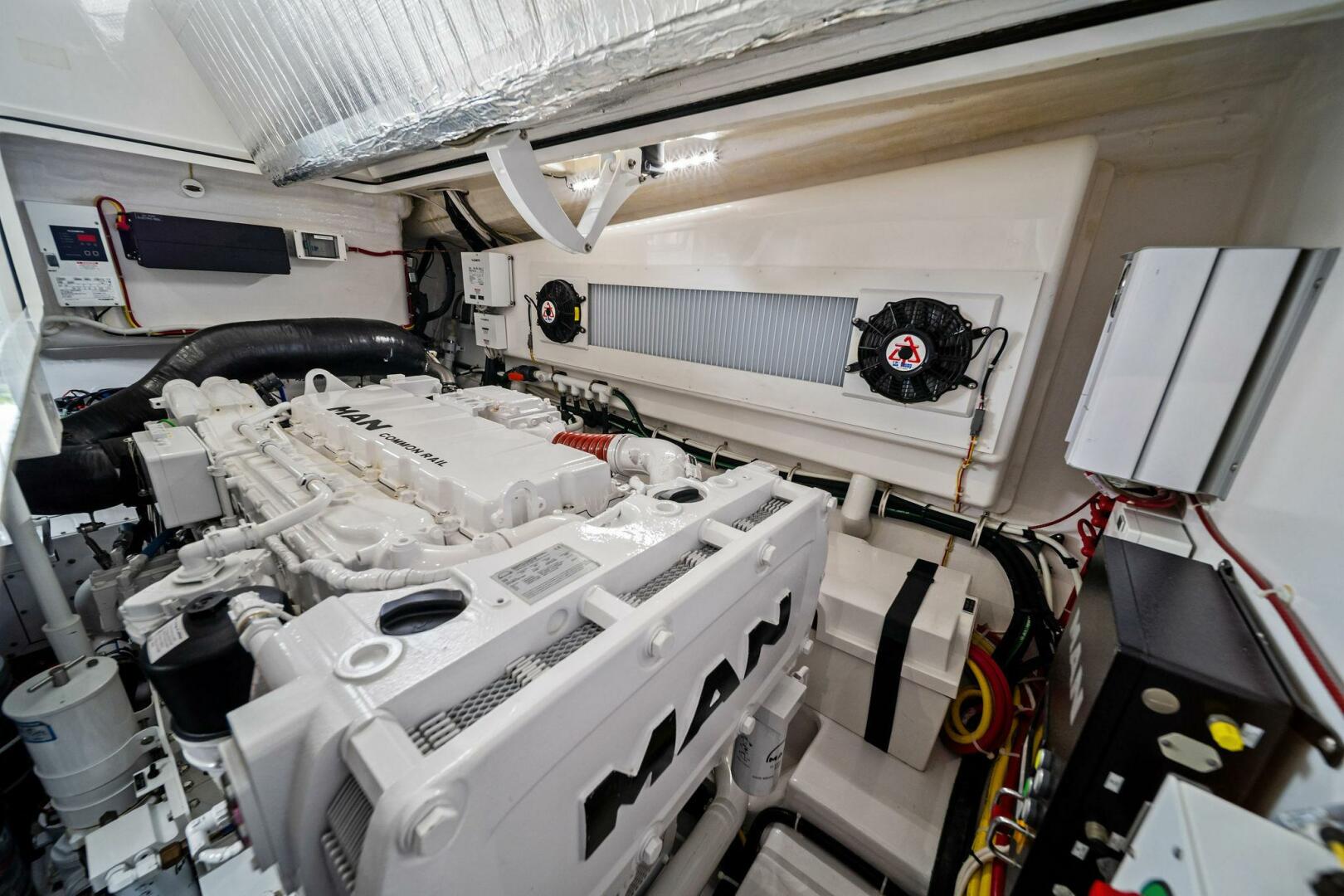

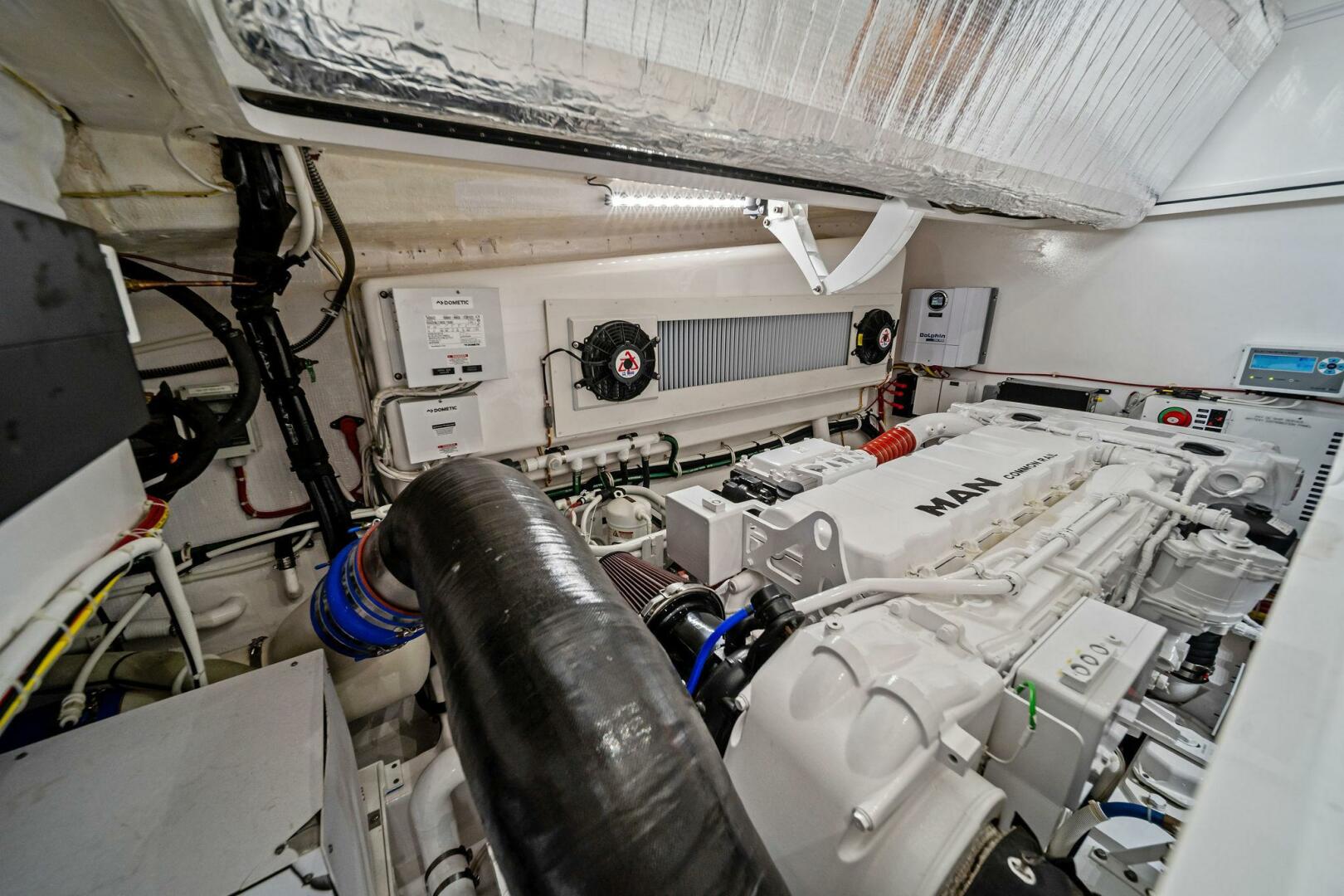

• Twin Diesel Engines with Marine Grade Reduction Gears and Trolling Valves
• Internal Sea Strainers, Basket Type, Awlgrip White - Generators & Air Conditioning
• Shafts - Aquamet 22, Double Taper with Machined Keyway at Main Engine Couplings
• PEX Plumbing, Fresh Water System Plumbing with Manifold System Shut-Off in Engine Room
• Air Conditioning - Direct Expansion Single Zone with Reverse Cycle Heat for Interior Climate Control
• Seacocks, Bronze, Ball-Type Sea Valves and Strainers for all Thru-Hulls Below the Water Line, Awlgrip White
• Bilge Pumps Linked Into Monitoring System and Connected to Float Switches for Automatic and Manual Operation
• Racor Fuel / Water Separators for Main Engines and Generator Clear Bowl Type, Top Loading for Easier Maintenance
• D/C Pressurized Fresh Water System and Cockpit Fresh Water Fill and Dockside Supply Inlet with Pressure Reducing Valve
• Delta T Engine Room Ventilation System with Supply and Discharge Fans for Proper Fresh Air Supply and Water Intrusion Suppression
• Fire Suppression System, Automatically or Manually Operated and Tied into Main Engine and Generator Ignition Systems with Override
• Propellers - Class "S" Pitch Tolerance (ISO 484/2) and Dynamic Balancing. Advanced Design Cambered Blade Sections for Optimum Performance. Nibral Alloy for Maximum Durability

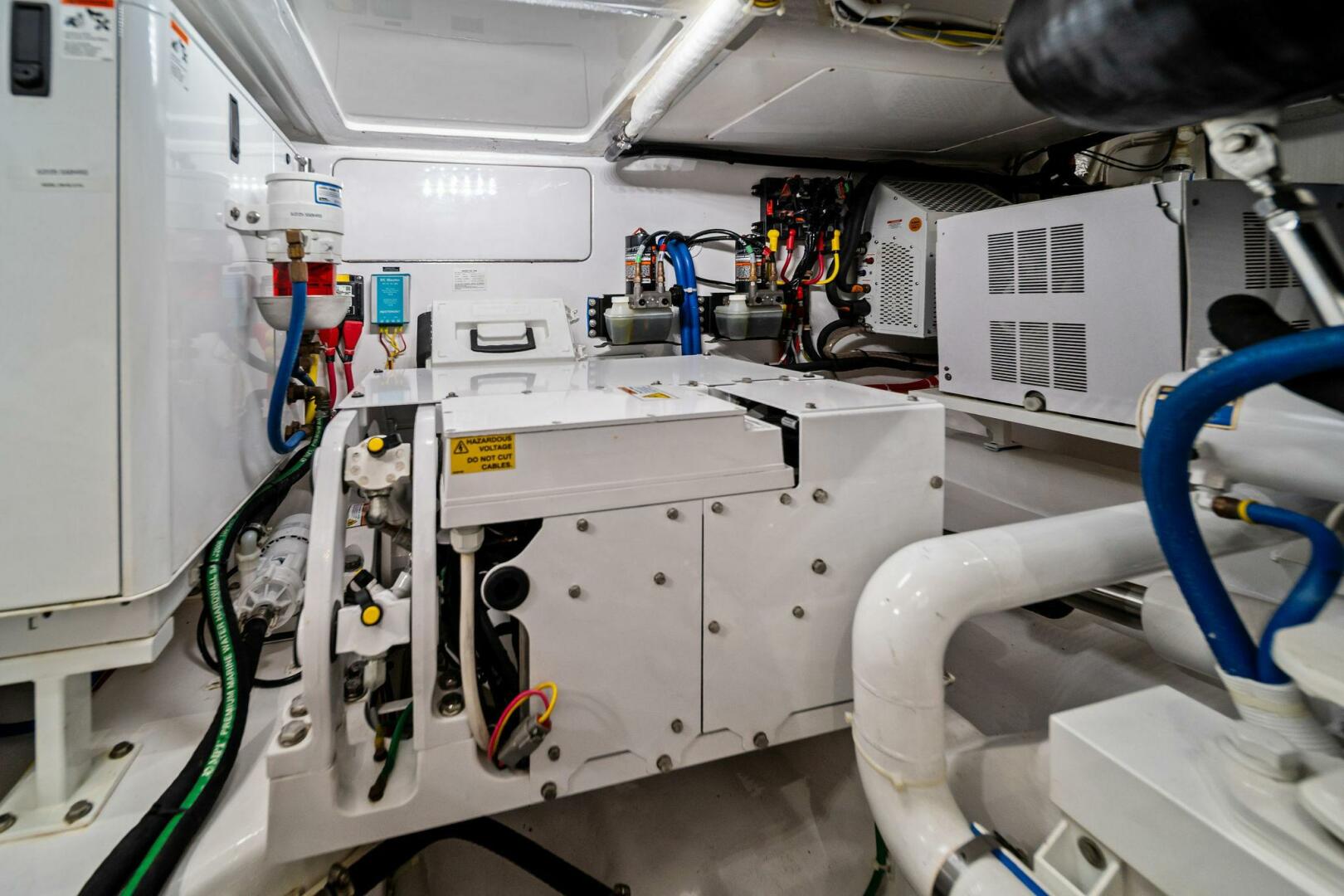

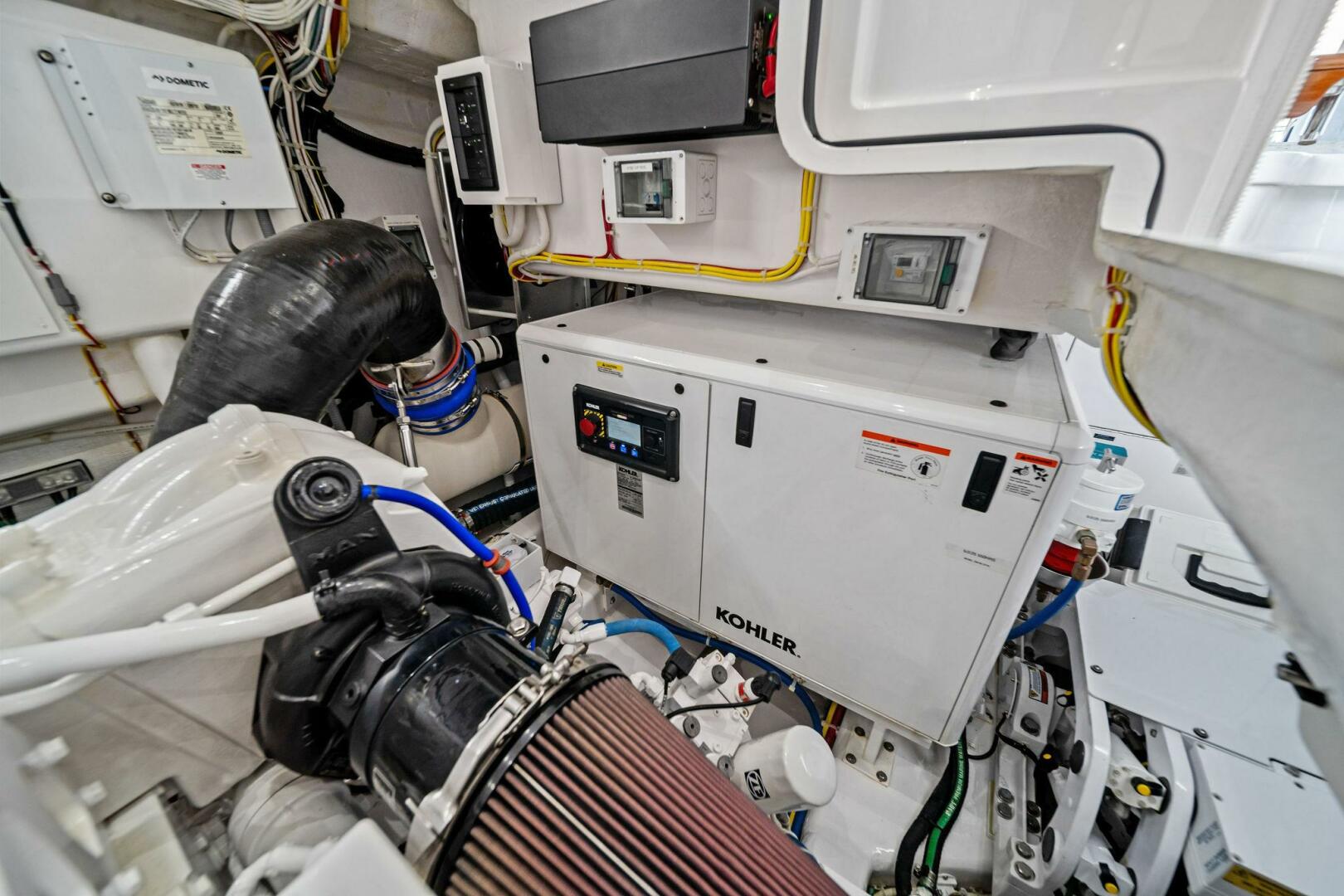

• 13.5kW Diesel Generator
• 110v Outlet in Engine Room
• Anchor Light / Navigation Lights
• 24v DC Ship's Service Throughout
• Bonded Electrical System with Ground Plate
• Dimmers, on Interior Lighting in Select Areas
• Engine Room Lights, DC with Switch at Helm
• Instrument Panel Backlights all Electrical Panels
• Receptacles, 120v Duplex with GFCI Throughout
• Battery Charger, Dual Output with Thermal Cutoff
• Lighting, LED, Recessed in Ceiling, 24v Throughout
• Battery Parallel System for Main Engines and Generator Start
• 24v / 12v Power Supply with Breakers on Flybridge for Future Electronics
• Battery Distribution Panel with Battery Cutoff and Charging System Breakers
• Voltage Stabilizer Isolation Transformer for More Consistent, Cleaner Voltage
• Batteries, (2) Independent 24v Banks Mounted in Fiberglass Storage Boxes (2)
• Color-Coded, Labeled and Numbered Wiring System with Corresponding Drawings
• Master Electrical Control Panel Located in Galley with 24v and 120v Circuit Breakers, Individual Switching for Shore, or Generator Supply and Gauges for Electrical Supply, Voltmeter, Ampmeter and Frequency
