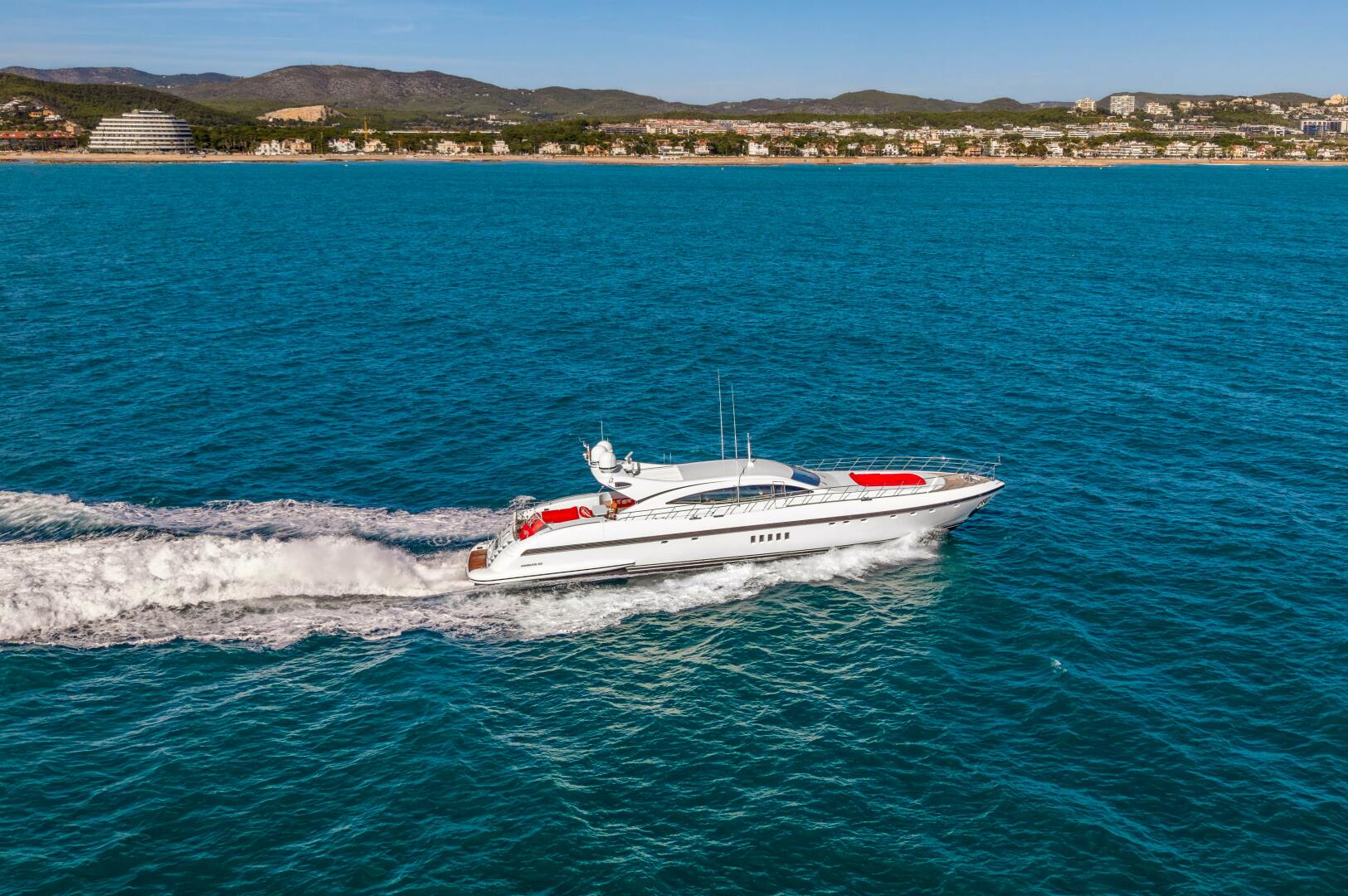

2008 Overmarine Mangusta 108
GRAZIADIU
$3,457,400
Vilanova, ES
- 4 Staterooms
- 0 Heads
- 4 Engines
-
Disclaimer
Galati Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
Quick Specs
Accommodations
Cabins: 4
Heads: 0

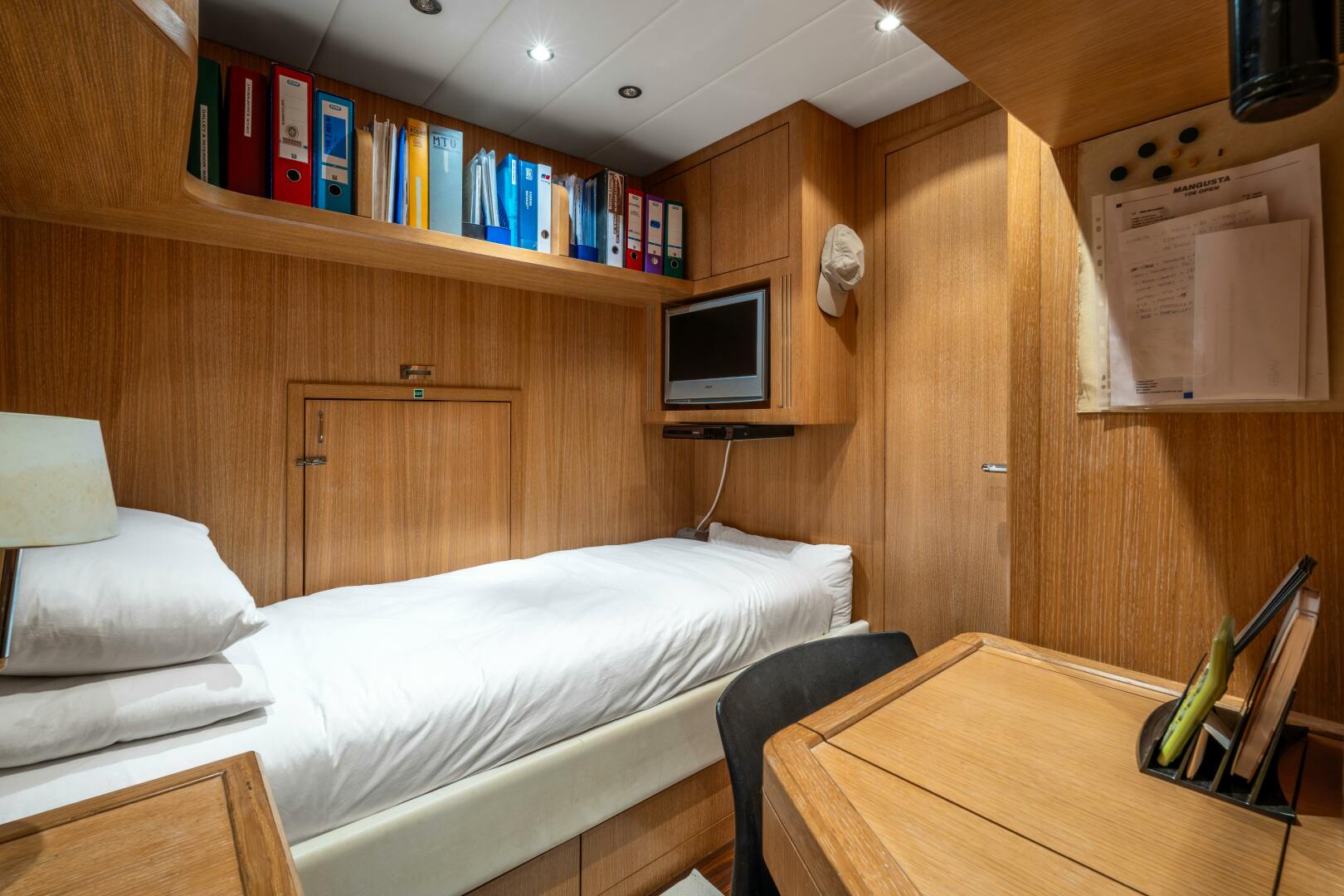

Crew Sleeps: 4
Sleeps: 10
Hull Information
Hull Material: GRP
Dimensions
Speed/Weight/Capacity
Cruising Speed: 32 Knots
Displacement 105 lbs
Fuel Capacity: 3434 G. (13000 L.)
Water Capacity: 528 G. (2000 L.)
Holding Tank: 0 G.
Engines
Engine 1
Engine Make: MTU
Engine Model: 12V 4000 M90
Engine Year:
Power HP: 2,730
Engine Hours: 1,566
Engine Location: Port
Engine 2
Engine Make: MTU
Engine Model: 12V 4000 M90
Engine Year:
Power HP: 2,730
Engine Hours: 1,566
Engine Location: Starboard
Engine 3
Engine Make: Kohler
Engine Model: 33EFOZ
Engine Year:
Power HP: 0
Engine Hours: 3,599
Engine Location: Port
Engine 4
Engine Make: Kohler
Engine Model: 33EFOZ
Engine Year:
Power HP: 0
Engine Hours: 3,092
Engine Location: Starboard
Details
Overview
Builder: Overmarine Model: Mangusta 108Length: 33.48.m (109’ 58”) Construction: GRPYear: 2008 Refit: 2025Guests: 10 in 4 CabinsCrew: 5 in 3 cabinsCruise Speed: 32 KnotsTop Speed: 35KnotsRange: 460 nmExterior Designer: Stefano Righini DesignClassification: Bureau Veritas Flag: Cayman IslandCommercial Compliance: MCA (I 3/3 E, MACH, Charter Yacht /C)
Principal Dimensions
Length overall (incl. pulpit): 33.4m (109’ 58”) Length overall (excl. pulpit): 28.5m (103’ 4”)Beam: 7.12m (23' 3")Draft: 1.3m (17' 3")Gross Tonnage: 181 GRTNet Tonnage: 54 TDisplacement: 110 T (Full Load)Fuel capacity: 14,700 L (3,883 gallons) Water capacity: 2,000 L (528 gallons) Grey & Black Water: 1,600 L (422 gallons)
Broker’s Comments

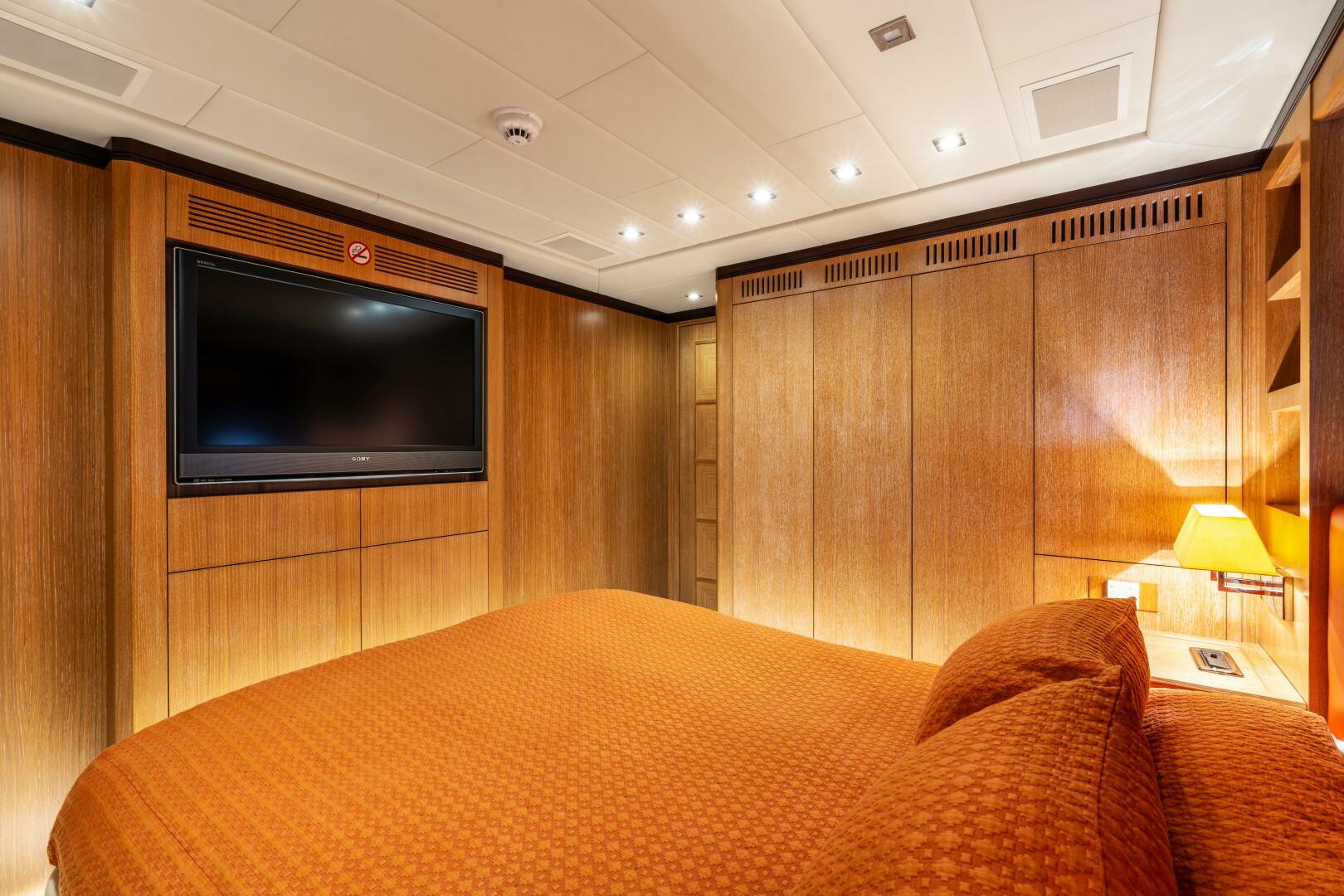

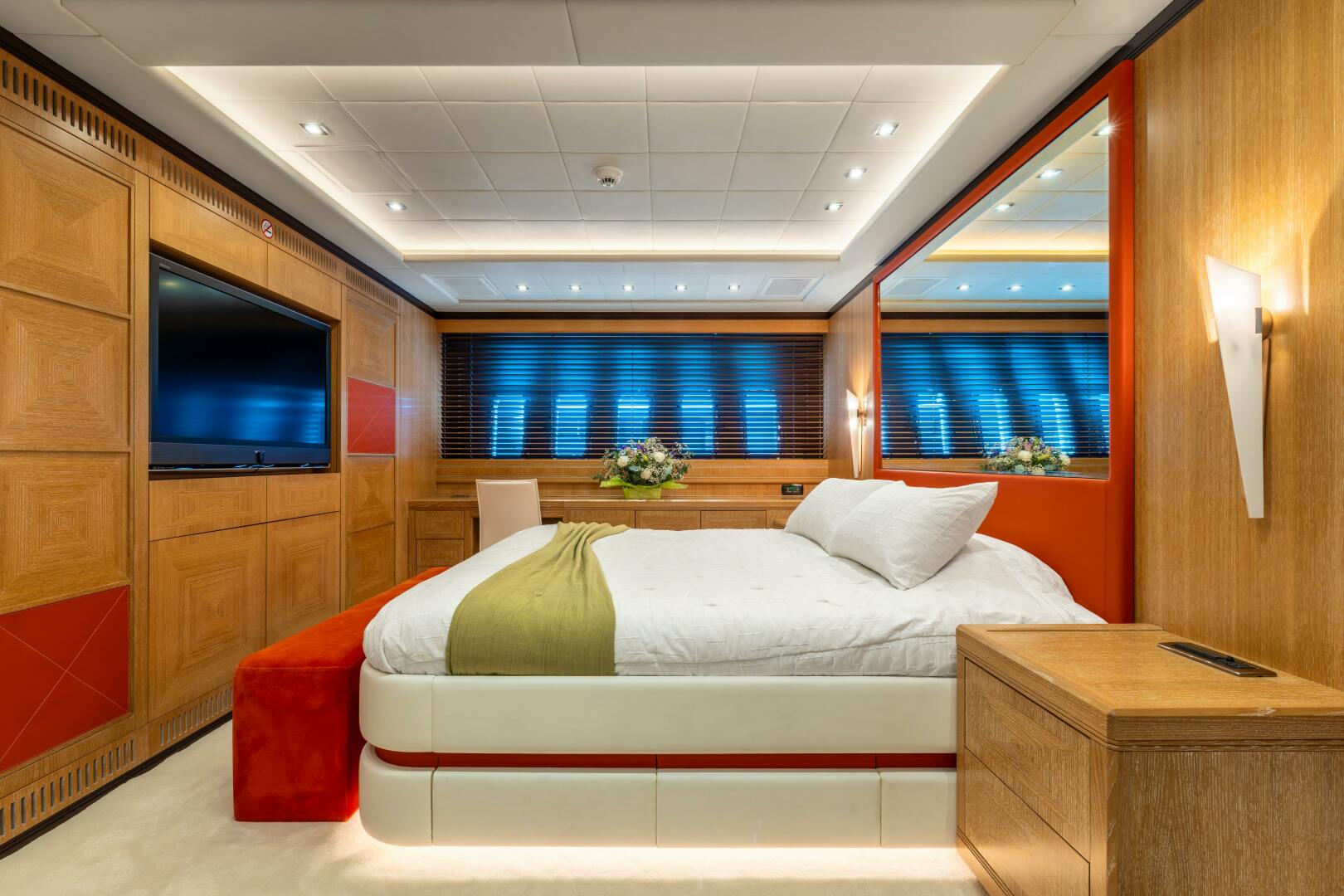

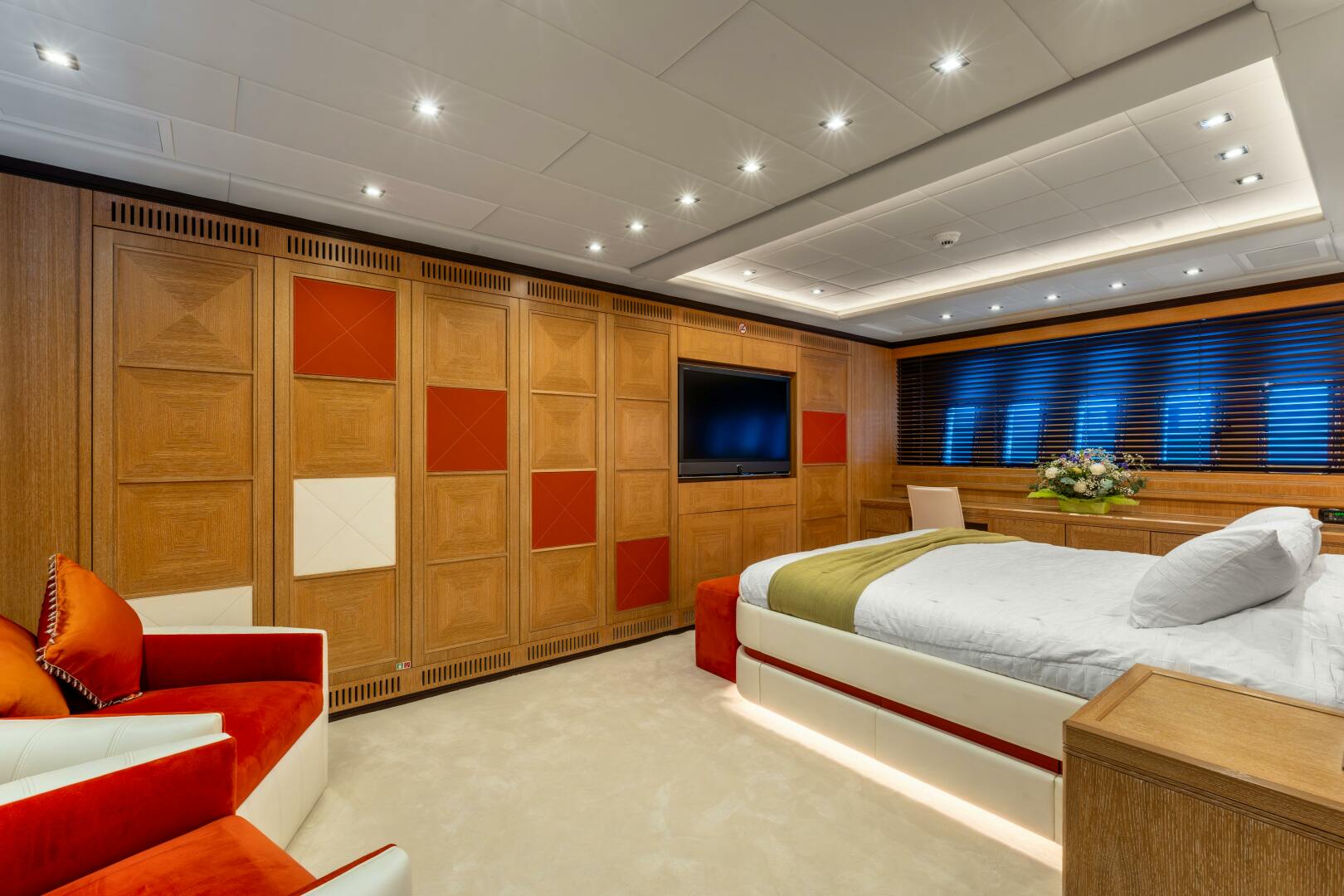

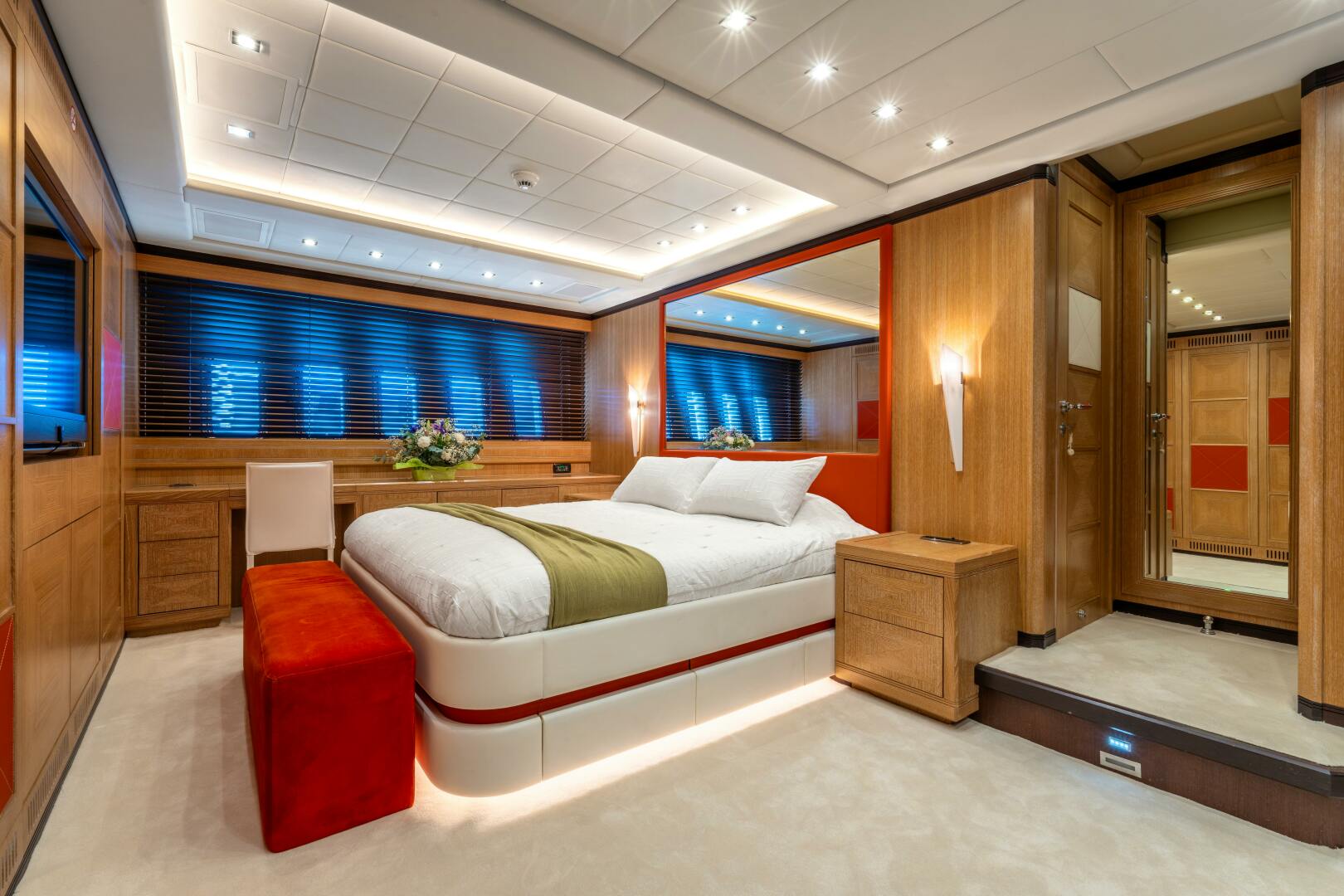

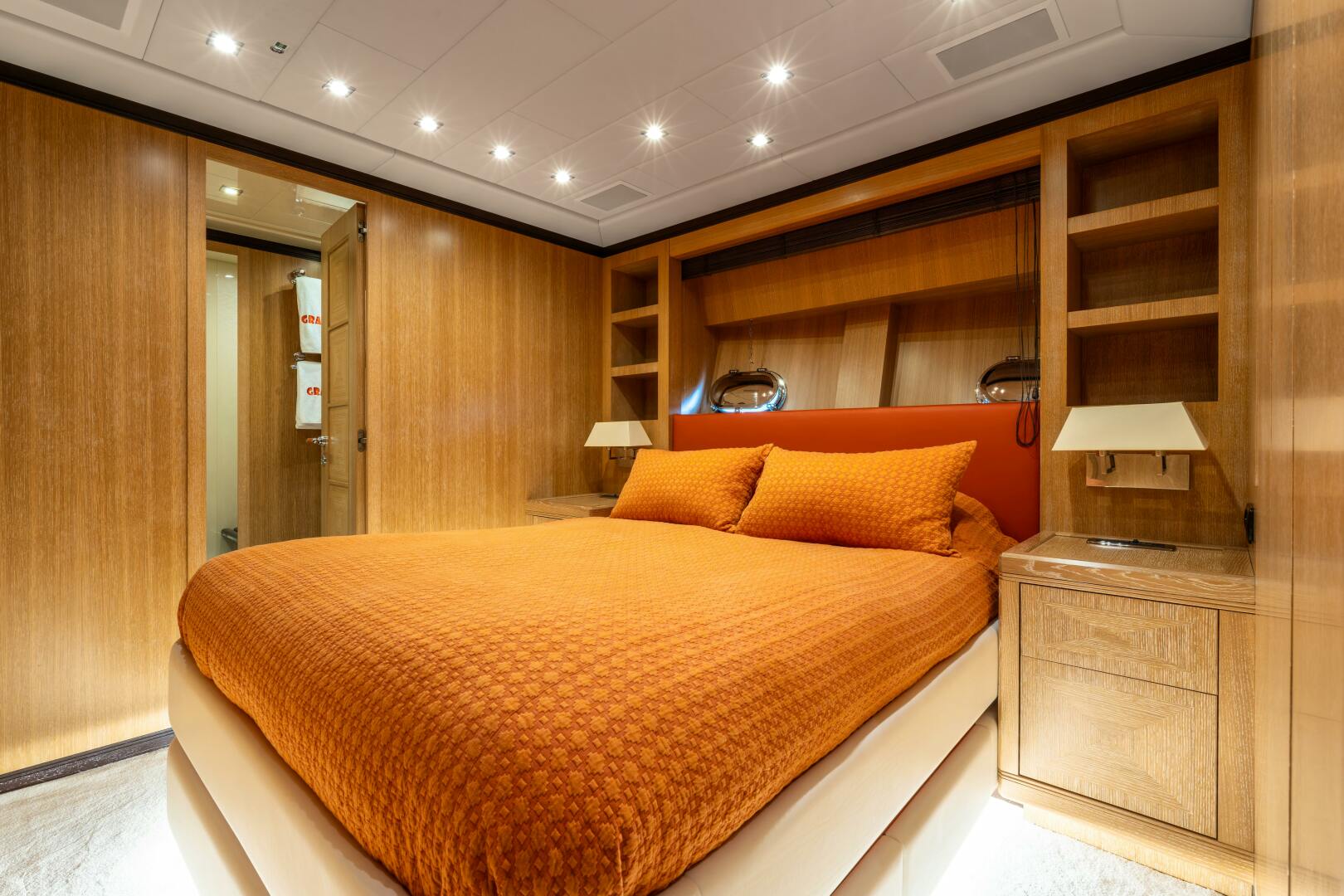

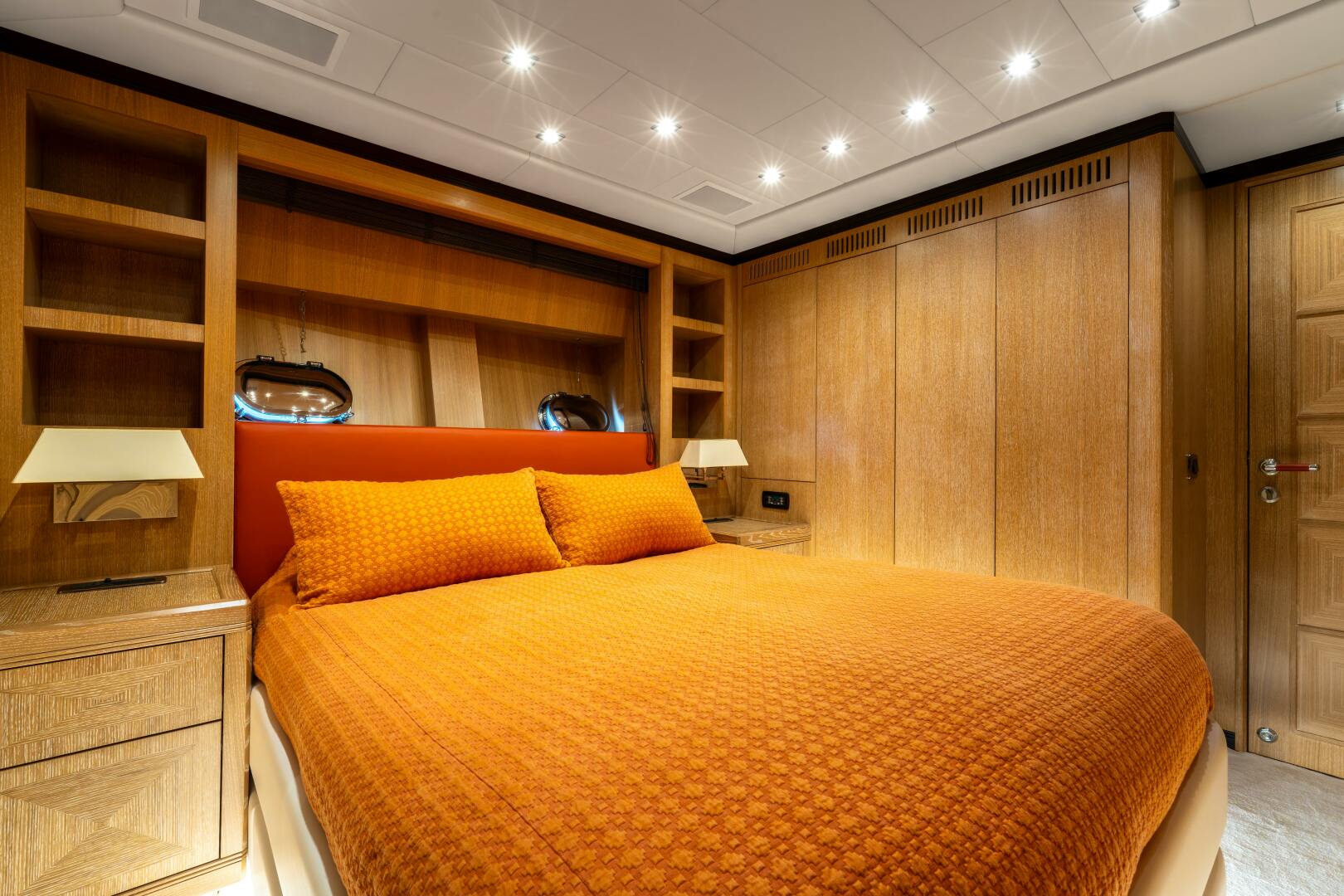

GRAZIADIU is an exceptional example of the iconic Mangusta 108 series — a yacht that perfectly blends performance, style, and comfort. Measuring 109.9 feet (33.5 meters), she offers generous accommodations for up to 10 guests in four beautifully appointed cabins, each thoughtfully designed with light wood finishes and bold colours. Crafted by the renowned Italian shipyard Overmarine, GRAZIADIU has been privately owned and maintained to the highest standards, reflecting the meticulous care by her captain and owners. With low engine hours and benefitting from the completion of her class survey in 2025, she is ready for her new owner.
Performance
Cruising Speed: 32.0 knots
Maximum Speed: 35.0 knotsRange: 460nm

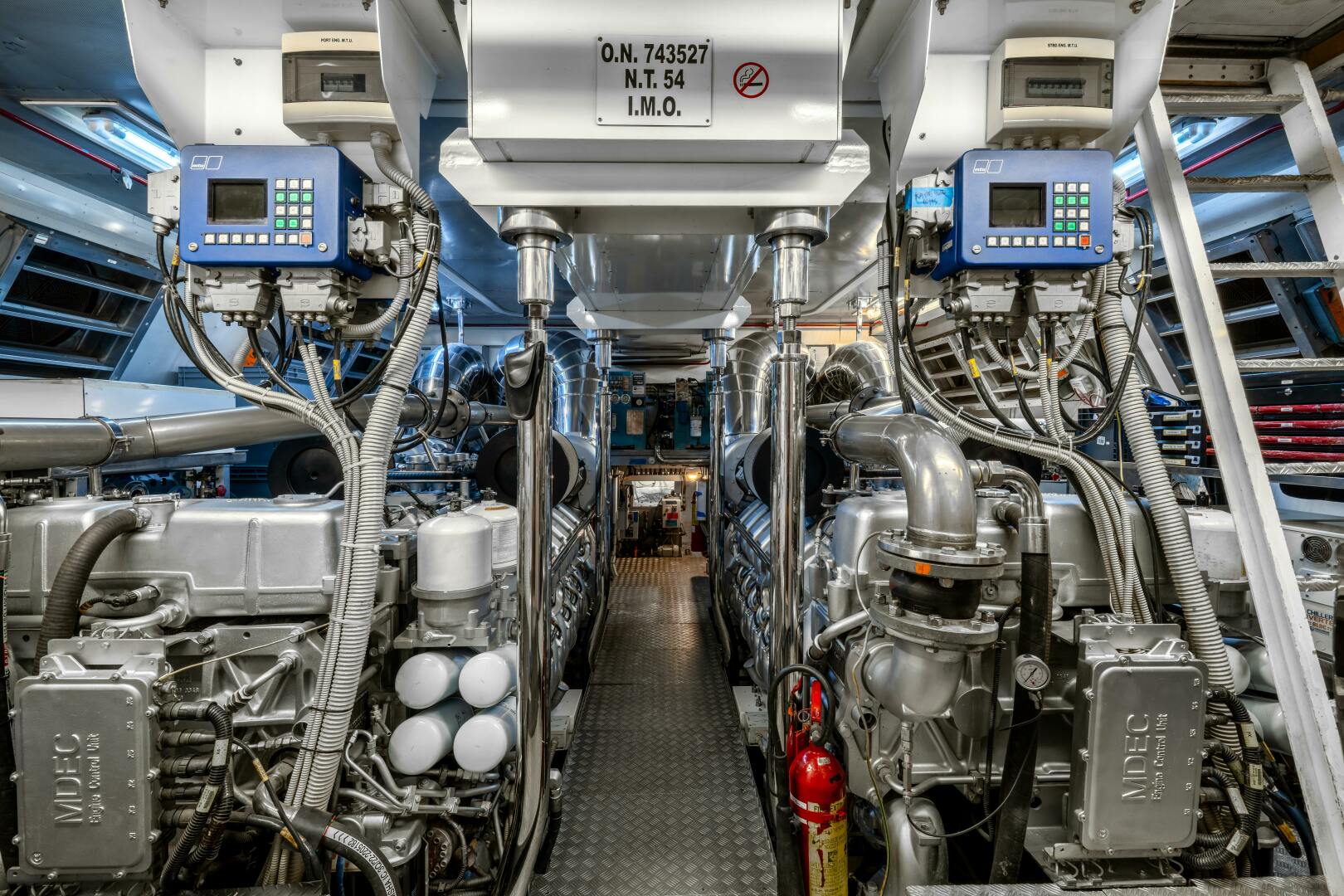

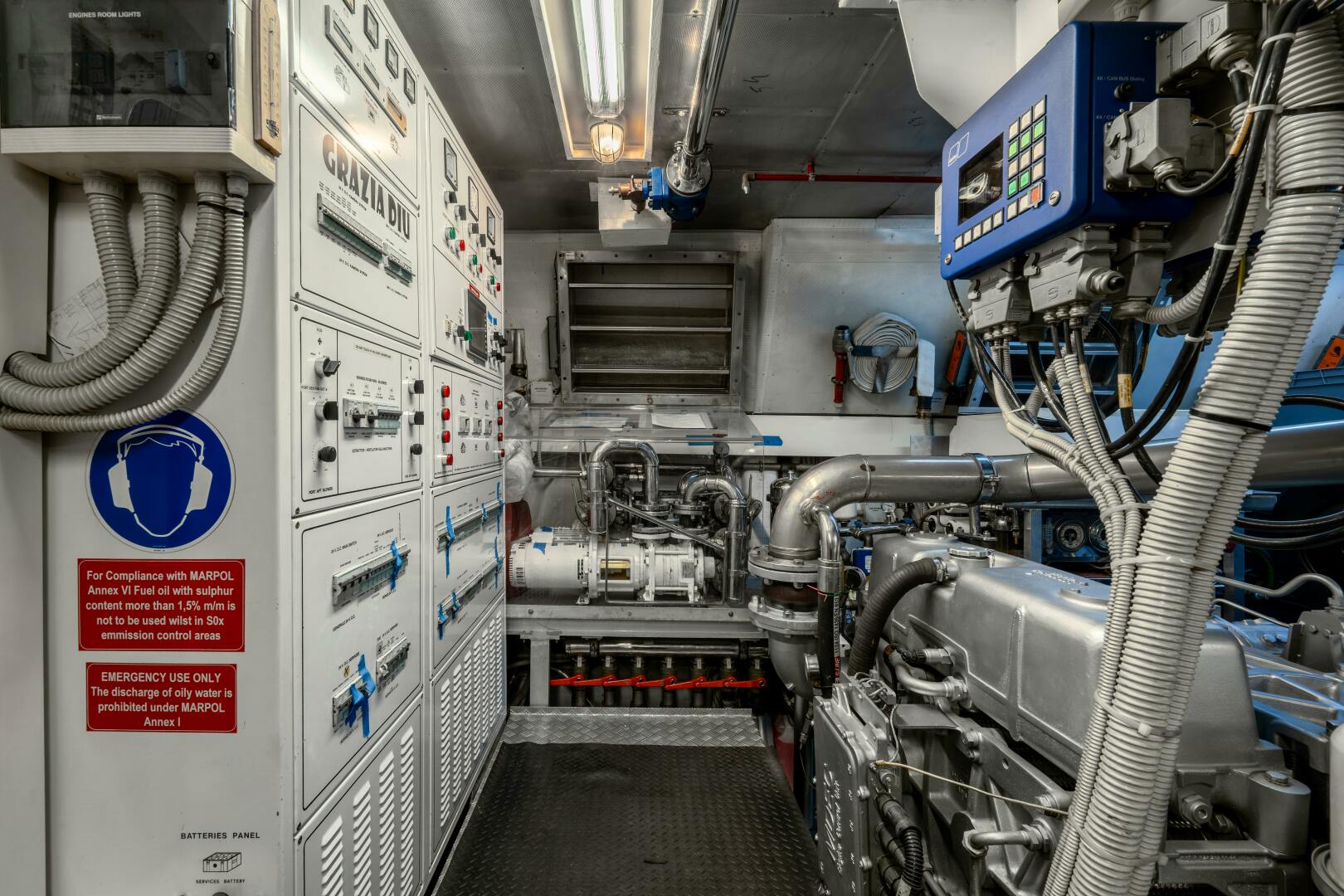

Machinery
Engines: 2 X MTU 12V 4000 M90 2040 kW 2730hpEngine hours: Port: 1566 hrs / Stbd: 1566 hrsGenerators: 2 X KOHLER 33EFOZ @ 33kW each Generator hours: Port: 3,599 hrs / Stbd: 3092 hrs
Propulsion & Steering
Propulsion: 2 x Kamewa 63 S3 Water JetsGearboxes: 2 x ZF BW 465 Hydraulic Bow Thruster BCS 47 kW
Onboard Systems
FUEL SYSTEM: RACOR fuel pre-filter supplied by MTU and WESTFALIA OTC 2 400 V Fuel purifier Gianneschi bilge pumps and fire fighting Frigomar Air conditioning
Deck Hardware
WINCHES, ANCHORS AND CAPSTANSTwo 5500 W Lofrans Ercole Verticale – 3kW/3 –phase/380V vertical anchor windlasses ANCHORS & CHAINS• 2 x SEC SHHP 154 KG• 2 X 14 mm chain length of 120m galvanized CAPSTANS• 2 X Lofrans T2000 2.2 kW 400 VGANGWAY• Sanguineti hydraulic gangway and swim ladder MIZAR L Capacity 680 kg• Teak grating walking surface• Tilting capability• Infrared remote controls
Deck Equipment

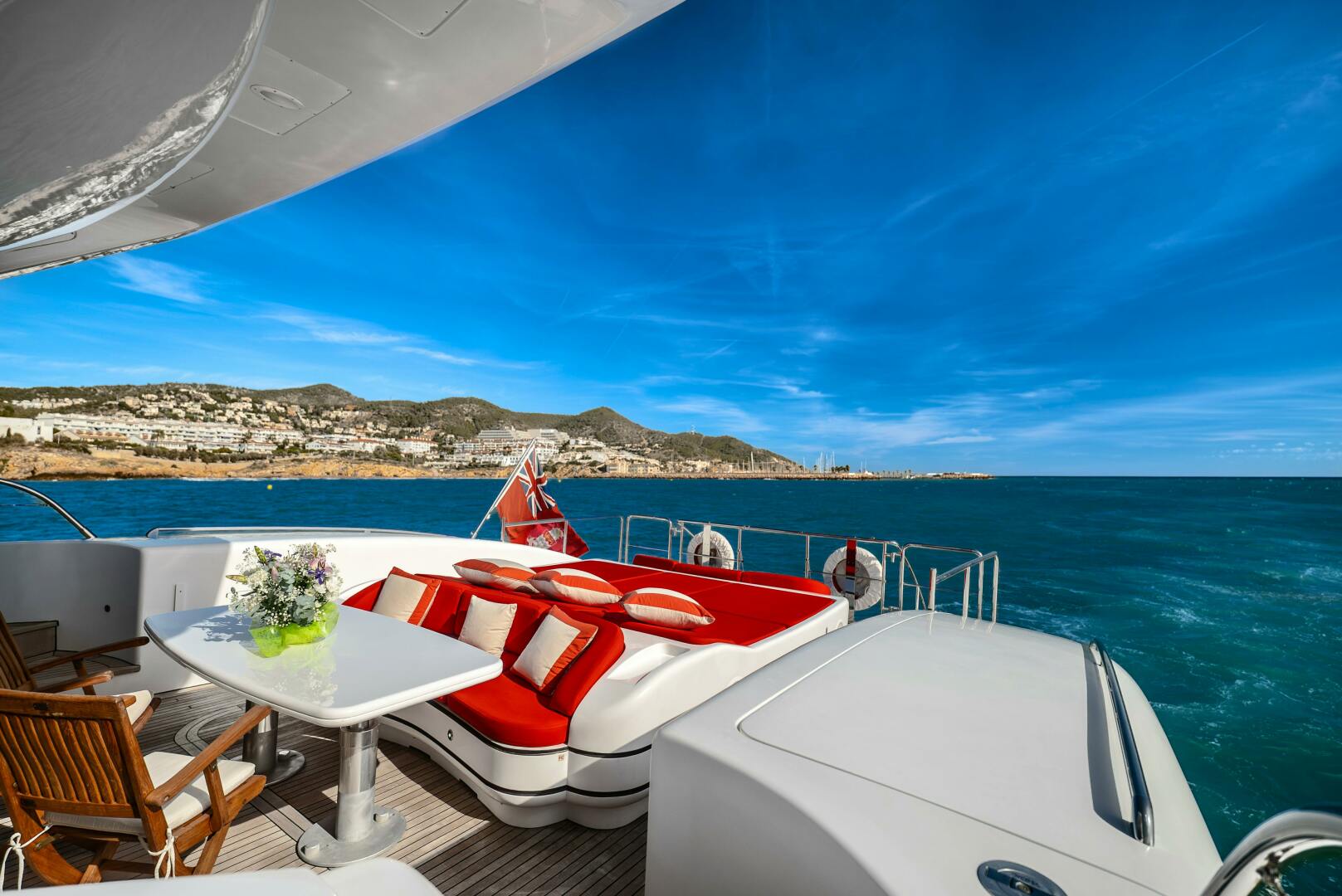

• 1 X Sanshin search lights • 1 X Kahlenberg air horns• Aft deck sun awning• 1 X sun beds forward• Swim platform• Bow deck shower• Electric Sun Roof

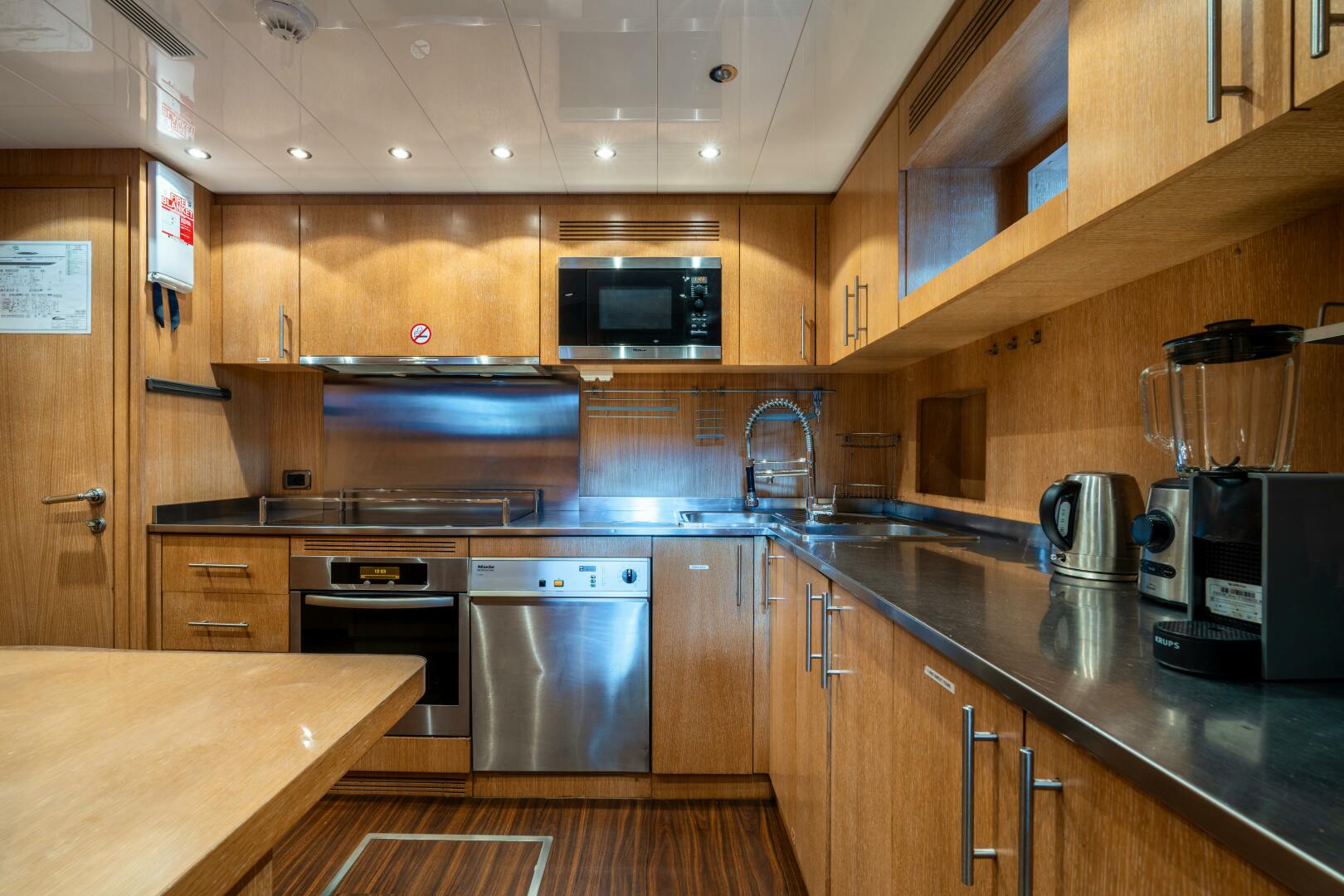

Galley
• 1 X Miele Oven • 1 X Miele Microwave M8161 • 1 X Miele Exhaust hood• 1 X Miele Dishwasher G78J6 • 4 X Frigit fridges • 1 X Liebherr winecellar• 1 X Gaggenau cooking top • 2 X Frigit fridges• 1 X Brema icemaker
Laundry
• Clothes washing machine PW 6065 • Condense dryer machine PT 7136
Safety Equipment
• 2 X Survitec Zodiac XTREM SOLAS; 10 person • 1 X Survitec Zodiac XTREM SOLAS; 8 person • 9 X dry powder fire extinguishers, 2 kg • 5 X dry powder fire extinguishers, 6 kg • 4 X dry powder fire extinguishers, 9LT• 3 X C02 5kg• Engine room C02 fire fighting system • ACR EPIRB GME MT406FG
Navigation System & CCT
• Plotter: Time Zero Pro • Radar Furuno FAR PPU013 • Sounder Furuno ETR610N • Wind Airmar weather station • Autopilota Roberson AP9 MK3 • Ais Fa150 Furuno • VHF FM2721 • Navtex Fax30• Satelite Compass Furuno SC702
Audio Video

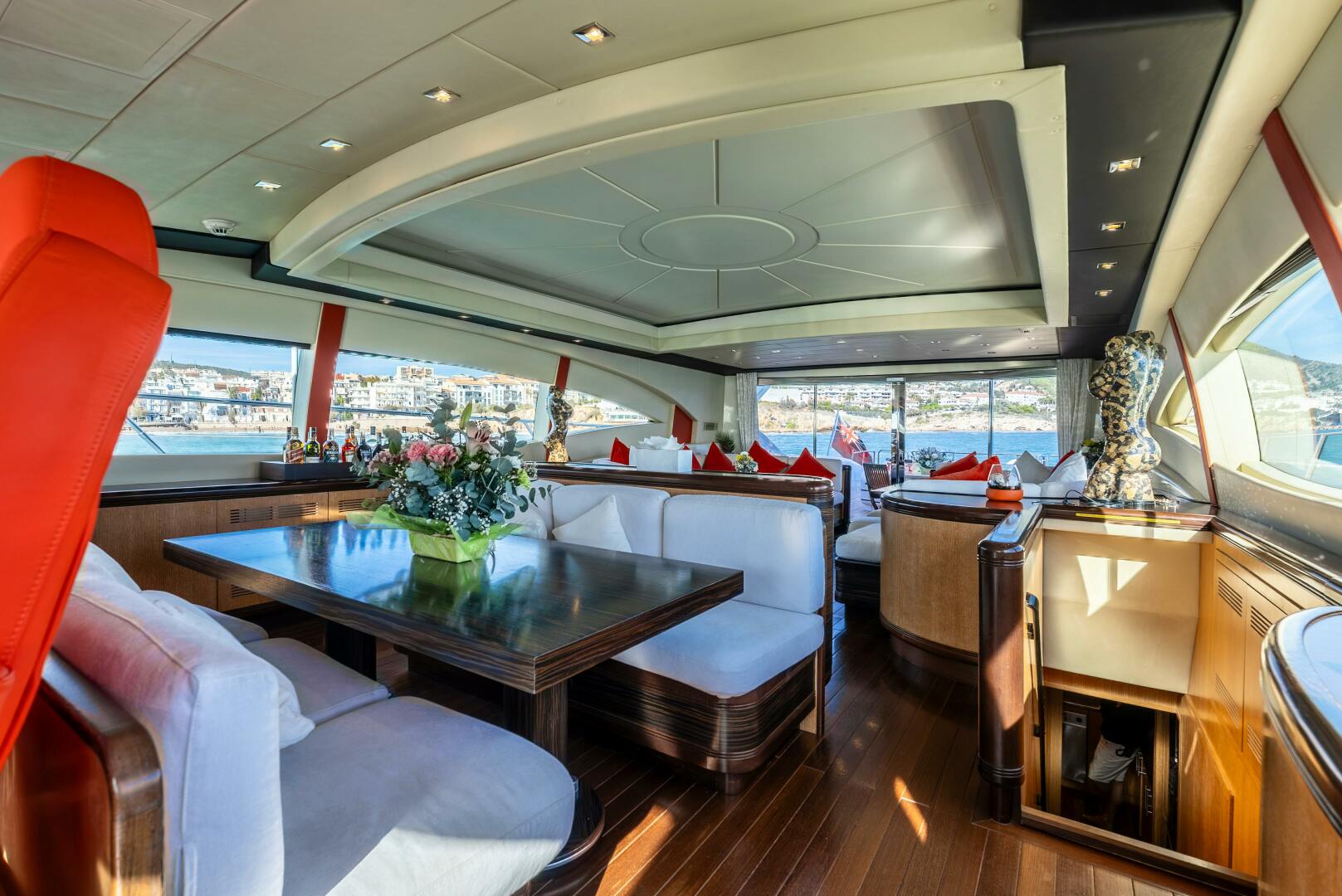

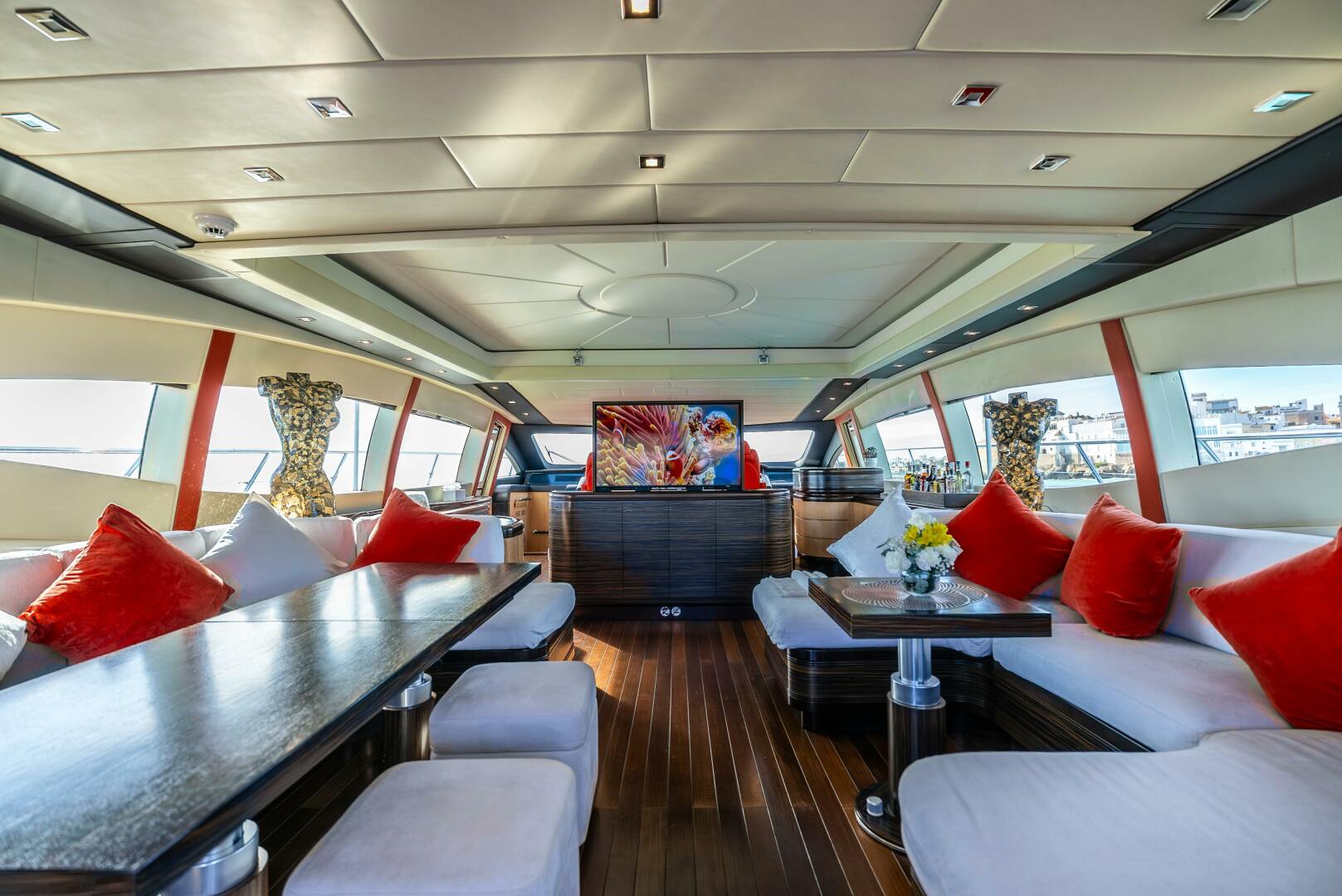

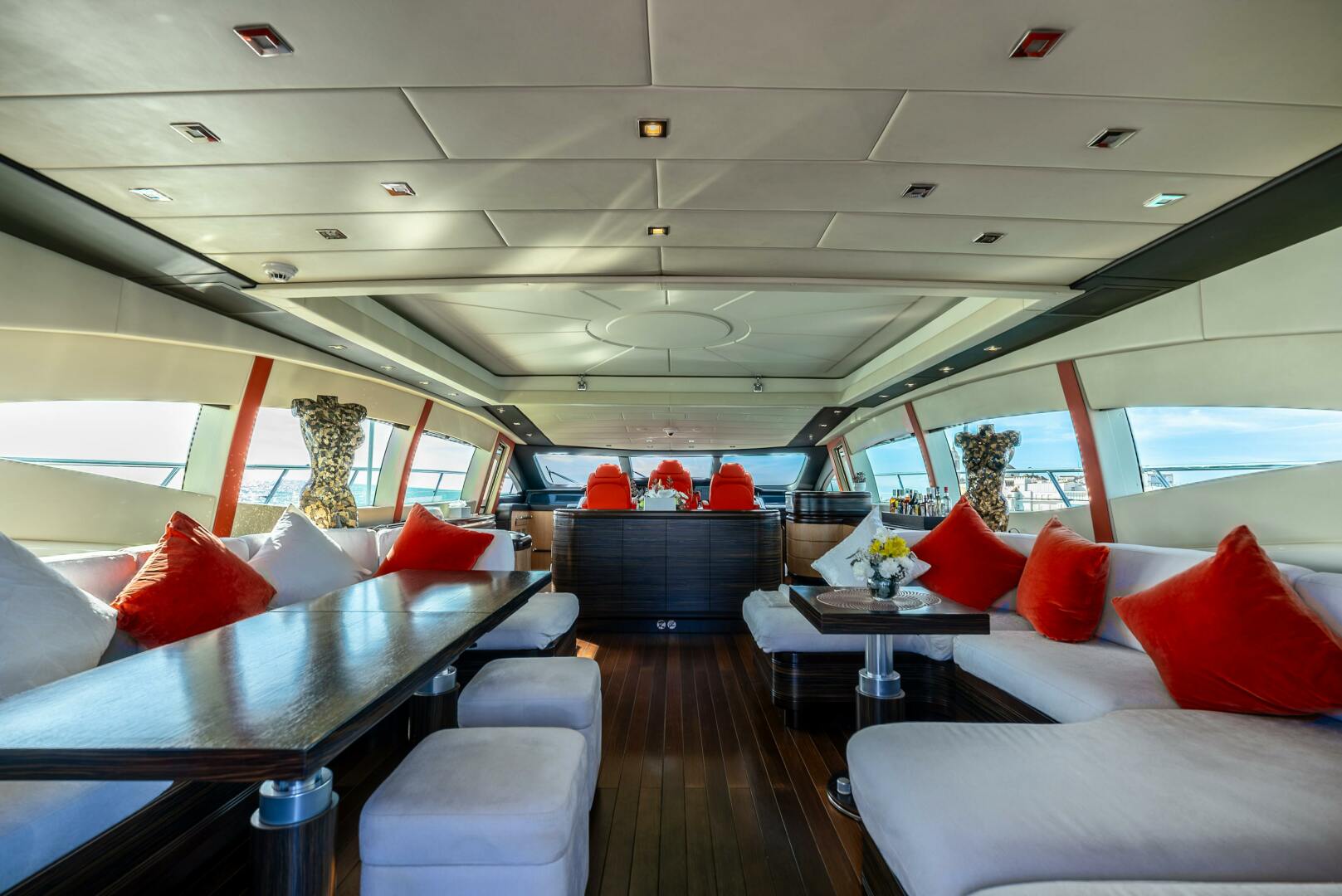

Main Deck Saloon• Tv Samsung HD 55”• Amplifier Denon• Kaleidescape client media player • Decoder sat sky• Apple tv• 5 X speaker Heartquake image 8 • Subwoofer JL Lab focal• Remote control: Neo Control 4 Owners cabin• Tv Samsung HD 40”• Apple TV• Amplifier Marantz• Kaleidescape client media player• Decoder sat• Apple tv• 5 X speaker Heartquake image 8• Subwoofer JL Lab focal• Philips pronto tsu 9600 remote control Guest Cabins• Tv Sony 22”• Apple TV• Amplifier Marantz• Subwoofer Denon• 4 X speaker Heartquake image 6 • Decoder sat• Remote control: Neo Control 4 Fore deck• 2 X speaker 4”• Crestron keypad control • Amplifier Marantz Aft Deck• 6 X speaker Focal IC108 • Amplifier Marantz Captain’s Cabin• TV LG 20”• Amplifier Marantz• Subwoofer Denon• Decoder sat• 1 X 2 speaker Heartquake image 6 • Display 8” cctv• Furuno RD30 Dinette• TV Samsung 32”• Amplifier Marantz• Decoder sat• 1 X 2 speaker Heartquake image 6 • Display 10” cctv• Furuno RD30 Crew Cabin• 2 X TV LG 14”• Amplifier Marantz• Subwoofer Denon• Decoder sat• 2 X speaker Heartquake image 6 • Display 8” cctv• Furuno RD30 Tech room & rack• Router 4G Peplink max br1 mk2 • Control 4 • Crestron matrix PVID8X3 • Crestron matrix BIPAD 8 • Crestron FM tuner• Quad Panasonic cctv • Wi-fi Ubiquity Mesh kit• 4 X access point Ubiquity• Satellite BB server wired ocean • KVH TV8
Recent works 2025
- Fresh Antifouling
- Windlass service
- Capstan service
- Exhaust hose replacement
- Kamewa Jet Service
- Generator Service
- Rubber mounts and Alignment
