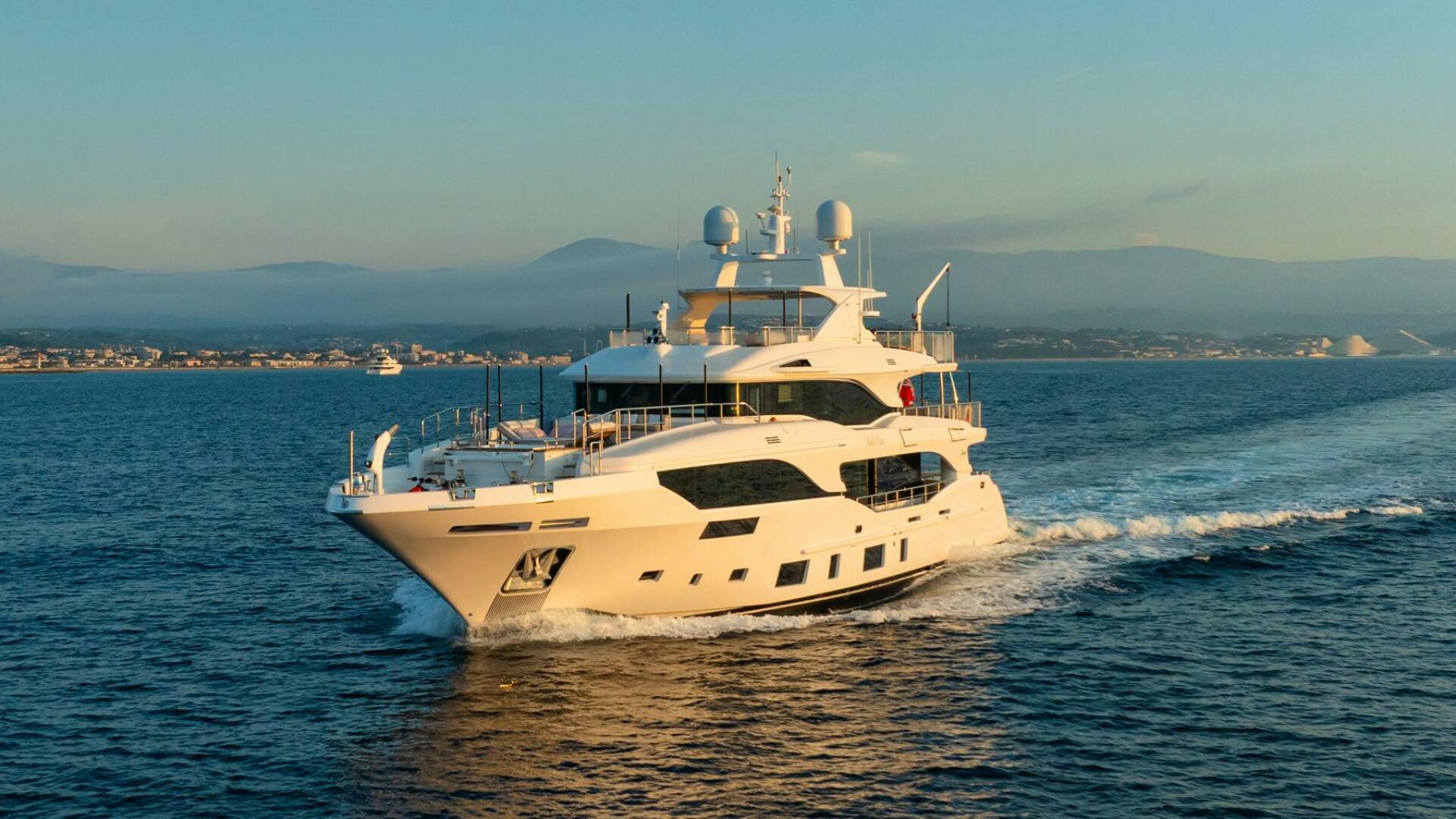

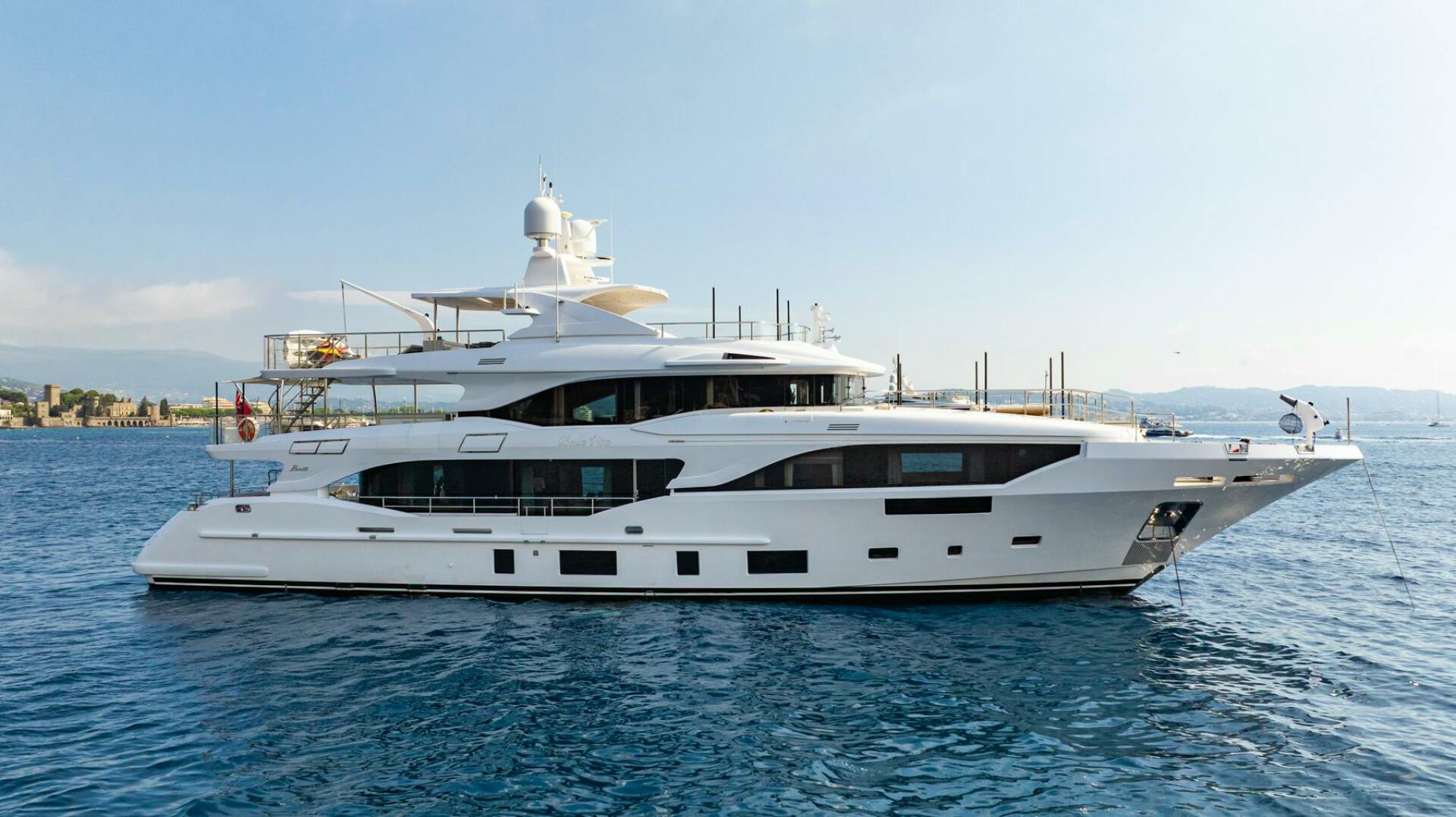

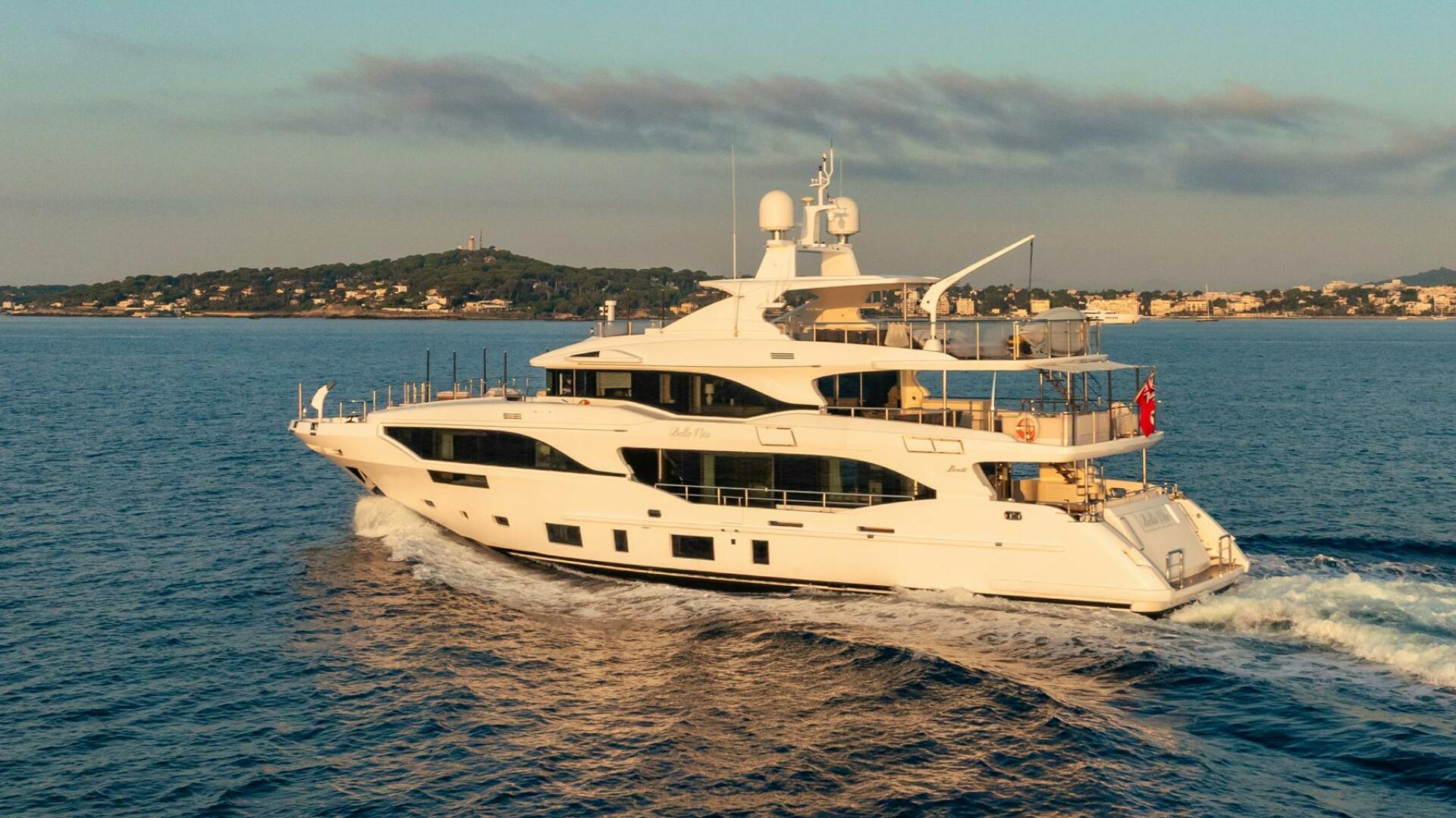

2020 Benetti Benetti Mediterraneo 116

•     Premier Italian builder Benetti •     Highly customized interiors •     Huge spacious exterior decks •     Five staterooms sleeping 10 guests •     Owner supervised build •     Only private use since build and immaculate condition •     Built to MCA compliance •     Five-year survey completed

Length Overall: 35.30 m (115’ 10”)Waterline Length (full load): 28.30 m (92’ 10”) Beam: 7.50 m (24’ 7”)Draft (half load): 2.05 m (6’ 9”)Draft (full load): 2.15 m (7’ 1”)Displacement (light ship): 159,000 kgs (350,535 lbs) Displacement (half load): 185,000 kgs (407,855 lbs) Displacement (full load): 200,000 kgs (440,925lbs)Gross Tonnage (ITC 69): 271 GTClassification: C ✠ Hull • MACH; Y Unrestricted Navigation Naval Architect: Pierluigi Ausonio Naval Architecture Exterior Designers: Giorgio M. Cassetta Interior Designer: BenettiEngineering: Benetti R&D Dept.Type: Displacement Motor YachtHull Material: GRPSuperstructure Material: GRPDecks: TeakFlag: Cayman Islands

Propulsion

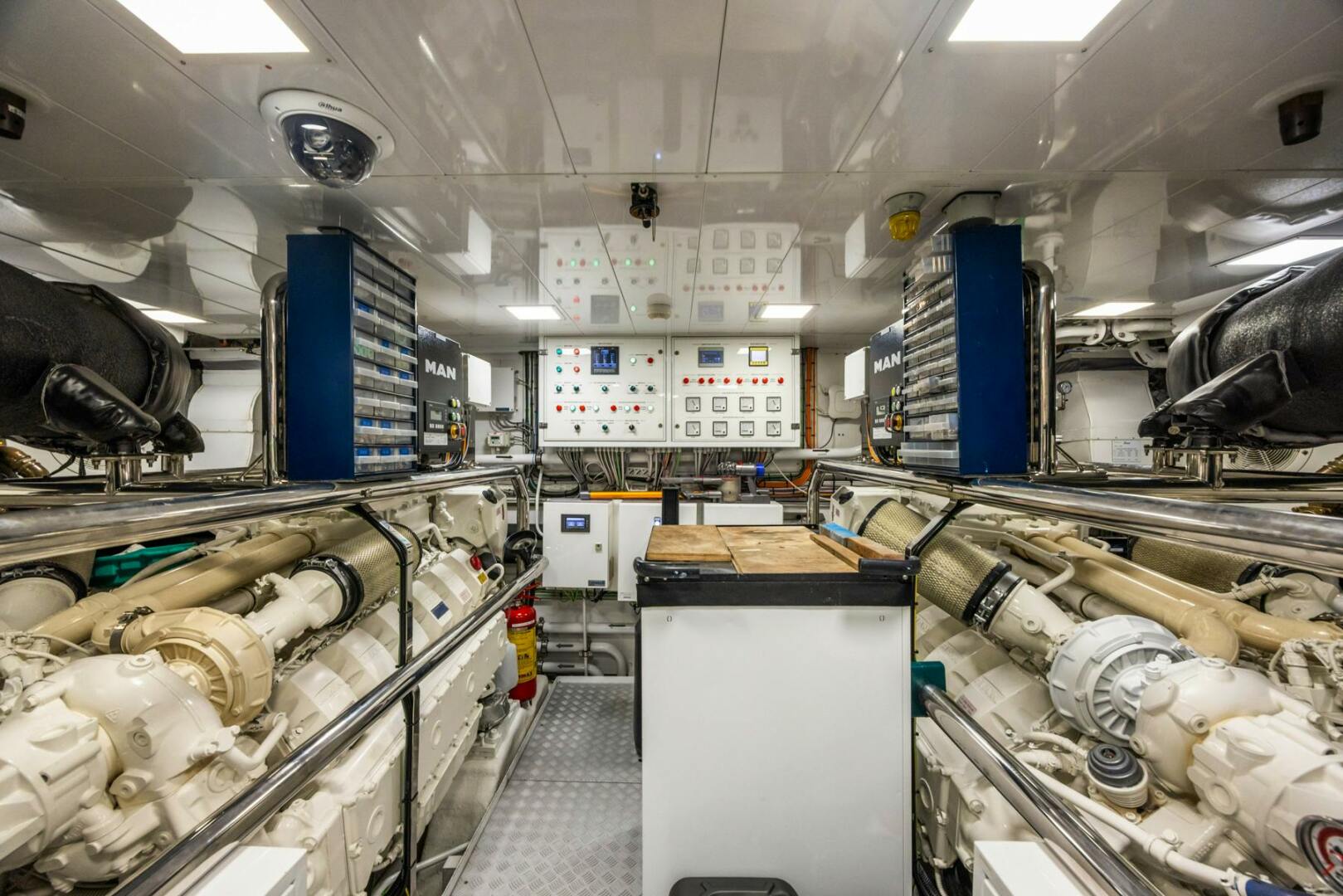

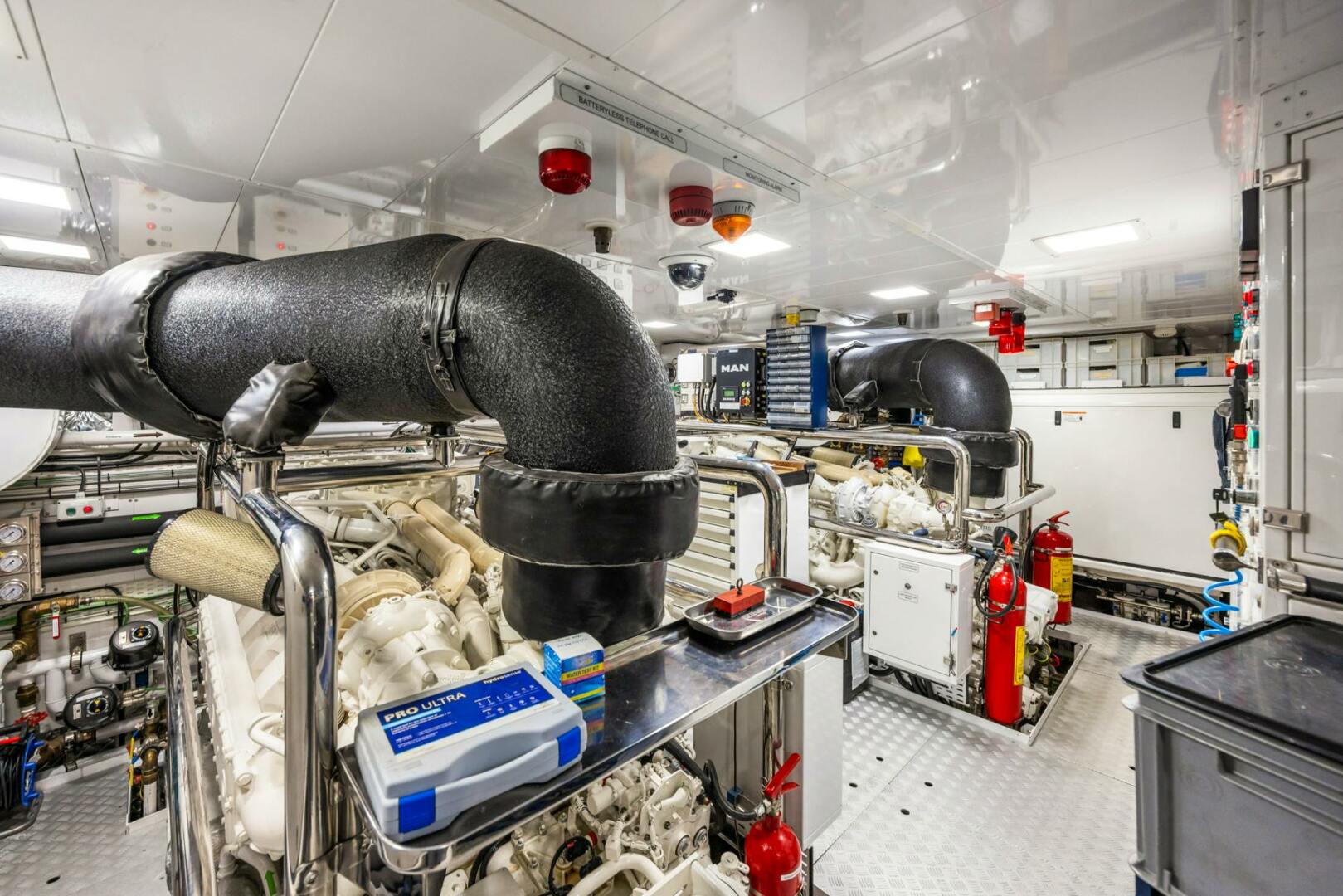

Main Engines: 2 x 1400 Hp (1029 kW) MAN V12-1400 @ 2300 rpm eachPort Engine Hours: 3,150Starboard Engine Hours: 3,150Max Speed: 15 knotsCruise Speed at 85% of Max Power: 14 knotsRange at 10 knots: 3200 NMGear Boxes: Reduction gear box for each engine type ZF 3310, ratio 4,478:1Shaft Lines: Water lubricated bearing shaft line AQUAMET 17, diam. 110mmPropellers: 2 x High skewed propellers, 5 NiBrAl blades

Tankage

Total Fuel Capacity: 33,000 l (8,718 USG) Fresh Water Capacity: 4,000 l (1,057 USG) Sewage and Grey Waters: 3,500 l (925 USG) Clean Oil: 550 l (145 USG)Dirty Oil: 550 l (145 USG)

Electrical Equipment

Main Generators: 2 x 70 kW HOHLER 70EFOZDJ, 400VAC / 50Hz Port Generator Hours: 7,460Starboard Generator Hours: 7,460Electrical System: 400V AC / 50Hz / 3-phasesShore Power Convertor: 70kVA 400V (inlet) / 400V (outlet), 3 phases + neutral, 50HzShore Power: Glendenning CM8 100AEmergency Lighting System: 24V DC battery systemService Equipment: 24V DC battery systemRadio Equipment 24V DC battery systemUnderwater Lights: 8

Main Equipment

Bow Thruster: Electric CMC BTM50 52 kW / 400VAC 3-phaseStern Thruster: CMC BTM40Stabilizer Fins: Zero-speed stabilizer fins (CMC Stabilis Electra SE80-7-4-160) Fire Pump: Electric GIANNESCHI ACB 531/C 400VACBilge Pumps: Electric GIANNESCHI ACB 531/C400VACMotor Pump: GIANNESCHI M-ACB 531Fuel Oil Transfer Pump: Electric transfer pump GIANNESCHI ACB 331 400VACClean Oil Pump: Electric GIANNESCHI PQ40 400VACDirty Oil Pump: GIANNESCHI PQ40 400VACSewage and Grey Waters Pump: 2 x GIANNESCHI MVI60 400VACFuel Filters: Alfa Laval Fresh water Pumps: 2 x GIANNESCHI CSX 804 400VACHot Water Pumps: 2 x GIANNESCHI Z25 400VACWater Maker: Idromar MC9 8,500 L/day  Water Heaters: 2 x 150 l (39 USG) A/C Sea Water Pumps: 2 x Sea water pumps A/C Fresh Water Pumps: 2 x Freshwater pumps Air Treatment Units: 4 x Units Engine Room Fans: 2 x Axial flow fans GIANNESCHI ELL/AP 457/3, 2 x Centrifugal flow fans GIANNESCHI VCR 351/B

Steering actuator with wheelBow thruster control lever and running indicatorMain engines throttlesEmergency stop for main enginesFin stabilizers control panel4 x LCD monitor (upgraded) 15” IP 65 marinized2 x NMEA Displays 3,5” for Wheelhouse2 x Cartography systems2 x Navnet TZT tillersControl trackballX-Band Radar NN TZT, 64NM, 6kW with 4 ft antennaEchosounder dual frequency/speed/temp sensorFuruno AIS, GPS, and Maxsea TimeZero ChartplotterTransas NS4000 ECS ChartplotterMagnetic compass for WheelhouseWeather station Autopilot system, micro-processor controlled, with feedback systemRudder angle indicatorEmergency Intercom SystemLog: Speed-log system included in integrated navigation systemEchosounder: With dual frequency transducer (depth, log, water temp) Magnetic Compass: Ceiling mounted magnetic compass in wheelhouseVHF: 2 x VHF class D Telephones: VOIP telephone system for internal communicationsWifi: Starlink + 5G with 4 sims (full LTE router & antenna)CCTV: Full HD cameras, 3 x Main Deck, 2 x Engine Room, 1 x Mast, 1 x fisheye on aft UD dining areaProvision for VSat and SAT TV cables

Integrated CAT6 high speed network managed by a CRESTRON

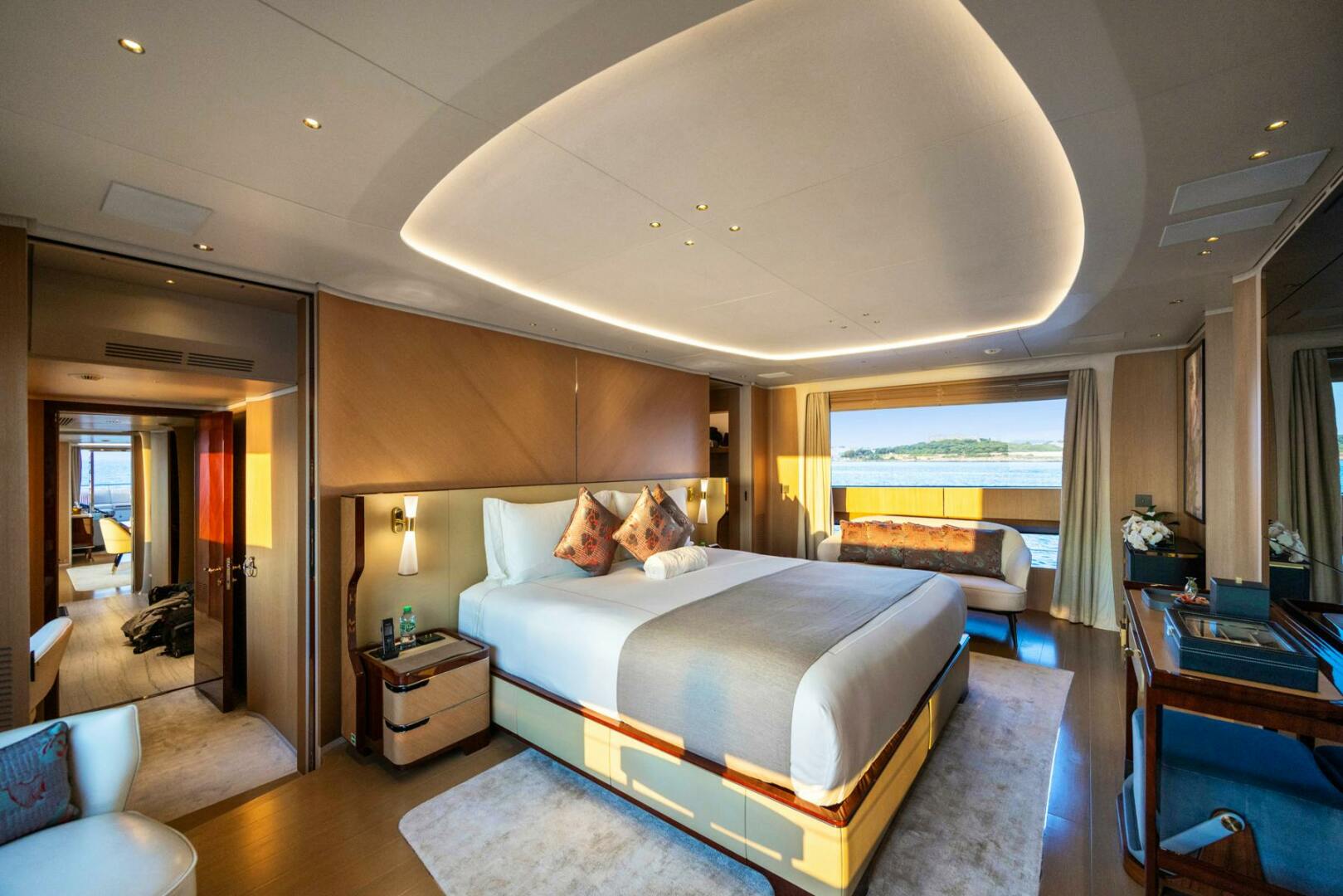

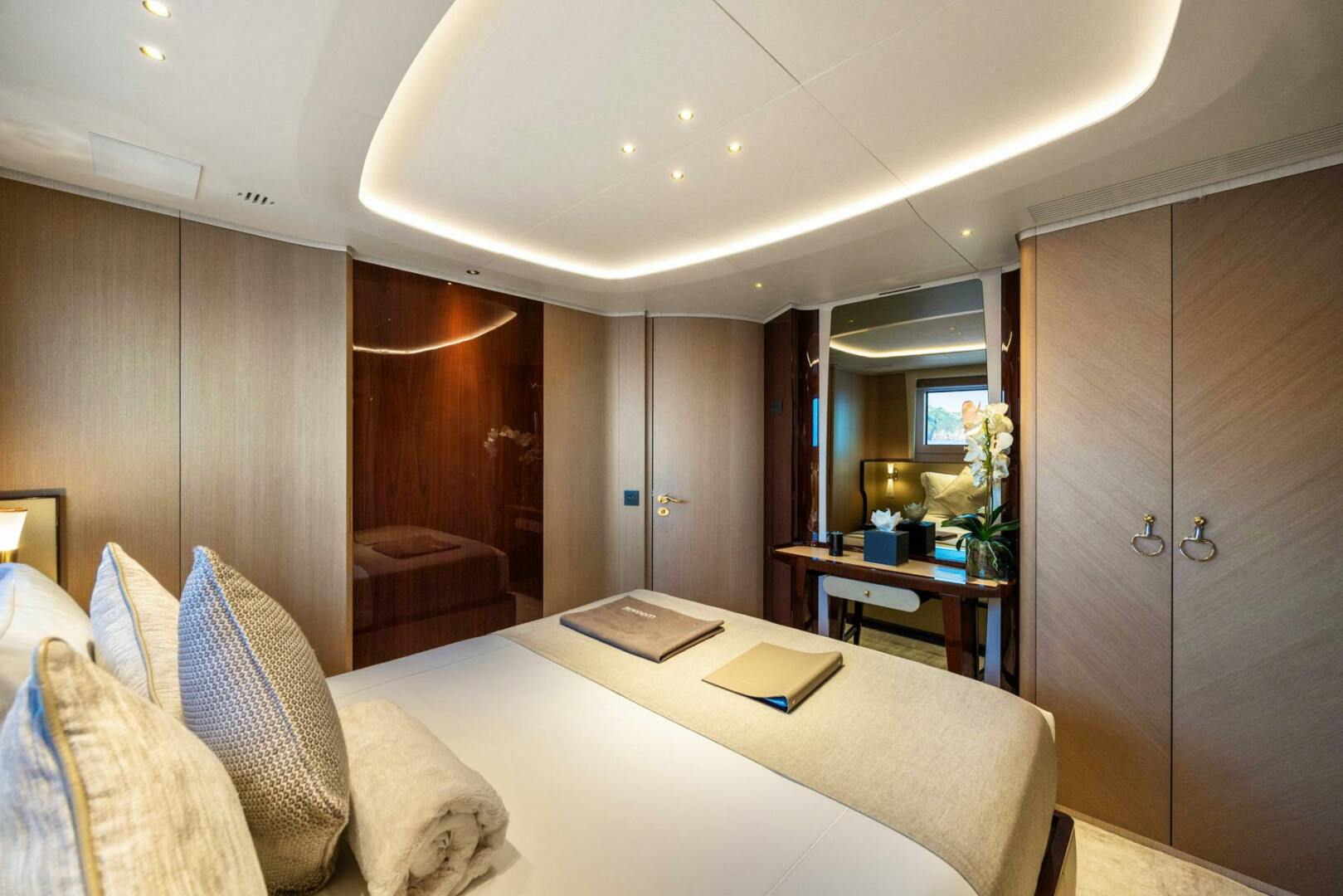

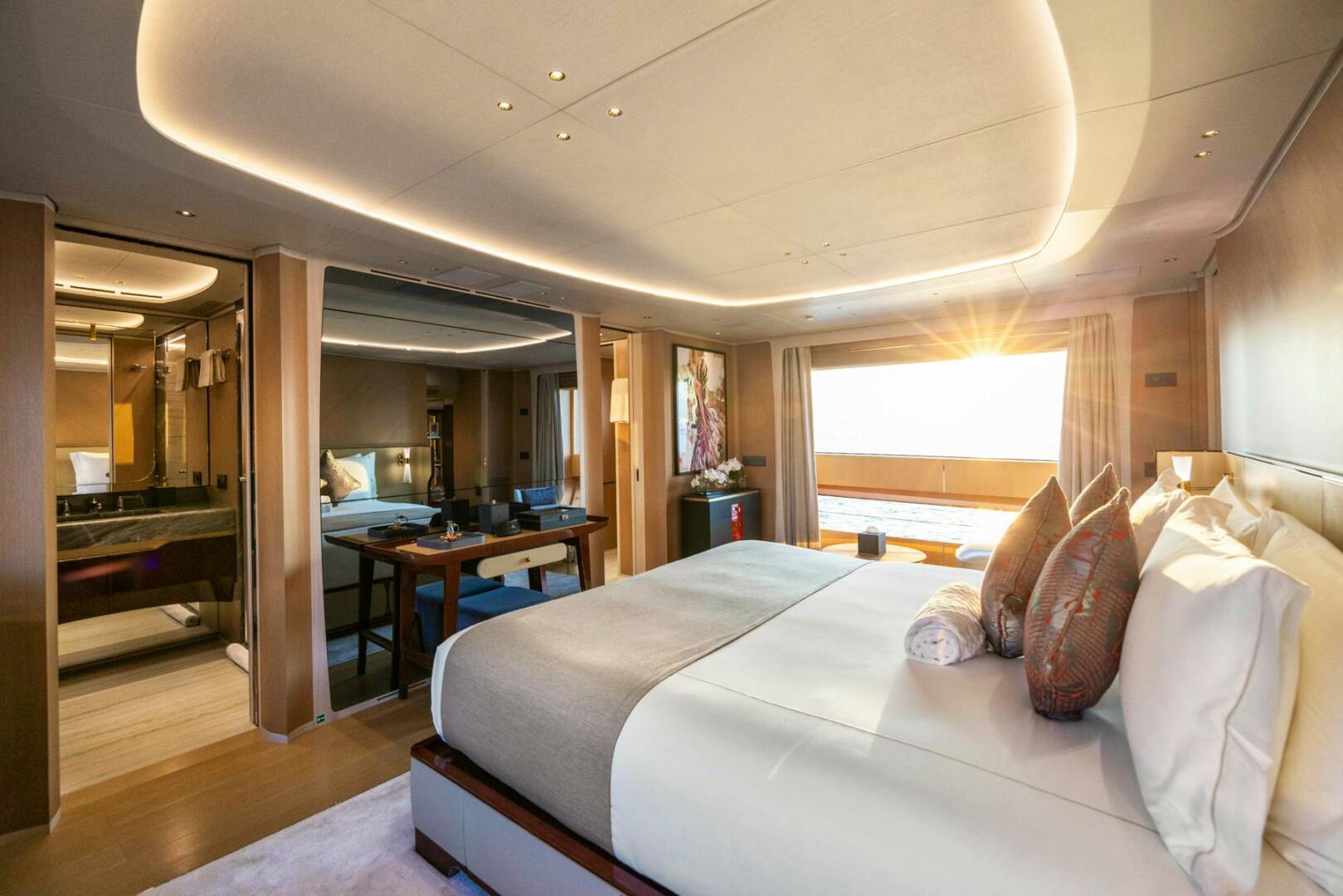

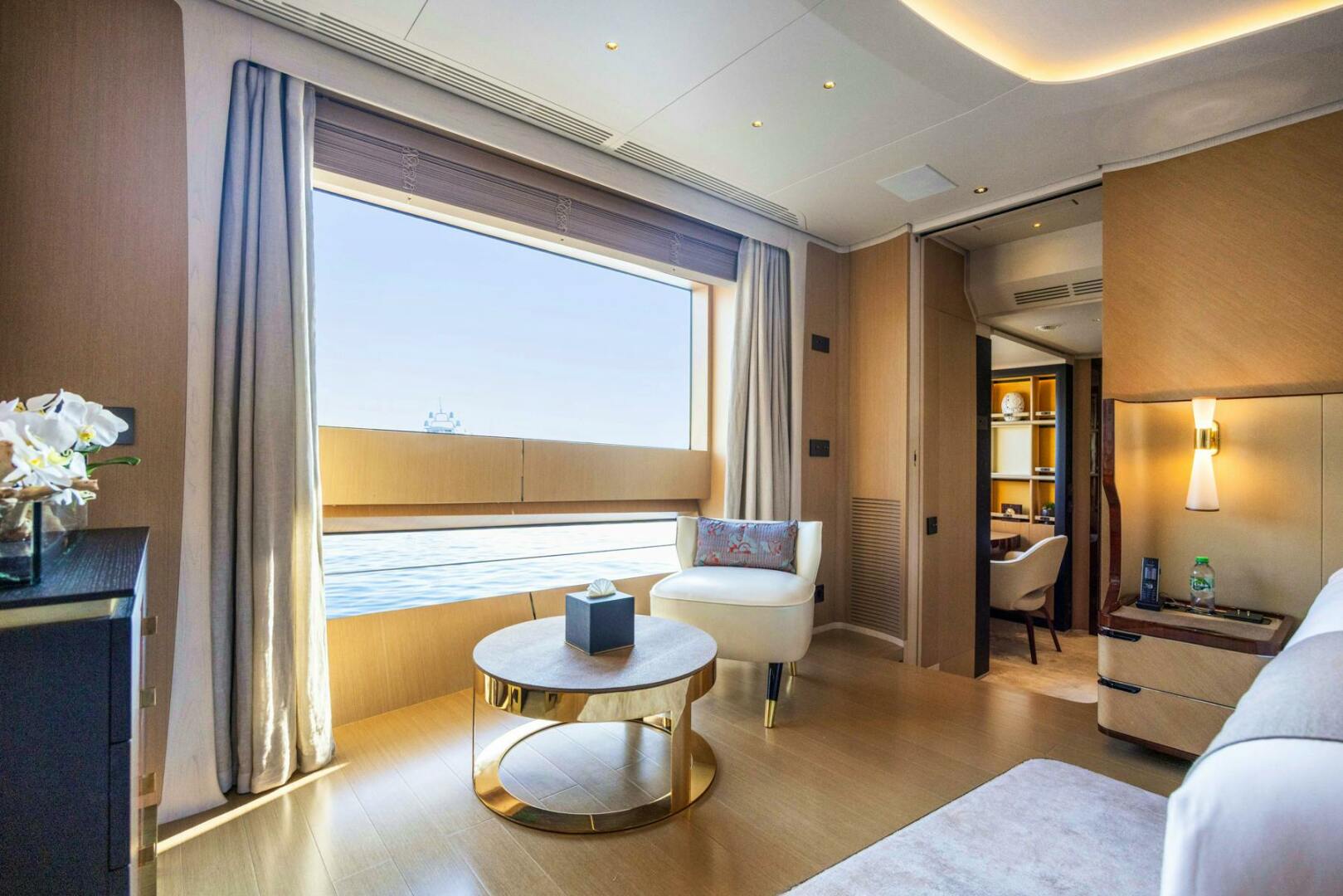

Owner’s Stateroom:

•    TV 55” LED Ultra HD•    Blu-Ray player•    H.Q. Speaker system surround 5.1 with powered subwoofer•    Integrated Wi-Fi remote control (mini-iPad)•    Mini iPad charge docking station•    Apple TV

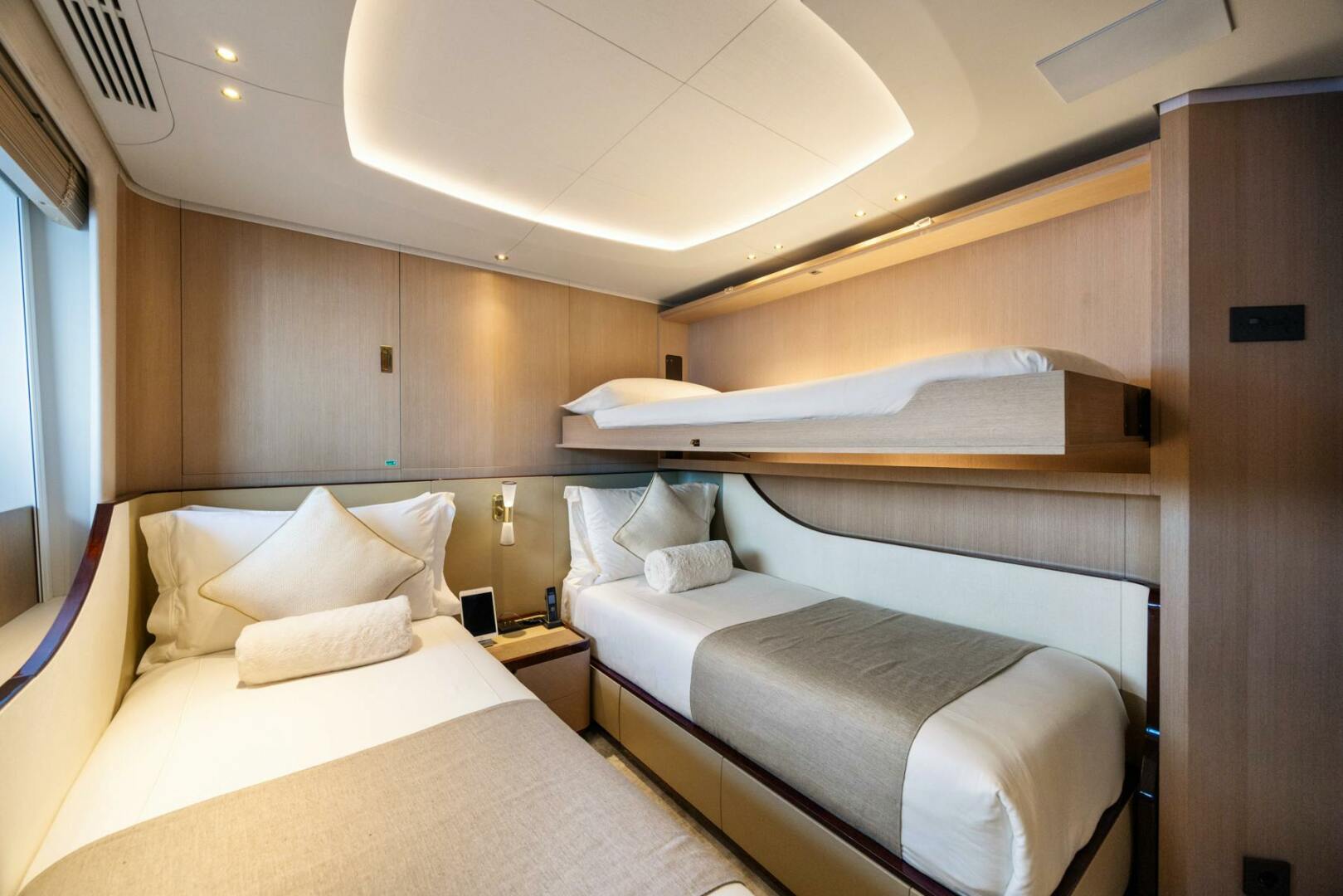

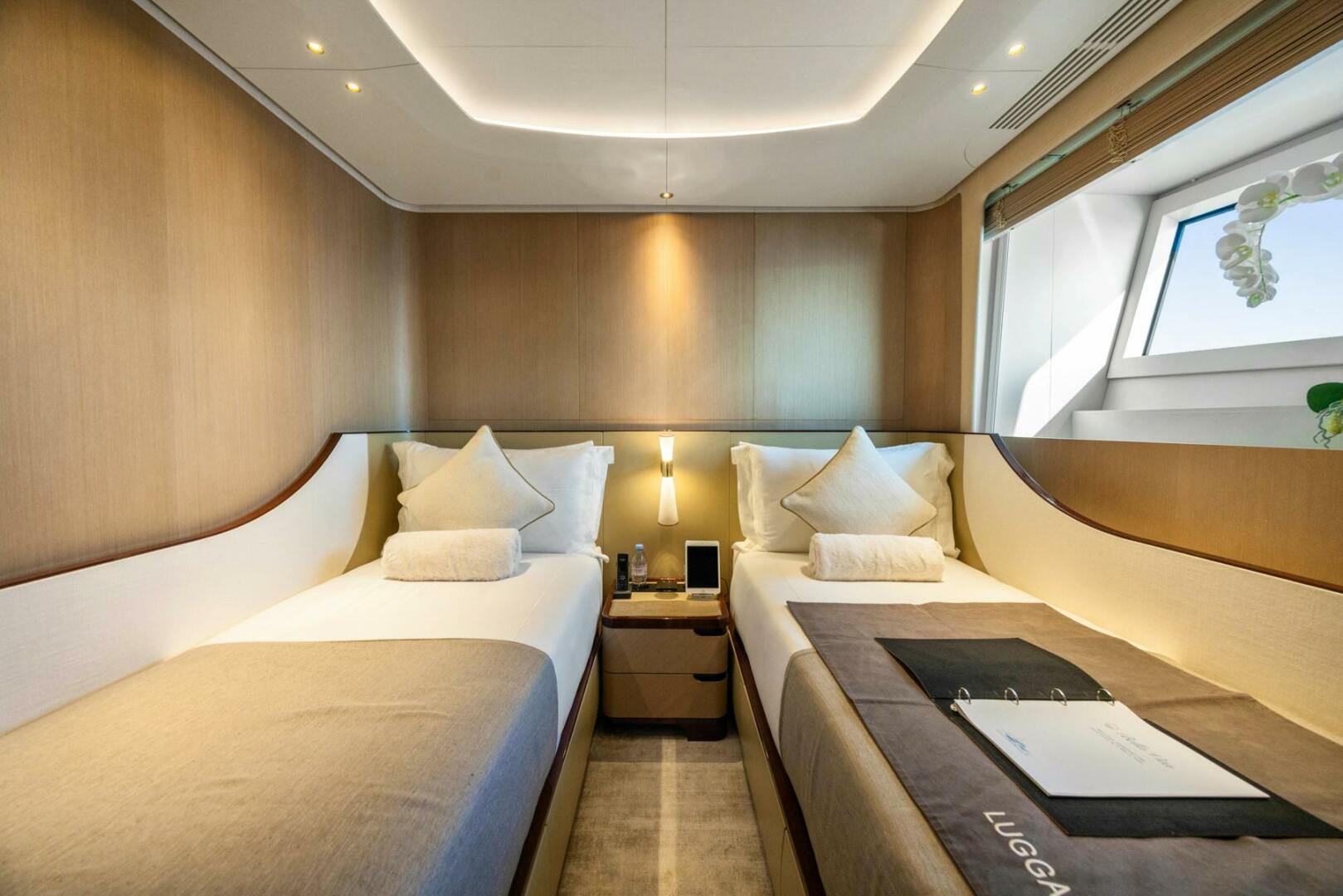

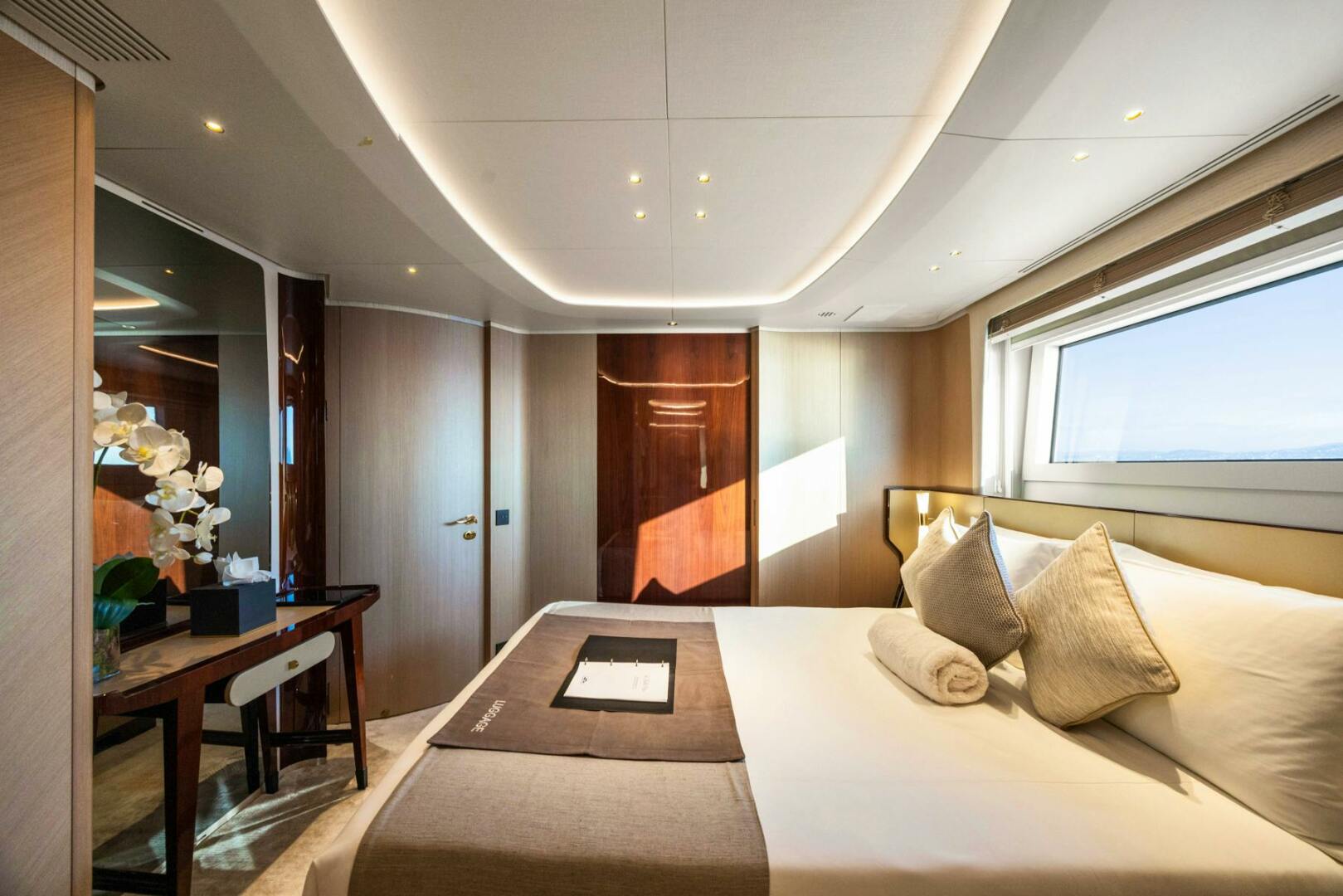

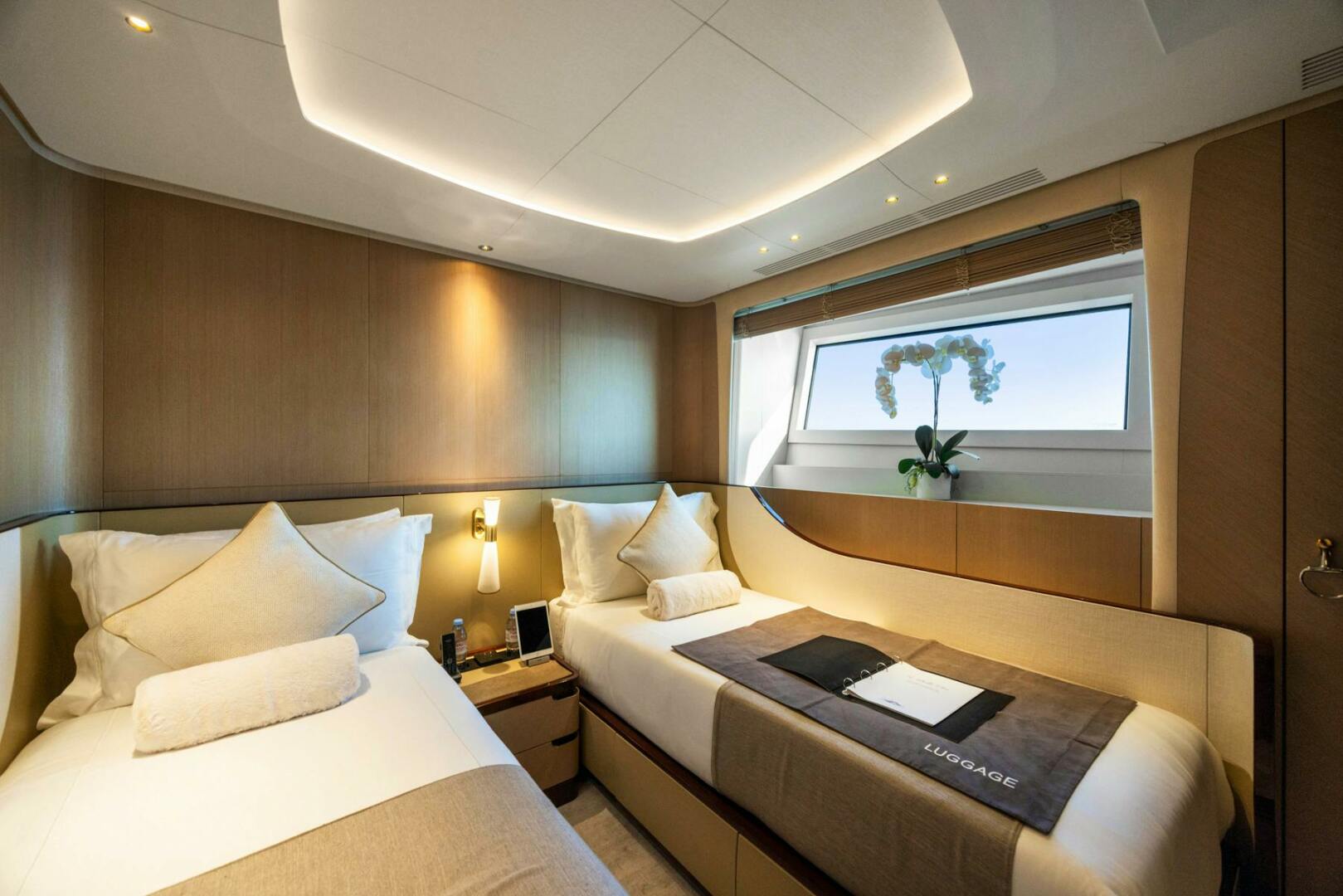

Twin Guest Cabins:

•    TV 28” LCD Full HD•    Blu-Ray player•    Pair of loudspeakers•    Integrated Wi-Fi remote control (mini-iPad)•    Mini iPad charge docking station•    Apple TV

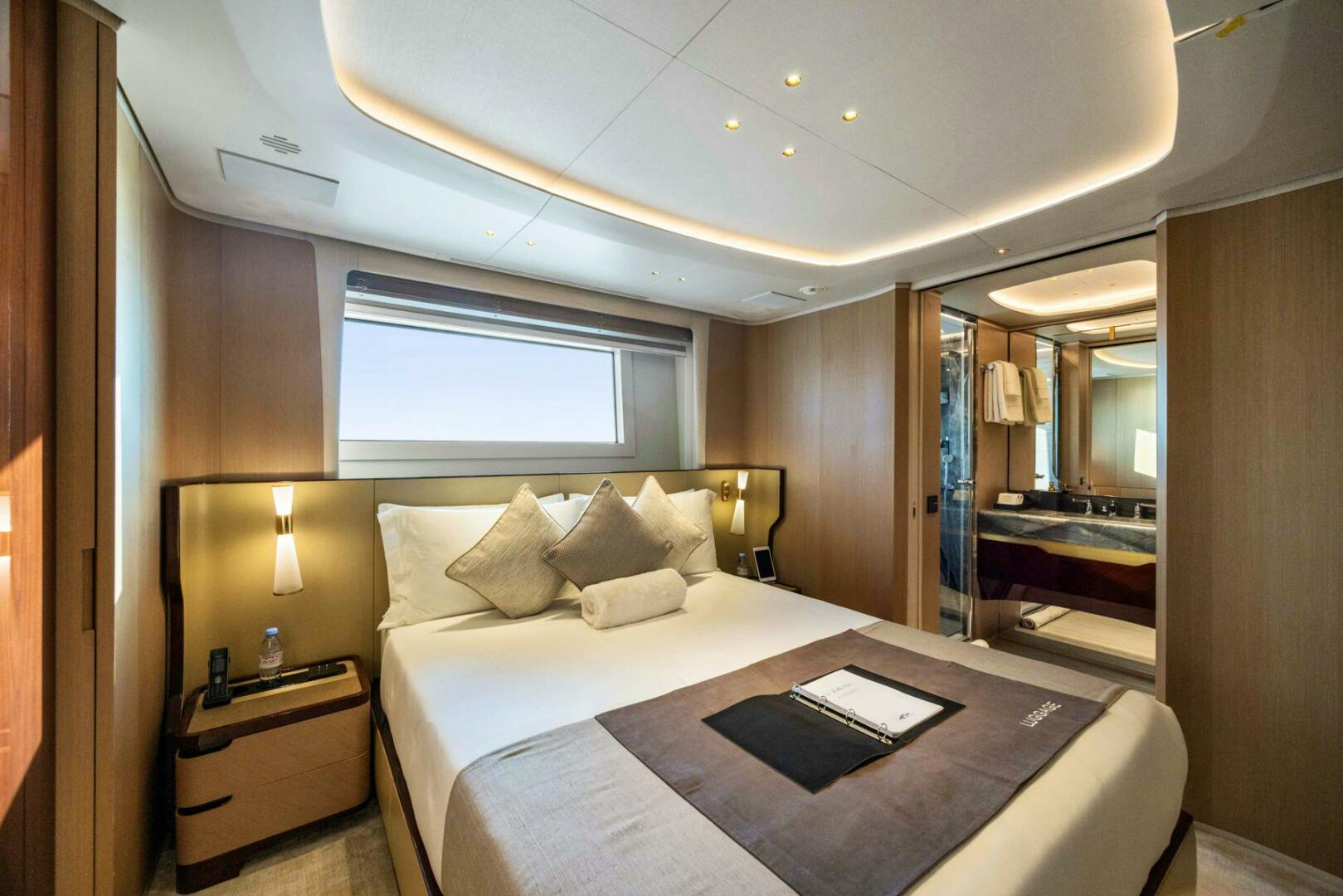

VIP Cabins:  •    TV 32” LCD Full HD•    Blu-Ray player•    Pair of loudspeakers•    Integrated Wi-Fi remote control (mini-iPad)•    Mini iPad charge docking station•    Apple TV

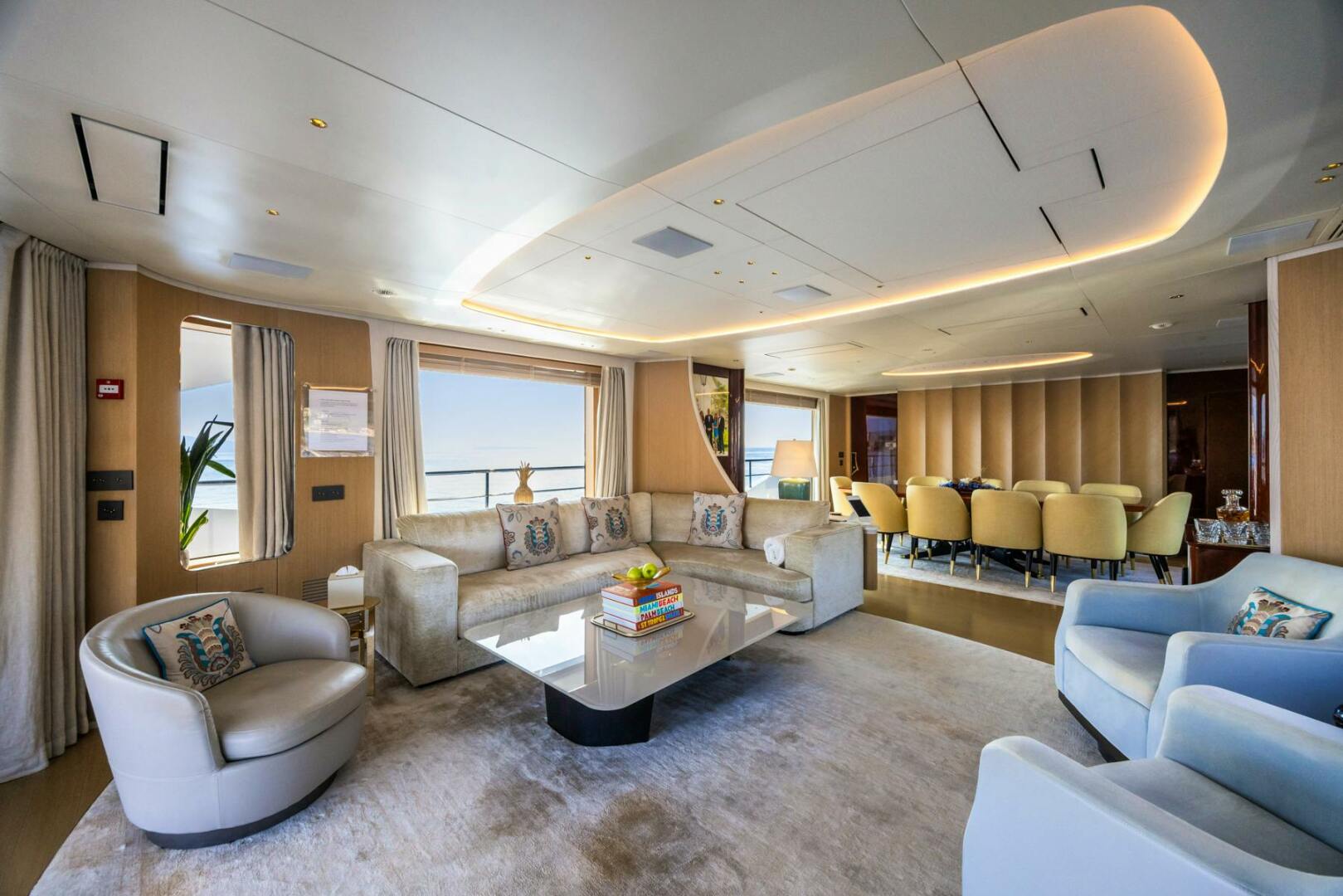

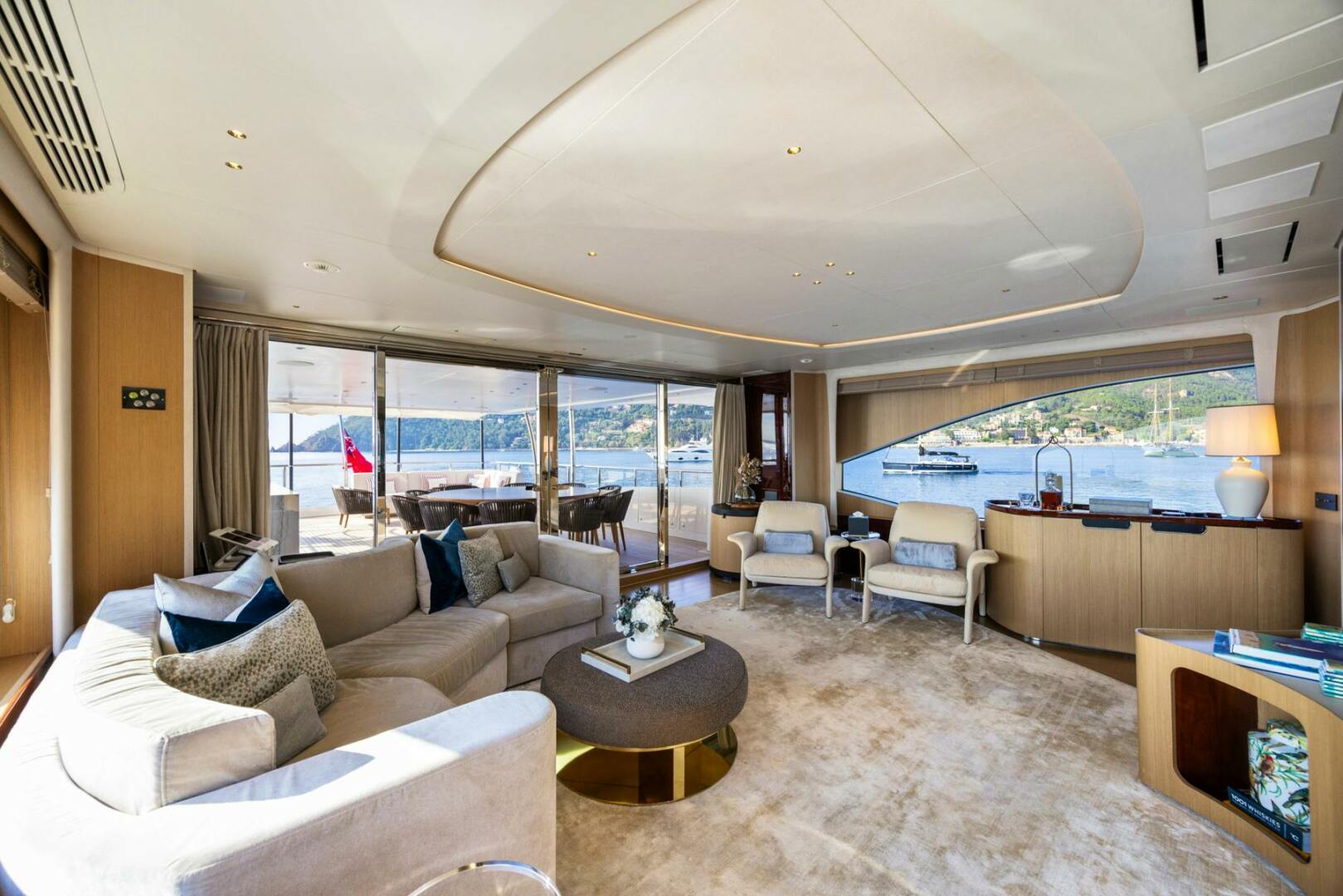

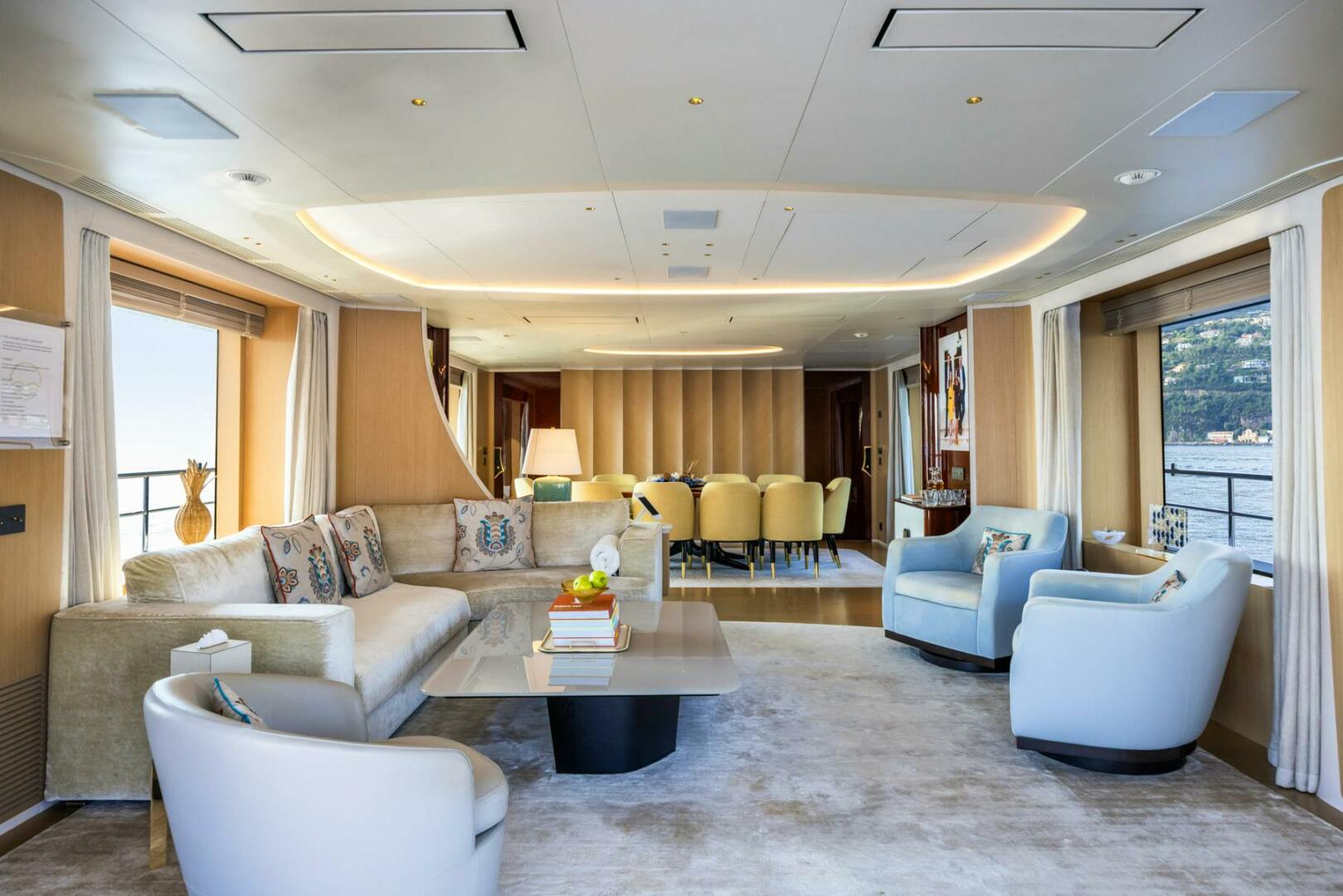

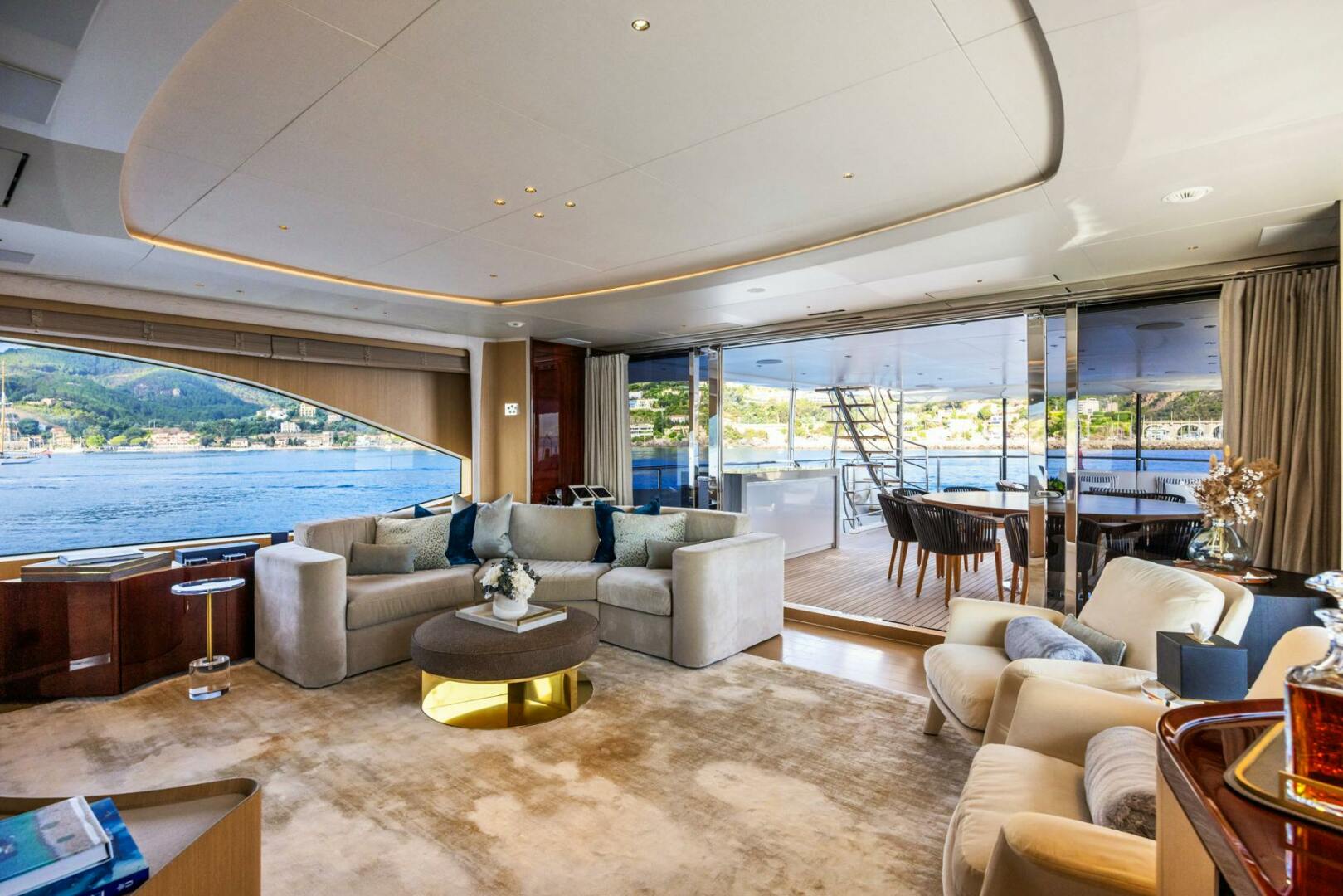

Main Saloon:

•    TV 55” LED Ultra HD•    Blu-Ray player•    Speaker system surround 5.1 with powered subwoofer•    Integrated Wi-Fi remote control (mini-iPad)•    Mini iPad charge docking station•    Apple TV

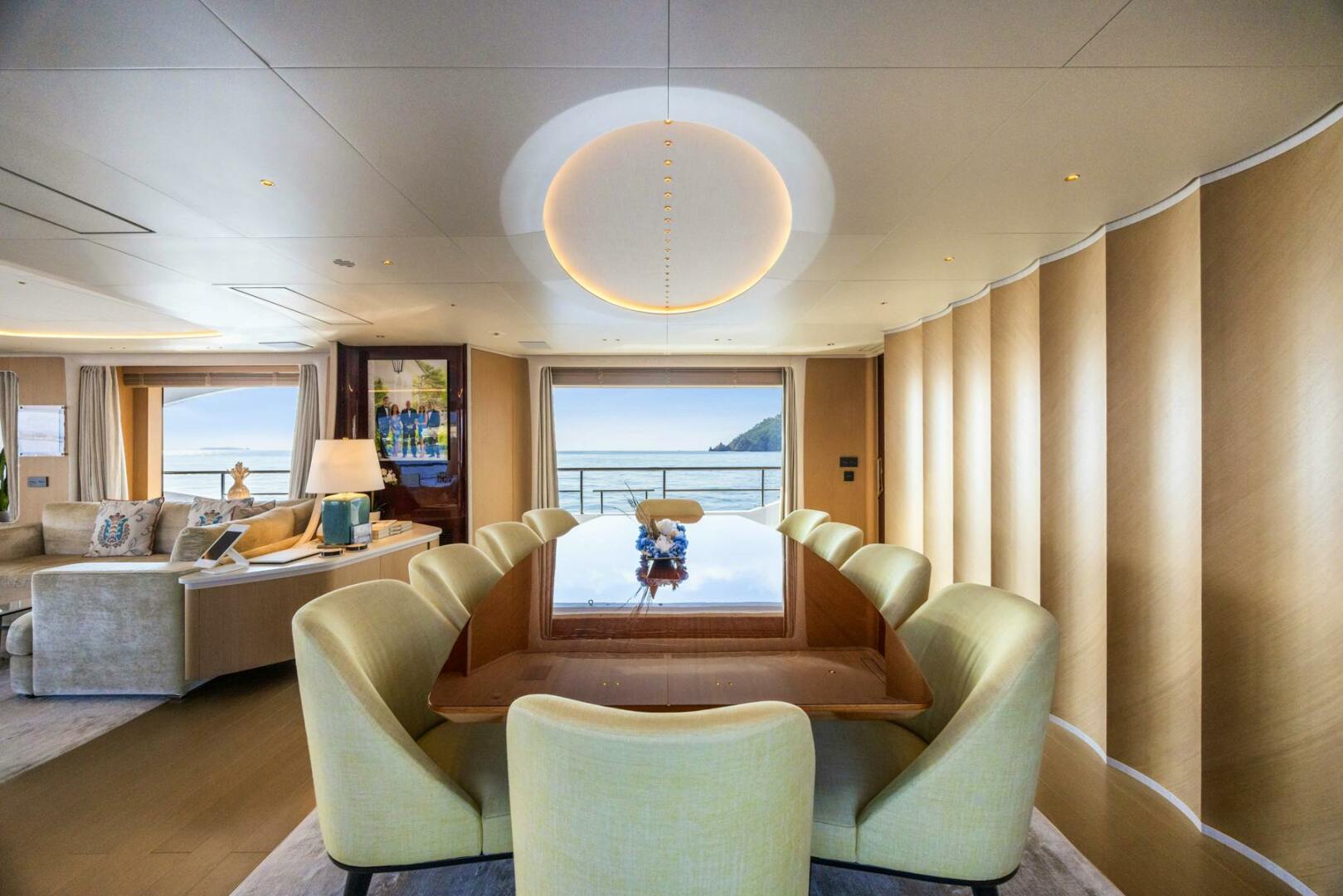

Main Saloon Dining:

•    Keyboard for volume control•    Pair of loudspeakers

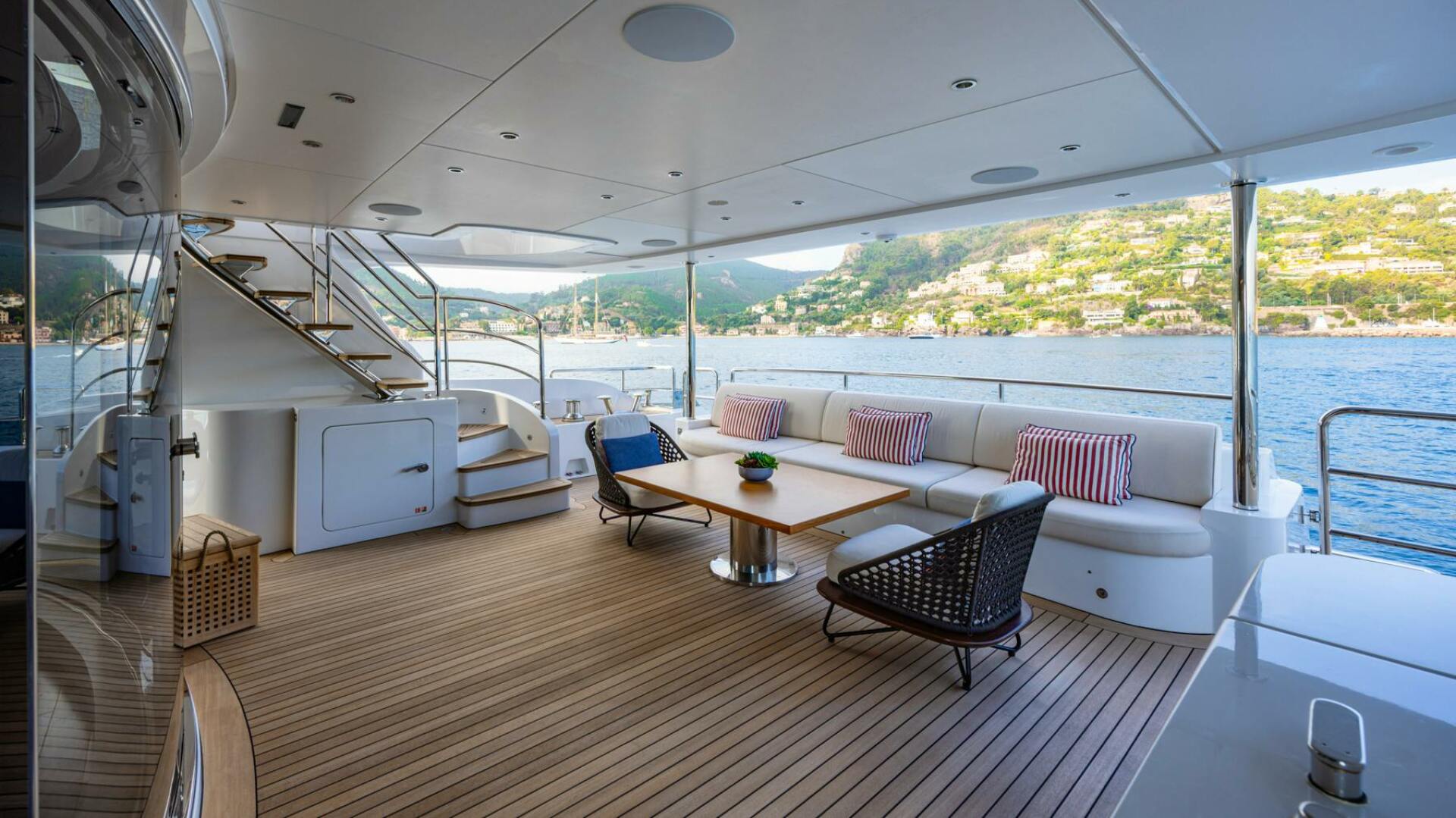

External Main Deck:

•    2 x Pairs of marine speakers•    Keyboard for volume control

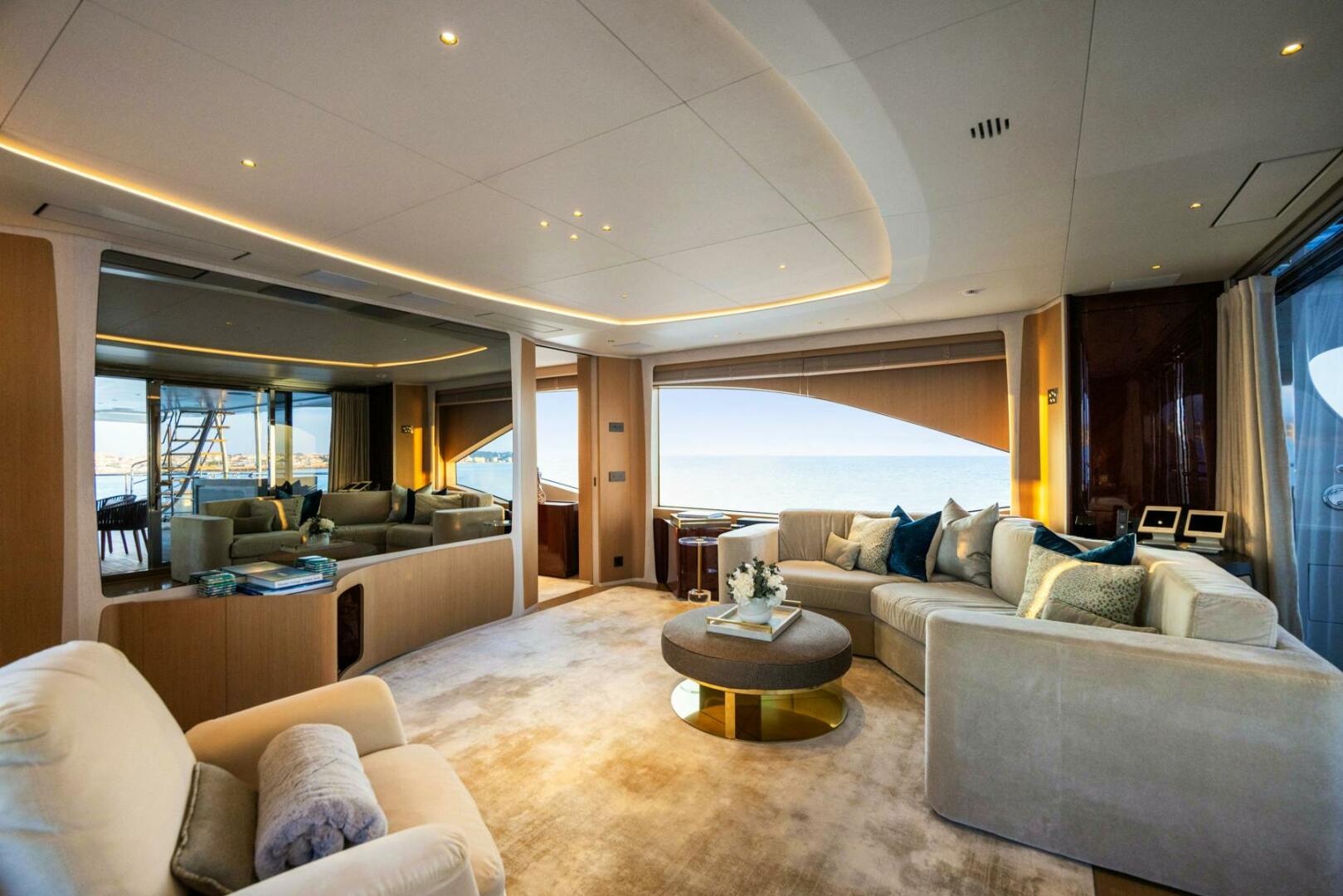

Sky Lounge:

•    TV 65” LED Ultra HD•    Blu-Ray player•    Speaker system surround 5.1 with powered subwoofer•    Integrated Wi-Fi remote control (mini-iPad)•    Mini iPad charge docking station•    Apple TV

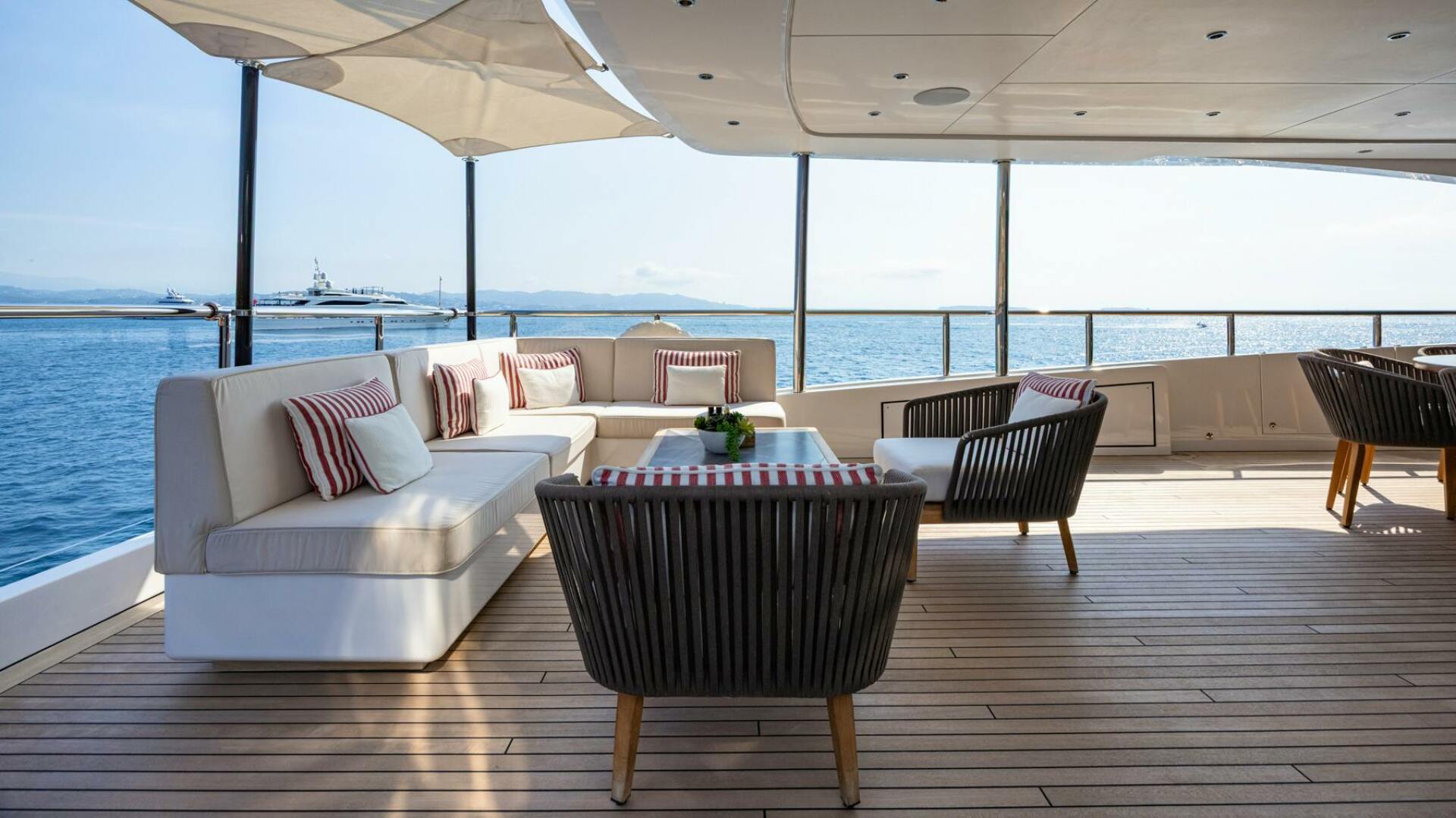

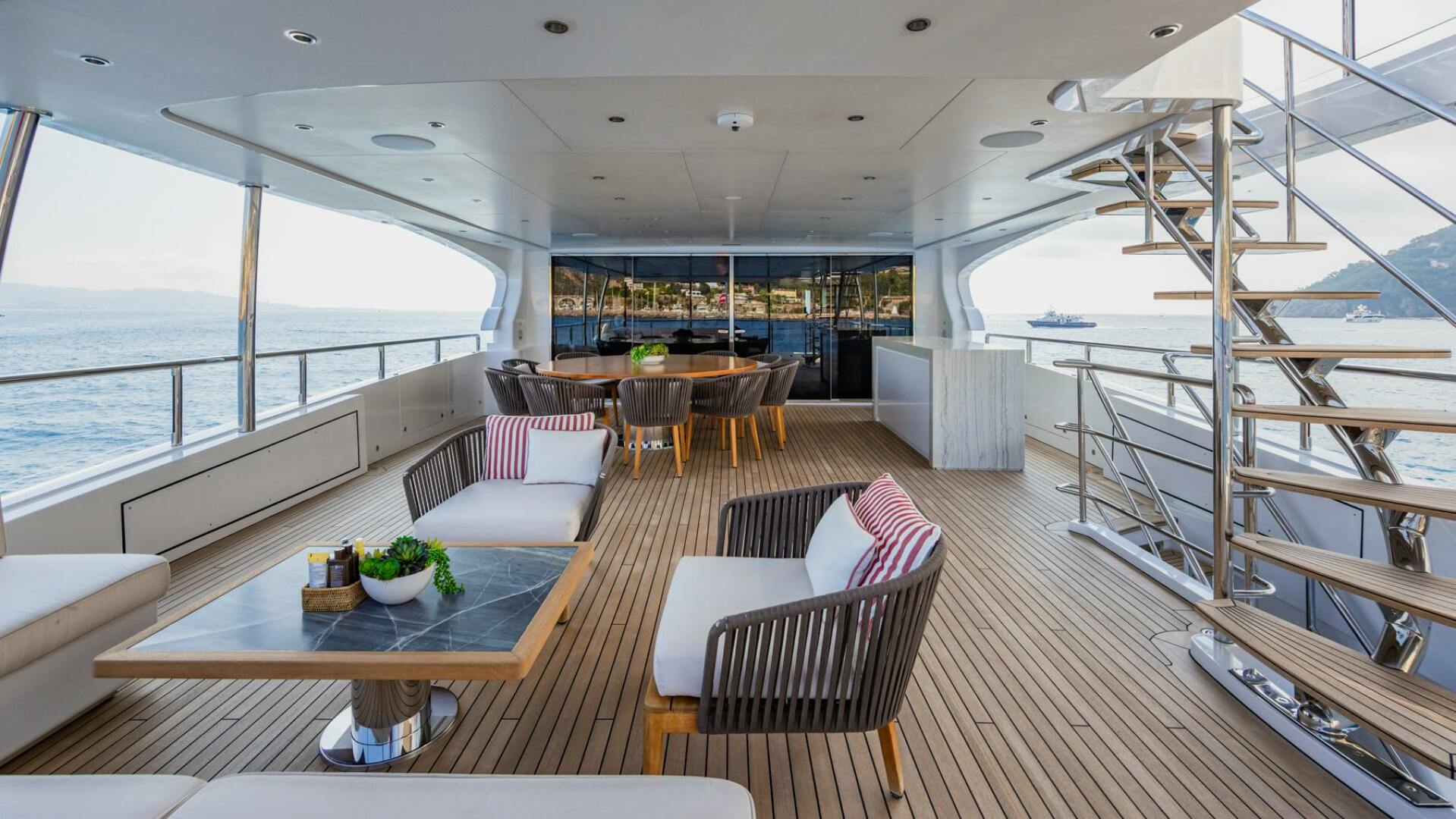

External Upper Deck Aft:

•    Keyboard for volume control•    2 x Pairs of marine speakers External

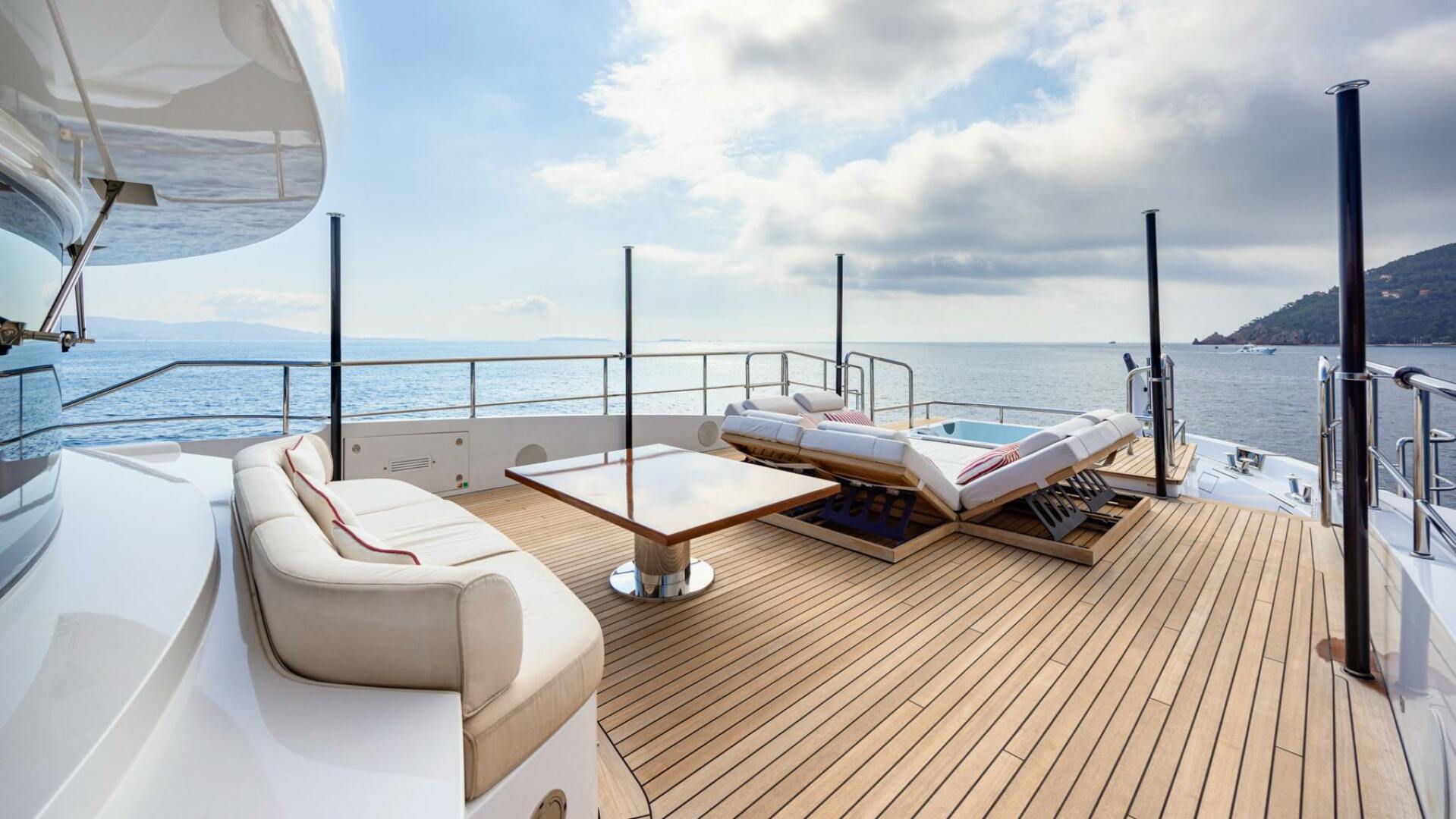

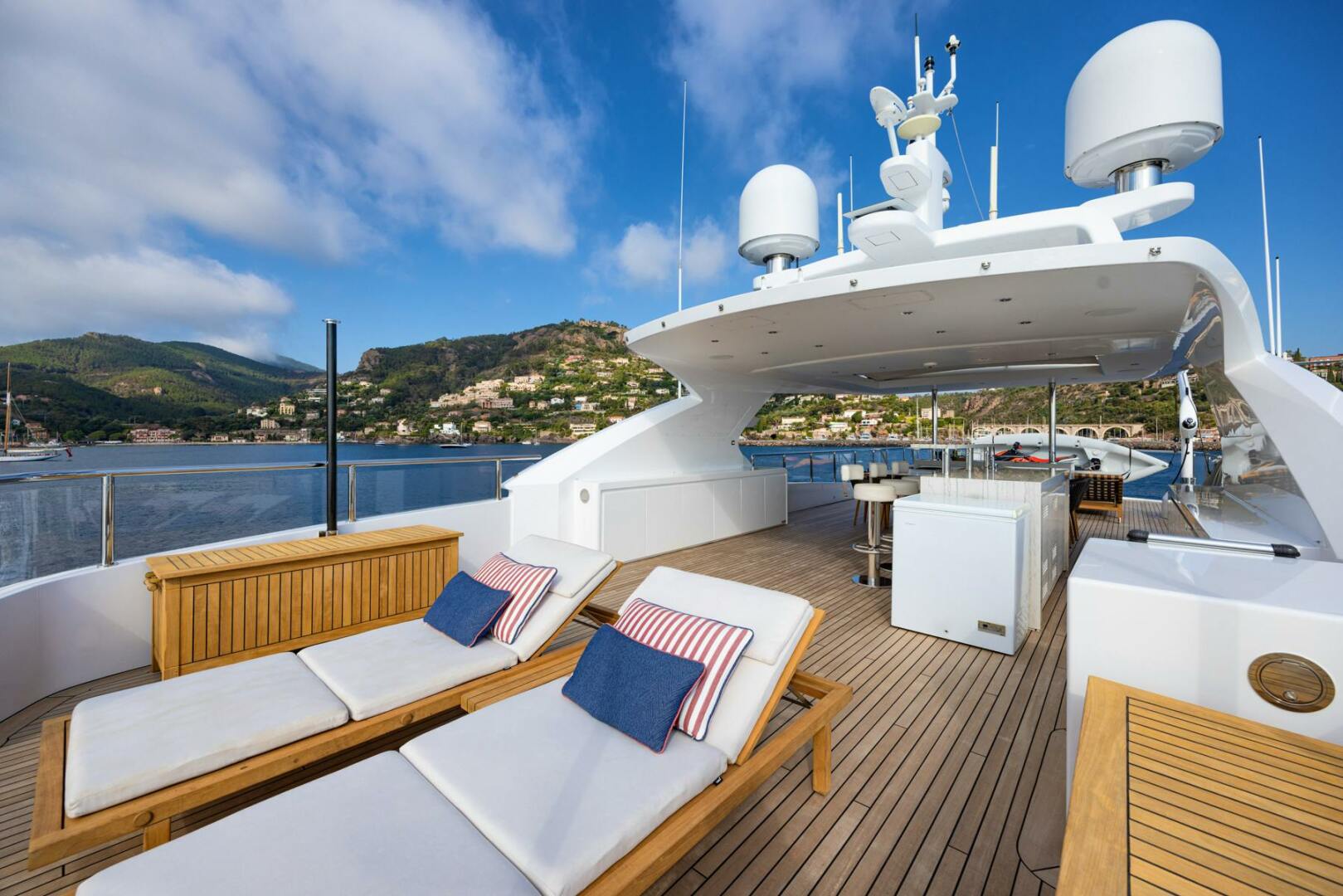

Sun Deck:•    Integrated Wi-fi remote control (mini-iPad)•    Mini iPad charge docking station•    3 x Pairs of marine speakers•    Power amplifier

Crew Mess:

•    TV 32” LCD Full HD•    Micro Hi-Fi – AM/FM Tuner - BD player•    Crestron system •    Apple TV •    Video on Demand•    Pair of loudspeakers•    Monitoring screen

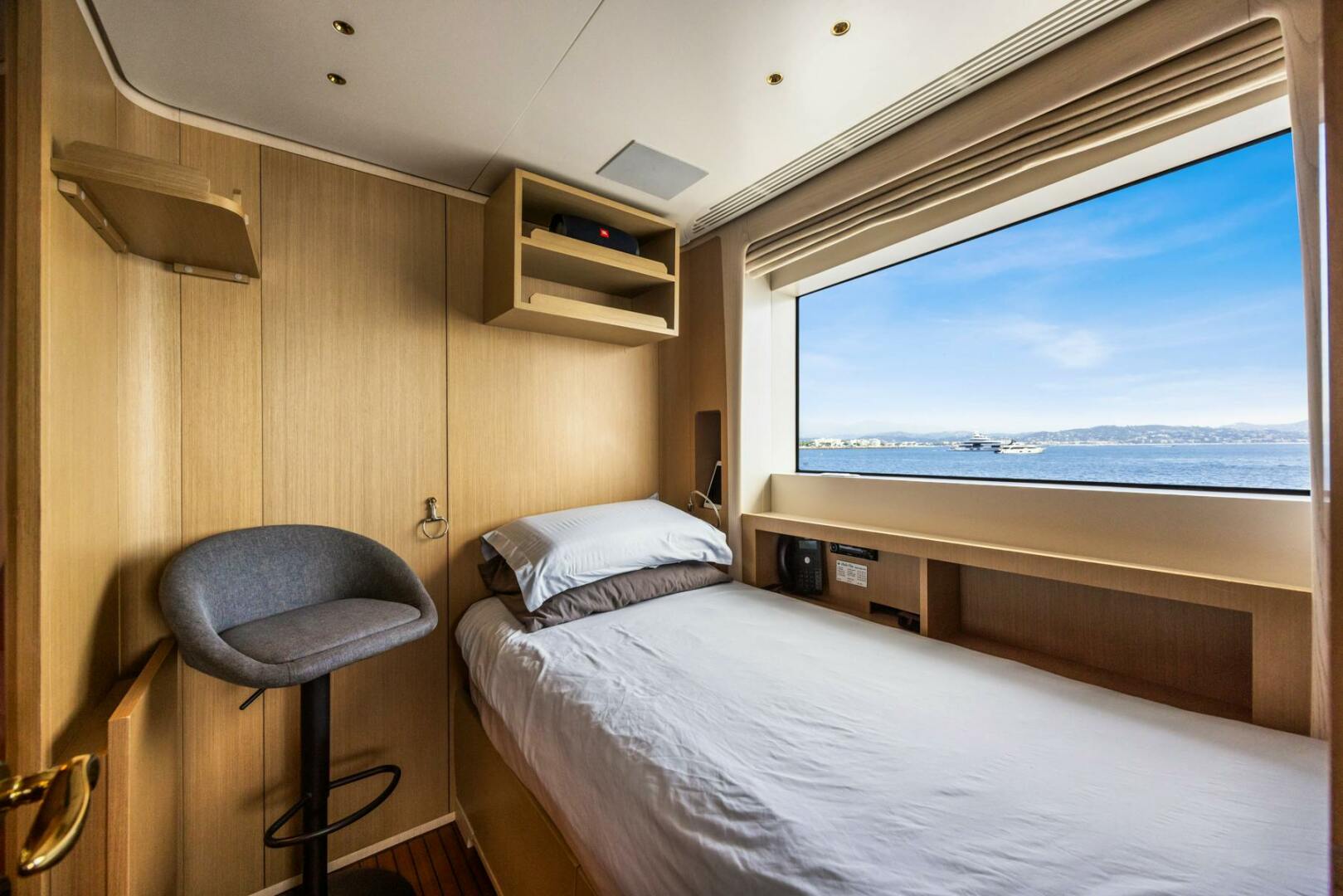

Crew Cabins:

•    AM/FM Tuner - CD player- iPod Ready•    TV + Apple TV•    Pair of loudspeakers

Galley:

•    AM/FM Tuner - CD player- iPod Ready•    Pair of loudspeakers

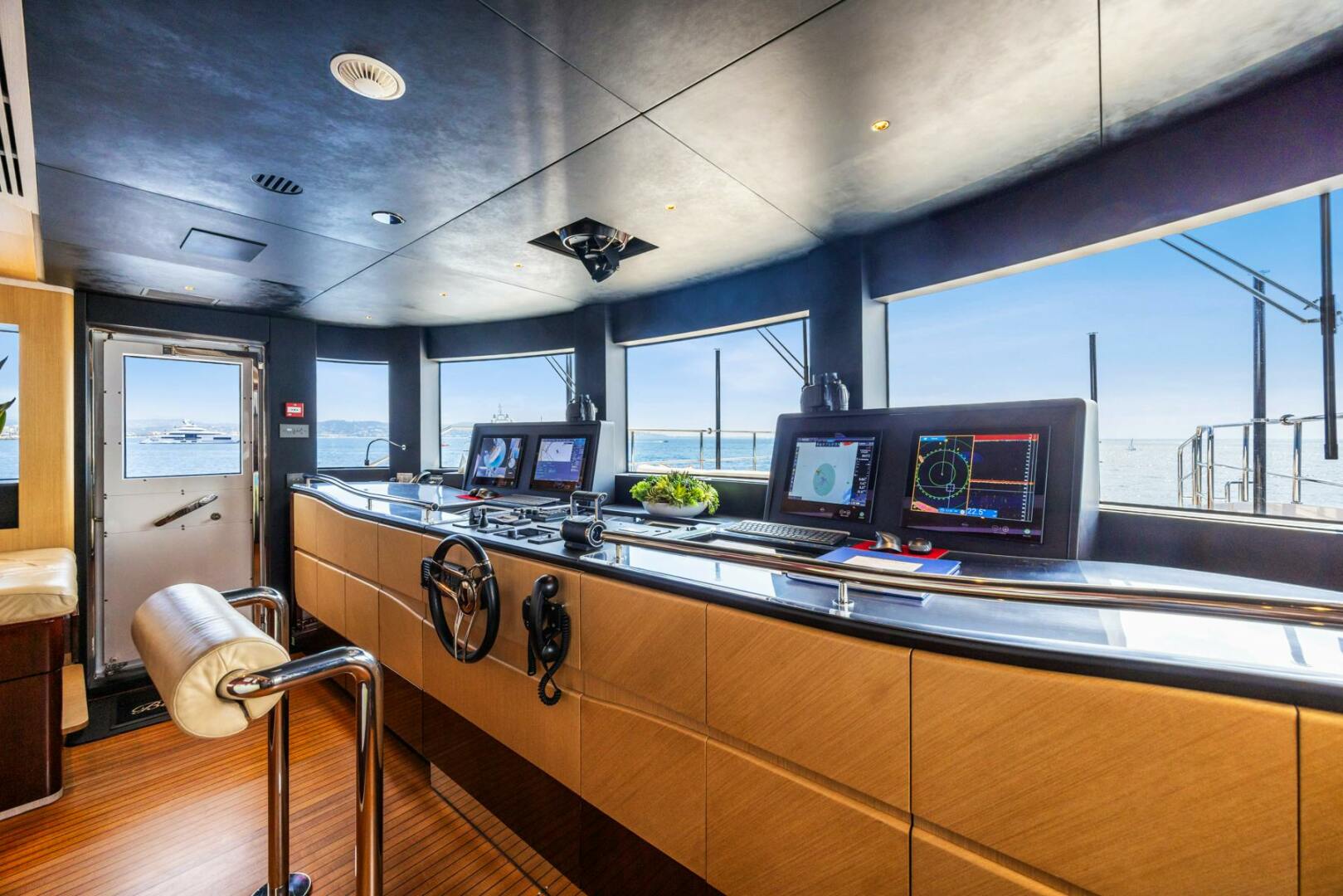

Wheelhouse:

•    Micro Hi-Fi - AM/FM Tuner - CD player•    Pair of loudspeakers

Captain’s Cabin:

•    AM/FM Tuner - CD player- iPod Ready•    Crestron system •    Apple TV •    Video on Demand•    Pair of loudspeakers

AV Technical Space:

•    2 x Switches managed 24 ports full gigabits•    Service PC for rack maintenance and remote service•    AVoD storage system 9 Tbytes raw (6Tb net) RAID System•    CRESTRON processor•    Voip Server•    Wi-Fi controller•    9 x AppleTV•    Power amplifier•    UMTS Router•    UPS Rack mount•    Rack for devices housing

Crew:

•    1 x Miele washer machine•    2 x Miele dryer machine•    Crew mess fridge

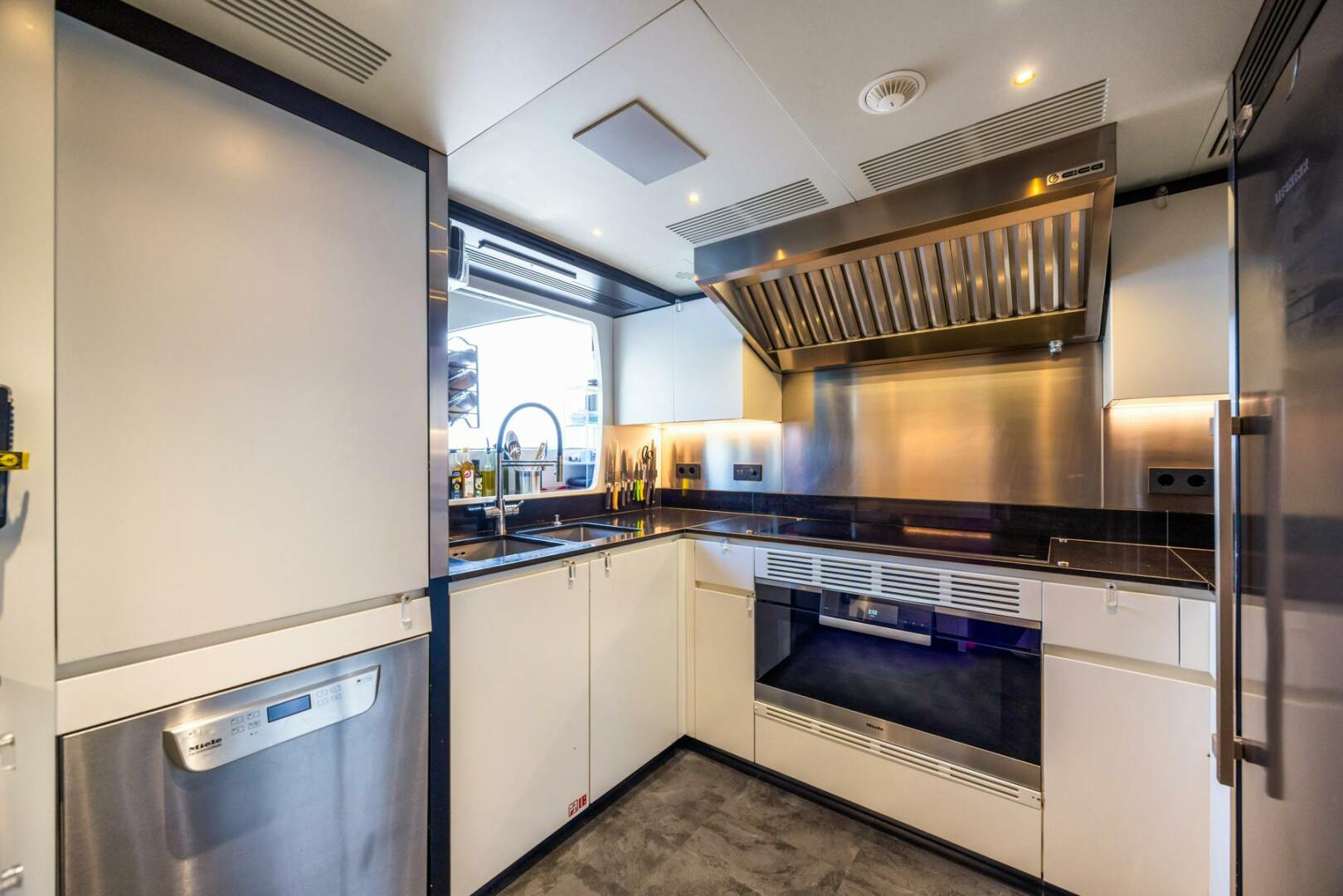

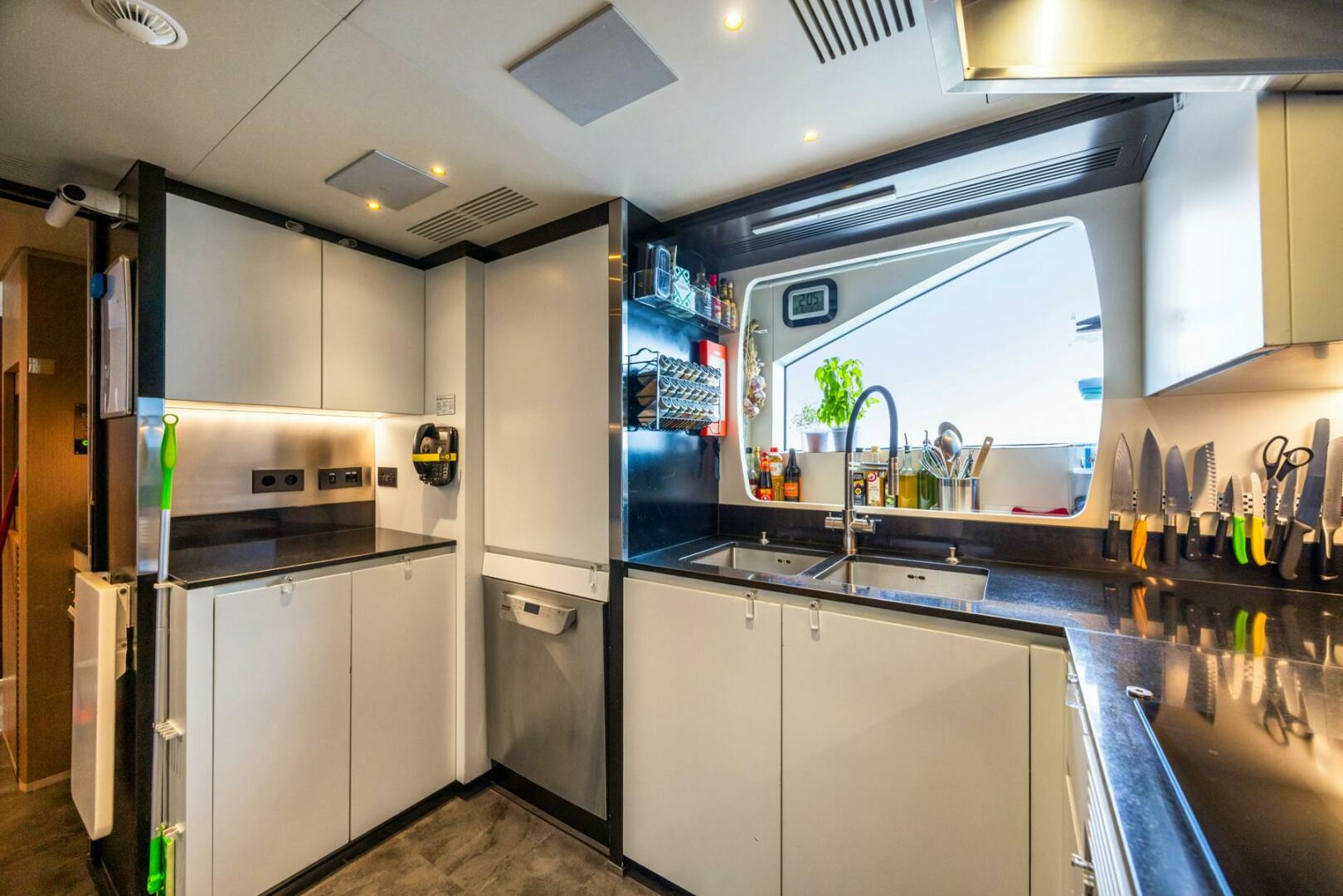

Galley:

•    Miele Cooking top •    Miele Exhaust hood •    Miele Oven•    2 x Miele Dishwasher•    Garbage macerator•    Freezer •    2 x Fridges •    Nespresso coffee machine •    Trash Compactor

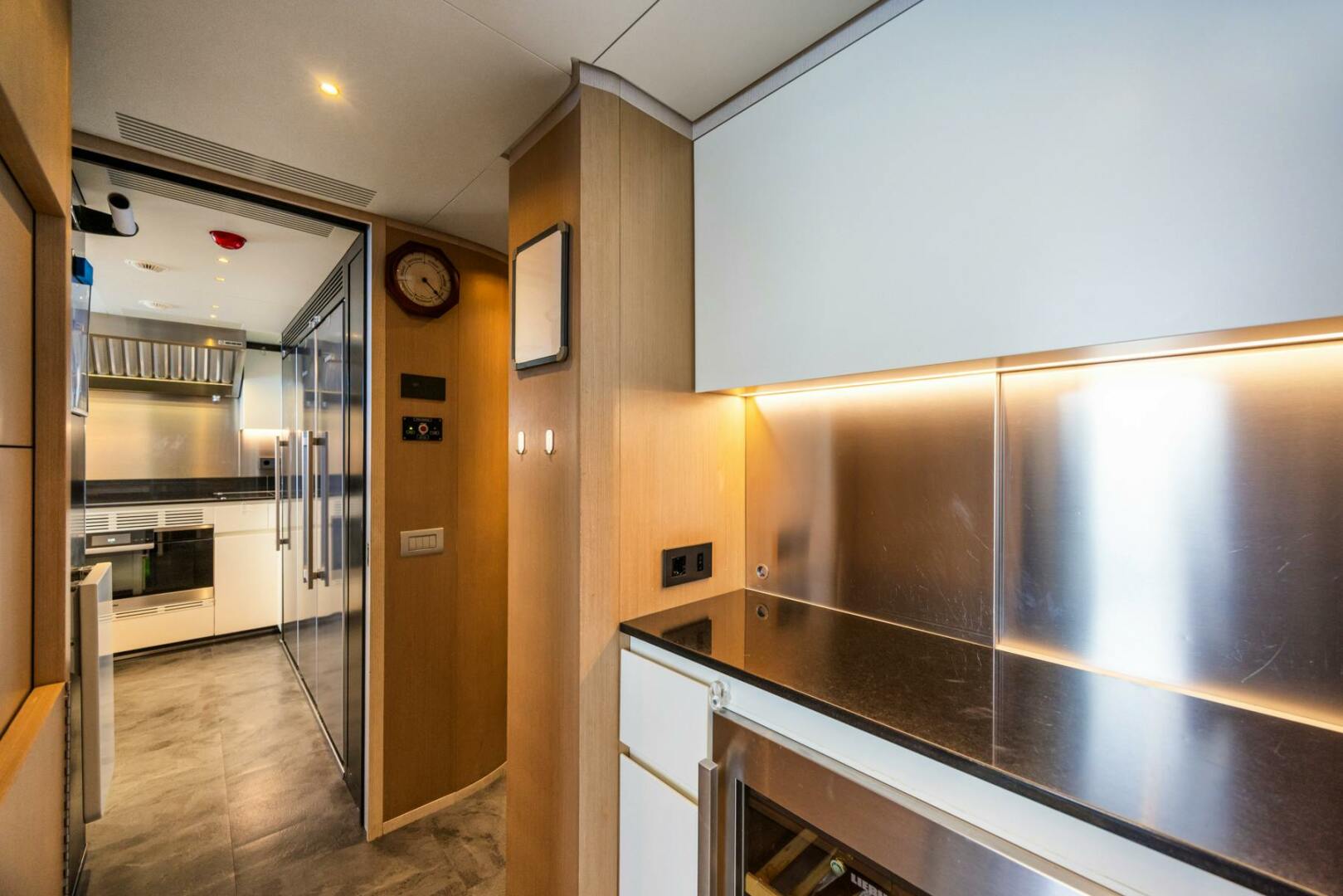

Pantry:

•    Wine cellar •    Microwave

Sky Lounge:

•    Ice maker ISOTHERM•    3 x Mini fridge ISOTHERM•    BBQ cabinet CUSTOM

External:

•    Sundeck Icemaker •    Cruise Fridge•    Sundeck Freezer

Windlasses: 2 x Electric MUIR 400 VACCapstans: 2 x Electric MUIR 400 VACMooring Bollards: 10 x AISI 316L stainless-steelAnchors: 2 x Galvanised steel 200 kg eachAnchor Chains: 2 x 6 shackles per line, 14mm chainGangway: Hydraulic retractable telescopic Swimming Ladder: Manual/removable AISI 316 stainless-steel Crane: Atlas crane in bow mooring and SD aft for jetski storageTender refueling station in garage

Fire Extinguishers: Portable CO2/foam/powder fire extinguishersNozzles & Hoses: Fire nozzles and hoses as for rulesBlankets: 2 x Firefighting blankets stored in the galleyMedical Kit: Medical kit suppliedLife Rafts: 4 x Life rafts for 6 peopleLife Buoys: 2 x with buoyant lineLife Jackets: 17 x Life jackets Engine Room Fire Dampers: 4 x Fire dampers

Tender: Williams 505 dieseljetJetskis: 2 x Seadoo Spark TRIXX 2-UP 90

•    Glendenning CM8 for shore power supply with 25m cable•    Shore Power converter (70 KVA)•    Shackles anchor chain upgrade (6 shackles per line, 14mm chain)•    Atlas crane in bow mooring and SD aft for jetski storage•    GSM phone line•    Furuno AIS, GPS, and Maxsea TimeZero Chartplotter•    Transas NS4000 ECS Chartplotter•    2 x Additional 15” LCD screens in the Wheelhouse•    Provision for VSat and SAT TV cables•    External speakers independent from internal source•    Crestron system + Apple TV + Video on Demand in captain cabin and crew mess•    TOP option: TV, stereo, and Apple TV in 3 crew cabins•    Third monitoring screen addition in the crew mess•    CCTV Full HD cameras: 3 fixed on Main Deck, 2 panning in Engine Room, 1 on mast, 1 mini fisheye on aft UD dining area•    3 x Mattresses upgraded to 9-inch high •    Guest bases with 12-buck airflow holes; crew bases lined with Heronrib for airflow•    Ice maker (Isotherm IM230) on the sun deck•    External shower with stainless steel pole on bathing platform•    Diving equipment store: scuba tanks rack and compressor•    Marble upgrade throughout the interior•    Carpet upgrade•    Underwater lights: 8 installed•    Gym equipment installation

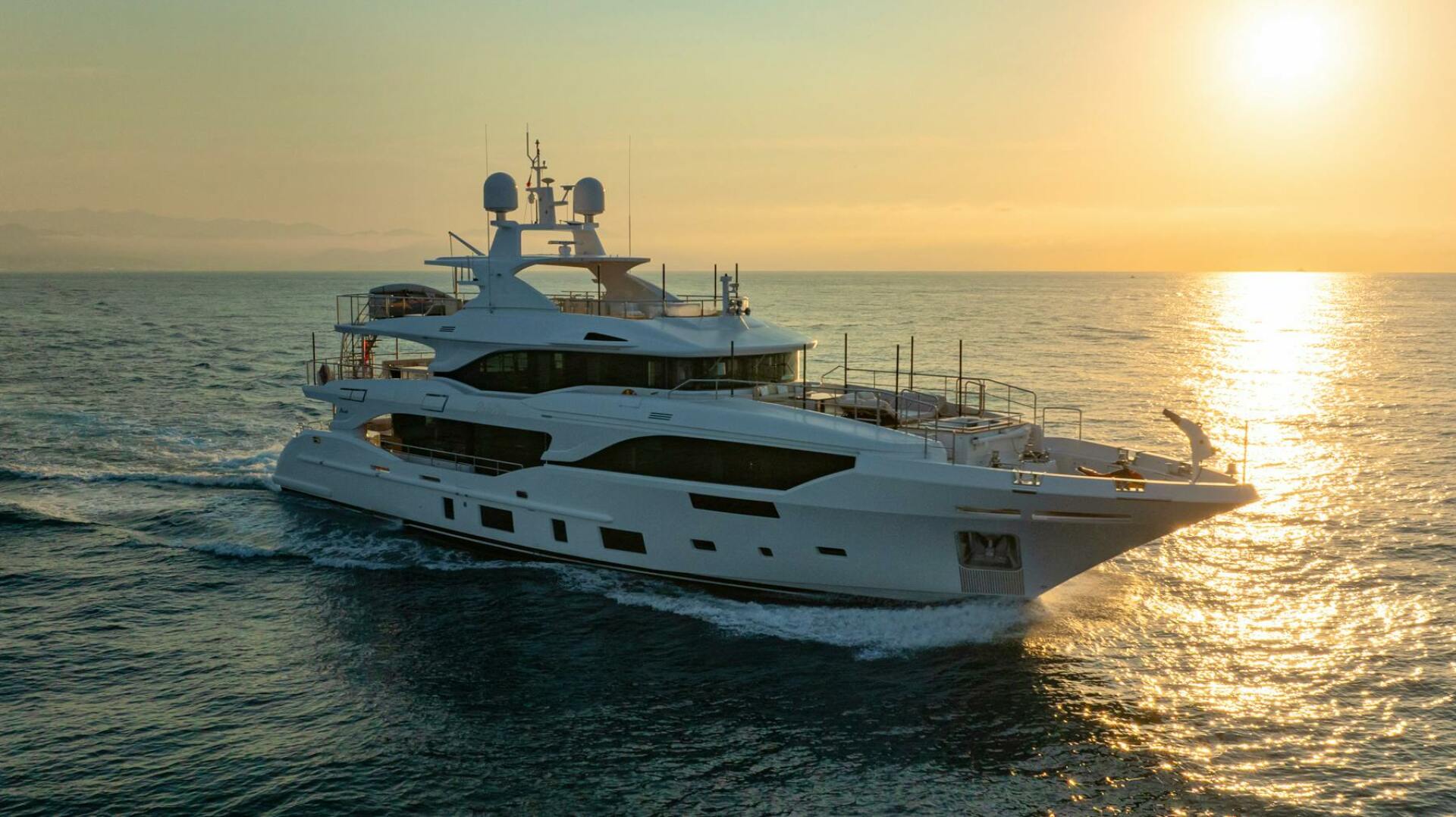

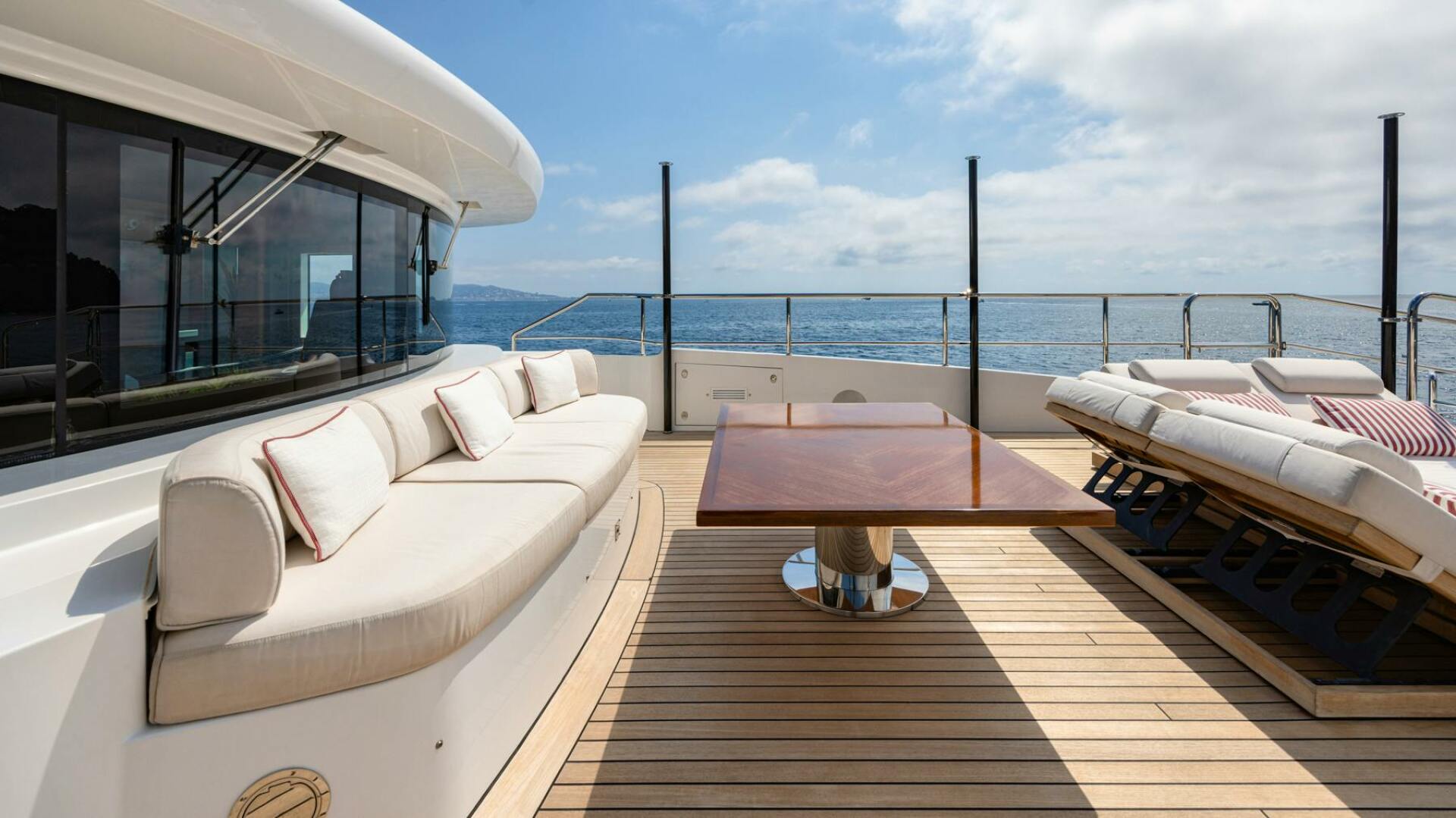

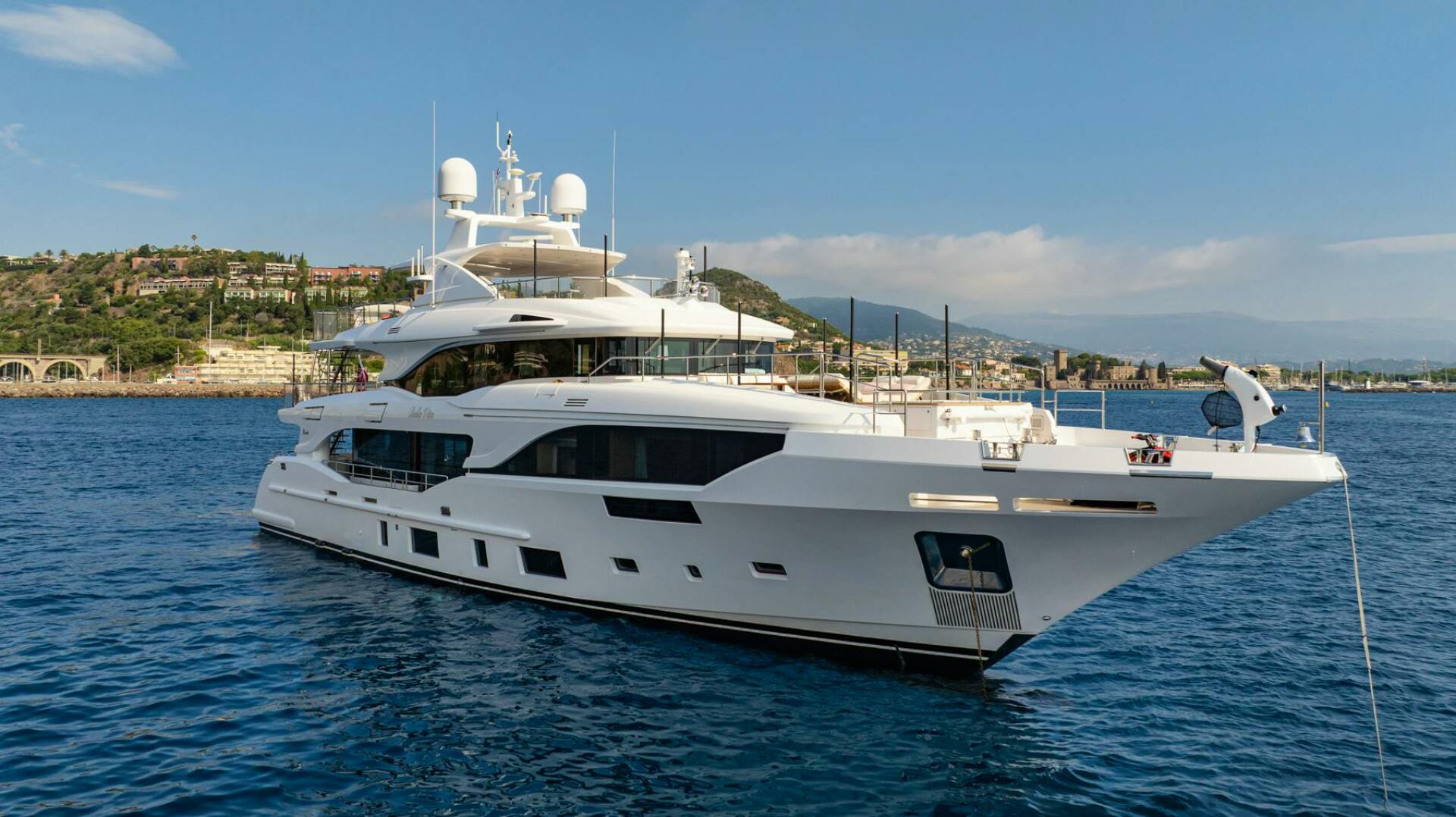

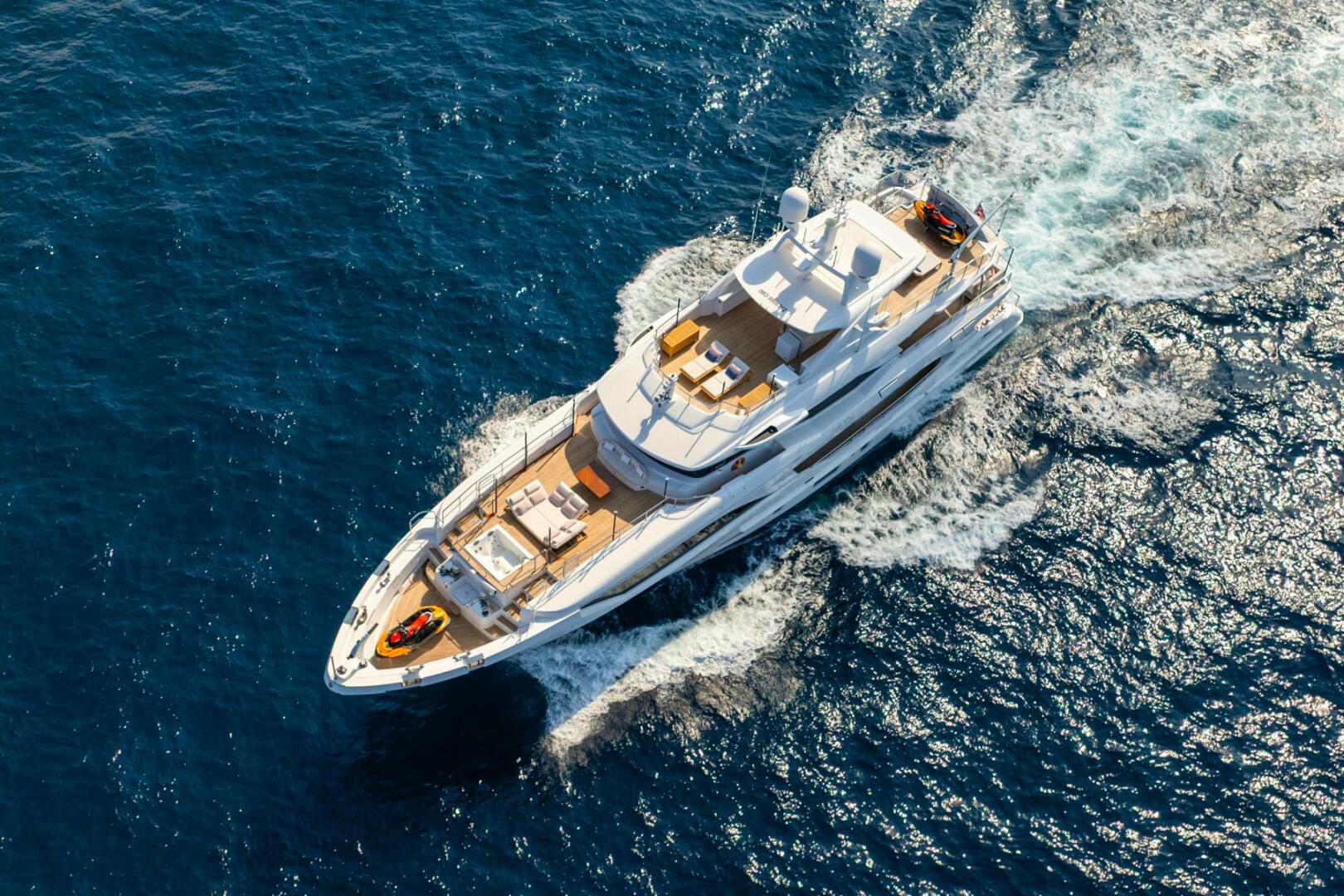

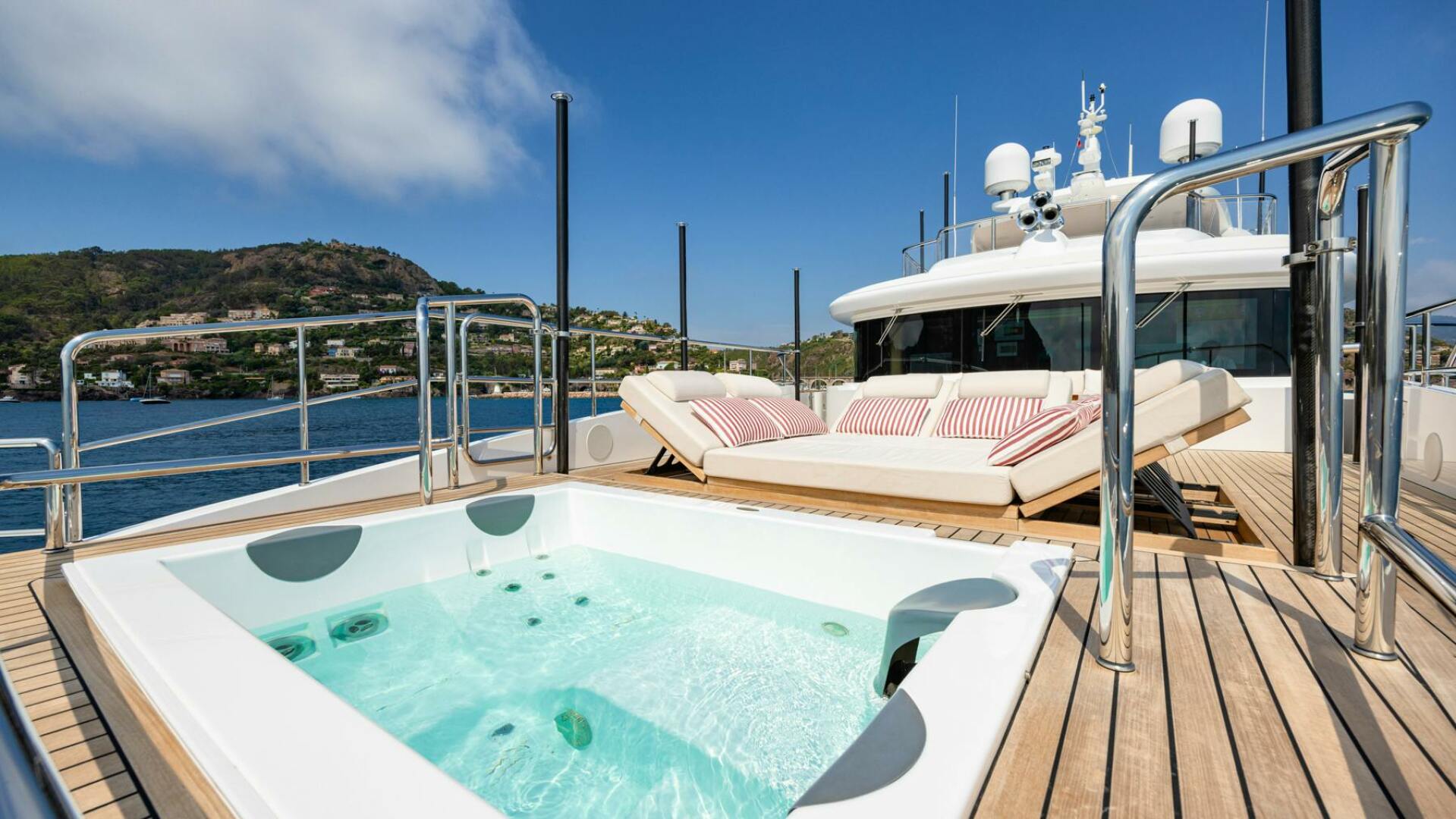

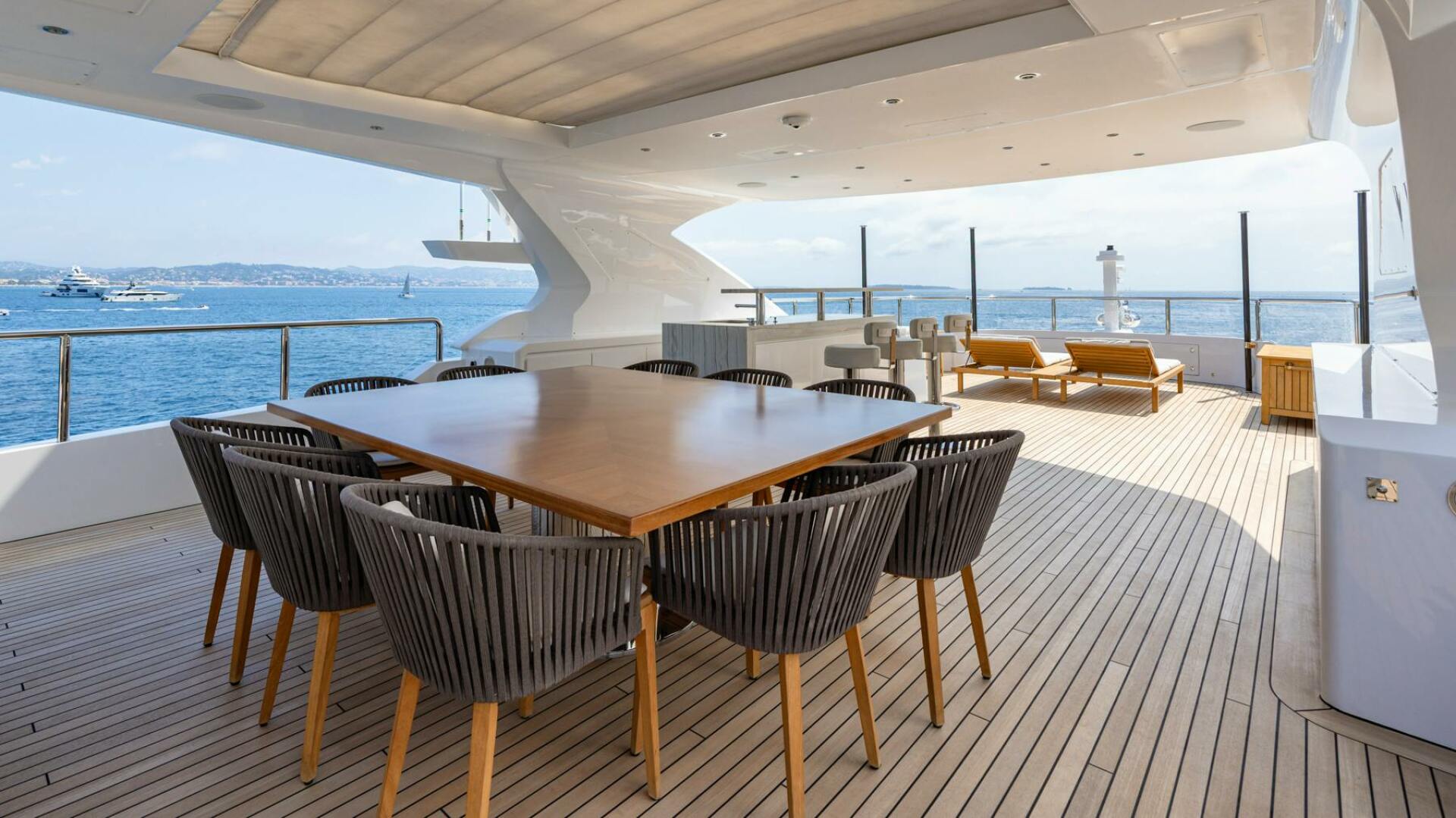

IMAGES OF SISTERSHIP.
